ARCLED7507Q2Z
PROLIGHTS


ARCLED7507Q2Z

ARCLED7507Q2Z is a new generation PAR LED zoom. Specifically designed for rental company use; a multi-purpose concept suitable for both indoor and outdoor use on stage and architectural lighting in both medium and large venues. ARCLED7507Q2Z offers unprecedented performance, employing LED 7x15W RGBW full colour and a high efficiency 8° - 40° optical zoom system for applications such as wash, beam or both in the same stage-plot. The colour calibration system, 2.800 K - 10.000 K built-in white preset, 5 selectable dimmer curves and the total absence of fans make ARCLED7507Q2Z suitable for any lighting design with demanding requirements.

Main features:

  • 7x15 W LED RGBW / FC
  • 8° - 40° optical zoom system

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x15W RGBW LED
  • Luminous flux: 1'919
  • Lux: 5'600lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 6 - 43° motorised linear zoom
  • Beam angle: 8 - 40°
  • Field angle: 11 - 43°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 4 / 5 / 6 / 7 / 12 / 17 / 25channel
  • Display: LED display user interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Operating temperature: -40° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 128W
  • Output (at 230V): 24 units on a single power line
PHYSICAL
  • IP rating: IP67 (IP) - IP54 (TZ)
  • Cooling: pressure and temperature balance through GORE membrane vents
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: DMX 3p IN/OUT
  • Power connection: powerCON TRUE1 IN/OUT
  • Dimensions (WxHxD): 190x324x228mm / 7.48''x12.76''x8.98''
  • Weight: 7kg / 15.43lbs

Versions

Code
Power Connections
Signal Connections
IP rate
ARCLED7507Q2ZIP
ARCLED7507Q2ZIP (DISCONTINUED)
IP cable
IP cable
IP67
ARCLED7507Q2ZTZ
ARCLED7507Q2ZTZ (DISCONTINUED)
Powercon
DMX in/out
IP54
ARCLED7507Q2ZSC
ARCLED7507Q2ZSC (DISCONTINUED)
Seetronic
Seetronic
IP54

Accessories & Related Products

ARCEXAC3
ARCEXAC3
(optional)
IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
ARCEXDC3
ARCEXDC3
(optional)
IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors

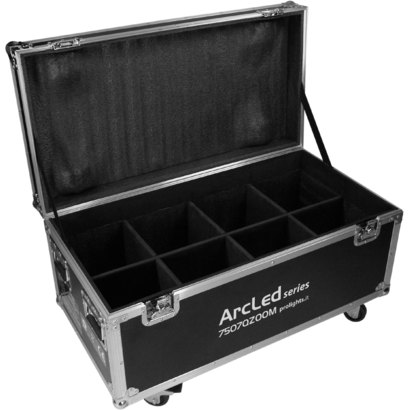

FCL7507
FCL7507
(optional)
Flight case with internal compartments designed to contain 8 pcs ARCLED7507

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Arcled7507q2zsc_USER_MANUAL_ITEN.pdf 8MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Arcled7507q2z_2D.dwg 608KB
Technical drawing Arcled7507q2z_TECHNICAL_DRAWING.pdf 139KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
