DIGITUBE
TRIBEby TRIBE


DIGITUBE

ORDER CODE: DIGITUBE

360° visual pixel tube

DIGITUBE is an evolution in the range of pixel effects, adding the 3rd dimension to the creation of visual shows through its tubular shapes and capacity to project at 360°. Each tube is equipped with 2 lines of 40 RGB / FC LED with individual pixel control, 1 m long. Its modular design allows DIGITUBE to be mounted and configured with maximum flexibility, such as suspended below the ceiling to create 3D effects on XYZ axes.

Main features:

  • 40x2W (40 total) SMD5050 RGB / FC high-efficiency LED
  • Viewing angle: 360°
  • Pixel pitch: 25 mm
  • Multiple hanging solutions for ceiling application
  • Art-Net and Kling-Net control protocol supported
See variants

PHOTO GALLERY

DIGITUBE
DIGITUBE
DIGITUBE
DIGITUBE
DIGITUBE

Technical specifications

LIGHT SOURCE
  • Source: 80x0,25W SMD5050 RGB LEDs
  • Source life expectancy: > 50.000 h
OPTICS
  • Field angle: 360°
  • Pixel pitch: 25mm / 0.98''
COLOUR SYSTEM
  • Colour mixing: RGB / FC
BODY
  • Hardware on-board: on board mechanics for rigging to the ceiling
  • Body: acrylic tube, black PCB
  • Body colour: black
CONTROL
  • Control units: DIGIDRIVER (optional)
  • Art-Net channels: 120ch
  • Protocols: Art-Net, Kling-Net
  • Pixel control: pixel2pixel control
ELECTRICAL
  • Mains power supply: DC 36V
  • Max power consumption: 18W
  • Output (at 230V): 16 units on a single DIGIDRIVER line
PHYSICAL
  • IP rating: 20
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: Seetronic XLR 4p IN/OUT connectors
  • Dimensions (WxHxD): 1155x28x34mm / 45.47''x1.1''x1.34''
  • Weight: 0,33kg / 0.73lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

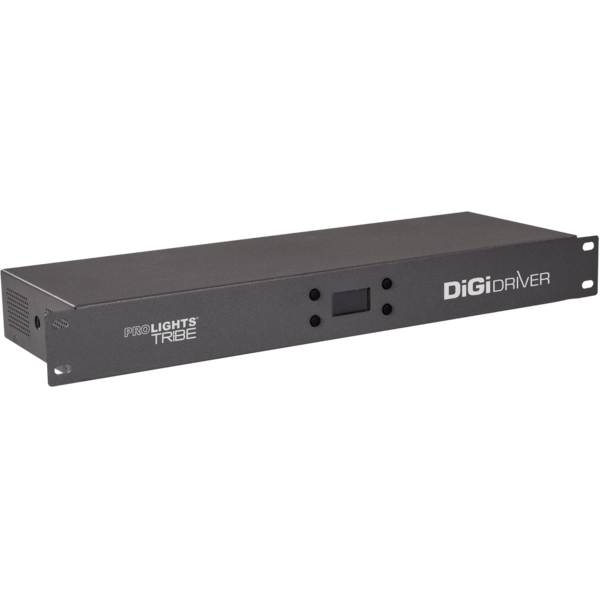

<b>DigiDriver</b>
DigiDriver
(optional)
Master driver for Digi series, 6 universes, IP20, max cons. 350W, 2.5 kg
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Digitube_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DIGITUBE Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_digitube.d4Download
manufacturer fixture library (Link) Link
prolights_digitube_120ch.hedDownload
manufacturer fixture library (Link) Link
digitube_120ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
digitube.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Digitube_2D.dwg 296KB
3D Digitube_3D.dwg 3MB
Technical drawing Digitube_TECHNICAL_DRAWING.pdf 56KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 26/02/2016 Improved firmware functionality.
