Halu Rock

ORDER CODE: HALUROCK

Halu Rock combines an explosive output, pixel2pixel control and movements in a single projector thus providing a new and original tool to lighting designers let their creativity loose.
The optical group of HALUROCK develops light beams of 8° - thin as pins are capable of channelling light in a highly directive projection with unprecedented brightness, creating volumetric effects and graphics in the air. The HALUROCK light source is based on 49 (7x7 matrix) high-lumen CREE warm white LEDs with a 2.800K colour temperature which recreates the classic effect of the halogen lamp used in rock concerts.

Main features:

  • 49 (7x7 matrix) x3 W CREE Warm White LEDs, with a 2.800 K colour temperature
  • Beam angle: 6°
  • DMX, Art-Net and Kling-Net control protocol supported
  • Pixel control: individual control of each single LEDs
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background dimmer, dimmer fade, speed and rotation

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 49 (7x7) x3W Warm White LED
  • CCT: 2.800
  • Luminous flux: 5'462
  • Lux: 30'110lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 6°
  • Field angle: 8°
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, Art-Net, Kling-Net
  • DMX channels: 13 / 16 / 55 / 62 / 65channel
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 20 flash(s), mechanical
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 202W
  • Max power consumption (at 120V): 208W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Neutrik XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 379x471x288mm / 14.92''x18.54''x11.34''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
FCLHALUROCK
FCLHALUROCK
(optional)

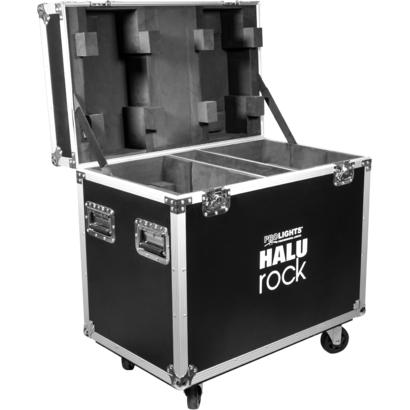

Flight case for 2 HALUROCK
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Halurock_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Halurock_DMX_CHARTS.pdf 1MB
HALUROCK Firmware rev. 1.2
manufacturer fixture library (Link) Link
prolights_halurock.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
halurock_13ch.fdfDownload
halurock_16ch.fdfDownload
halurock_55ch.fdfDownload
halurock_62ch.fdfDownload
halurock_65ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_halurock_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
halurock 13 channel.fix2Download
halurock 16 channel.fix2Download
halurock 55 channel.fix2Download
halurock 62 channel.fix2Download
halurock 65 channel.fix2Download

CAD symbols & drawings

File name File size Download
3D Halurock_3D.dwg 36MB
2D Halurock_2D.dwg 2MB
Technical drawing Halurock_TECHNICAL_DRAWING.pdf 490KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 04/12/2018 10 second default display backlight
