Pixpan 16

ORDER CODE: PIXPAN16

PIXPAN16 is a LED matrix consisting of 16x30 W RGB / FC COB LEDs, conceived to revolutionize the concept of pixel-control applied to lighting by LED sources.
The special optics reflectors in combination with 30 W COB (chip-on-board) LEDs give PIXPAN16 an unprecedented light output capable of impressing and dazzling the audience. Mechanical components of PIXPAN16 consist of locks and coupling inserts, allowing a highly versatile use in suspension on truss, stacked on the floor or in low-res LED wall composition.

Main features:

  • 16(4x4 matrix)x 30W COB RGB / FC LEDs
  • LED + parabolic reflector featuring wide beam coverage like classic DWE lamps
  • Pixel control: individual control of each single LEDs
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation
See variants

PHOTO GALLERY

Pixpan 16
Pixpan 16
Pixpan 16

Technical specifications

LIGHT SOURCE
  • Source: 16x30W COB RGB / FC LED
  • Luminous flux: 5'251
  • Lux: 827lx @3 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 47°
  • Field angle: 79°
  • Pixel pitch: 115mm / 4.53''
  • Lens type: parabolic reflector in combination with HD fresnel lens
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Hardware on-board: on board mechanics for rigging to the ceiling
  • Body: sturdy aluminum profile
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 5 / 7 / 48channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 390W
  • Output (at 230V): 5 units on a single power line
PHYSICAL
  • IP rating: 44
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: DMX 3p + 5p IN/OUT
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 460x460x360mm / 18.11''x18.11''x14.17''
  • Weight: 8kg / 17.64lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

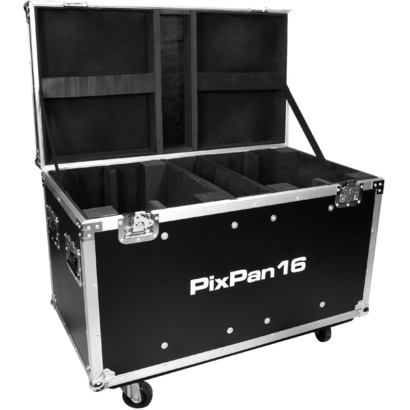

FCPIXPAN16
FCPIXPAN16
(optional)
Flight case for 4 PIXPAN16, 950x570x515 mm, 37 kg
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Pixpan16_USER_MANUAL_ITEN.pdf 2MB

DMX chart & personalities

File name File size Download
DMX chart Pixpan16_DMX_CHARTS.pdf 47KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 194KB
PIXPAN16 Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_pixpan16.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixpan16_3ch.fdfDownload
pixpan16_5ch.fdfDownload
pixpan16_7ch.fdfDownload
pixpan16_48ch.fdfDownload
pixpan16_3ch.sslDownload
pixpan16_5ch.sslDownload
pixpan16_7ch.sslDownload
pixpan16_3ch.ssl2Download
pixpan16_5ch.ssl2Download
pixpan16_7ch.ssl2Download
manufacturer fixture library (Link) Link
prolights_pixpan16_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixpan 16 3 channel.fix2Download
pixpan 16 5 channel.fix2Download
pixpan 16 7 channel.fix2Download
pixpan 16 48 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Pixpan163D.rvt 379KB
3D SKP Pixpan163D.skp 567KB
2D Pixpan16CAD.dwg 3MB
3D Pixpan16CAD.dwg 786KB
2D cad symbols Pixpan16CAD.dwg 57KB
Technical drawing Pixpan16_TECHNICAL_DRAWING.pdf 499KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 18/04/2018
