AETHERBOXTWO

ÆtherBox Two

NEW

Order Code: AETHERBOXTWO

IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
2,2kg / 4.85lbs

Key Features

  • IP65 double universes CRMX transceiver
  • XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth
  • Rack mounting, truss mounting, camlocks, M10 and ⅜ threads anchoring options
  • Main power DC12V input, POE and NP-F battery type operation via an adapter box accessory
  • Available operating modes: TX mode, RX mode, and Repeater mode
  • Compatible with: CRMX, G4S, G3, and CRMX2 - CRMX2 operates as a receiver only

The AetherBox TWO is a robust IP65-rated double universes CRMX transceiver, designed for professional use in any setting, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.

The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, POE and NP-F battery type operation via an adapter box accessory. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.

Read less
The AetherBox TWO is a robust IP65-rated double universes CRMX transceiver, designed for professional use in any setting, whether it be indoor or outdoor, on stages or sets. It boasts an extensive ran...

Product Video

Discover the ÆtherBox Two in action

Photo Gallery

AETHERBOXTWO
AETHERBOXTWO
AETHERBOXTWO
AETHERBOXTWO
AETHERBOXTWO

Specifications

CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX, Bluetooth
  • DMX channels: 1024ch
  • Wireless Control: included, 2 x LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Other: 1 push encoder
  • Other: Contains 2 independent TimoTwo modules, each capable of transmitting one CRMX universe (512 ch) - Total: 2 universes (1024 ch) over Ethernet input
  • Other: Transmission range up to 80 meters with the included AEB2DBA90D antenna in open field
BODY
  • Hardware on-board: rack-mount hardware
  • Housing: Weatherproof IP65 construction
  • Finish: black
ELECTRONICS
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 12V via DC IN, 2x7.2V via battery slots, POE
  • Max power consumption: 5W
  • Standby power: 1,4 W
BATTERY
  • Battery: 2x7,2V NP-F550/F570/F750/F770 type battery via dedicated accessory
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Suspension and fixing: M10 and 3/8'' threaded insert for easy installation, wall mount, velcro strips, Omega clamp
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP IN connector
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Low Voltage DC connector: Weipu SA6(12-48V), Battery slots
  • Dimensions (WxHxD): 270x45x241mm / 10.63''x1.77''x9.49''
  • Weight: 2,2kg / 4.85lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x AETHERBOXTWO
  • 2 x AEB2DBA90D
  • 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User manual

Accessories & Related Products

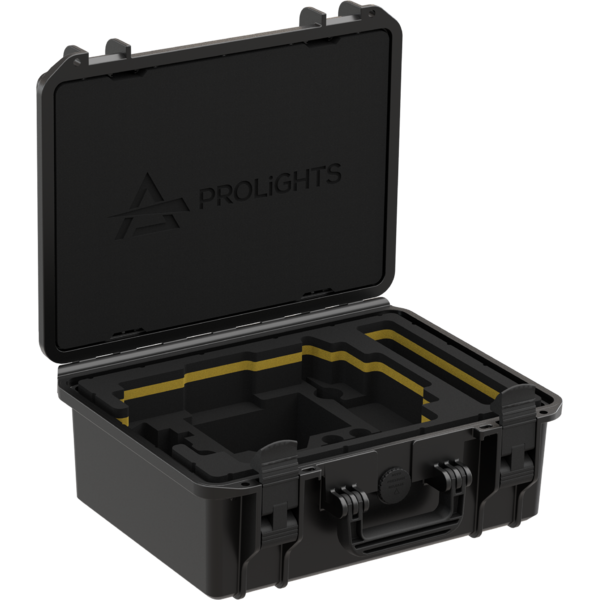

Optional AEBTWOBAG1U

Empty ABS case for 1 pc of AETHERBOXTWO

Order Code: AEBTWOBAG1U

Optional AEB5DBA

5dB antenna for AETHERBOX and CRMXBOXIP67, N-male connector

Order Code: AEB5DBA

Optional CRMXBOXIP6790ADP

IP67 90 degree adapter for CRMXBOXIP67 / AETHERBOX antenna, N-male connector

Order Code: CRMXBOXIP6790ADP

Optional CABEXTN2N01M

Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 1 m

Order Code: CABEXTN2N01M

Optional CABEXTN2N03M

Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 3 m

Order Code: CABEXTN2N03M

Optional CABEXTN2N05M

Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 5 m

Order Code: CABEXTN2N05M

Optional CABEXTN2N10M

Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 10 m

Order Code: CABEXTN2N10M

Optional CABEXTN2N15M

Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 15 m

Order Code: CABEXTN2N15M

Optional AEBRP2TNC

RP-TNC Female to N Male Adapter for AETHERBOX and CRMXBOXIP67

Order Code: AEBRP2TNC

Included AEB2DBA90D

2 dBi 90° angled antenna (N-male connector) for AETHERBOX and CRMXBOXIP67

Order Code: AEB2DBA90D

Optional AEB2DBA

2 dBi Omni antenna (RP-TNC male connector) for AETHERBOX and CRMXBOXIP67

Order Code: AEB2DBA

Optional AEBBATADP

Battery holder for AETHERBOX

Order Code: AEBBATADP

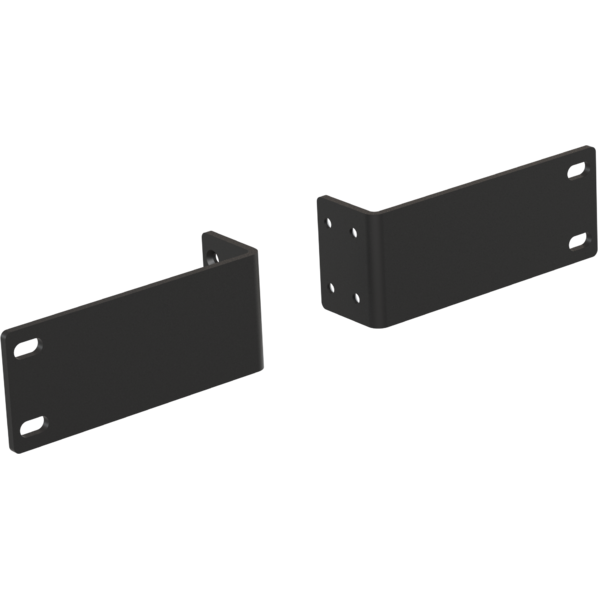

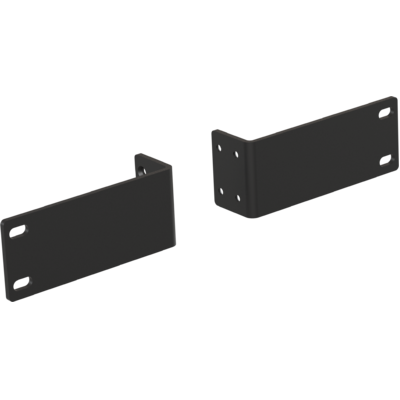

Optional AEBTWORACKADP

Rack adapter for AETHERBOXTWO

Order Code: AEBTWORACKADP

Optional OS27PLUS

Quick-Lock omega bracket, M12 hole

Order Code: OS27PLUS

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetAetherboxtwo_A4_DATASHEET_(EN).pdf(02/02/2026)242KB

User manual User manual

File name File size Download
User manualAetherboxtwo_USER_MANUAL_EN.pdf(13/02/2026)2MB
User manualAetherboxtwo_General_Safety_Information.pdf(25/11/2025)4MB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPAetherboxtwo_3D.skp(16/09/2025)107KB
2DAETHERBOXTWO_2D.zip2MB
3DAetherboxtwo_CAD_3D.dwg(16/09/2025)64KB
Technical drawingAETHERBOXTWO_TECHNICAL DRAWINGS.zip279KB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 11/02/2026

New Functions:

  • Added "Ethernet To DMX" to the Ethernet Settings menu. This allows you to transfer the DMX signal via DMX cable as well as wirelessly when the input is via ETH cable.
  • New Prolights logo when the device is turned on
  • Added a Home Screen warning displayed after each firmware update or after executing Factory Reload + Reboot. The warning informs the user not to power on the device without connected antennas to prevent permanent damage to transmission range performance.

NOTE: Operating the device without connected antennas may cause irreversible degradation of signal transmission range.

 Rev. 1.0
