Key Features

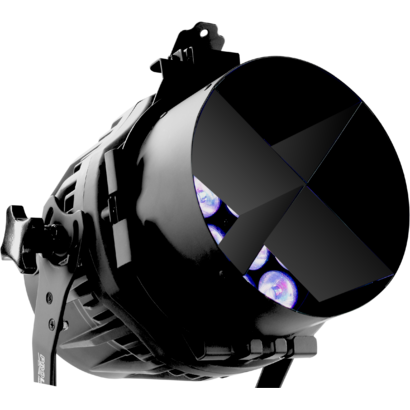

ARCLED7314TRI is a professional luminaires featuring 14 RGB/Full Color 3W LEDs fitted into a single matrix.
ARCLED7314TRI is the first choice in terms of quality and performance for professionals light-design projects in medium and large size environments.

The advantages of Tricolor technology:

• Perfect colour mixing and saturation, even in short-range projections
• Unwanted RGB shadows are completely eliminated; this makes ARCLED7314 suitable for theatrical, studios and architectural applications
• Perfect for frontal video recordings: colours are mixed into the optical system, avoiding single Red, Green, Blue colour spreads

Light source and optics

• 14 x 3W high-efficiency CREE RGB/FC LEDs
• Lumen: 950
• Lux@2m: 2350@2m
• Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
• Colour synthesis: Tricolor colour mixing (>16 million colours) for a limitless colour range
• White temperature presets: 3200K~10000K
• Installed optics: 16°
• Beam angle: 17°
• Field angle: 32°
• LEDs average life span: >50'000h

Electronics and features

• Several DMX selectable configurations (3, 4, 5, 10 channels) for advanced or basic controlling
3 channels: RGB
3 channels: HSV
4 channels: RGB, dimmer
5 channels: RGB, dimmer, strobe
10 channels: RGB, dimmer, macro, strobe, auto programs, programs speed, dimmer curve, ID address
• LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
• 5 different dimming available curves
• Master/Slave mode for stand-alone operations
• Linear and “step less” transition between DMX values
• Flicker-free operations (400Hz)
• Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

Structure and Power supply

• Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
• Frontal tempered glass panel
• Internal Protection: IP67 (IP) - IP54 (TZ)
• Pressure and temperature balance through GORE membrane vents
• Power (shuko) and data (xlr-3p) adapter cables included
• Double hanging bracket suitable for safe hanging and for floor positioning
• Power unit: 100-240V 50/60Hz
• Power output to link more units in a chain: up to 24 fixtures at 230V
• Max power consumption: 52W
• Weight: 4,8 kg
• Dimensions (WxHxD): 245x205x245 mm
