CRMXBox IP

ORDER CODE: CRMXBOXIP67

IP67 1 Universe CRMX Wireless Transceiver for exterior installation

The CRMXBOXIP67 is an outdoor transceiver designed for permanent exterior installations. Capable of functioning as either a transmitter or receiver, it handles one DMX universe, accommodating up to 512 channels.
The unit's compact form factor includes IP-rated screwed connectors for reliable power and signal connections. Its robust construction, featuring an IP67-rated enclosure and a vandal-resistant mounting cover, ensures durability against outdoor elements.
The device is user-friendly, equipped with an onboard display and buttons for straightforward setup. It is compatible with Lumen Radio CRMX and Wireless DMX G protocols, offering versatile integration options.

Main features:

IP67 Single Univers Wireless CRMX Transceiver unit
Power IN and DMX In/Out through IP screwed connectors
Either LumenRadio CRMX and Wireless DMX G transmission option

PHOTO GALLERY

Technical specifications

CONTROL

Protocols: DMX512, RDM, CRMX
DMX channels: 512channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included

ELECTRONICS

Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F)

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 6W

PHYSICAL

IP rating: 67
Suspension and fixing: side holes for fixing to surfaces
Signal connection: moulded IP signal IN (OUT) connector
Power connection: moulded IP power IN connector
Dimensions (WxHxD): 238x120x84mm / 9.37''x4.72''x3.31''
Weight: 1,65kg / 3.64lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE

BOX CONTENT

1 x CRMXBOXIP67
1 x IP power adapter (bare-end) compatible with AWEXAC1 series
1 x IP DMX female adapters (DMX IN) compatible with AWEX1DC series
1 x User Manual

Accessories & Related Products

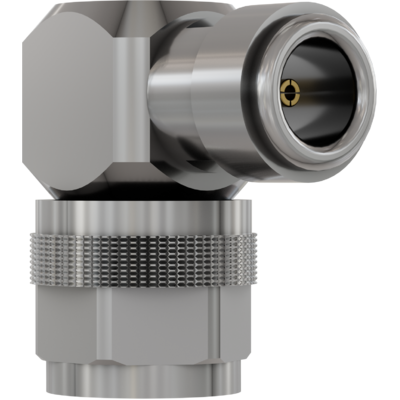

CRMXBOXIP6790ADP

(optional)

IP67 90 degree adapter for CRMXBOXIP67 antenna

AWEXDC1221ADP

(optional)

Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

AWEXAC12ADP

(optional)

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

AWEXAC1L03

(optional)

IP67 power extension cable for outdoor architectural projectors, L.03 m

AWEXAC1L05

(optional)

IP67 power extension cable for outdoor architectural projectors, L.05 m

AWEXAC1L10

(optional)

IP67 power extension cable for outdoor architectural projectors, L.10 m

AWEXAC1L20

(optional)

IP67 power extension cable for outdoor architectural projectors, L.2 0m

AWEXAC2L03

(optional)

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m

AWEXAC2L05

(optional)

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m

AWEXAC2L10

(optional)

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m

AWEXAC2L20

(optional)

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m

AWEXDC1L03

(optional)

IP67 DMX extension cable for outdoor architectural projectors, L.03 m

AWEXDC1L05

(optional)

IP67 DMX extension cable for outdoor architectural projectors, L.05 m

AWEXDC1L10

(optional)

IP67 DMX extension cable for outdoor architectural projectors, L.10 m

AWEXDC1L20

(optional)

IP67 DMX extension cable for outdoor architectural projectors, L.20 m

AWEXDC2L03

(optional)

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m

AWEXDC2L05

(optional)

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m

AWEXDC2L10

(optional)

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m

AWEXDC2L20

(optional)

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m

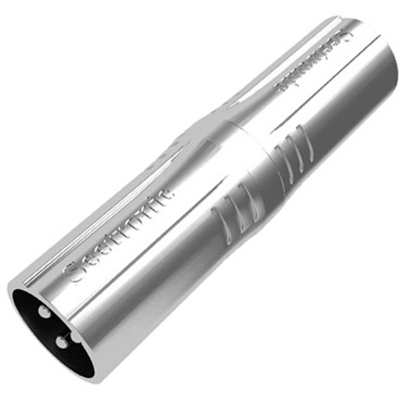

SETMA3M5M

(optional)

Male 5-pin XLR adapter <=> male 3-pin XLR

CANA5MMB

(optional)

5 pole XLR male - 5 pole XLR male adapter, black finishing

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Crmxboxip67_A4_DATASHEET_(EN).pdf	215KB
	Crmxboxip67_TENDER_SPECIFICATION.pdf	206KB

User manual

	File name	File size	Download
	Crmxboxip67_USER_MANUAL_EN.pdf	1MB
	Crmxboxip67_General_Safety_Information_EN.pdf	2MB

DMX chart & personalities

	File name	File size	Download

Photometrics

	File name	File size	Download

CAD symbols & drawings

	File name	File size	Download
	Crmxboxip67_3D.skp	388KB
	Crmxboxip67_CAD_2D.dwg	928KB
	Crmxboxip67_CAD_3D.dwg	84KB
	Crmxboxip67_TECHNICAL_DRAWING.pdf	75KB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide

Update Tool: UPBOXPRO
1.1.01.0 STABLE	31/07/2024	Improvement: Improved wireless signal management. Improved wireless protocol management. Note: To change TX protocol, use the following procedure: Perform "TX Unlink" on CRMXBOXIP67 Perform an "RX Unlink" on the device you want to connect as a receiver Set the TX protocol you want to use (G3,G4S,CRMX) on CRMXBOXIP67 Power Cycle CRMXBOXIP67 and restart it. Perform a "TX Link" on CRMXBOXIP67 to link to the receiver.
