GammaPix 29B1X1BF

ORDER CODE: GAMMAX29B1X1BF

Indoor rental 2,9 mm LED screen, 50x50cm tile with full black LEDs

GammaPix 29B is a rental LED screen for indoor use with a 2,9 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as scratch protection of the lamp face, flip corner shield and bottom protection.

GammaPix 29B tiles have on board curve mechanics allowing both concave and convex precise installation of +10° / -10° each tile and the weight has been reduced down to 5.9 kg per panels (23,6 kg per sqm).

The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Main features:

Single person installation, auto lock design, scratch protection and flip corner shield
Built in curve mechanics for +10° / -10° concave & convex
Refresh rate of 3.840 Hz

CONFIGURATOR

PHOTO GALLERY

Technical specifications

VIDEO

Driver chip type: ICN 2153
LED source: Nationstar SMD 1515 full black
Pixel pitch: 2.97mm / 0.12''
Panel resolution: 168x168pixels
Module resolution: 84x84pixels
Luminous flux: 650nit
Contrast: 3.000:1
Grayscale: 14 bit
Refresh rate ≥: 3.840Hz
Drive Mode: 1/21 scan, constant current
Vertical viewing angle: 120°
Horizontal viewing angle: 140°
LED density: 112.896LED/sqm
Dead Pixel Ratio: <0,002
LED avg life span: 100.000

ELECTRICAL

Power input/output: IPKON Seetronic IN/OUT
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 120W
Avg power consumption (panel): 40W
Max power consumption (sqm): 480W
Avg power consumption (sqm): 160W
Standby power consumption (pannello): 35W
Max rated current/panel:: AC 220 V / 0.55 A
Working temperature: -10°C / +45°C
Working humidity: 10~80 RH%

CONTROL

Receiving card type: A5S PLUS
Other controllers type: mapping, firmware copy, RCFGX restore, calibration chip on LDM (module flash)
Control protocol: Novastar
Signal input: RJ45
Signal output: RJ45

MECHANICS

Magnetic LED modules: available
Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
Module size (WxH): 250x250mm / 9.84''x9.84''
Panel size(WxHxD): 500×500×63mm / 19.69''
Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans
Connection: seamless locking system
Curvability: convex and concave -10° / +10°
Body: die-cast aluminium housing
Color: black
IP rating: IP30 (front and rear)
Panel weight: 5,9kg / 13.01lbs
Weight per square meter: 23,6kg / 52.03lbs
Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
Compliant Standard: CE, UKCA

VIDEOS

Accessories & Related Products

GXFCM100291X1

(optional)

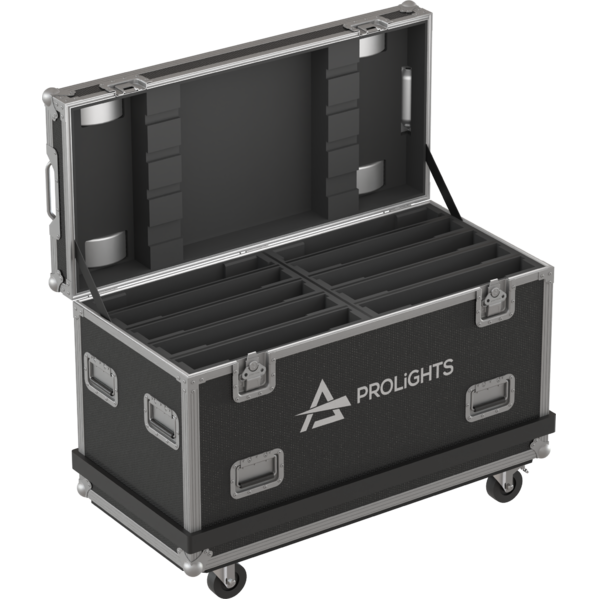

Flightcase 10 in1 for GAMMAX29B1X1BF

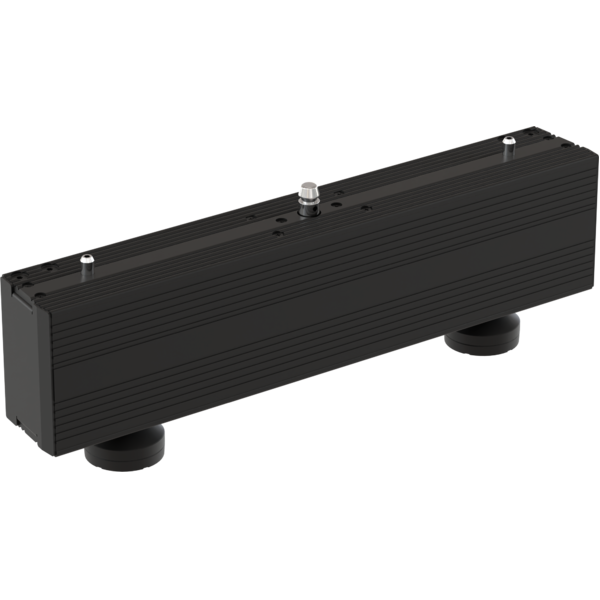

GXHGB01

(optional)

Fly bar / ground bar for GAMMAX29B and GAMMAX48T systems, 1 column

GXHGB02

(optional)

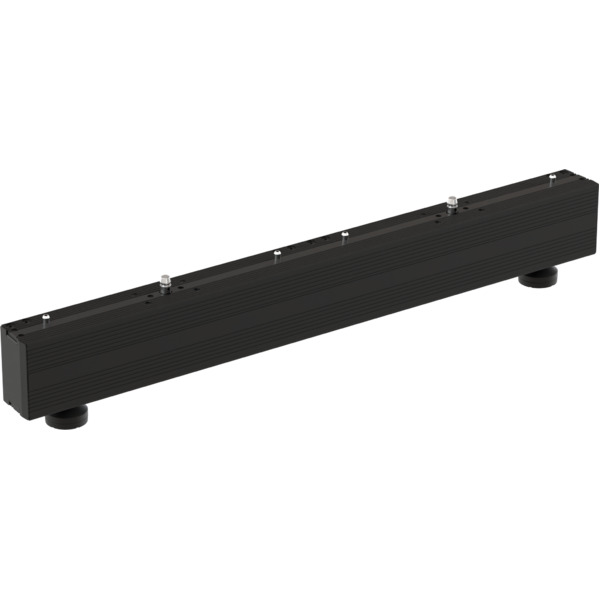

Fly bar / ground bar for GAMMAX29B and GAMMAX48T systems, 2 columns

DXBS21

(optional)

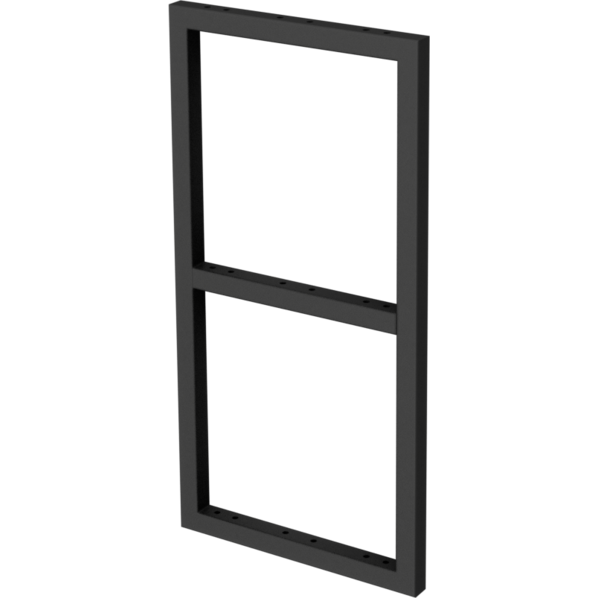

2in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing

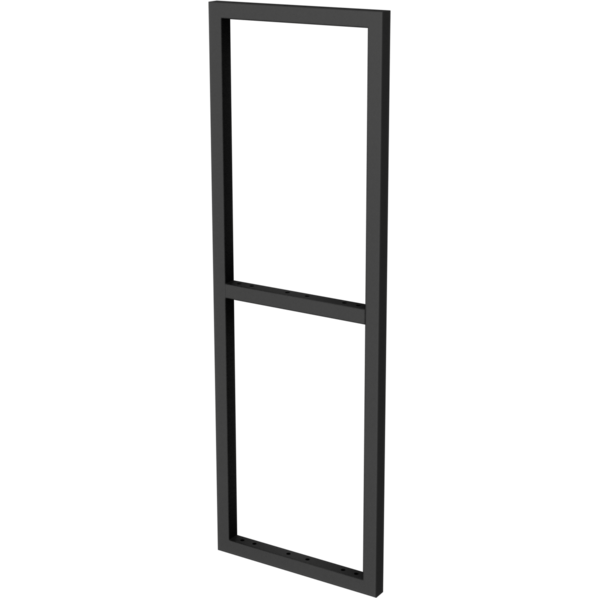

DXBS31

(optional)

3in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing

DXBS41

(optional)

4in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing

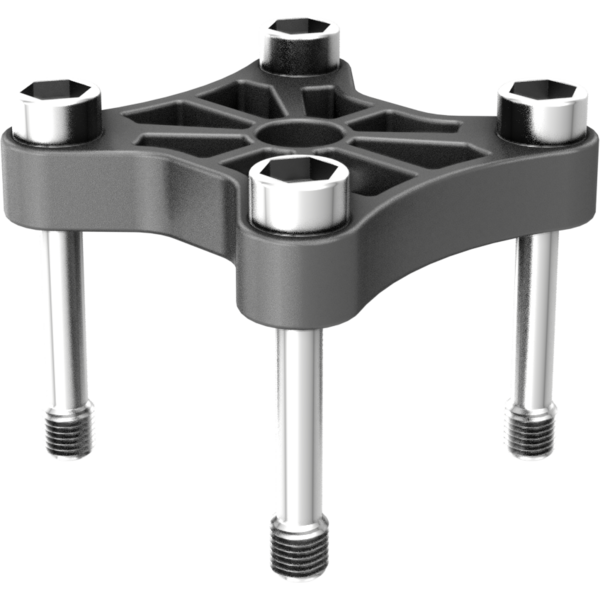

DXBSC

(optional)

Back plate for DELTAX and GAMMAX series LED wall for ground system fixing

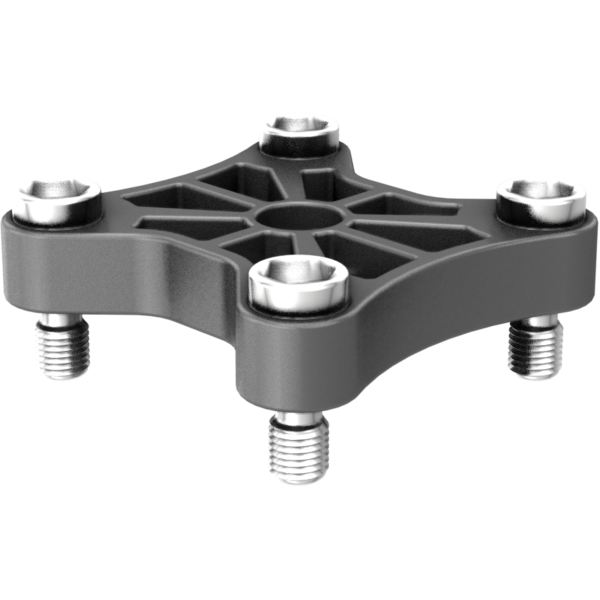

DXXJ

(optional)

Metal joint to connect 4 x DELTAX/GAMMAX series cabinets, M10 hole for clamp

GXCJ

(optional)

Cabinet curve metal plate for GAMMAX series LED wall

OXFCIS100

(optional)

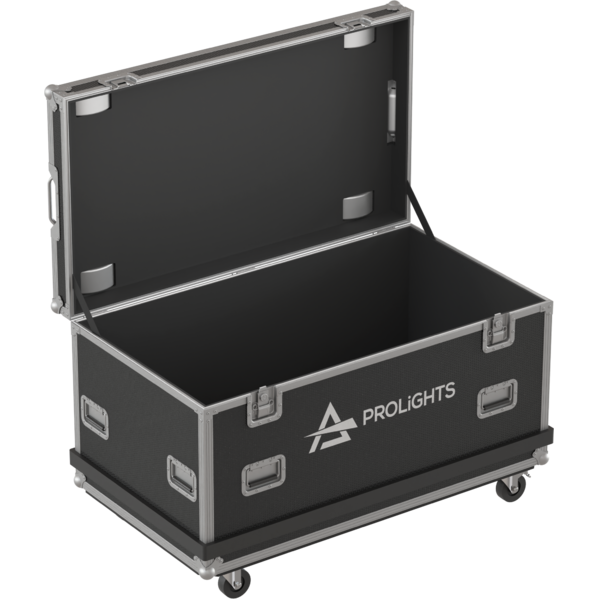

Rigging/ground-stack structure flightcase for all LEDScreen, 100cm

OXFCIS150

(optional)

Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm

OXFCIS200

(optional)

Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm

OXFCSP

(optional)

Spare part flightcase for OMEGAX-DELTAX series LED-display

OXACL01

(optional)

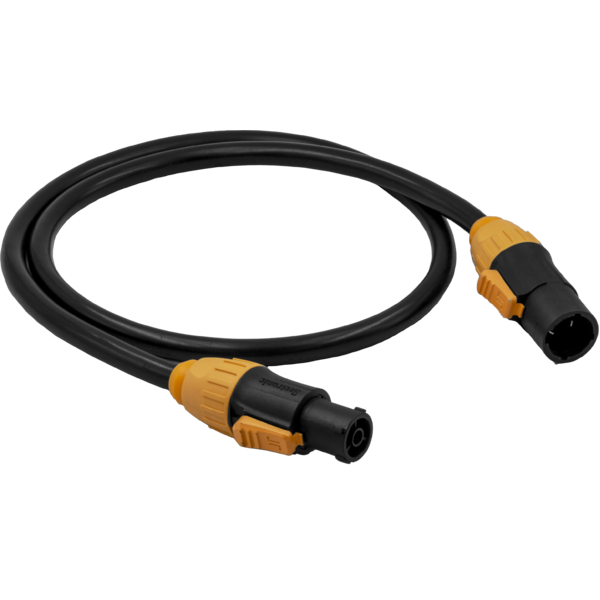

Power cable for LED display series, L.140 cm

OXACL10

(optional)

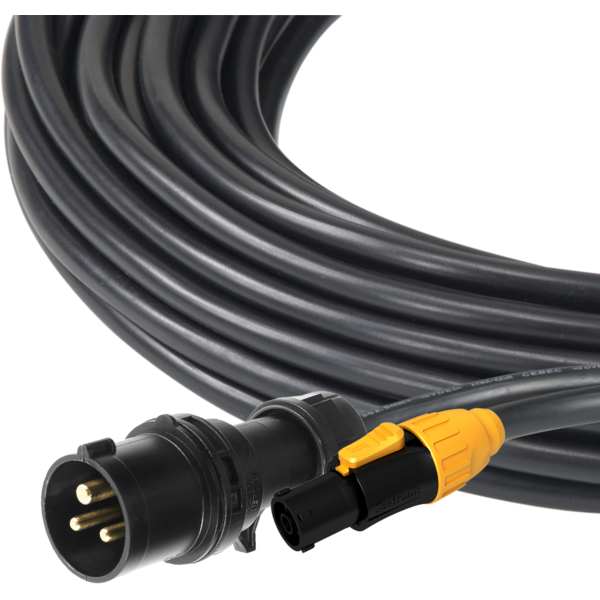

Power cable for LED display series L.10 m

SXDCL01

(optional)

Data cable for SIGMAX LED display series assembled with RJ45, L 140 cm

SXDCL10

(optional)

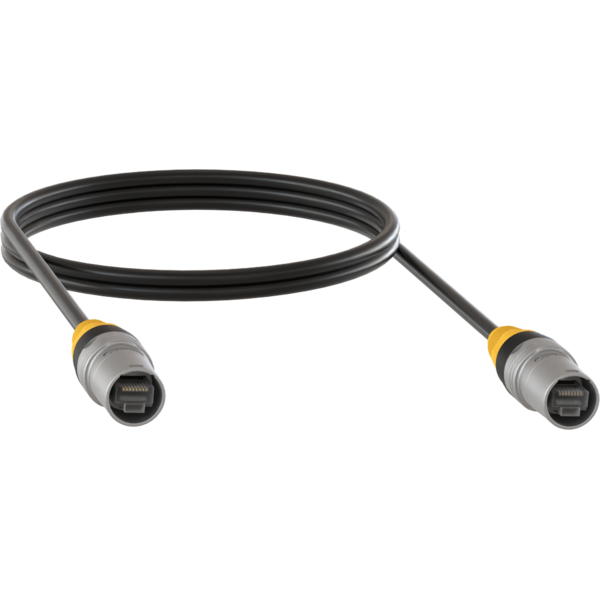

Data cable for SIGMAX LED display series assembled with RJ45, L 10 m

FMTOOL

(optional)

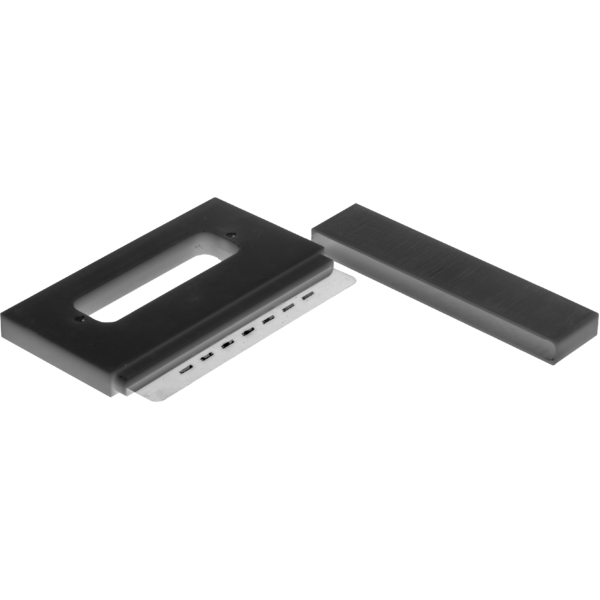

Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)

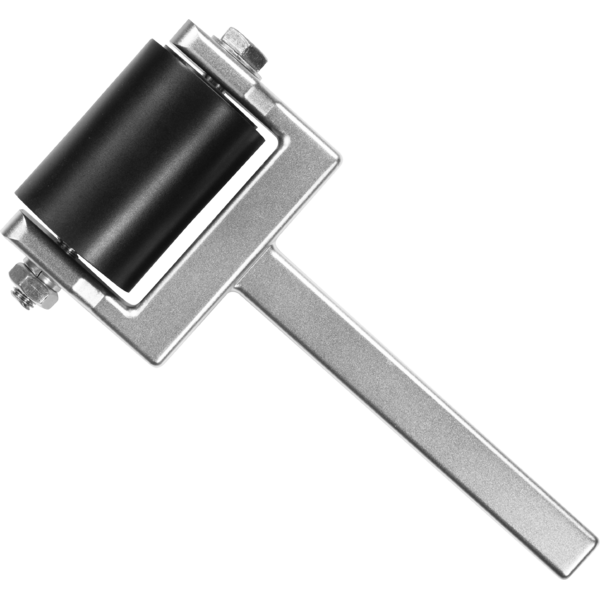

MRTOOL
