MINIRUBY
TRIBEby TRIBE

Mini Ruby

ORDER CODE: MINIRUBY

132W discharge moving beam with white HID source

Mini Ruby is an ultra-compact beam light that harnesses all the power of its Osram Sirius 132W lamp into a tight, bright and sharp 3,5° beam. Its small form factor is designed to allow the users to apply a discharge beam light in tight locations or low ceilings bringing a big punch to a small space.

Main features:

  • 9 position colour wheel.
  • Compact, lightweight design for use in small spaces.
  • Rotating 8 facet prism.
See variants

PHOTO GALLERY

Mini Ruby
Mini Ruby
Mini Ruby
Mini Ruby
Mini Ruby
Mini Ruby

Technical specifications

LIGHT SOURCE
  • Source: 132W S Osram Sirius HRI
  • CCT: 9.200
  • Luminous flux: 5'150
  • Lux: 98'792lx @5 m full
  • CRI: 60
  • Source life expectancy: 6.000 h
OPTICS
  • Beam angle: 3,5°
  • Field angle: 3,5°
  • Lens diameter: 80mm / 3.15''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour wheel: 9 colour filters
DYNAMIC EFFECTS
  • Circular prism: 8f with bi-directional rotation
BODY
  • Pan angle: 540 / 630°
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 7 / 9channel
  • Display: LCD display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Operating temperature: -10° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 176W
  • Max power consumption (at 120V): 176W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 30
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 278x387x200mm / 10.94''x15.24''x7.87''
  • Weight: 7,6kg / 16.76lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

9533FCAL03
9533FCAL03
(optional)

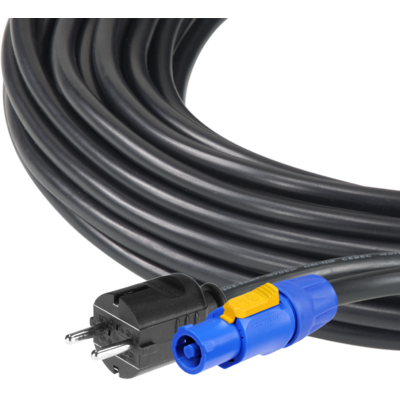

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)

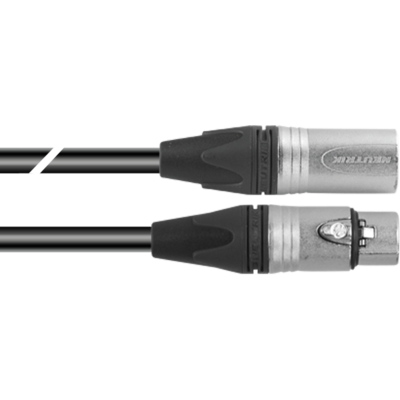

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958025L03
958025L03
(optional)

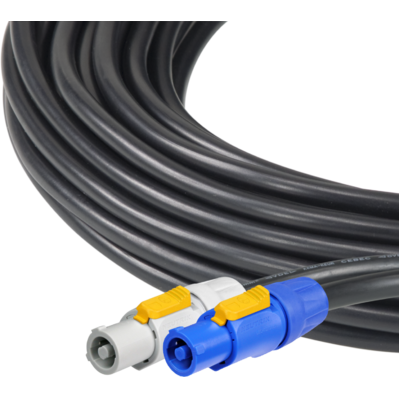

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
C6016B
C6016B
(optional)

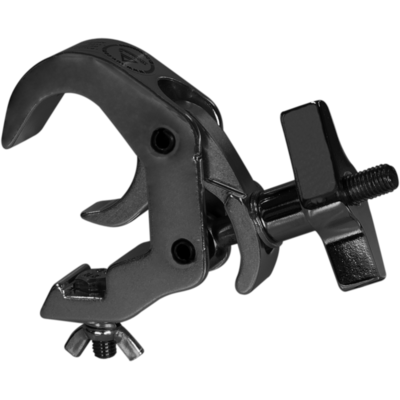

Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9513FCAL03
9513FCAL03
(optional)

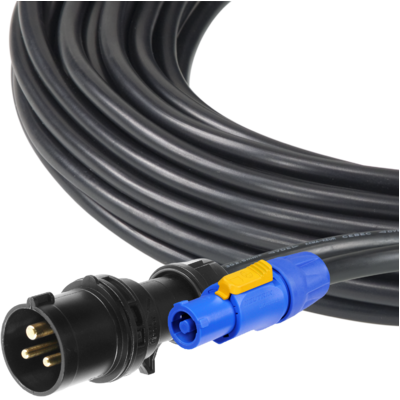

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
FCLMINIRUBY
FCLMINIRUBY
(optional)

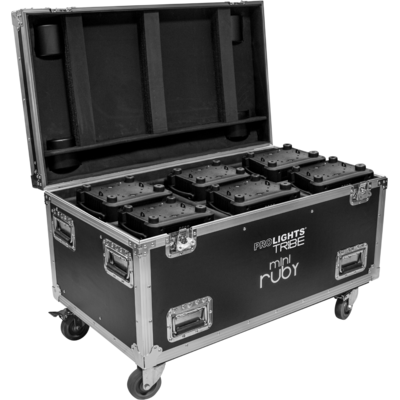

Flight case for 6 pcs of MINIRUBY
OS24D13
OS24D13
(included)

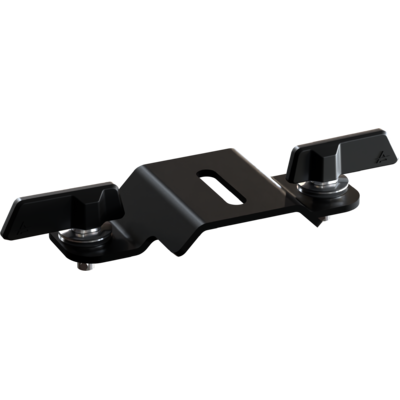

Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMiniruby_A4_DATASHEET.pdf269KB

User manual

File name File size Download
User manualMiniruby_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
MINIRUBY Firmware rev. 1.1.02
manufacturer fixture library (Link) Link
prolights_miniruby.d4Download
manufacturer fixture library (Link) Link
prolights_miniruby_extended.hedDownload
prolights_miniruby_standard.hedDownload
miniruby_9ch.fdfDownload
miniruby_ssl2.zipDownload
prolights@miniruby@standard_7ch@manufacturer_release.xmlDownload
prolights@miniruby@standard_9ch@manufacturer_release.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
2DMiniruby_CAD_2D.dwg411KB
3DMiniruby_CAD_3D.dwg962KB
Technical drawingMiniruby_TECHNICAL_DRAWING.pdf175KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02 STABLE 07/08/2019 Improved firmware functionality. Rev. 1
Rev. 2

Info Request
