Mosaico

ORDER CODE: MOSAICO

250W IP66 zoomable LED image projector with animation wheel

Mosaico is a powerful exterior LED image projector for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'667 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.

5 YEARS WARRANTY

Main features:

  • IP66 allowing long-lasting installation with minimal maintenance
  • Beam angle zooming from 12.9° to 46.5° allows for flexible use and opens up a new level of effects
  • Extremely bright with over 11'667 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations
See variants GOBOS

PHOTO GALLERY

Mosaico
Mosaico
Mosaico
Mosaico

Technical specifications

LIGHT SOURCE
  • Source: 250W high-power white LED
  • CCT: 8.500
  • Luminous flux: (12.9°) 10'740 lm - (46.5°) 11'667 @Full
  • Lux: (12.9°) 10'512 lx - (46.5°) 1'409lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 12,9° - 46,5° motorised linear zoom
  • Lens diameter: 109mm / 4.29''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour wheel: 14 colour filters on two colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 23 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
  • Special features: interchangeable animation wheel through magnets and record scenes and create chases and shows throughout these scenes
BODY
  • Body: aluminium die-casting
  • Body colour: RAL 9006
  • Other: Inspectable cover window for gobos replacement and maintenance
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: Stand Alone programmer and playback
  • DMX channels: 12 / 14 / 16 / 19channel
  • Wireless Control: included, LumenRadio TiMo receiver
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1~30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 320W
  • Standby power: 56 W
  • Output (at 230V): 6 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Data connection: W-DMX transreceiver
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 332x425x453mm / 13.07''x16.73''x17.83''
  • Weight: 19,3kg / 42.55lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

MOSBRACK
MOSBRACK
(Optional)
Bracket for MOSAICO and MOSAICOXL for wall mounting and suspension on poles
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
GBVMAP001
GBVMAP001
(Optional)
Gobo Mapping, F size, black and white (gobo holder included)
FCLMOSAICO
FCLMOSAICO
(Optional)

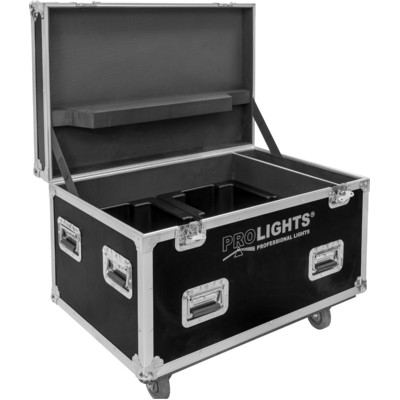

Flightcase for 2x MOSAICO, foam shells included
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMosaico_LETTER_DATASHEET_(EN).pdf406KB
Letter datasheetMosaico_A4_DATASHEET_(IT).pdf385KB
Letter datasheetMosaico_A4_DATASHEET_(EN).pdf439KB
Tender SpecificationMosaico_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMosaico_DMX_CHARTS.pdf160KB
MOSAICO Firmware rev. 2.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_mosaico_scenes.hedDownload
prolights_mosaico_12ch.hedDownload
prolights_mosaico_14ch.hedDownload
prolights@mosaico@extended@ma_library_update_v14.5.xmlpDownload
prolights@mosaico@scenes_record@ma_library_update_v14.5.xmlpDownload
prolights@mosaico@standard@ma_library_update_v14.5.xmlpDownload
mosaico extended_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
mosaico standard.fix2Download
mosaico scenes record.fix2Download
mosaico extended.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAMosaico_3D.rfa616KB
3D SKPMosaico_3D.skp307KB
2DMOSAICO_2D.zip5MB
3DMosaico_CAD_3D.dwg522KB
2D cad symbolsMosaico_CAD_2DSYMBOLS.dwg59KB
Technical drawingMosaico_TECHNICAL_DRAWING.pdf259KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx443KB

Tech docs

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 15/04/2024 New Function:
  • Added "Warm Up" function in Advanced Menu, RDM and Control Channel.
Improvement:
  • Adjusted the Control channel with the addition of the Warm Up function as follows:
    • Warm Up Low Temp ON: 192-193 dmx value
    • Warm Up Low Temp OFF: 194-195 dmx value
    • Warm Up Low Temp VALUE: 196-197 dmx value
NOTE: It is recommended to perform a Factory Reload after the firmware update.		 Rev. 1.0
