PHYRO1500D
TRIBEby TRIBE


PHYRO1500D

ORDER CODE: PHYRO1500D

PHYRO1500D is a professional fog machine, suitable for middle size environments as discos, theatre, indoor events where a powerful ambient effect with great fogging volume is required.

Main features:

  • Plug & play technology: PHYRO1500D is ready to work when connected with no need of additional settings or connection
  • Wireless controller included
  • Electronic thermal sensor against over-heating failures
  • Security system against clogging or pump failures
  • Functioning based on an internal heater for high pressure and voluminous fog emission

PHOTO GALLERY

Technical specifications

ELECTRICAL
  • Power Supply: AC 220 - 240 V 50 / 60 Hz
  • Heather: 1.500 W
FLUID
  • First Heat-up Time: 6 min
  • Output: 30.000 cu. ft / min
  • Tank Capacity: 2,5L
  • Fluid Consumption Rate: 125ml/min
  • Liquid Used: compatibile con i tradizionali liquidi per fumo a base di acqua per un'emissione di fumo secco ed omogeneo
CONTROL
  • Protocols: DMX512
  • Display: 4 digit display
  • Remotes: DIN 5p remote controller / remote timer
PHYSICAL
  • Signal connection: XLR - 3p IN/OUT
  • Power connection: IEC 10 A IN
  • Dimensions (WxHxD): 504x290x176mm / 19.84''x11.42''x6.93''
  • Weight: 7,5kg / 16.53lbs

Versions

Accessories & Related Products

FLCL
FLCL
(optional)

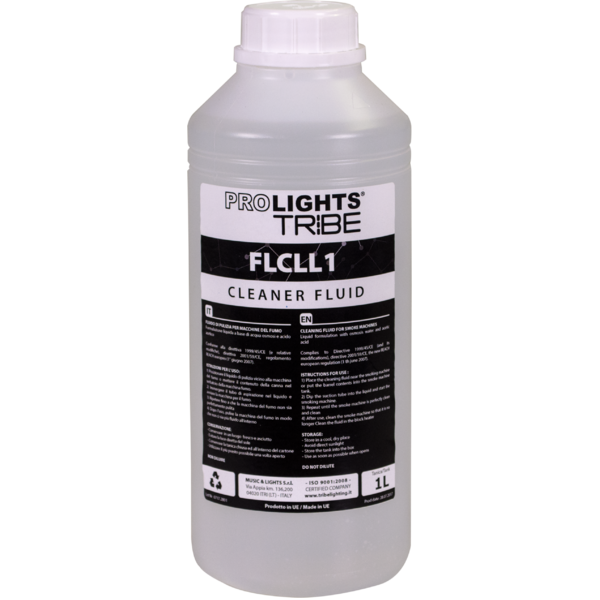

Cleaner fluid for fog machines
PHYRORC1
PHYRORC1
(included)

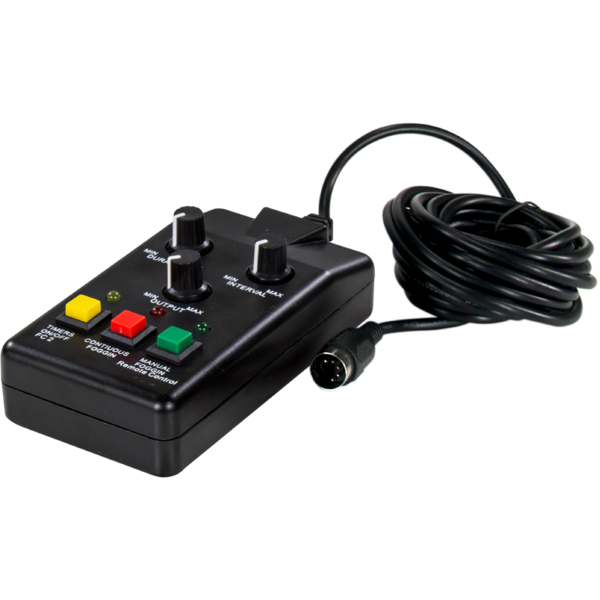

Wired remote controller for PHYRO fogger machines
PHYROWRC
PHYROWRC
(included)
Wireless remote controller for PHYRO series athmosperic machines

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Phyro1500d_USER_MANUAL_ITEN.pdf 2MB
User manual Phyro1500d_USER_MANUAL_ITEN.pdf 559KB

DMX chart & personalities

File name File size Download

manufacturer fixture library (Link) Link
prolights_phyro1500d_1ch.hedDownload

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
Technical drawing Phyro1500d_TECHNICAL_DRAWING.pdf 132KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.1 STABLE 30/07/2018
