SunBlast 3000FC

ORDER CODE: SUNBLAST3000FC

IP65 RGBW graphic LED strobe and blinder

Sunblast 3000FC is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 180'000 lumen output with 120° beam angle
  • IP65 rating
  • Graphics effects from 48 individually controllable groups of RGBW LEDs
See variants

PHOTO GALLERY

SunBlast 3000FC
SunBlast 3000FC
SunBlast 3000FC
SunBlast 3000FC

Technical specifications

LIGHT SOURCE
  • Source: 1.728x1W RGBW LEDs
  • CCT: full ON 6.500
  • Luminous flux: strobing: 180'000 lm - full static: 34'717
  • Lux: full static: 1'425lx @3 m full
  • Lux: strobing: 565lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 111°
  • Field angle: 153°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
DYNAMIC EFFECTS
  • Rotating gobos: dynamic patterns with speed and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Kling-Net
  • Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
  • RDM: RDM for remote monitoring and settings
  • Display: black TFT touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: strobe : 1.500 W (peak) - static: 580W
  • Max power consumption (at 120V): strobe: 1.550 W (peak) - static 602W
  • Output (at 230V): 2 units on a single power line
  • Output (at 120V): 1 units on a single power line
  • Inrush current: 110VAC/8.5A, 230VAC/11.9A
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 468x179x268mm / 18.43''x7.05''x10.55''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS26D13
OS26D13
(included)

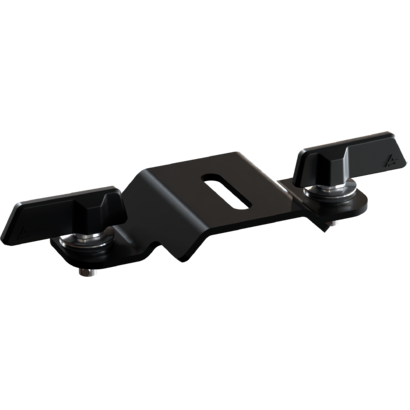

Quick-Lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
SUNBLASTFLR
SUNBLASTFLR
(optional)
Hanging bracket for SUNBLAST floor positioning, quick-look
SUNBLASTBD
SUNBLASTBD
(optional)
Barn door for SUNBLAST with 4 directional flaps to adjust the light beam
FCLSUNBLAST
FCLSUNBLAST
(optional)
Flight case for 6x SUNBLAST, foam shells included
FCLSUNBLASTE
FCLSUNBLASTE
(optional)
Flight case for 6x SUNBLAST
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Sunblast3000fc_A4_DATASHEET_(EN).pdf 628KB
Letter datasheet Sunblast3000fc_A4_DATASHEET_(IT).pdf 378KB
Letter datasheet Sunblast3000fc_LETTER_DATASHEET_(EN).pdf 381KB

User manual

DMX chart & personalities

File name File size Download
DMX chart Sunblast3000fc_DMX_CHARTS.pdf 103KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 288KB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
SUNBLAST3000FC Firmware rev. 2.6
manufacturer fixture library (Link) Link
prolights_sunblast 3000 fc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_sunblast3000fc_advanced+1.hedDownload
prolights_sunblast3000fc_advanced+2.hedDownload
prolights_sunblast3000fc_advanced+3.hedDownload
prolights_sunblast3000fc_advanced+4.hedDownload
prolights_sunblast3000fc_basicpixel.hedDownload
prolights_sunblast3000fc_basicstatic.hedDownload
prolights_sunblast3000fc_basicstrobe.hedDownload
prolights_sunblast3000fc_pixelspixels.hedDownload
prolights_sunblast3000fc_rgbwstrobe.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast_3000_fc@advance_1.xmlDownload
prolights@sunblast_3000_fc@advance_2.xmlDownload
prolights@sunblast_3000_fc@advance_3.xmlDownload
prolights@sunblast_3000_fc@advance_4.xmlDownload
prolights@sunblast_3000_fc@basic_pixel.xmlDownload
prolights@sunblast_3000_fc@basic_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic_static.xmlDownload
prolights@sunblast_3000_fc@basic_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_pixel.xmlDownload
prolights@sunblast_3000_fc@basic16_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_static.xmlDownload
prolights@sunblast_3000_fc@basic16_strobe.xmlDownload
prolights@sunblast_3000_fc@pixels_1px.xmlDownload
prolights@sunblast_3000_fc@pixels_2px.xmlDownload
prolights@sunblast_3000_fc@pixels_3px.xmlDownload
prolights@sunblast_3000_fc@pixels_12px.xmlDownload
prolights@sunblast_3000_fc@pixels_48px.xmlDownload
prolights@sunblast_3000_fc@expert_advance_2.xmlDownload
prolights@sunblast_3000_fc@expert_advance_4.xmlDownload
prolights@sunblast_3000_fc@expert_pixels.xmlDownload
manufacturer fixture library (Link) Link
sunblast3kfc_adv1_hv3_6_1.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
sunblast 3000 fc advanced 1.fix2Download
sunblast 3000 fc advanced 2.fix2Download
sunblast 3000 fc advanced 3.fix2Download
sunblast 3000 fc basic pixel.fix2Download
sunblast 3000 fc basic rgbw strobe.fix2Download
sunblast 3000 fc basic static.fix2Download
sunblast 3000 fc basic strobe.fix2Download
sunblast 3000 fc pixels 1px.fix2Download
sunblast 3000 fc pixels 2px.fix2Download
sunblast 3000 fc pixels 3px.fix2Download
sunblast 3000 fc pixels 12px.fix2Download
sunblast 3000 fc pixels 48px.fix2Download
manufacturer fixture library (Link) Link
SUNBLAST3000FC Firmware rev. 2.1
manufacturer fixture library (Link) Link
prolights_sunblast 3000 fc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_sunblast3000fc_advanced+1.hedDownload
prolights_sunblast3000fc_advanced+2.hedDownload
prolights_sunblast3000fc_advanced+3.hedDownload
prolights_sunblast3000fc_advanced+4.hedDownload
prolights_sunblast3000fc_basicpixel.hedDownload
prolights_sunblast3000fc_basicstatic.hedDownload
prolights_sunblast3000fc_basicstrobe.hedDownload
prolights_sunblast3000fc_pixelspixels.hedDownload
prolights_sunblast3000fc_rgbwstrobe.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast_3000_fc@advance_1.xmlDownload
prolights@sunblast_3000_fc@advance_2.xmlDownload
prolights@sunblast_3000_fc@advance_3.xmlDownload
prolights@sunblast_3000_fc@advance_4.xmlDownload
prolights@sunblast_3000_fc@basic_pixel.xmlDownload
prolights@sunblast_3000_fc@basic_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic_static.xmlDownload
prolights@sunblast_3000_fc@basic_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_pixel.xmlDownload
prolights@sunblast_3000_fc@basic16_rgbw_strobe.xmlDownload
prolights@sunblast_3000_fc@basic16_static.xmlDownload
prolights@sunblast_3000_fc@basic16_strobe.xmlDownload
prolights@sunblast_3000_fc@pixels_1px.xmlDownload
prolights@sunblast_3000_fc@pixels_2px.xmlDownload
prolights@sunblast_3000_fc@pixels_3px.xmlDownload
prolights@sunblast_3000_fc@pixels_12px.xmlDownload
prolights@sunblast_3000_fc@pixels_48px.xmlDownload
prolights@sunblast_3000_fc@expert_advance_2.xmlDownload
prolights@sunblast_3000_fc@expert_advance_4.xmlDownload
prolights@sunblast_3000_fc@expert_pixels.xmlDownload
manufacturer fixture library (Link) Link
sunblast3kfc_adv1_hv3_6_1.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
sunblast 3000 fc advanced 1.fix2Download
sunblast 3000 fc advanced 2.fix2Download
sunblast 3000 fc advanced 3.fix2Download
sunblast 3000 fc basic pixel.fix2Download
sunblast 3000 fc basic rgbw strobe.fix2Download
sunblast 3000 fc basic static.fix2Download
sunblast 3000 fc basic strobe.fix2Download
sunblast 3000 fc pixels 1px.fix2Download
sunblast 3000 fc pixels 2px.fix2Download
sunblast 3000 fc pixels 3px.fix2Download
sunblast 3000 fc pixels 12px.fix2Download
sunblast 3000 fc pixels 48px.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Sunblast3000fc_3D_SKETCHUP.skp 220KB
3D Sunblast3000fc_3D.dwg 636KB
2D Sunblast3000fc_2D.dwg 4MB
Technical drawing Sunblast3000fc_TECHNICAL_DRAWING.pdf 626KB

Tech docs

File name File size Download

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 15/11/2023 Improvement:
  • Improved Dimming at low DMX values.
 Rev. 1
Rev. 2
Rev. 3
Rev. 1.0
2.1 STABLE 22/02/2022 Improvements:
  • Added NAdvanced DMX Charts family.
  • Added Zero Time option to Dim RGBW LEDs together while using Pixels.
Note: Update must be performed updating firmware in the following order NET, CTR-LED,DISP 		 Rev. 1.0
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 15/11/2023 Improvement:
  • Improved Dimming at low DMX values.
 Rev. 1
Rev. 2
Rev. 3
Rev. 1.0
2.1 STABLE 22/02/2022 Improvements:
  • Added NAdvanced DMX Charts family.
  • Added Zero Time option to Dim RGBW LEDs together while using Pixels.
Note: Update must be performed updating firmware in the following order NET, CTR-LED,DISP 		 Rev. 1.0

Info Request

News

19 April 2024
PROLIGHTS Shines at the Mercedes-Benz AMG GT Launch in Poland
PROLIGHTS Shines at the Mercedes-Benz AMG GT Launch in Poland
Duda-Cars, in collaboration with event specialists Kukoni, unveiled the new Mercedes-Benz AMG GT in Poland, a dazzling event illuminated...
16 April 2024
The Astra Profile600IP Lights Illuminate St. Anton's Slopes
The Astra Profile600IP Lights Illuminate St. Anton's Slopes
In St.Anton, Austria, the ski season is transformed into a vivid spectacle of lights, thanks to the Astra Profile600IP . The event,...
09 April 2024
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The  Astra Wash19Pix by PROLIGHTS illuminated the annual Chinese New Year Gala in Australia for 2024, held at the Adelaide Entertainment...
05 April 2024
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS products have lit up the new Madame Tussauds museum in Budapest. The project was followed by the system integrator company...
03 April 2024
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS announces the launch of the High Definition Optics for the Ecl Display series. Engineered to redefine projection quality,...
29 March 2024
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus , provided by Luminosity Lighting Services Ltd, illuminated the Blue Room and Music Room of Buckingham Palace...
26 March 2024
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS is thrilled to announce the introduction of the EclDisplay CAS , the latest addition to the EclDisplay projector range for...
22 March 2024
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
When Resolution X saw the PROLIGHTS EclPar IPMFC multipurpose LED fixture, they knew it was the perfect fit for a special long-term...
19 March 2024
PROLIGHTS illuminates ERT 3 studios
PROLIGHTS illuminates ERT 3 studios
The ERT 3 studios have upgraded their lighting system by introducing the EclPanel TWC and EclFresnel CT+M by PROLIGHTS into their inventory....
12 March 2024
PROLIGHTS products Illuminate Swan Park Theatre
PROLIGHTS products Illuminate Swan Park Theatre
Swan Park Theatre, a cornerstone of the arts within the City of Swan, has experienced a transformative upgrade in its lighting setup,...
04 March 2024
PROLIGHTS introduces the EclPendant S series: Compact, Versatile and Seamless house lights
PROLIGHTS introduces the EclPendant S series: Compact, Versatile and Seamless house lights
PROLIGHTS is proud to unveil its latest innovation in installation lighting - the EclPendant S series. This new addition to the PROLIGHTS...
04 March 2024
PROLIGHTS introduces the ArcSpot series: Setting New Standards in Outdoor Lighting Solutions
PROLIGHTS introduces the ArcSpot series: Setting New Standards in Outdoor Lighting Solutions
PROLIGHTS is thrilled to unveil its latest innovation in outdoor lighting: the ArcSpot Series. This collection of IP66-rated dynamic...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin
Loading...
