SUNRISE2
TRIBEby TRIBE
end of life

Sunrise 2

ORDER CODE: SUNRISE2

2X100W COB LED blinder

Sunrise 2 is the first blinder with LED source which equals the brightness of conventional projectors based around DWE 2x650W halogen lamps. It's equipped with 2x100W COB LED 3.200 K and an optical glass that is able to reproduce the projection angle, colour temperature, dimmer ramp and brightness of a fluorescent bulb. The electronic Sunrise 2 also offers many other key points such as the option to control each LED independently in pixel2pixel and can be taken advantage of a dedicated channel to the strobe, in addition to the selection of different dimmer curves.

Main features:

  • 2x100W COB LED 3.200 K
  • An outstanding brightness of 7'156 lm, achieving the brightness of classic DWE blinders
  • CRI > 80
  • Pixel control: individual control of every single LED with a selection of dimmer fade
  • No need for dimmers or lamp replacement - LED lifespan > 50.000 h
See variants

PHOTO GALLERY

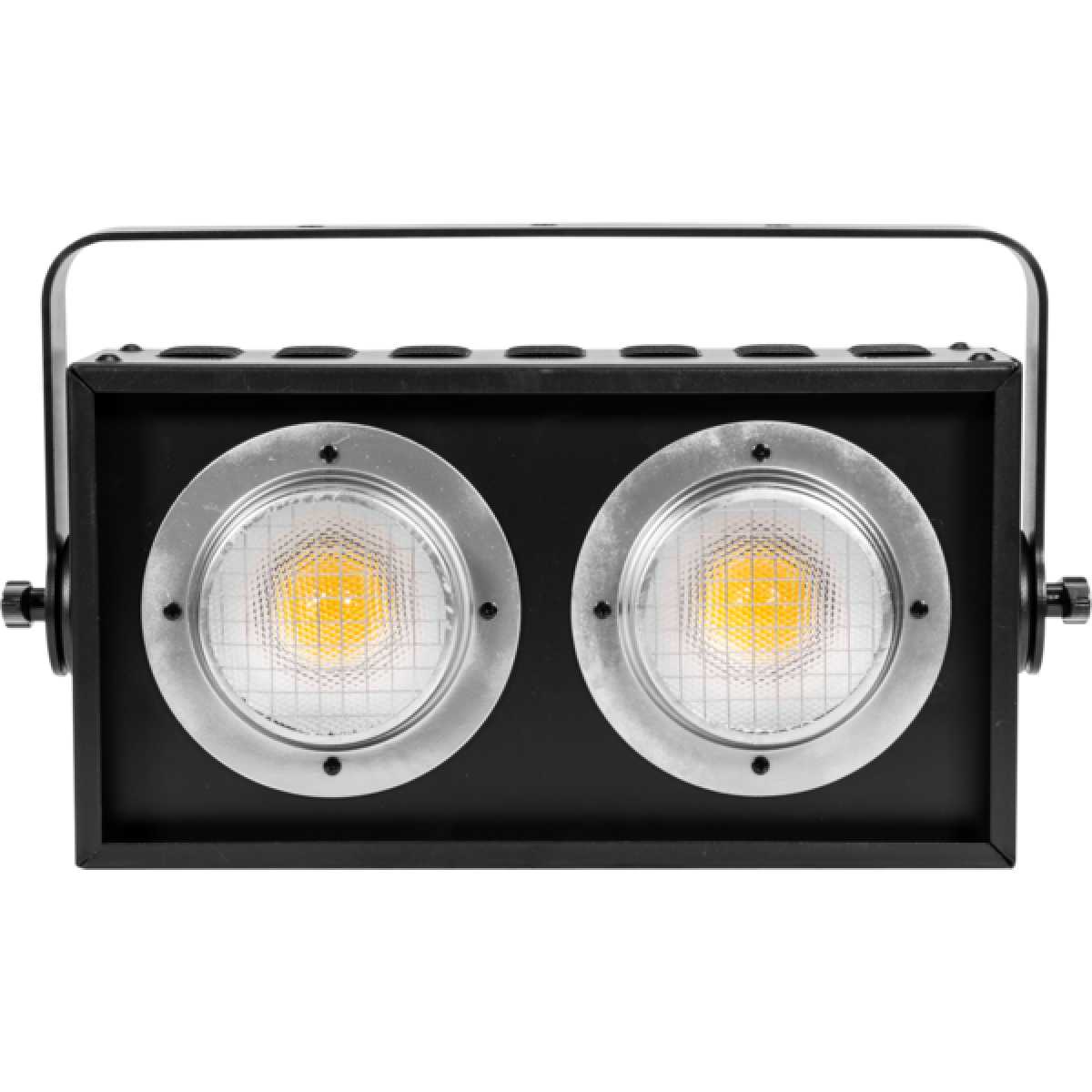

Sunrise 2

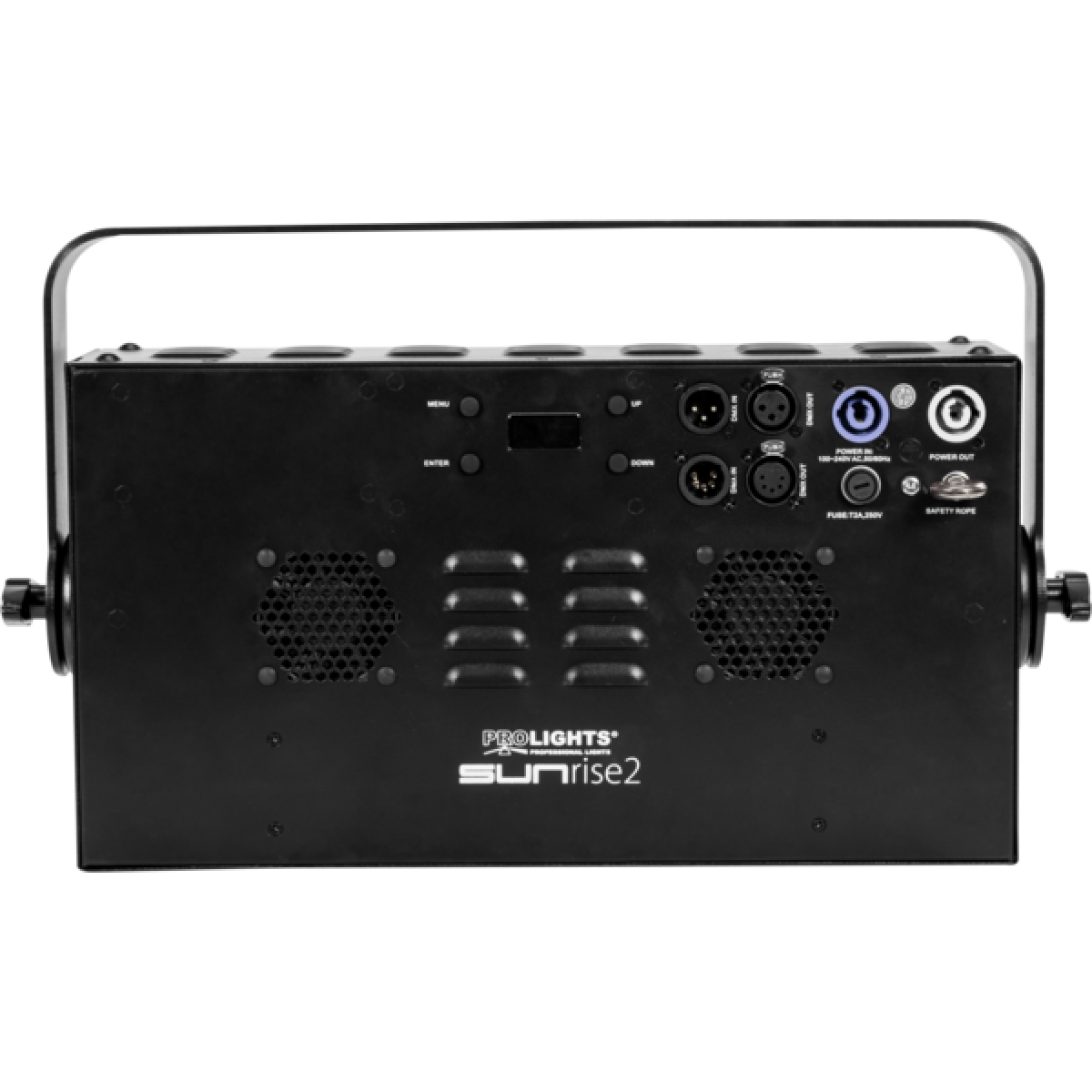

Sunrise 2

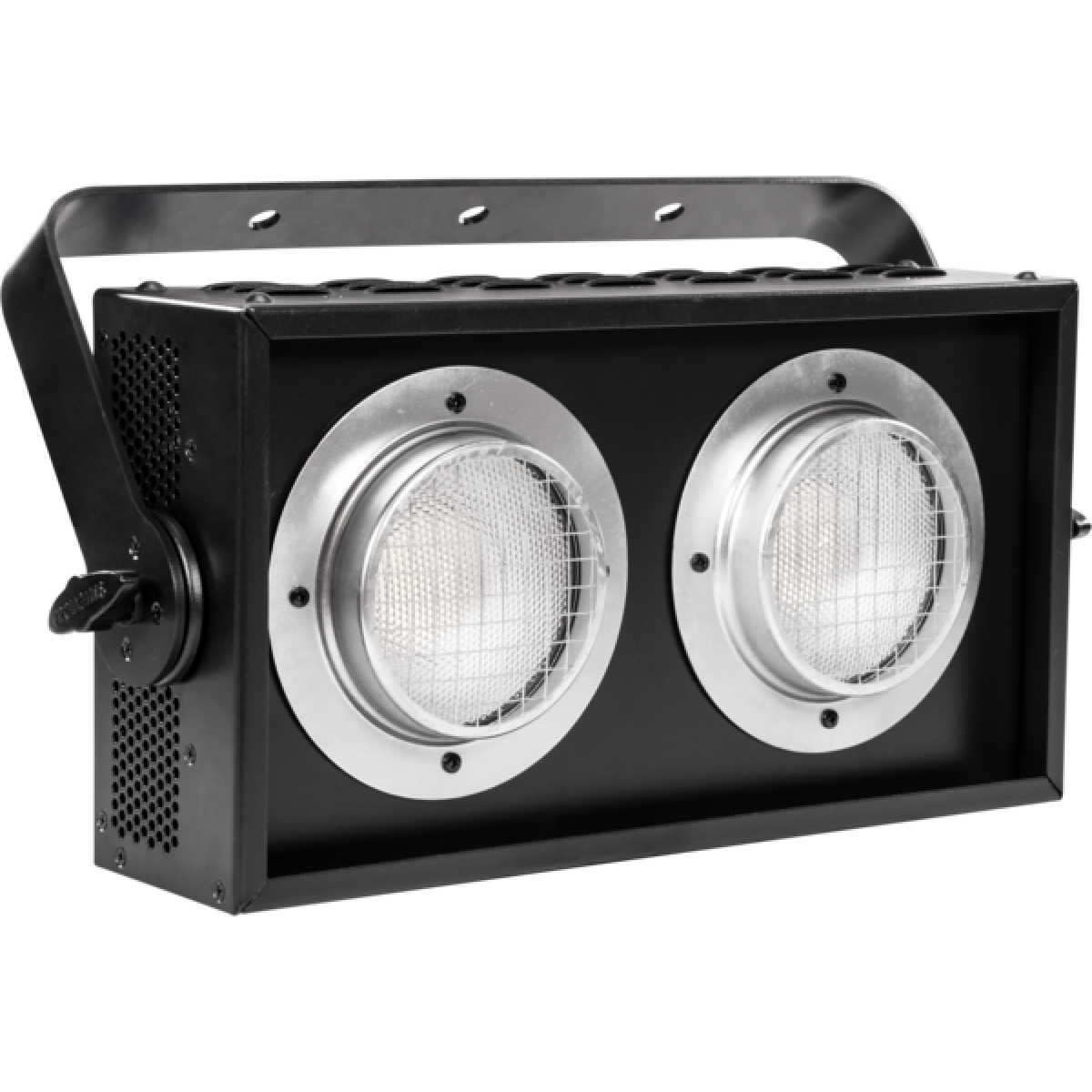

Sunrise 2

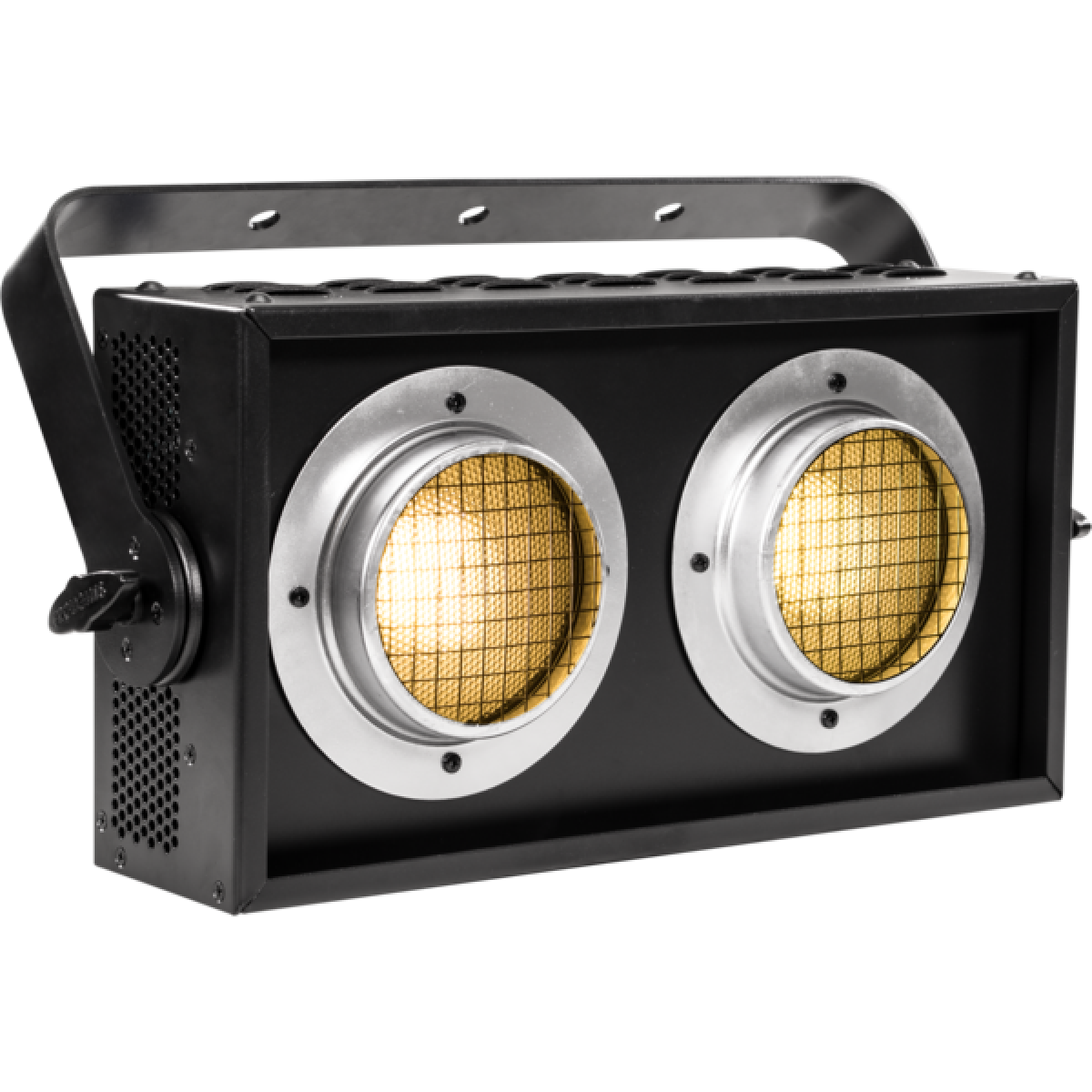

Sunrise 2

Technical specifications

LIGHT SOURCE
  • Source: 2x100W White COB LEDs
  • CCT: 3.200
  • Luminous flux: 11'334
  • Lux: 1'392lx @3 m
  • CRI: > 70
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 58°
  • Field angle: 85°
  • Lens type: HD anti-reflection lenses with achromatic coating
COLOUR SYSTEM
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy aluminum profile
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 4 / 7channel
  • Pixel control: pixel2pixel control
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 180W
  • Output (at 230V): 12 units on a single power line
  • Power factor: 0,96
PHYSICAL
  • IP rating: 30
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 473x270x105mm / 18.62''x10.63''x4.13''
  • Weight: 6,8kg / 14.99lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Sunrise2_A4_DATASHEET.pdf 517KB

User manual

File name File size Download
User manual Sunrise2_USER_MANUAL_ITEN.pdf 2MB

DMX chart & personalities

File name File size Download
DMX chart Sunrise2_DMX_CHARTS.pdf 45KB
SUNRISE2 Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_sunrise2.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Sunrise2_3D.rvt 369KB
2D Sunrise2_CAD_2D.dwg 5MB
3D Sunrise2_CAD_3D.dwg 610KB
2D cad symbols Sunrise2_CAD_2DSYMBOLS.dwg 56KB
Technical drawing Sunrise2_TECHNICAL_DRAWING.pdf 196KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 252KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 03/12/2018 10 second default display backlight
