Tabled C

Revolutionary full colour event battery table lamp

Tabled C is an ingenious product which offers beautiful table lighting for events whilst keeping the atmosphere of the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control and wireless DMX, it can either act as a standalone table light or be part of a spectacular event lighting package.

Main features:

Battery powered and wireless DMX control for fast deployment and accurate control
RGBW LED source with 360° coverage for standard catering round tables of 1,8 m
Available in a TABLEDPACK featuring 4 lights with accessories in an ABS case

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 6x3 W + 6x1W RGB + Neutral White
CCT: NW 4.000
CRI: 80
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 360° designed to light up standard 160/180 cm ceremony tables

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of colour

BODY

Hardware on-board: magnetic base
Body: sturdy die-cast aluminium body
Body colour: mirror and white finishing
Other: 1 x TABLEDDSK22W and 1x1 recharger included inside single unit box

CONTROL

Protocols: W-DMX
DMX channels: 4 / 7 / 10 / 12channel
Wireless Control: included, wireless solution receiver
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
IR: infrared sensor controlled by remote (included in the pack, not included in single unit)

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45°

ELECTRICAL

Mains power supply: DC 24 V - 1 A
Max power consumption: 8,8W

BATTERY

Battery: 2,20 Ah - 14,8V lithium
Estimated battery life in colour change mode up to: 14,5h
Estimated battery life in single colour mode up to: R: 19 h - G: 17,5 h - B: 17,5 h - W: 17,5h
Estimated battery life in full-mode up to: 9h
Re-charge connection: power cable fast-charge in pelican case
Re-charge time: 4h/max
Battery status: shown on display

PHYSICAL

IP rating: 30
Suspension and fixing: magnetic base to attach on every metal surface
Data connection: W-DMX receiver
Dimensions (WxHxD): 140x307x220mm / 5.51''x12.09''x8.66''
Weight: 1,18kg / 2.6lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

Versions

Code

Tabled

Extensions

Bases

Recharger

IRC

Certifications

TABLED-C

x1 TABLEDDSK22W

1x1

CE, cTUVus, UKCA

TABLED-CPACK

x2 TABLEDEXT-027

x4 TABLEDDSK22W

1x4

CE, UKCA

TABLED-CPACKWH

x2 TABLEDEXT-027WH

x4 TABLEDDSK22W

1x4

CE, UKCA

VIDEOS

Accessories & Related Products

LRLUNA

(Optional)

Single Universe DMX transceiver with Bluetooth

RSR0630B

(Optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

C6002B

(Optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

IR Controller

(Optional)

RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

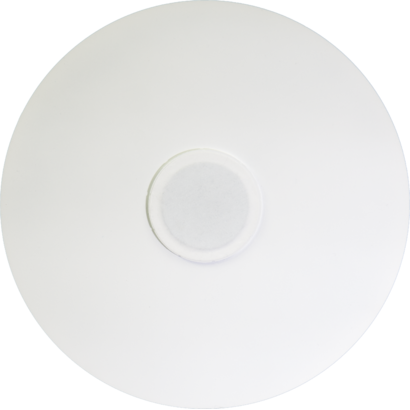

TABLEDDSK22W

(Included)

White disk for TABLED, D 220 mm

TABLEDDSK22MT

(Optional)

Transparent disk with magnet for TABLED, D 220 mm

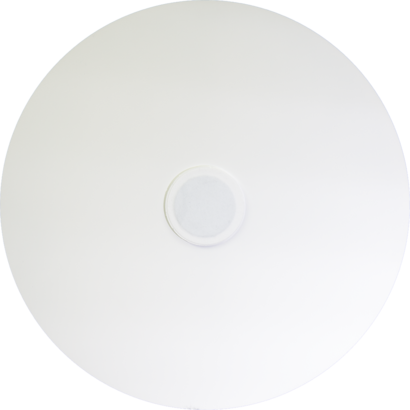

TABLEDDSK28MW

(Optional)

White disk with magnet for TABLED, D 280 mm

TABLEDDSK40MW

(Optional)

White disk with magnet for TABLED, D 400 mm

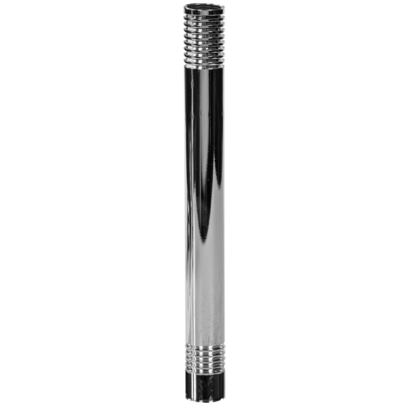

TABLEDEXT

(Optional)

TABUPBOXI

(Optional)

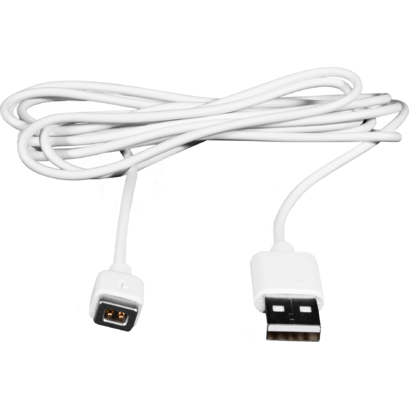

Interface used between UPBOX1U and TABLED for make firmware upgrade

Upbox 1

(Optional)

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Tabledc_A4_DATASHEET_(EN).pdf	257KB
	Tabledc_A4_DATASHEET_(IT).pdf	256KB
	Tabled-cpack_A4_DATASHEET_(IT).pdf	256KB
	Tabled-cpack_A4_DATASHEET_(EN).pdf	257KB

User manual

	File name	File size	Download
	Tabled-c_USER_MANUAL_ITEN.pdf	1MB
	Tabledc_USER_MANUAL_ITEN.pdf	1MB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	Tabledc_GENERAL_SAFETY_INFO.pdf	9MB
	Tabled-cpack_GENERAL_SAFETY_INFO.pdf	9MB
	Tabledc_Wireless_Protocol_Compatibilit_EN.pdf	4MB
	Tabled-cwh_Wireless_Protocol_Compatibilit_EN.pdf	4MB

DMX chart & personalities

	File name	File size	Download
	Tabled-c_DMX_CHARTS.pdf	46KB

TABLEDC Firmware rev. 1.2

manufacturer fixture library (Link)	Link
prolights_tabled-c.d4	Download

manufacturer fixture library (Link)	Link
prolights_tabled_basic.hed	Download
prolights_tabled_ext.hed	Download
prolights_tabled_std.hed	Download

prolights@tabledc@10ch.xml

Download

manufacturer fixture library (Link)

Link

Photometrics

	File name	File size	Download
	Tabledc_PHOTOMETRICS.pdf	528KB
	Download DIALux product catalogue	-

CAD symbols & drawings

	File name	File size	Download
	Tabledc_3D.rvt	394KB
	Tabledc_3D.skp	230KB
	Tabled-c_CAD_2D.dwg	570KB
	Tabled-c_CAD_3D.dwg	1MB
	Tabledc_CAD_2DSYMBOLS.dwg	81KB
	TABLEDC_TECHNICAL DRAWINGS.zip	352KB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB
	VECTORWORKS_SYMBOLS.vwx	181KB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

-------------------------------------------------------------------------------

To perform firmware update with UPBOX the tool TABUPBOXI is also needed

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide

Revision	Release date	Firmware changelog	HW Compatibility
Update Tool: UPBOX1UP5
Check hardware changelog before downloading firmware
1.2 STABLE	24/10/2019	Added new dmx mode ADV@12ch The new mode include: - crossfade channel trought 2 layers to achive linear crossfade form any RGB colors (mixed, presets or effects) to White channel. - CTO on Colors	Rev. 1 Rev. 1.0 Rev. 2
