ASTRAPROF500LTIP

Astra Profile500LTIP

NEW

Order Code: ASTRAPROF500LTIP

Source
500W White LED
Zoom range
4,2° - 50,1° motorised linear zoom
IP rating
 IP65 for temporary outdoor use (*)
Weight
34kg / 74.96lbs

Key Features

  • 500 W white LED source, 6,500 K, 25'000 lm (goniometer)
  • 156 mm front lens with fast 4°-50° zoom
  • CMY+CTO colour mixing, one colour wheel, 4 framing shutters, 1 rotating gobo wheel, 1 fixed gobo wheel, 1 animation wheel, 2 frost, 2 prisms, iris
  • IP65-rated construction for reliable outdoor use

Astra Profile500LTIP is a high-power, versatile Long Throw and IP65-rated LED moving profile, designed to deliver exceptional brightness and robust performance in both indoor and outdoor environments.

Featuring a 500W white LED source at 6,500K, it produces a stunning 25'000 lumen output (goniometer), providing arena level output.

The 156 mm front lens combined with a custom designed long throw lens, projects a fat, even beam with fast zoom from from 4° to 50°, maintaining sharp projections and uniform beam quality across the entire zoom range.

Beam shaping is precise thanks to four framing shutters, while additional creative tools include a linear CMY system, linear CTO, one color wheel, a rotating gobo wheel, a fixed gobo wheel, animation wheel, two frost filters, two overlapping linear prisms for dynamic aerial effects, and an iris.

Astra Profile500LTIP offers precise beam shaping with four framing shutters, each with independent plane rotation and full curtain capability. Additional creative tools include a linear CMY system, linear CTO system, one color wheel, a rotating gobo wheel with seven gobos, an animation wheel, a frost and two overlapping linear prisms for dynamic aerial effects.

Housed in a die-cast magnesium alloy body with full IP65-rated construction for outdoor use, Astra Profile500LTIP is designed for reliability in any environment but keeps lightweight. With fast pan and tilt movement and internal features, high-resolution control, and integrated CRMX wireless connectivity plus Ethernet-based protocols, it ensures fast setup and flexible operation for live events and concerts, theatre and broadcast, corporate productions, and outdoor shows.

Read less
Astra Profile500LTIP is a high-power, versatile Long Throw and IP65-rated LED moving profile, designed to deliver exceptional brightness and robust performance in both indoor and outdoor environments....

Photo Gallery

Specifications

LIGHT SOURCE
  • Source: 500W White LED
  • CCT: 6.500K
  • Luminous flux: (4,2°) 15'370 lm - (50,1°) 24'649 lm @Full
  • Lux: (4,2°) 121'742 lx - (50,1°) 1'924lx
  • CRI: > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 4,2° - 50,1° motorised linear zoom
  • Lens diameter: 156mm / 6.14''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: linear CTO correction 2.700 K ~ 6.500 K
  • Colour wheel: open + high CRI filter + 5 colour colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: 25 mm outer / 20 mm image / up to 3 mm thickness
  • Fixed gobos: 8 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 4-f with bi-directional rotation
  • Linear prism: 6-f with bi-directional rotation
  • Frost: dual soft-edge and heavy with one interchangeable element
  • Iris: 5 - 100% motorised iris
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 43channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
BODY
  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Feedback: automatic repositioning after accidental movement
  • Body: Weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: black
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 50000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 788W
  • Standby power: 92 W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: heat pipe with low-noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Seetronic RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 449x705x297mm / 17.68''x27.76''x11.69''
  • Weight: 34kg / 74.96lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE
BOX CONTENT
  • 1 x ASTRAPROF500LTIP
  • 2 x OSIPPLUS
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

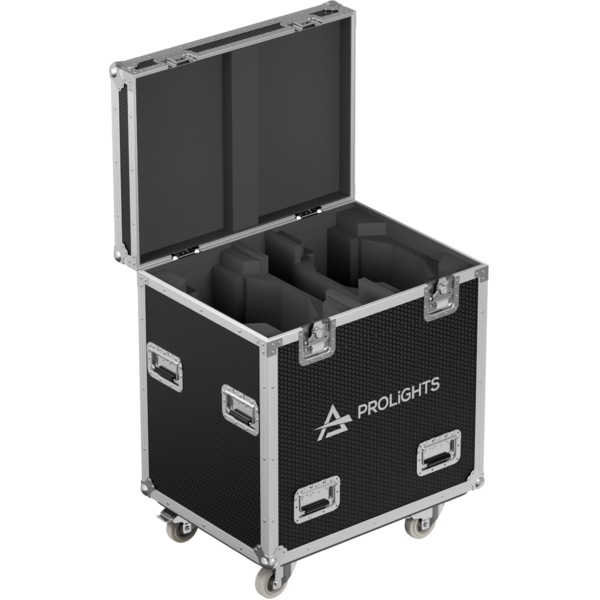

Optional FCLASTRAP500LTIP

Flight case for 2 pcs of ASTRAPROFILE500LTIP

Order Code: FCLASTRAP500LTIP

Included OSIPPLUS

IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole

Order Code: OSIPPLUS

Optional IPTESTBOX

Portable vacuum and pressure tester for ProLights IP fixtures

Order Code: IPTESTBOX

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional RSR1235A

Steel security cable for hanging bodies, inox steel shackle, L=120 cm, silver

Order Code: RSR1235A

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetAstraprof500ltip_A4_DATASHEET_(EN).pdf(26/01/2026)565KB
Tender SpecificationAstraprof500ltip_TENDER_SPECIFICATION.pdf(26/01/2026)259KB

User manual User manual

File name File size Download
User manualAstraprof500ltip_USER_MANUAL_EN.pdf(27/01/2026)8MB
User manualAstraprof500ltip_General_Safety_Information.pdf(05/01/2026)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartAstraprof500ltip_DMX_CHARTS.pdf(27/01/2026)1MB

ASTRAPROF500LTIP Firmware rev. 0.0.00.0036

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

CAD symbols & drawings CAD symbols & drawings

Tech docs Tech docs

File name File size Download
Color DocumentAstraprof500ltip_COLOR.pdf(21/01/2026)71KB
General safety infoAstraprof500ltip_FixedGOBOS.pdf(21/01/2026)74KB
Gobos DocumentAstraprof500ltip_GOBOS.pdf(21/01/2026)804KB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.00.0036 ALPHA 23/01/2026

Improvement:

  • Improved Dimmer behavior

NOTE: ArtNet and sACN protocols cannot be used. Their implementation will concern future firmware.
