ASTRAWASH7PI

Astra Wash7Pix

Source
7x40W RGBW Osram Ostar LEDs
Zoom range
4° - 56° motorised linear zoom
IP rating
 IP20
Weight
8,1kg / 17.86lbs

Key Features

  • Compact form factor and fast movements
  • Zoom from 4° to 56° with high optical efficiency
  • Pixel control, precise white CCT and multiple FXs and colour features

Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Read less
Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.Based on a 40W Osram R...

Versions

Code Finishing RAL
ASTRAWASH7PIX
ASTRAWASH7PIX
Black 9004
ASTRAWASH7PIXWH
ASTRAWASH7PIXWH
White 9010

Product Video

Discover the Astra Wash7Pix in action

Photo Gallery

ASTRAWASH7PIX
ASTRAWASH7PIX
ASTRAWASH7PIX
ASTRAWASH7PIX
ASTRAWASH7PIX
ASTRAWASH7PIX
ASTRAWASH7PIX
ASTRAWASH7PIX

Specifications

LIGHT SOURCE
  • Source: 7x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 2'013 lm - (56°) 3'543 @Full
  • Lux: (4°) 18'360 lx - (56°) 364lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 4° - 56° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: see variants
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 24 / 27 / 39channel
  • Pixel control: OFF, ring and pixel2pixel selectable options
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 225W
  • Standby power: 36 W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: filtered forced-air cooling with low-noise fans
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 279x391x205mm / 10.98''x15.39''x8.07''
  • Weight: 8,1kg / 17.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ASTRAWASH7PIX
  • 1 x OS24PLUS
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
  • 1 x User Manual

Accessories & Related Products

Optional OS24PLUS

Quick-lock omega bracket, M12 hole

Order Code: OS24PLUS

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional 958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

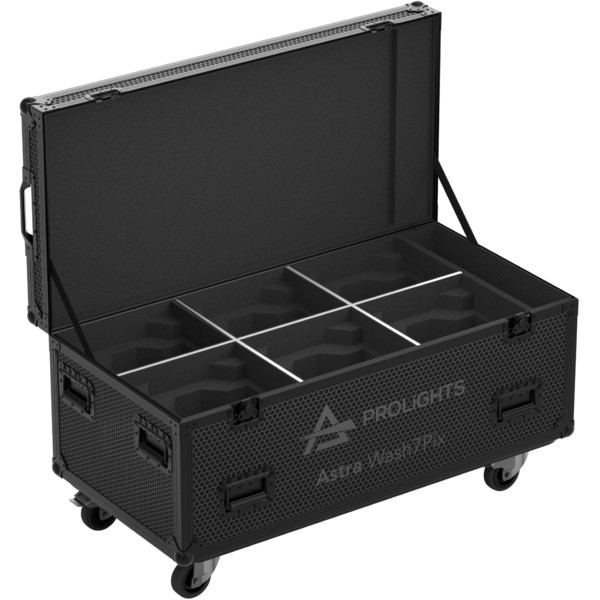

Optional FCLASTRAW7PIX

Flight case for 6 pcs of ASTRAWASH7PIX / JETWASH7

Order Code: FCLASTRAW7PIX

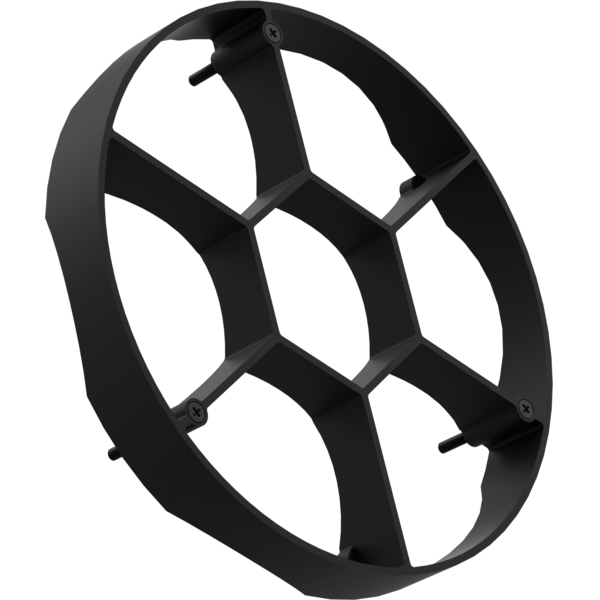

Optional ASTRAW7PEC

Egg Crate for ASTRAWASH7PIX / JETWASH7

Order Code: ASTRAW7PEC

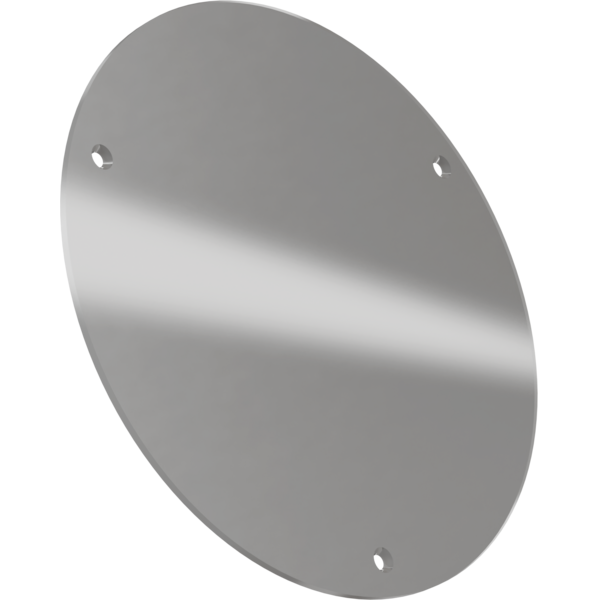

Optional ASTRAW7PSF

Smooth filter for ASTRAWASH7PIX and ASTRAWASH7PIXIP

Order Code: ASTRAW7PSF

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO
