ECLCTPLUS

EclProfile CT+

SPEKTRA

Order Code: ECLCTPLUSBK

Source
Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
IP rating
 IP20
Weight
7,9kg / 17.42lbs

Key Features

  • Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
  • RGB / CMY / HSI / XY / RAW colours control of the six colours LED array for easy access to any desired colour.
  • Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).

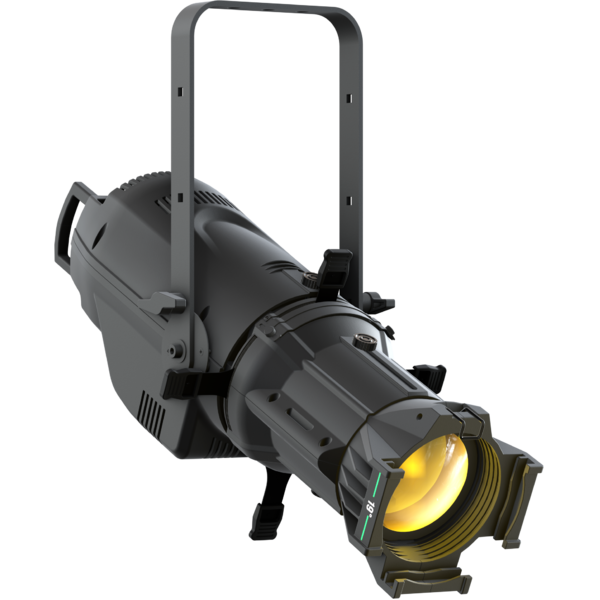

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.
Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.
The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio  functions, such as +/- green correction on linear white CCT.

Read less
EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour...

Product Video

Discover the EclProfile CT+ in action

Photo Gallery

ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK
ECLCTPLUSBK

Specifications

LIGHT SOURCE
  • Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
  • CCT: @full 5.000
  • Luminous flux: (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430 @Full
  • Luminous flux: (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817 @Full
  • Lux: (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
  • Lux: (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974lx @5 m full
  • CRI: 93,7 @3.200 K; 97,6 @5.600 K
  • R9: 98,6 @3.200 K; 98,2 @5.600 K
  • TLCI: 95 @5.600 K
  • TM30 Rf: 92 @5.600 K
  • TM30 Rg: 100,1 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB, Royal Blue, Mint, PC Amber
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
  • DMX channels: UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XYchannel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Standby power: 5W
  • Output (at 230V): 9 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: IP20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 264x259x539mm / 10.39''x10.2''x21.22''
  • Weight: 7,9kg / 17.42lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ECLCTPLUS
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
  • 1 x Calibration Report
  • User Manual

Accessories & Related Products

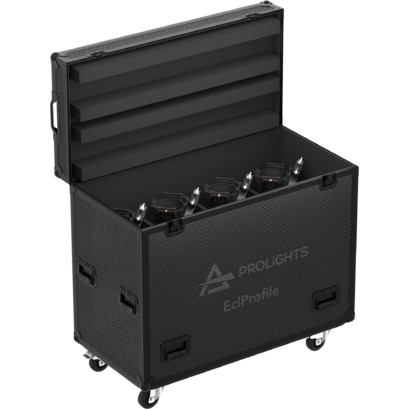

Optional FCLECLPR

Flightcase to contain 8 pcs ECLFS,ECLFW or ECLCTPLUS with lenses 19°,26°,36°,50°

Order Code: FCLECLPR

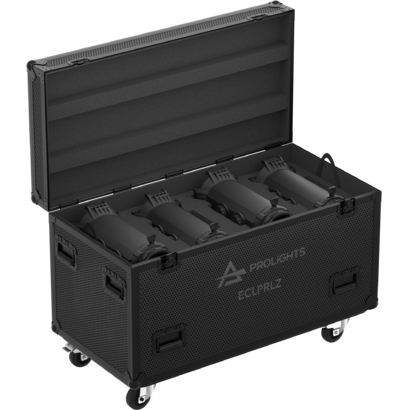

Optional FCLECLPRLZ

Flightcase to contain 8 ECLPRLZ zoom lenses

Order Code: FCLECLPRLZ

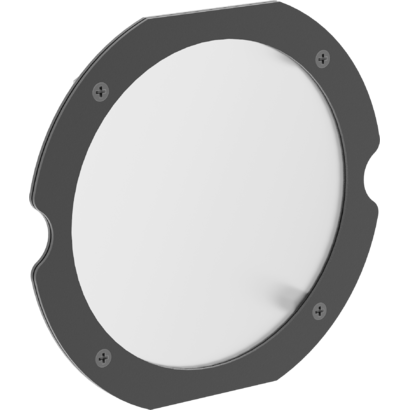

Optional <b>EclProfile</b> Smooth filter

Smooth/homogenizer filter with aluminium frame and magnets for Ecl Profile fixtu

Order Code: ECLPRSMOOTHF1

Optional <b>EclProfile</b> Smooth filter2

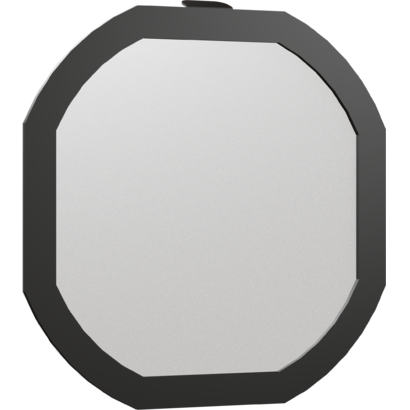

Magnetic smooth/homogenizer filter for Ecl Profile fixtures

Order Code: ECLPRSMOOTHF2

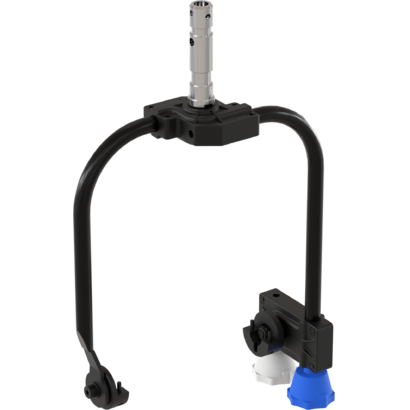

Optional <b>EclProfile</b> Pole Operated Yoke

Pole operated yoke for ECL Profile fixtures

Order Code: ECLPRPOYO

Optional <b>EclProfile</b> Half Snoot

Half Snoot for ECL Profile series, comp. with 19°, 26° and 36° lenses, black

Order Code: ECLPRHSNOOTBK

Optional <b>EclProfile</b> Full Snoot

Full Snoot for ECL Profile series, comp. with 19°, 26° and 36° lenses, black

Order Code: ECLPRFSNOOTBK

Optional ECLLB05BK

5° lens barrel for Ecl Profile fixtures, filterframe included, black housing

Order Code: ECLLB05BK

Optional ECLPRL05BK

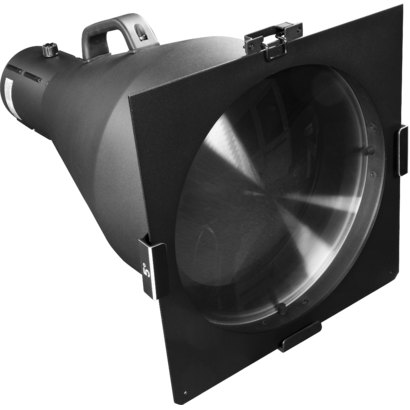

5° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL05BK

Optional ECLPRL10BK

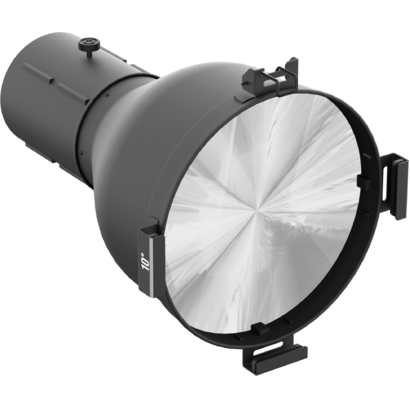

10° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL10BK

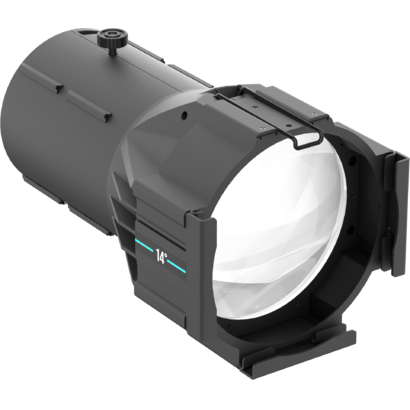

Optional ECLPRL14BK

14° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL14BK

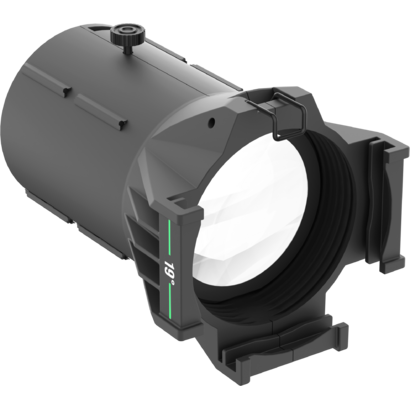

Optional ECLPRL19BK

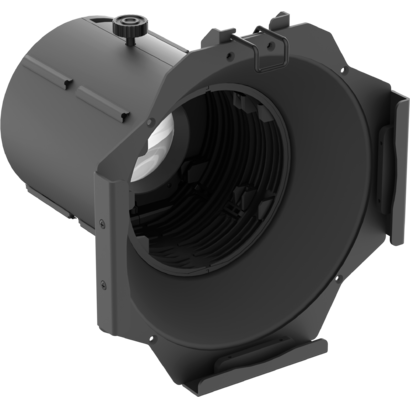

19° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL19BK

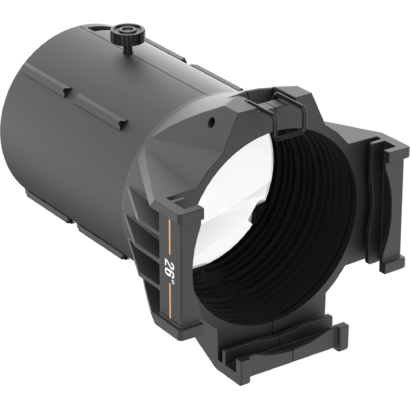

Optional ECLPRL26BK

26° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL26BK

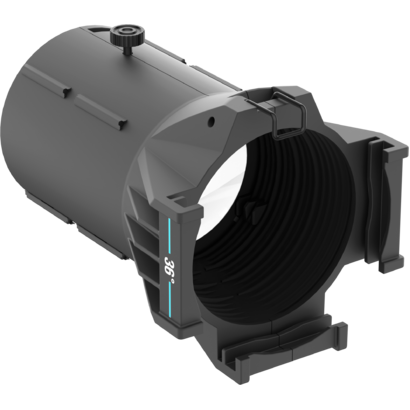

Optional ECLPRL36BK

36° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL36BK

Optional ECLPRL50BK

50° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL50BK

Optional ECLPRL70BK

70° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL70BK

Optional ECL LZ

Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°

Order Code: ECLLZ1530

Optional ECLPRL90BK

90° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRL90BK

Optional ECL LZ

Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°

Order Code: ECLLZ2550

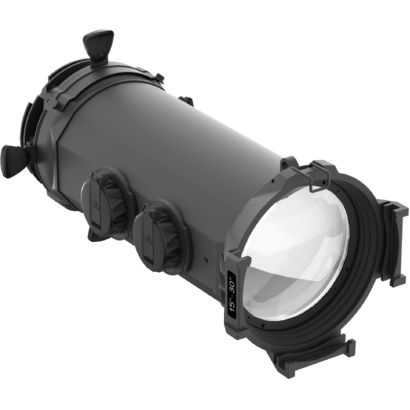

Optional <b>EclPrl</b> Zoom

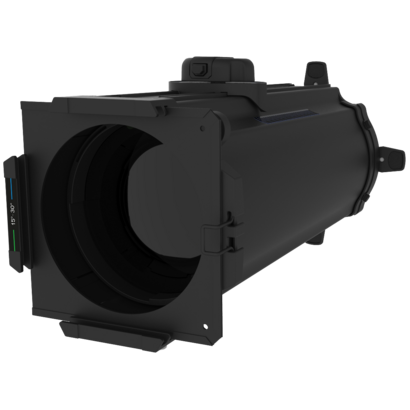

Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRLZ1530BK

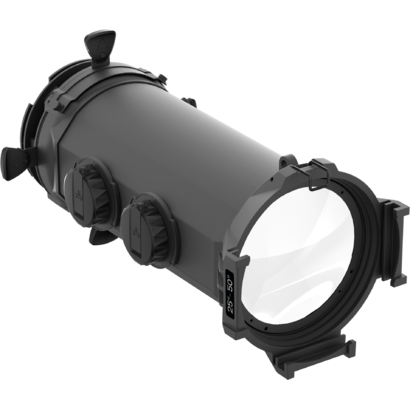

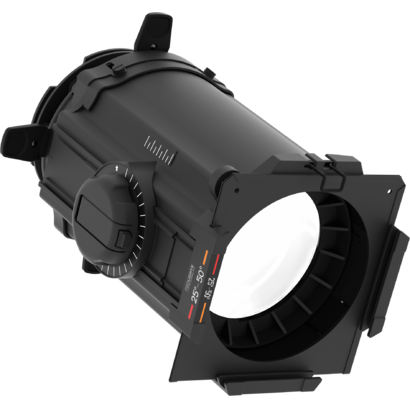

Optional <b>EclPrl</b> Zoom

Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing

Order Code: ECLPRLZ2550BK

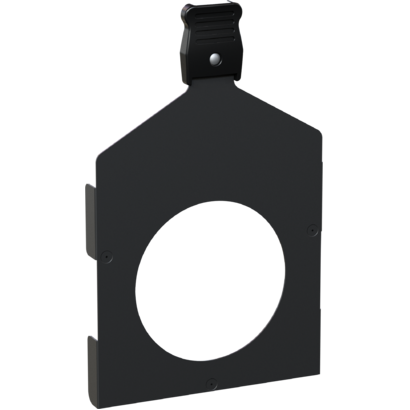

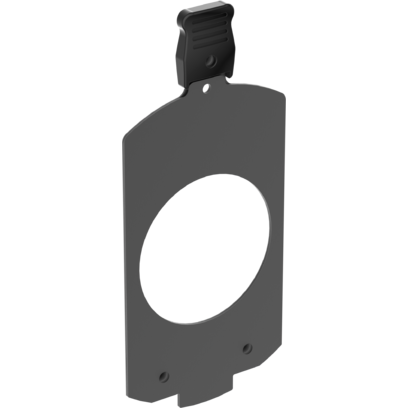

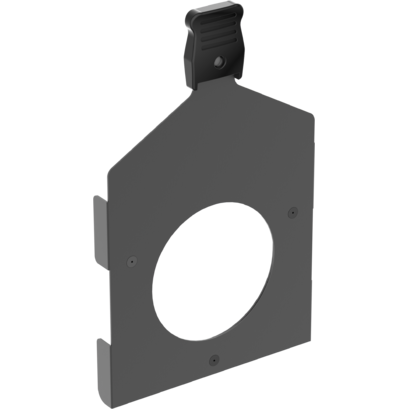

Optional ECLPRGH

Gobo holder for ECL Profile fixtures, B size

Order Code: ECLPRGH

Optional ECLPRGHA

Gobo holder for ECL Profile fixtures, A size

Order Code: ECLPRGHA

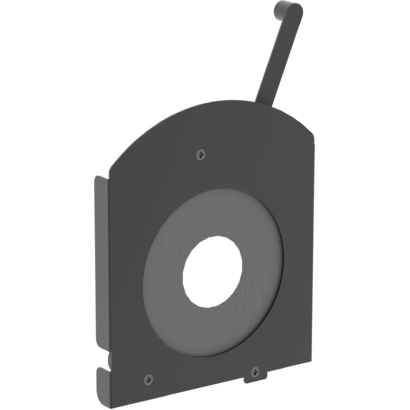

Optional ECLPRIRIS

Iris accessory for ECL Profile fixtures

Order Code: ECLPRIRIS

Optional ECLPRSEF1

Soft edge filter and holder kit for ECL Profile fixtures

Order Code: ECLPRSEF1

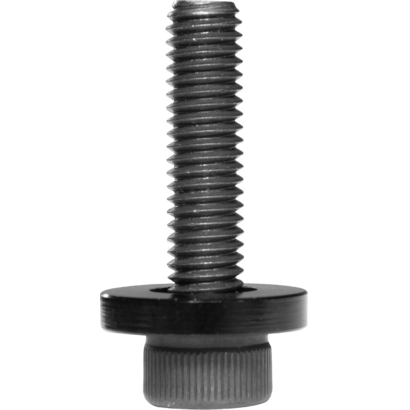

Optional ECLLZLLKA

Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS / IP, ECLFW / IP and ECLFS

Order Code: ECLLZLLKA

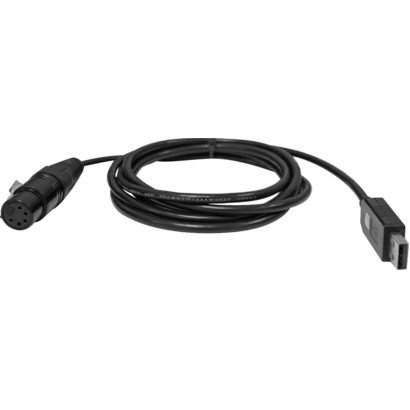

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

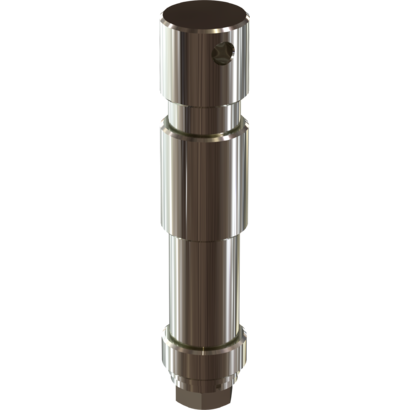

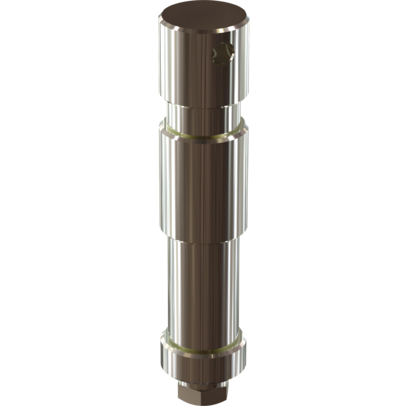

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

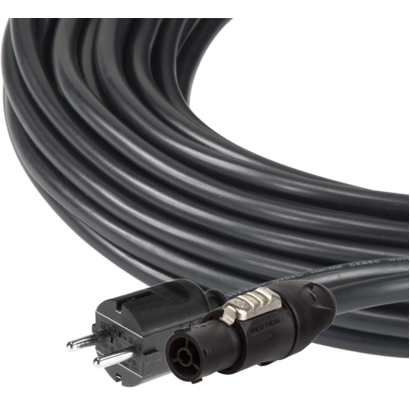

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

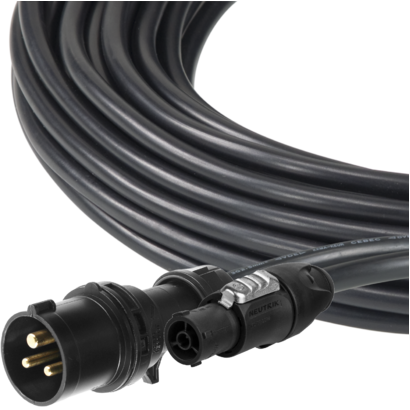

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional RSR0630B

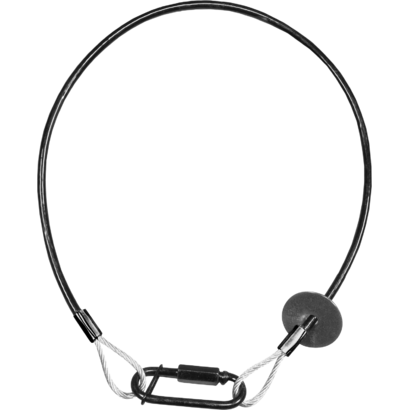

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional 958225L03

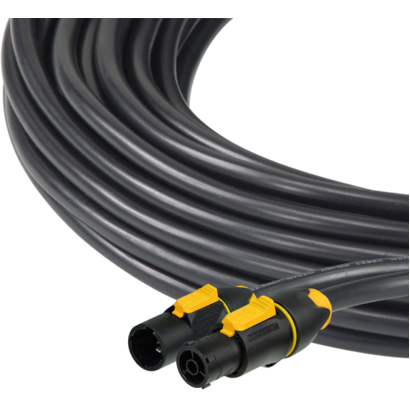

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

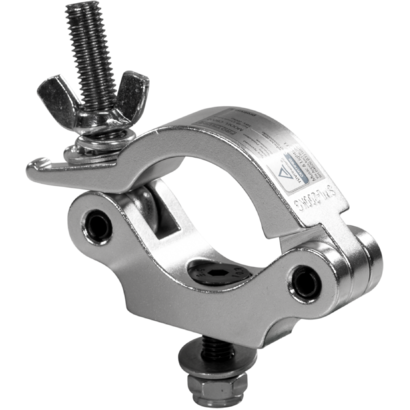

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

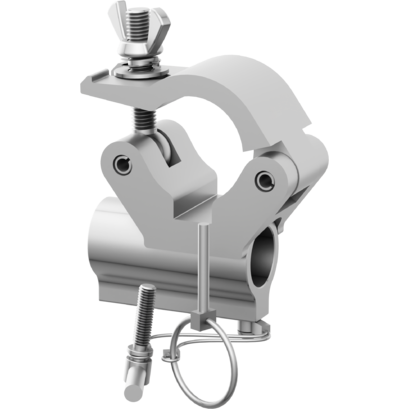

Optional C6040B
