ECLDISPLAYDATFC

EclDisplay DATFC

5 YEARS WARRANTY

Source
40W RGB + Warm White LED
Zoom range
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
IP rating
 IP20
Weight
1,4kg / 3.09lbs

Key Features

  • Universal control through RDM, DMX, DALI Type 8 and local knob dimming
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: profile (zoom and static) or wash optics

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay DATFC can be set and addressed through RDM, featuring a broad set of on-board input control options: DMX, DALI Type 8, local knob dimming control. The EclDisplay DATFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

Read less
EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control o...

Versions

Code Finishing Track adapter Optics
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
Black Not Included Not Included
ECLDISPLAYDATFCW
ECLDISPLAYDATFCW
White Not Included Not Included

Product Video

Discover the EclDisplay DATFC in action

Photo Gallery

ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB
ECLDISPLAYDATFCB

Specifications

LIGHT SOURCE
  • Source: 40W RGB + Warm White LED
  • Luminous flux: (profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402 @Full
  • Lux: (profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: Local Knob, DMX, DALI Type8, RDM
  • DMX channels: 5 / 6 / 15ch
  • RDM: for remote addressing and parameter configuration
  • Display: user interface through DATAMASTER external coder (not included)
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: screw terminal blocks
  • Data connection: screw terminal blocks
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 35W
  • Output (at 230V): 40 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium
  • Finish: black (RAL 9004) or white (RAL 9010)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 141X200x150mm / 5.55''x5.91''
  • Weight: 1,4kg / 3.09lbs
INSTALLATION
  • Suspension and fixing: track / hanging / ceiling installation
  • Hardware on-board: lockable tilt with screw
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ECLDISPLAYDATFC

Accessories & Related Products

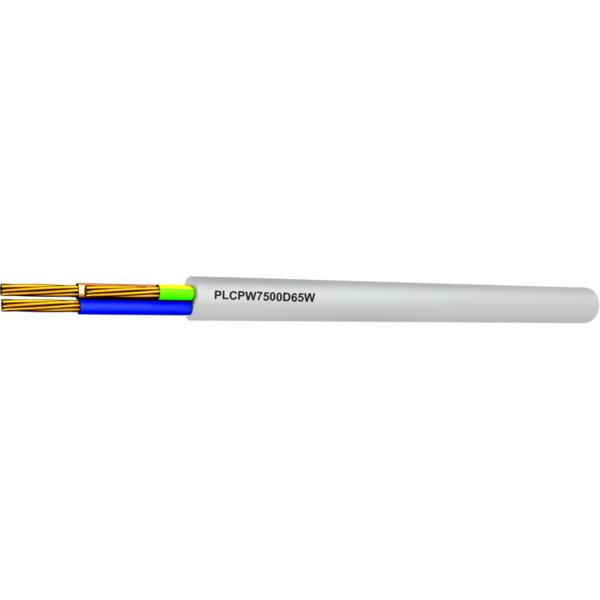

(Optional) PLCPW7500D65W
