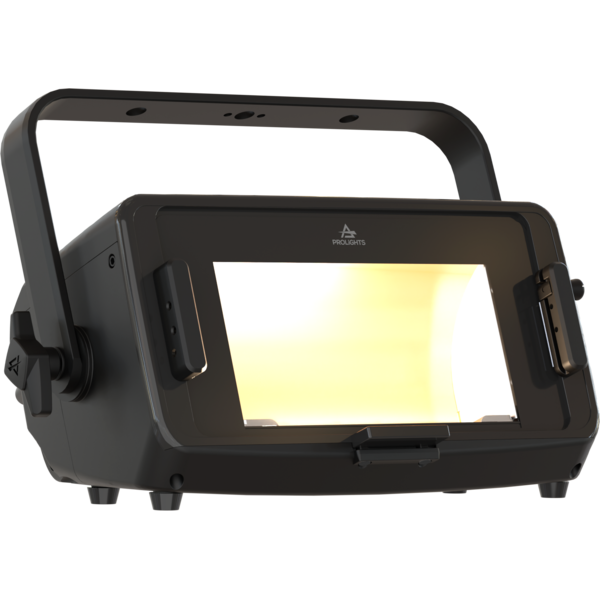

ECLEXPOFL300IPFC

EclExpo Flood300IPFC

NEW
SPEKTRA

Order Code: ECLEXPOFL300IPFCB

Source
300W RGB + Warm White LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
5,9kg / 13.01lbs

Key Features

  • IP65 water and dust resistant
  • 300W calibrated RGB+WarmWhite source, with high CRI and TM30
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • Xlr5p in/through for DMX/RDM control and communication, on-board W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

The EclExpo Flood300IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood300IP is available in two source variants:

- The EclExpo Flood300IPFC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;

- The EclExpo Flood300IPVW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9.

This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

Read less
The EclExpo Flood300IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.Combined...

Photo Gallery

ECLEXPOFL300IPFCB
ECLEXPOFL300IPFCB
ECLEXPOFL300IPFCB
ECLEXPOFL300IPFCB
ECLEXPOFL300IPFCB

Specifications

LIGHT SOURCE
  • Source: 300W RGB + Warm White LED
  • Luminous flux: 13'865 @3.200 K
  • Luminous flux: 13'607 @5.600 K
  • Lux: 202lx @5 m 3.200K
  • Lux: 195lx @5 m 5.600 K
  • CRI: 93,2@5'600K
  • R9: 97,3 @5'600K
  • TLCI: 92 @5'600K
  • TM30 Rf: 90,6 @5'600K
  • TM30 Rg: 104,9 @5'600K
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: asymmetrical beam reflector in pure aluminium 99,6%
  • Beam angle: (H) 100° x (V) 60°
  • Additional optics: 5° smooth filter on-board
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer control
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX
  • DMX channels: 1/2/5/9/10/12/18ch
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Stand Alone: 2 rotatory knobs
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Housing: sturdy die-cast magnesium body
  • Finish: black (RAL 9004)
  • Other: see available accessories
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 310W
  • Standby power: 3,2 W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: forced-air with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 401x256x225mm / 15.79''x10.08''x8.86''
  • Weight: 5,9kg / 13.01lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x ECLEXPOFL300IPFC
  • 1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)
  • User Manual

Accessories & Related Products

Optional FCLEXPOFL300IP

Flight case for 4 pcs of ECLEXPOFL300IP series

Order Code: FCLEXPOFL300IP

Optional <b>ECLEXPOFL300VW</b> Barndoor

Barndoor for ECLEXPOFL300 series, black finishing

Order Code: ECLEXPOFL300VWBDB

Optional ECLEXPOFL300VWFFB

Filter frame for ECLEXPOFL300VW, black finishing

Order Code: ECLEXPOFL300VWFFB

Optional ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEclexpofl300ipfc_A4_DATASHEET_(EN).pdf(10/10/2025)443KB
Tender SpecificationEclexpofl300ipfc_TENDER_SPECIFICATION.pdf(11/11/2025)217KB

User manual User manual

File name File size Download
User manualEclexpofl300ipfc_USER_MANUAL_EN.pdf(29/10/2025)4MB
User manualEclexpofl300ipfc_General_Safety_Information.pdf(02/12/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download

ECLEXPOFL300IPFC Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_eclexpofl300ipfc_ies_files.zip(04/09/2025)50KB
LDTprolights_eclexpofl300ipfc_ldt_files.zip(04/09/2025)47KB
PhotometricsEclexpofl300ipfc_HQ_Mode_Photometric_Report_REPORT.pdf(04/09/2025)2MB
PhotometricsEclexpofl300ipfc_HB_Mode_Photometric_Report_REPORT.pdf(04/09/2025)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPEclexpofl300ipfc_3D.skp(19/02/2025)659KB
2DEclexpofl300ipfc_CAD_2D.dwg(11/09/2025)6MB
3DEclexpofl300ipfc_CAD_3D.dwg(19/02/2025)550KB
2D cad symbolsEclexpofl300ipfc_ECLEXPOFL300IPFC_2DSYMBOLS.dwg(30/06/2025)17KB
Technical drawingEclexpofl300ipfc_TECHNICAL_DRAWING.pdf(11/09/2025)378KB
VectorWorksECLEXPOFL300IPFC_SYMBOLS.vwx(17/06/2025)677KB

Tech docs Tech docs

File name File size Download
Noise ReportEclexpofl300ipfc_NOISE_REPORT.pdf(14/11/2025)624KB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 10/02/2026

Improvements:

  • Improved colorimetry
  • Improved CCT management
  • Improved dimmer speed
 Rev. 1.0
