ECLFRCTPXS

EclFresnel CT+XS

NEW
SPEKTRA

Order Code: ECLFRCTPXSBK

Source
120W 6 colour LEDs source
Zoom range
(Fresnel lens) 10°-75°; (PC lens) 10°-67° manual
IP rating
 IP20
Weight
3,8kg / 8.38lbs

Key Features

  • 120W 6 color LED Fresnel, provides 3,700 lm
  • 10-75° Internal zoom system, 130mm/5'' Fresnel lens, and Optional PC kit
  • SpektraOs allow high value in CRI up to 98, and consistent color reproduction across the range
  • CRI: 97,7 @3.200K; 95,9 @5.600 K - R9: 96,5 @3200K; 96,2 @5.600 K

EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and  a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.

The newly designed optical system provides internal zoom from 10° to 75°, maintaining high efficiency at any beam angle without any change to the luminaire's physical size throughout the zoom range. An optional PC lens kit is also available to achieve its specific light distribution.

The SpektraOs algorithm delivers consistency in operations also with the other size of ECL Frensel, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.

The EclFresnel CT+ also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.

Read less
EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and  a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels. ...

Product Video

Discover the EclFresnel CT+XS in action

Photo Gallery

ECLFRCTPXSBK
ECLFRCTPXSBK
ECLFRCTPXSBK
ECLFRCTPXSBK
ECLFRCTPXSBK

Specifications

LIGHT SOURCE
  • Source: 120W 6 colour LEDs source
  • Luminous flux: (11,2°) 2.406 lm - (74,7°) 3.669 @Full
  • Lux: (11,2°) 2.560 lx - (74,7°) 225lx @5 m full
  • CRI: 97,7 @3.200K; 95,9 @5.600 K
  • R9: 96,5 @3200K; 96,2 @5.600 K
  • TLCI: 89 @3200K; 93 @5.600 K
  • TM30 Rf: > 94,8 @3.200K; > 94,3 @5.600 K
  • TM30 Rg: < 102,8 @3.200K; < 104,4 @5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (Fresnel lens) 10°-75°; (PC lens) 10°-67° manual
  • Lens diameter: 130mm / 5.12''
  • Lens type: PMMA lens
  • Additional optics: PC lens available as accessory
  • Other: barndoor and gel frame included
COLOUR SYSTEM
  • Spektra OS: unmatched color precision and consistency
  • Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • Colour mixing: 6 colour LEDs source
  • CCT: linear CCT adjustment from 1.850 K-20.000K
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: From 1 to 34ch
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: for remote addressing and parameter configuration
  • Display: 2.4'' Color display
  • Firmware upgrade: via DMX with UPBOXPRO (not included)
  • Stand Alone: 1 push encoder
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 1282 to 40000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption (230V): 130W
  • Output (at 230V): 20 units on a single power line
  • Standby power: 5,8 W
  • Power factor: > 0,94
CONNECTIONS
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Die-cast magnesium alloy
  • Finish: black (RAL 9004)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 227x289x294mm / 8.94''x11.38''x11.57''
  • Weight: 3,8kg / 8.38lbs
INSTALLATION
  • Hardware on-board: included filter frame and 8 doors barndoor
CERTIFICATIONS / REPORTS
  • Compliance: CE
BOX CONTENT
  • 1 x ECLFRCTPXSBK
  • 1 x ECLFRCTPXSFFBK
  • 1 x ECLFRCTPXSBDBK
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

Optional FCLECLFRCTPXS

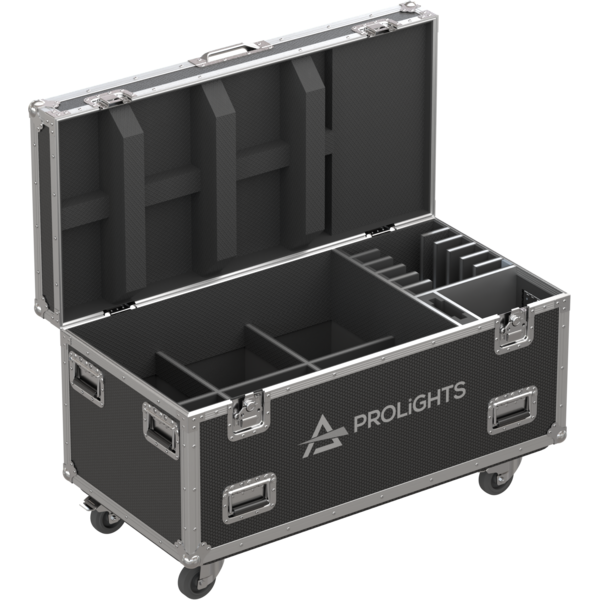

Flight case for 6 pcs of ECLFRCTPXS series

Order Code: FCLECLFRCTPXS

Included ECLFRCTPXSBDBK

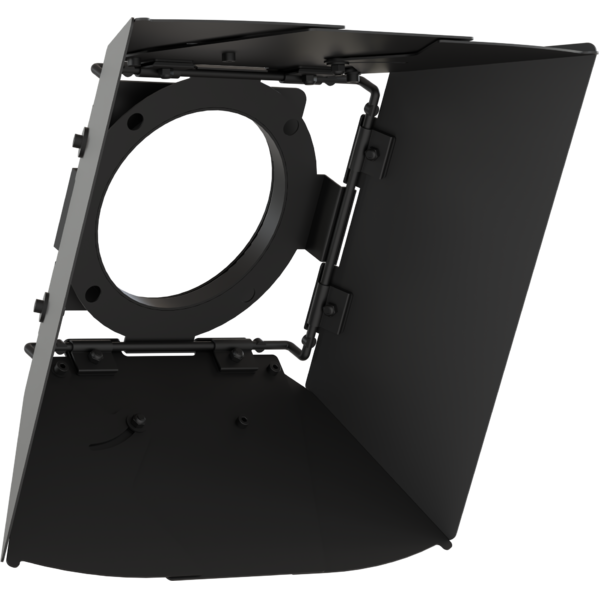

Barn door 8 directional flaps to adjust the light beam for ECLFRCTPXS, black

Order Code: ECLFRCTPXSBDBK

Included ECLFRCTPXSFFBK

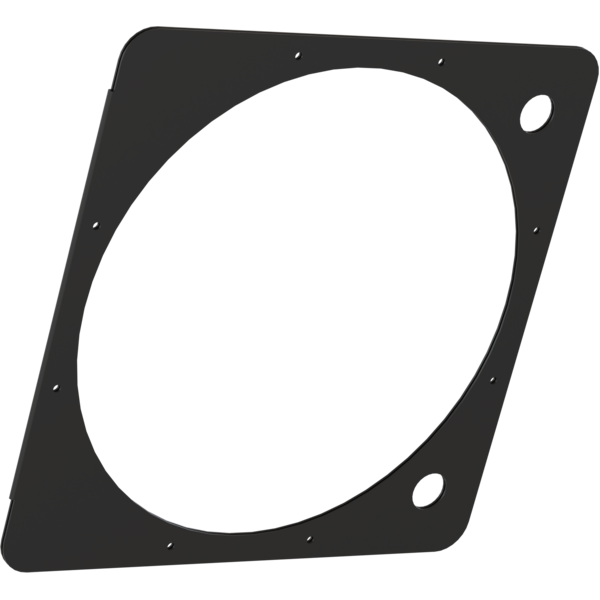

Filter frame for ECLFRCTPXS series, black

Order Code: ECLFRCTPXSFFBK

Optional ECLFRCTPXSPCLKBK

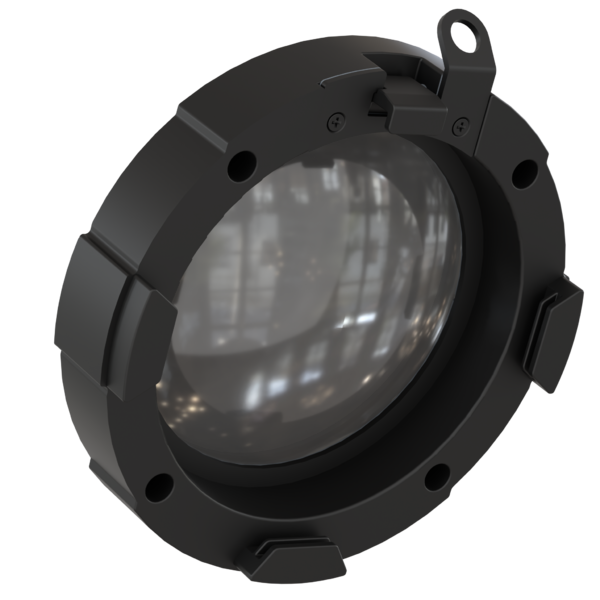

PC lens kit for ECLFRCTPXS, black
