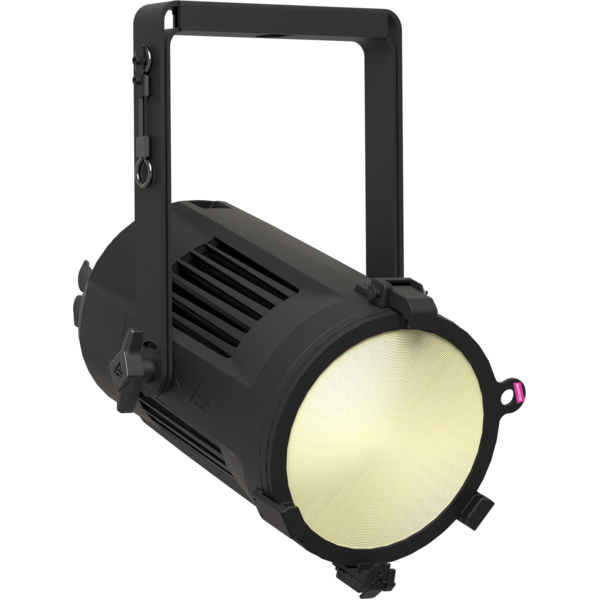

ECLPARIPLVW

EclPar IPLVW

NEW

Order Code: ECLPARIPLVWBK

Source
300W Variable White LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
8,35kg / 18.41lbs

Key Features

  • 300W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 for exterior application

The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.

This robust fixture is powered by a 300W Variable White light source, capable of producing up to 20,000 fixture lumens with remarkable efficiency and advanced  control.

EclPar IPLVW excels in delivering superior white light reproduction with variable CCT, boasting high output and high CRI and TM30 values.

Its compact and silent design renders the EclPar IPLVW an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

Read less
The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.This robust...

Product Video

Discover the EclPar IPLVW in action

Photo Gallery

ECLPARIPLVWBK
ECLPARIPLVWBK
ECLPARIPLVWBK
ECLPARIPLVWBK
ECLPARIPLVWBK

Specifications

LIGHT SOURCE
  • Source: 300W Variable White LED
  • Luminous flux: (15°) 20'098, (30°) 20'803, (60°) 21'867 @Full
  • Lux: (15°) 5'032, (30°) 2'999, (60°) 1'286lx @5 m full
  • CRI: 97,1 @full; 97,6 @3.200K; 98,7 @5.600K
  • R9: 98,1 @3.200K; 99 @5.600K
  • TLCI: 99 @full; 98 @3.200K; 99 @5.600K
  • TM30 Rf: 95,5 @full; 96,3 @3.200K; 95,4 @5.600K
  • TM30 Rg: 101,9 @full; 102,3 @3.200K; 100,9 @5.600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 35°
  • Lens diameter: 172mm / 6.77''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door, filter frame
CONTROL
  • Protocols: DMX512, RDM, CRMX (optional)
  • Stand Alone: 3 RGB backlight push-encoders
  • DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 340W
  • Standby power: 2,2 W
  • Output (at 230V): 6 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: hanging bracket with quick lock system designed for use with OMEGA bracket or floor stand (accessory), hanging system through eye bolt
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 275x402x382mm / 10.83''x15.83''x15.04''
  • Weight: 8,35kg / 18.41lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x ECLPARIPLVW
  • 1 x EPIPLLENS15
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

Included EPIPLLENS15

ECLPARIPL series 15° lens

Order Code: EPIPLLENS15

Optional EPIPLLENS30

ECLPARIPL series 30° lens

Order Code: EPIPLLENS30

Optional EPIPLLENS60

ECLPARIPL series 60° lens

Order Code: EPIPLLENS60

Optional FCLECLPARIPL

Flight case for 6 pcs of ECLPARIPL series

Order Code: FCLECLPARIPL

Optional EPIPLFILT1020

Light diffusion filter for ECLPARIPL series, asymmetric 10°x20°

Order Code: EPIPLFILT1020

Optional EPIPLFILT1040

Light diffusion filter for ECLPARIPL series, asymmetric 10°x40°

Order Code: EPIPLFILT1040

Optional EPIPLFILT1060

Light diffusion filter for ECLPARIPL series, asymmetric 10°x60°

Order Code: EPIPLFILT1060

Optional EPIPLFILT3060

Light diffusion filter for ECLPARIPL series, asymmetric 30°x60°

Order Code: EPIPLFILT3060

Optional ECLPARIPLBDBK

Barn door with 8 directional flaps to adjust the light beam, ECLPARIPL, black

Order Code: ECLPARIPLBDBK

Optional EPIPLFSNOOTBK

Full snoot for ECLPARIPL series, black

Order Code: EPIPLFSNOOTBK

Optional EPIPLHLOUVREBK

Honeycomb louvre for ECLPARIPL series, black

Order Code: EPIPLHLOUVREBK

Optional EPIPLCLOUVREBK

Concentric louvre for ECLPARIPL series, black

Order Code: EPIPLCLOUVREBK

Optional ECLPARIPMWKBK

CRMX Timo Fx kit for ECLPARIP serie, black

Order Code: ECLPARIPMWKBK

Optional SBLFLXFLR

Floor bracket for SUNBLASTFLX

Order Code: SBLFLXFLR

Optional OS25PLUS

Quick-lock omega bracket, M12 hole

Order Code: OS25PLUS

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional 958215L03

3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958215L03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEclpariplvwbk_A4_DATASHEET_(ITA).pdf(06/08/2025)410KB
Letter datasheetEclpariplvwbk_A4_DATASHEET_(EN).pdf(06/08/2025)438KB
Tender SpecificationEclpariplvw_TENDER_SPECIFICATION_REPORT.pdf(22/08/2025)281KB

User manual User manual

File name File size Download
User manualEclpariplvw_USER_MANUAL_EN.pdf(24/07/2025)5MB
User manualEclpariplvw_General_Safety_Information.pdf(04/11/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartEclpariplvw_DMX_CHARTS.pdf(10/07/2025)152KB

ECLPARIPLVW Firmware rev. 1.1.00.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_eclpariplvw_ies_files.zip(07/08/2025)106KB
LDTprolights_eclpariplvw_ldt_files.zip(07/08/2025)98KB
PhotometricsEclpariplvw_PHOTOMETRICS_REPORT.pdf(07/08/2025)7MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPEclpariplvw_3D.skp(28/05/2025)545KB
3DEclpariplvw_CAD_3D.dwg(28/05/2025)406KB
2DECLPARIPLVW_2D.zip7MB
2D cad symbolsEclpariplvw_ECLPARIPLVW_2DSYMBOLS.dwg(30/06/2025)21KB
Technical drawingECLPARIPLVW_TECHNICAL DRAWINGS.zip765KB
VectorWorksECLPARIPLVW_SYMBOLS.vwx(30/06/2025)641KB

Tech docs Tech docs

File name File size Download
Noise ReportEclpariplvw_NOISE_REPORT.pdf(15/09/2025)659KB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 16/10/2025 First stable release Rev. 1.0
