STUDIOCOBPLUSFC

StudioCob PlusFC

DISCONTINUO

Source
150W RGBW COB LED
IP rating
 IP65 for temporary outdoor use
Weight
5,6kg / 12.35lbs

Key Features

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W RGBW COB LED source with HD dimming with an extensive and even colour palette
  • Flexible lens options of 18° - 38° - 60°

StudioCob PlusFC is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Read less
StudioCob PlusFC is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replac...

Versions

Code Housing
STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK DISCONTINUO
Black
STUDIOCOBPLUSFCWH
STUDIOCOBPLUSFCWH DISCONTINUO
White

Product Video

Discover the StudioCob PlusFC in action

Photo Gallery

STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK

Specifications

LIGHT SOURCE
  • Source: 150W RGBW COB LED
  • Luminous flux: (18°) 3'530 lm - (38°) 3'172
  • Lux: (18°) 2'558lx @3 m full
  • Lux: (38°) 645lx
  • Source life expectancy: > 50.000 h
OPTICS

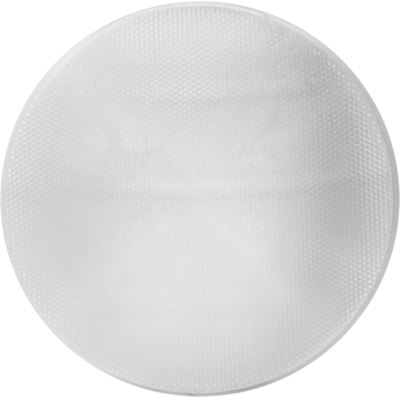

  • Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
  • Field angle: (on-board) 36° - (inc) 63°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 38° (inc)
COLOUR SYSTEM
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 4 / 6 / 10ch
  • RDM: for remote addressing and parameter configuration
  • Display: black OLED touch display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 140W
  • Output (at 230V): 18 units on a single power line
  • Max power consumption (120V): 145W
  • Power factor: 0,96
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black or white finishing
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 259x187x370mm / 10.2''x7.36''x14.57''
  • Weight: 5,6kg / 12.35lbs
INSTALLATION
  • Suspension and fixing: double bracket for hanging and floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x STUDIOCOBPLUSFC
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)

Accessories & Related Products

(Optional) C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

(Optional) RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

(Optional) STUDIOCOBTPG

Filter frame for STUDIOCOB projectors

Order Code: STUDIOCOBTPG

(Optional) STUDIOCOBBD

Barn door 4 directional flaps to adjust the light beam, f. frame included

Order Code: STUDIOCOBBD

(Optional) UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetStudiocobplusfc_LETTER_DATASHEET_(EN).pdf(28/09/2021)384KB
Letter datasheetStudiocobplusfc_A4_DATASHEET_(EN).pdf(02/09/2021)383KB

User manual User manual

File name File size Download
User manualStudiocobplusfc_USER_MANUAL_ITEN.pdf(30/06/2021)2MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartStudiocobplusfc_DMX_CHARTS.pdf(30/06/2021)53KB

STUDIOCOBPLUSFC Firmware rev. 2.6

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_4ch.hedDownload
prolights_studiocobplusfc_6ch.hedDownload
prolights_studiocobplusfc_10ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob plus fc 4 channel.fix2Download
studio cob plus fc 6 channel.fix2Download
studio cob plus fc 10 channel.fix2Download

STUDIOCOBPLUSFC Firmware rev. 2.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_4ch.hedDownload
prolights_studiocobplusfc_6ch.hedDownload
prolights_studiocobplusfc_10ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob plus fc 4 channel.fix2Download
studio cob plus fc 6 channel.fix2Download
studio cob plus fc 10 channel.fix2Download

Photometrics Photometrics

File name File size Download
IESprolights_studiocobplusfc_ies files.zip(05/02/2021)32KB
LDTprolights_studiocobplusfc_ldt files.zip(05/02/2021)26KB
PhotometricsStudiocobplusfcbk_PHOTOMETRICS_REPORT.pdf(05/02/2021)5MB
PhotometricsStudiocobplusfcwh_PHOTOMETRICS_REPORT.pdf(05/02/2021)5MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D RFAStudiocobplusfc_3D.rfa(23/04/2021)1MB
3D sketchupSTUDIOCOBPLUSFC_3D_SKETCHUP.zip741KB
2DStudiocobplusfc_CAD_2D.dwg(30/09/2021)5MB
2D cad symbolsStudiocobplusfcbk_CAD_2DSYMBOLS.dwg(09/03/2020)65KB
3DSTUDIOCOBPLUSFC_3D.zip1MB
Technical drawingStudiocobplusfc_TECHNICAL_DRAWING.pdf(30/09/2021)226KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksSTUDIOCOBPLUSFC_SYMBOLS.zip1MB

Firmware


Firmware Update Information

Methods are listed in the product specs - ELECTRONICS > Firmware upgrade.

Method / Device Extension Required software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) UPBOX1 and UPBOX2 are still usable - check compatibility on the product accessories page. UPBOX2 requires drivers from this link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO - see the products list.

Update procedure
  1. Check the update methods on your product (ELECTRONICS> Firmware upgrade).
  2. Download the firmware and the dedicated software.
  3. Follow the update guide included in the firmware folder.

Need help?
support@prolights.it

Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 31/10/2023 Improvement:
  • Increased to 65535 the maximum working hours of the device.
