ACCENT1Q
TRIBEby TRIBE

Accent 1Q

ORDER CODE: ACCENT1Q

10W RGBW/FC CREE LED high-density accent light

Accent 1Q is an high-density accent light with narrow optic design, conceived to house an high power CREE 10W RGBW/FC LED source in an unprecedented pocket shape. The colour calibration system based on RGBW multi-chip source, offers an advanced chromatic generation and a full control over colour saturation and temperature.

Main features:

  • 10W RGBW/FC CREE LED
  • 10° narrow beam angle ideal for accent lighting
  • Compact and lightweight (900 g)
  • Electronics and UI on-board

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 10W RGBW LED
  • Luminous flux: 279
  • Lux: 357lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
  • Field angle: 12°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10channel
  • Display: LCD display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 14,6W
  • Max power consumption (at 120V): 15,4W
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: moulded IP power IN connector
  • Dimensions (WxHxD): 110x67x172 mm / 4.33''x2.64''x6.77''
  • Weight: 0,89kg / 1.96lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

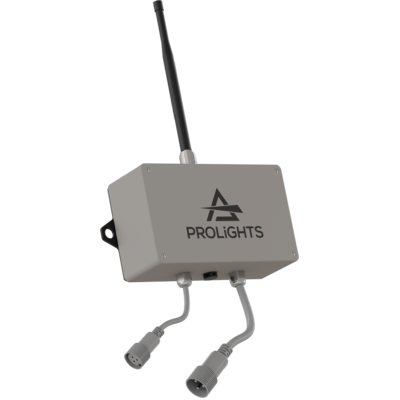

<b>CRMXBox</b> IP
CRMXBox IP
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
ARCLUMIL15D45
ARCLUMIL15D45
(optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(optional)
Optic lens 25°, D.45mm

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAccent1q_A4_DATASHEET.pdf194KB

User manual

File name File size Download
User manualAccent1q_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
DMX chartAccent1q_DMX_CHARTS.pdf1MB
ACCENT1Q Firmware rev. 1.7
manufacturer fixture library (Link) Link
prolights_accent 1q.d4Download
manufacturer fixture library (Link) Link
prolights_accentiq_6ch.hedDownload
manufacturer fixture library (Link) Link
accent1q_4ch.fdfDownload
accent1q_6ch.fdfDownload
accent1q_10ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
accent 1q 4 channel.fix2Download
accent 1q 6 channel.fix2Download
accent 1q 10 channel.fix2Download
manufacturer fixture library (Link) Link

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 04/12/2018 10 second default display backlight
