ArcPod 48Q

ORDER CODE: ARCPOD48Q

48x10W RGBW/FC outdoor IP66 LED wash light for exterior installations

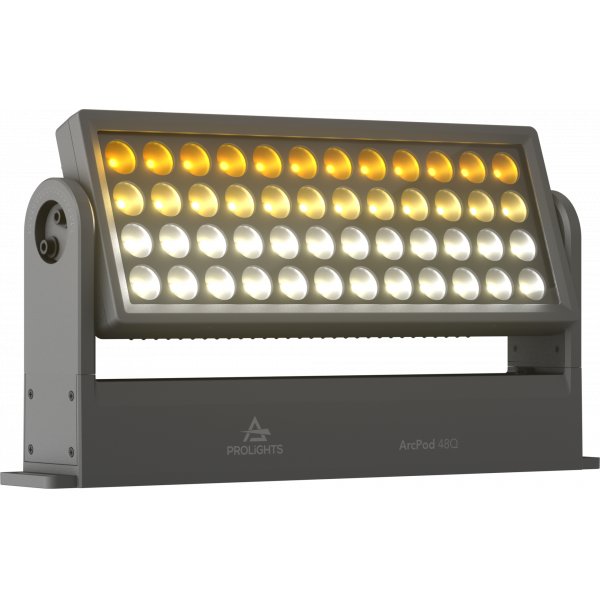

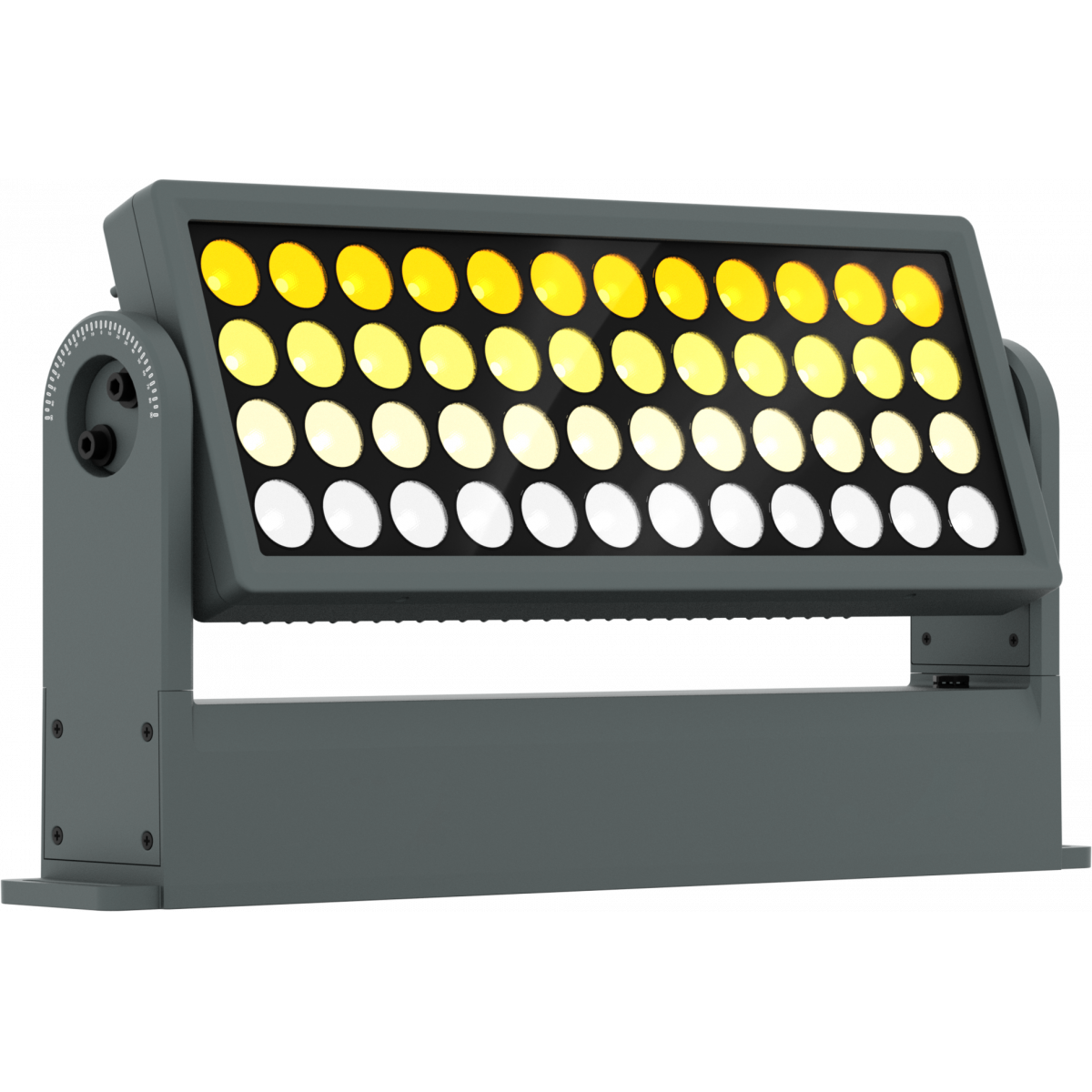

ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.

Main features:

  • 48x10W RGBW / FC LEDs delivering 23'000 lumens
  • LED emitters controllable in 4 sections
  • Compact form factor and fanless

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 48x10W RGBW / FC LEDs
  • Luminous flux: (10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408lm @full
  • Lux: (10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739lx @3 m full
  • Lux: (10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 27°
  • Additional optics: 10° - 25° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 4 linear controllable sections
  • Static mode: selection of static colour
BODY

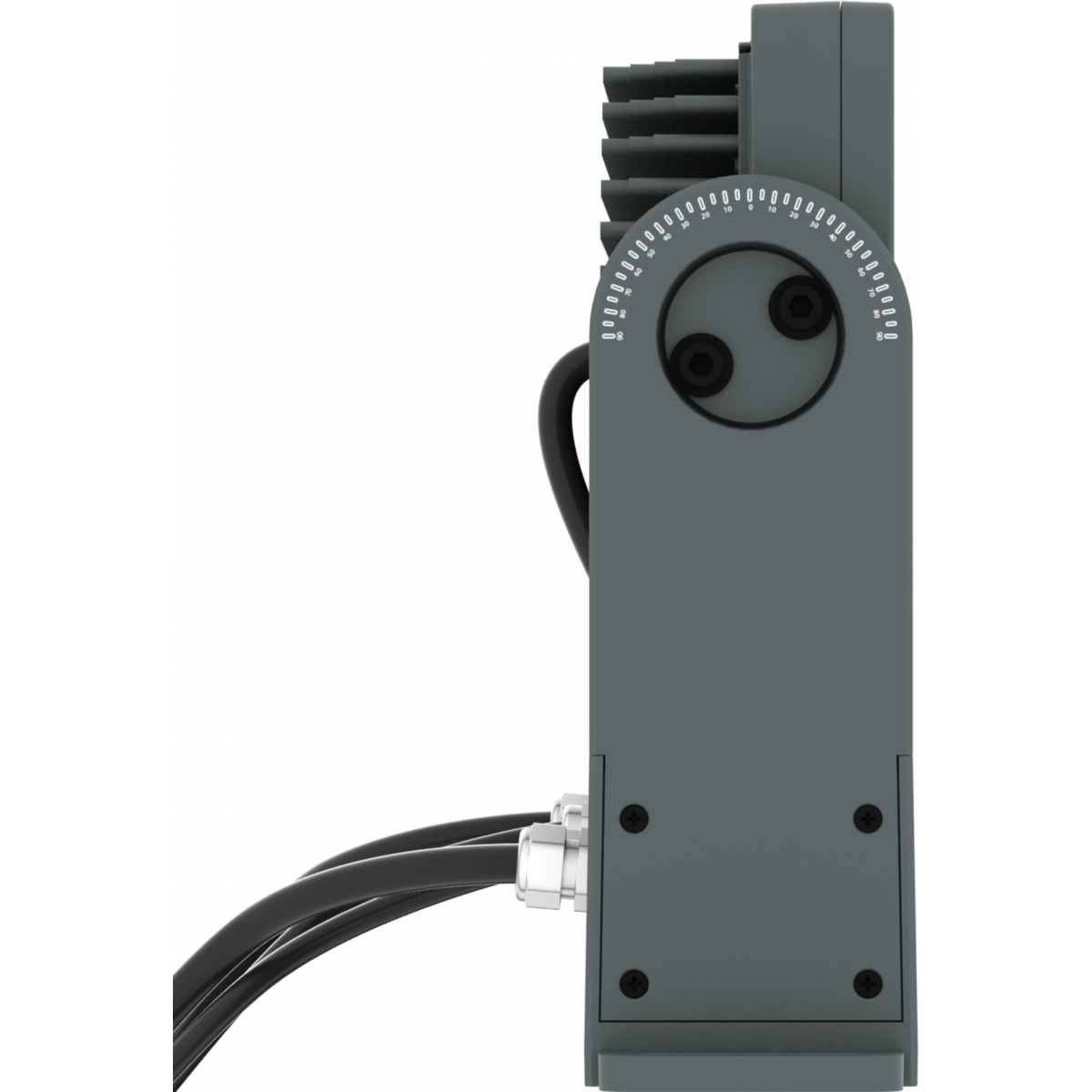

  • Tilt angle: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10 / 17 / 22channel
  • Pixel control: up to 4 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 540W
  • Output (at 230V): 4 units on a single power line
  • Power factor: 0,95
  • Inrush current: 230VAC/27.6A, 100VAC/28.6A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08

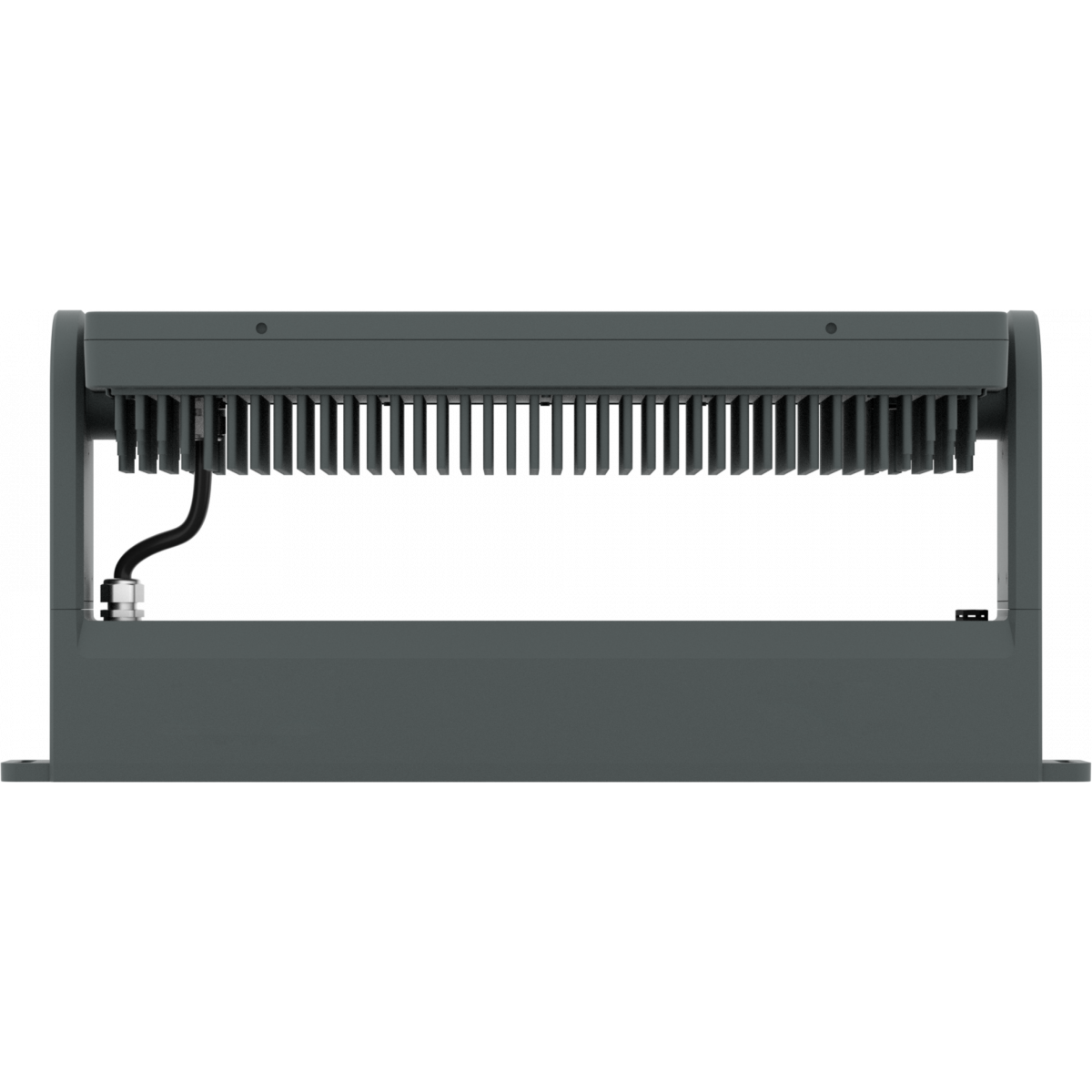

  • Cooling: passive cooling and fan-free

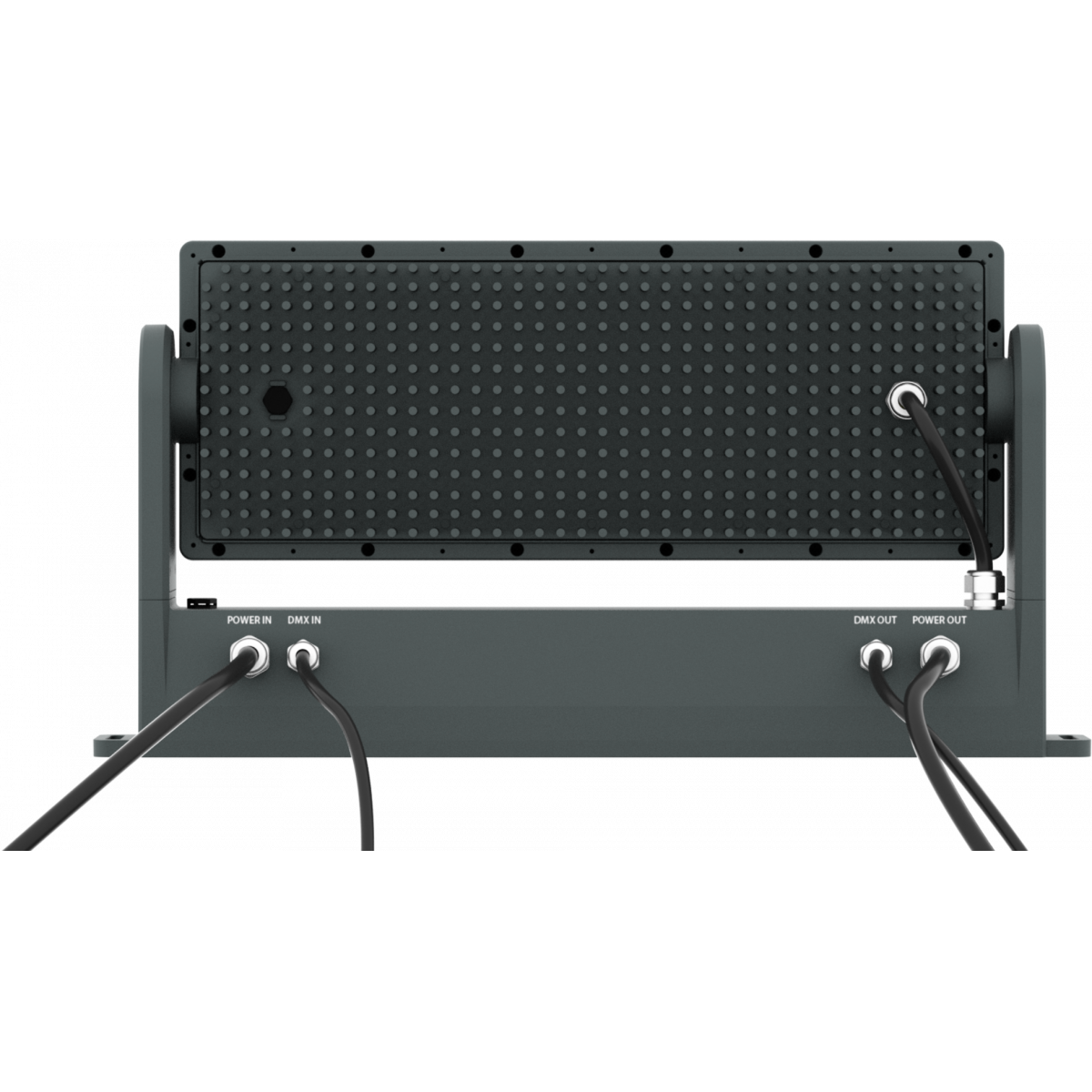

  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 584x304x93mm / 22.99''x11.97''x3.66''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
A48QFILTER20
A48QFILTER20
(optional)
20° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER30
A48QFILTER30
(optional)

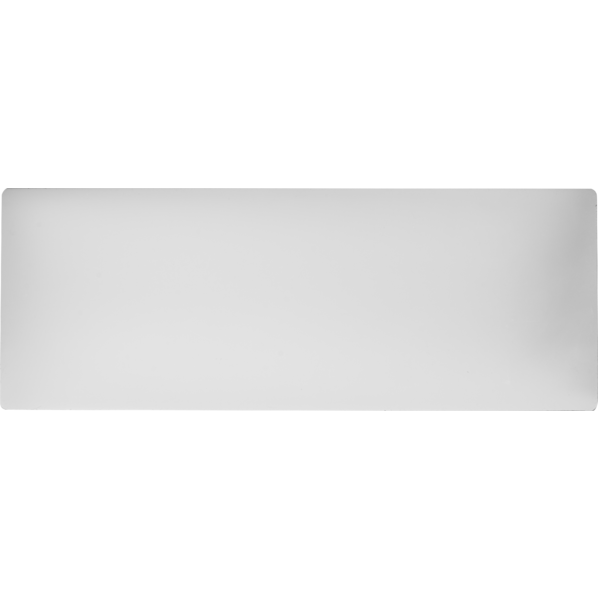

30° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER40
A48QFILTER40
(optional)
40° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER60
A48QFILTER60
(optional)
60° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER80
A48QFILTER80
(optional)
80° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1090
A48QFILTER1090
(optional)
10°x90° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1060
A48QFILTER1060
(optional)
10°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER3060
A48QFILTER3060
(optional)
30°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER6030
A48QFILTER6030
(optional)
60°x30° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S48QBD
S48QBD
(optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q
<b>DataMaster</b>
DataMaster
(optional)

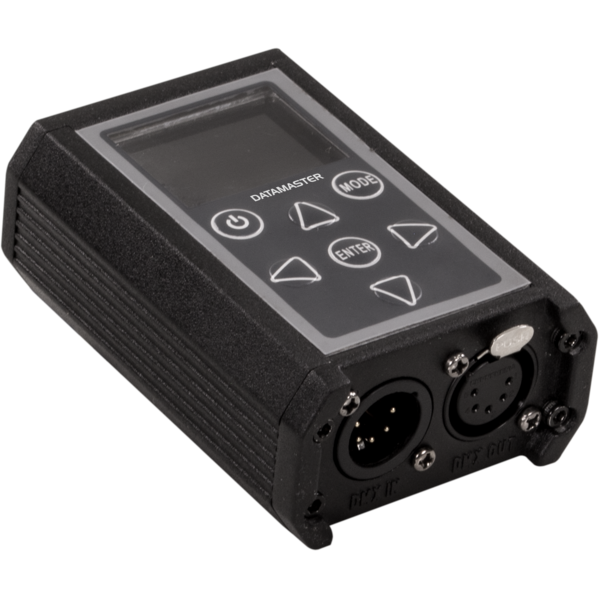

RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
