ArcShine M18FC

18x4W IP66 RGB + Warm White architectural linear bar, 100 cm

The ArcShine M18FC and ArcShine M9FC are a series of linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 4W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 8° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

5 YEARS WARRANTY

Main features:

  • IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
  • RGB + Warm White colour mixing, with 4W LED emitters
  • Optic: 8° lenses capable of delivering multiple angles with optional holographic filters
  • Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°
See variants

PHOTO GALLERY

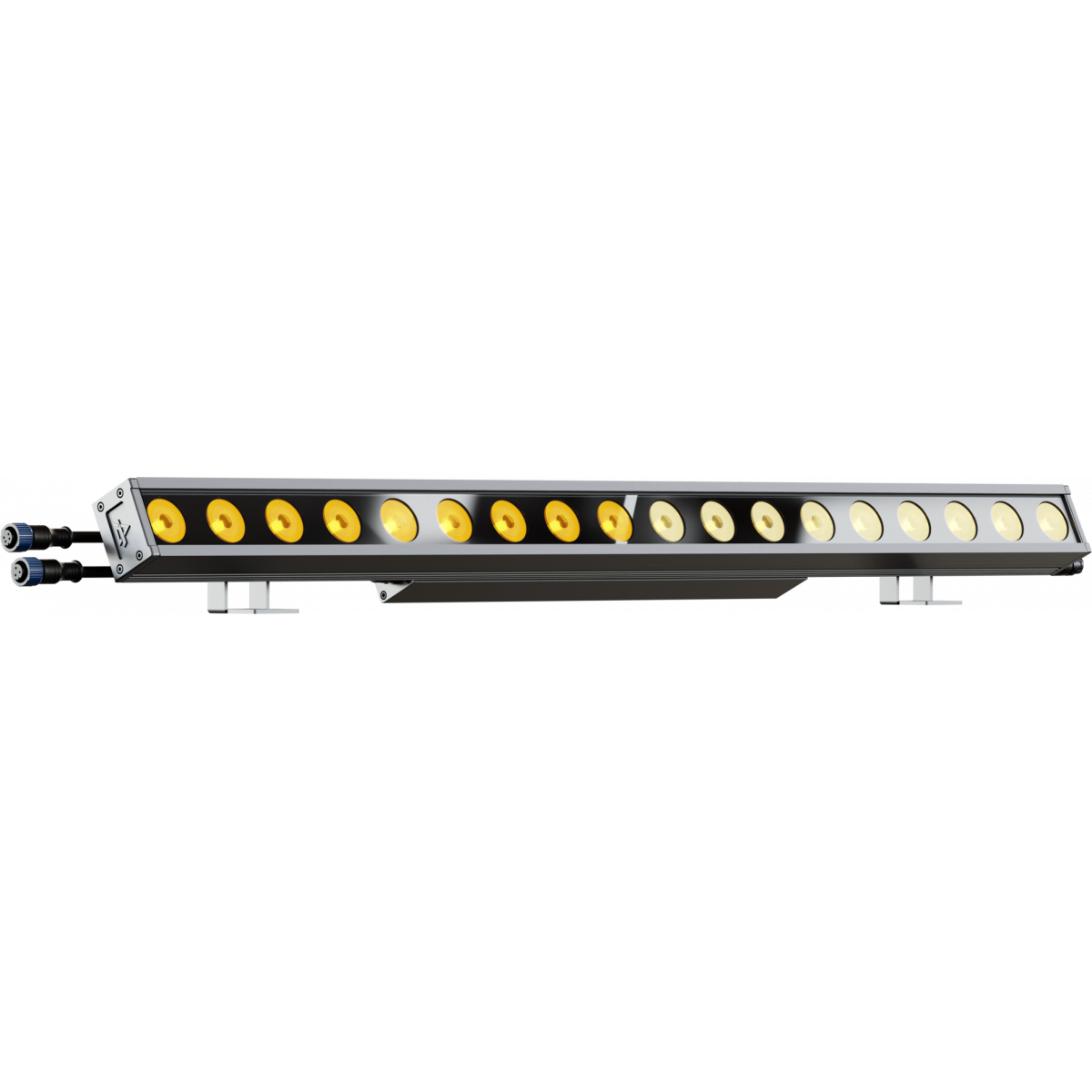

ArcShine M18FC

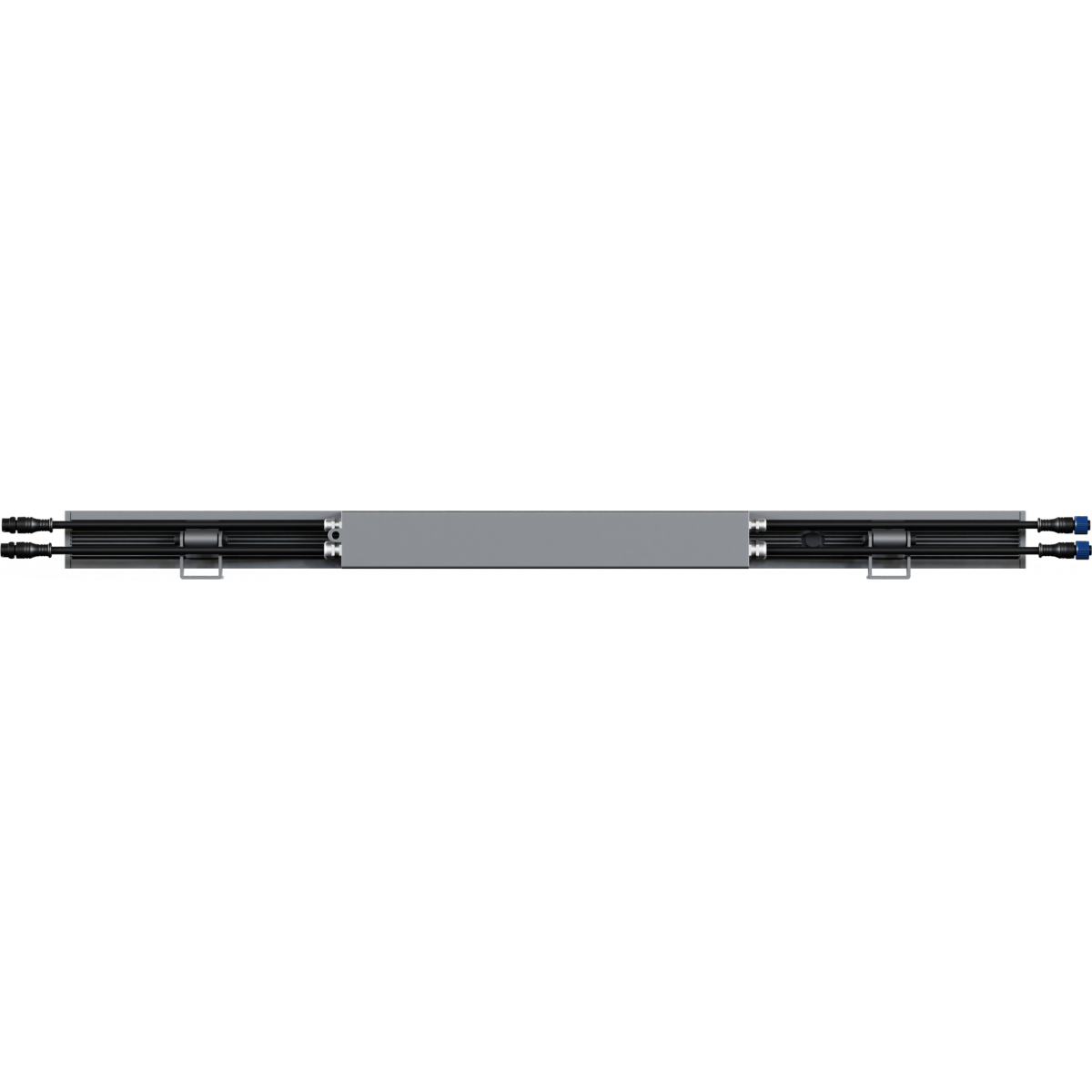

ArcShine M18FC

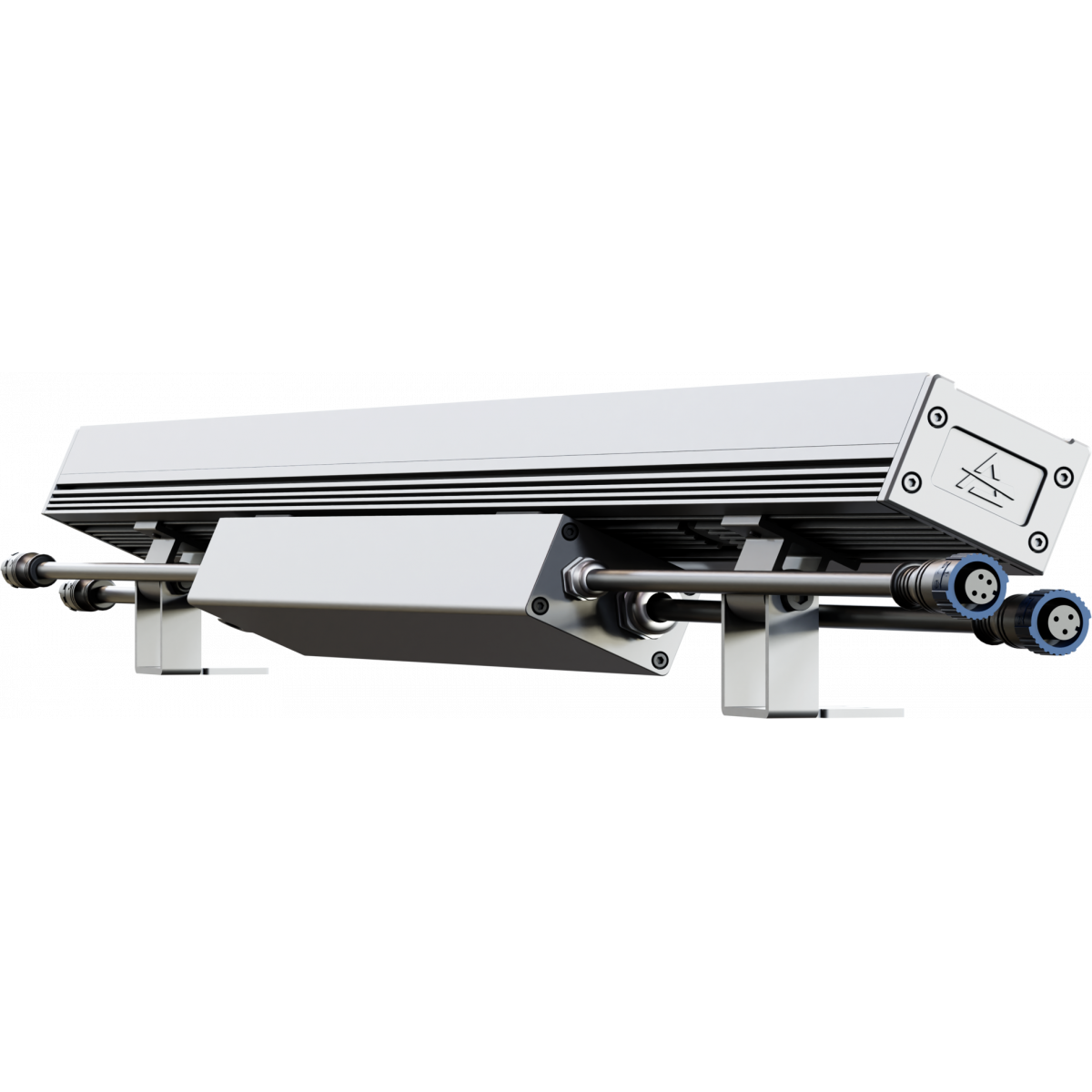

ArcShine M18FC

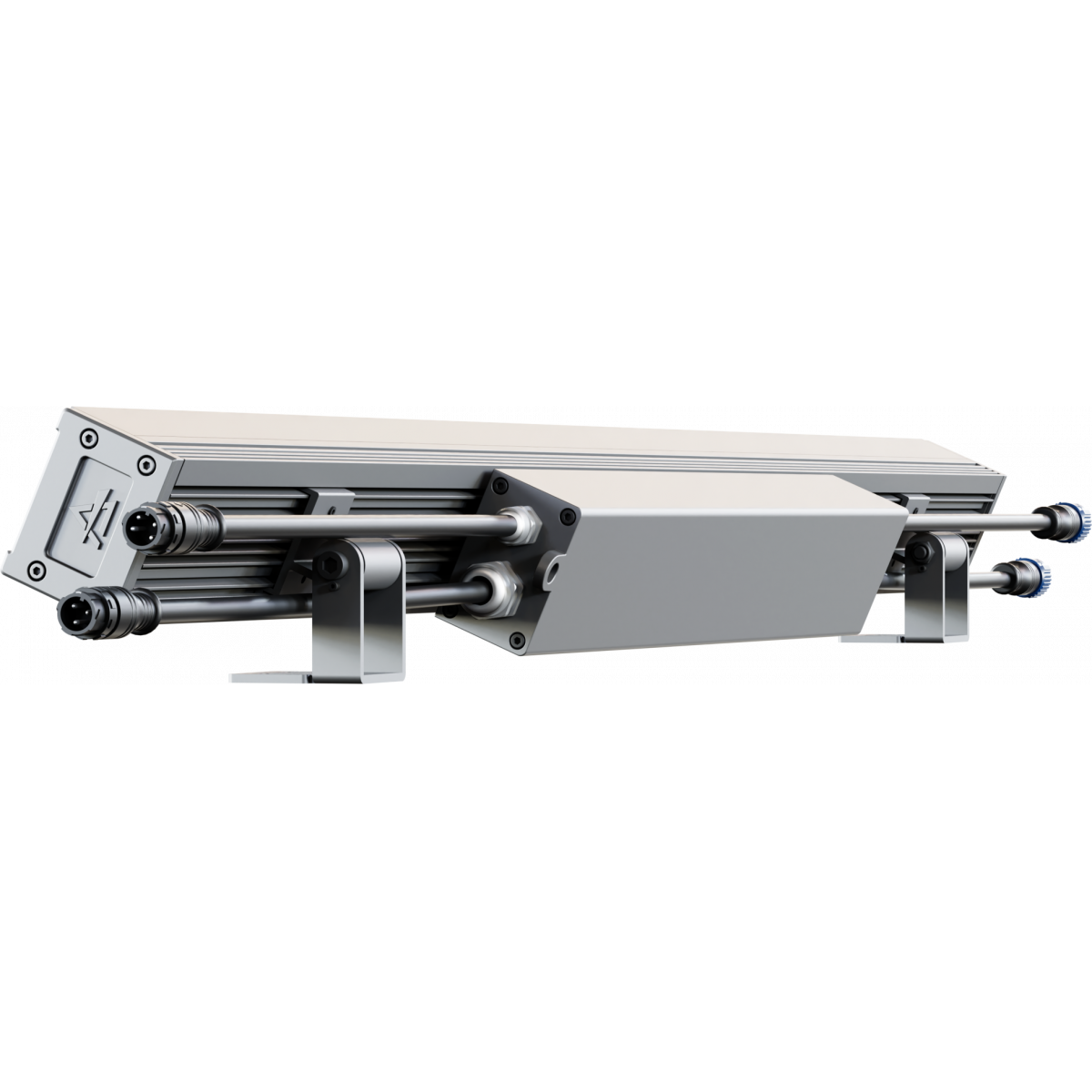

ArcShine M18FC

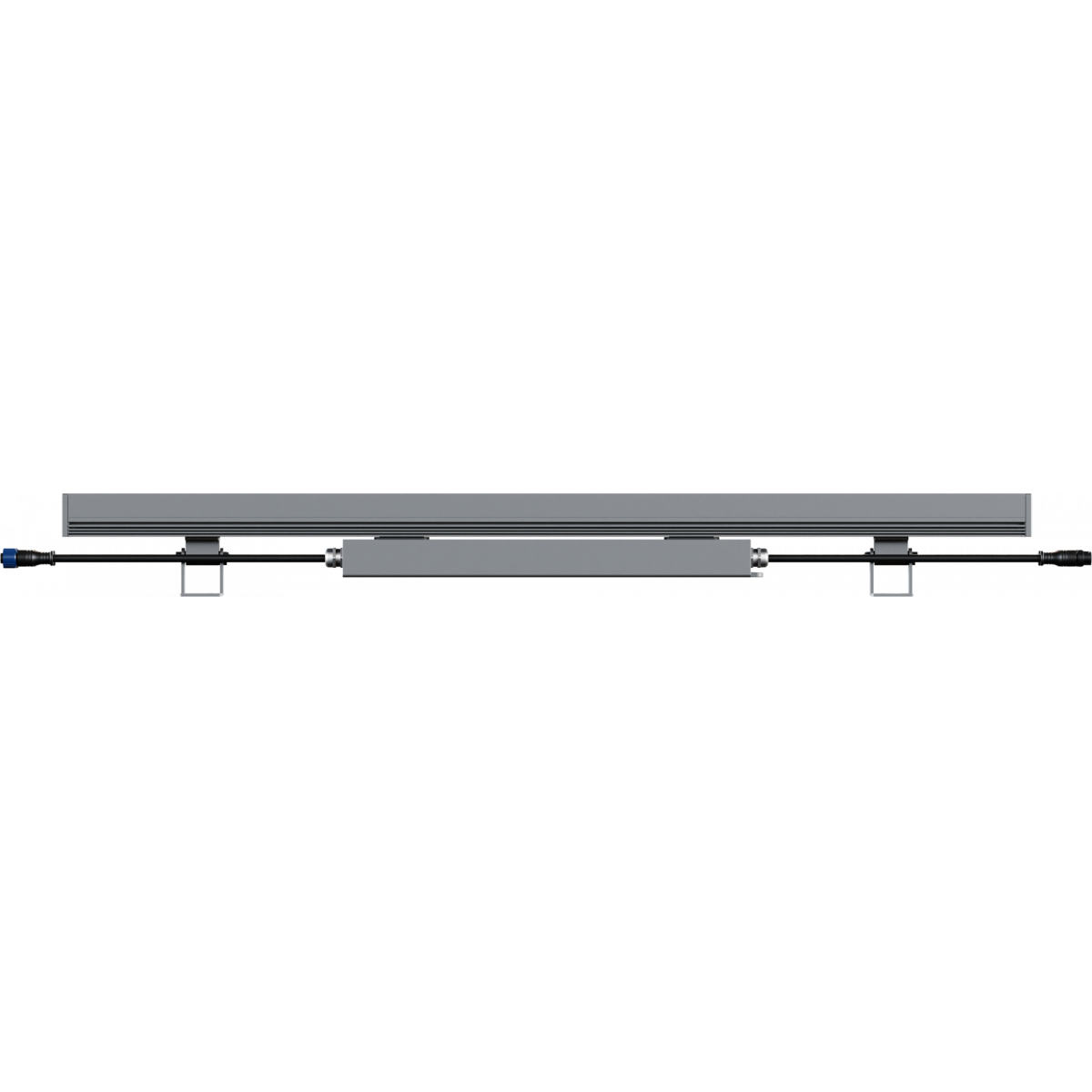

ArcShine M18FC

Technical specifications

LIGHT SOURCE
  • Source: 18x4W RGBWW LEDs
  • CCT: 2.700 K - 5.600
  • Luminous flux: (8°) 2'385 lm; (8°+20°) 2'353 lm; (8°+40°) 2'242 lm; (8°+60°) 2'262 lm; (8°+10°x60°) 3'567 lm; (8°+30°x60°) 2'460 @Full
  • Lux: (8°) 3'641 lx; (8°+20°) 712 lx; (8°+40°) 264 lx; (8°+60°) 181 lx; (8°+10°x60°) 450 lx; (8°+30°x60°) 321lx @3 m full
  • CRI: >80
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 8°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
BODY
  • Tilt range: manual 180°
  • Body: sturdy aluminum profile
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: available through DATAMASTER external coder (not included)
  • DMX channels: 1 / 2 / 5 / 9 / 12 / 14channel
  • Pixel control: 2 controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 80W
  • Output (at 230V): 18 units on a single power line
  • Power factor: >0,94
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 1000x106x71mm / 39.37''x4.17''x2.8''
  • Weight: 4,9kg / 10.8lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
LED source
Beam angle (° - HxV)
Lenght (cm)
Painting
ARCSHINEM1808FC
ARCSHINEM1808FC
RGBW/Full color
8
100
Standard

Accessories & Related Products

<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
ARCS18FIXBD
ARCS18FIXBD
(Optional)
Barndoor to adjust the light beam for ARCSHINES18 and ARCSHINEM18
ARCSM18FILTER20
ARCSM18FILTER20
(Optional)
Light diffusion filter for ARCSHINEM18, 20°
ARCSM18FILTER40
ARCSM18FILTER40
(Optional)
Light diffusion filter for ARCSHINEM18, 40°
ARCSM18FILTER60
ARCSM18FILTER60
(Optional)
Light diffusion filter for ARCSHINEM18, 60°
ARCSM18FILTER1060
ARCSM18FILTER1060
(Optional)
Light diffusion filter for ARCSHINEM18, 10°x60°
ARCSM18FILTER3060
ARCSM18FILTER3060
(Optional)
Light diffusion filter for ARCSHINEM18, 30°x60°
ARCSSM18OUTERCASE
ARCSSM18OUTERCASE
(Optional)
Outercase box for ground installation for ARCSHINES18 and ARCSHINEM18 series, manual tilt
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
