ArcSpot DOTVW

IP66 Spot featuring 690 lumen with 1x20W Variable White source, 5° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot DotVW stands out as an extra small round spot. It is equipped with a 20W Variable White LED source, delivering a focused ultra-narrow 5° beam angle with a fixture output of 690 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 690 lumen with 1x20W Variable White LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1 x 20W Variable White LED
  • CCT: 2.700K - 6.500K
  • Luminous flux: 690 @Full
  • Lux: 2729lx @5 m full
  • CRI: 98 @WW; 95 @CW; 96 @full
  • R9: 92 @full
  • TLCI: 98 @WW; 99 @CW; 98 @full
  • TM30 Rf: >96 @WW; >93 @CW; >95 @full
  • TM30 Rg: <100 @WW; <100 @CW; <103 @full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 5°
  • Field angle: 9°
  • Lens diameter: 60mm / 2.36''
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CCT control
  • Colour wheel: built-in white presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: optional accessories: half snoot
  • Body: sturdy die-cast aluminium body, scratch resistant paint (C5M as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 2 / 3 / 4 / 9channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 24W
  • Standby power: 0,5 W
  • Power factor: > 0,9
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 07
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Power connection: 53 cm moulded IP power IN connector
  • Dimensions (WxHxD): 132x156x112mm / 5.2''x6.14''x4.41''
  • Weight: 1,1kg / 2.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTDOTVWGY
ARCSPOTDOTVWGY
RAL 7012

Accessories & Related Products

<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
PLYPC3010E73D
PLYPC3010E73D
(Optional)
Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght
THR390S3T
THR390S3T
(Optional)
3-Way junction connector, 'T' type, 3 Poles, IP68
THR209S6D
THR209S6D
(Optional)
4-Way junction box type H, 3 poles, IP66/IP68
<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
ARDOTFILTER20
ARDOTFILTER20
(Optional)

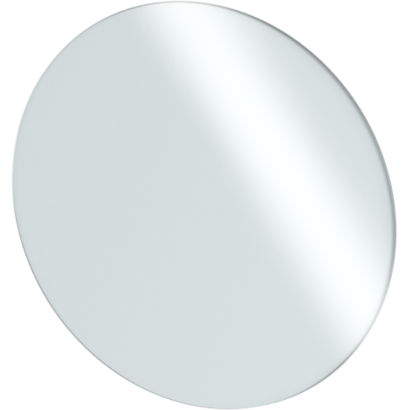

Light diffusion filter for ARCSPOTDOT series, 20°
ARDOTFILTER40
ARDOTFILTER40
(Optional)
Light diffusion filter for ARCSPOTDOT series, 40°
ARDOTFILTER60
ARDOTFILTER60
(Optional)
Light diffusion filter for ARCSPOTDOT series, 60°
ARDOTFILTER1060
ARDOTFILTER1060
(Optional)
Light diffusion filter for ARCSPOTDOT series, 10°x60°
ARDOTFILTER3060
ARDOTFILTER3060
(Optional)
Light diffusion filter for ARCSPOTDOT series, 30°x60°
ARDOTHSNOOTGY
ARDOTHSNOOTGY
(Optional)

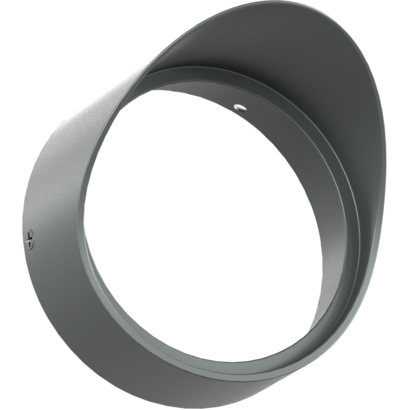

Half snoot for ARCSPOTDOT series, RAL 7012
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
