ArcSpot LFC new

IP66 Spot featuring 7000 lumen with 37x 4W RGB+WarmWhite source, 10° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot LFC stands out as a large sized round spot. It is equipped with 37x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 7000 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

Main features:

  • Exterior Spot featuring 7000 lumen with 37x 4W RGB+WarmWhite LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 37 x 4W RGB + Warm White LED
  • Luminous flux: 7'008 @full
  • Lux: 5'179lx @5 m full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 10°
  • Field angle: 19°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • Colour wheel: gel filters included
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: optional accessories: half snoot and louvre
  • Body: sturdy die-cast aluminium body, scratch resistant paint (C5M as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 6 / 9 / 12channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 130W
  • Power factor: > 0,94
  • Inrush current: 230VAC/39.6A, 110VAC/31.2A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN connector
  • Dimensions (WxHxD): 269x298x121mm / 10.59''x11.73''x4.76''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTLFCGY
ARCSPOTLFCGY (NEW)
RAL 7012

Accessories & Related Products

CRMXBOXIP67
CRMXBOXIP67
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
ASLENS10
ASLENS10
(included)
Lens for ARCSPOT series, 10°
ASLENS15
ASLENS15
(optional)
Lens for ARCSPOT series, 15°
ASLENS25
ASLENS25
(optional)
Lens for ARCSPOT series, 25°
ASLENS45
ASLENS45
(optional)
Lens for ARCSPOT series, 45°
ARLFILTER20
ARLFILTER20
(optional)
Light diffusion filter for ARCSPOTL series, 20°

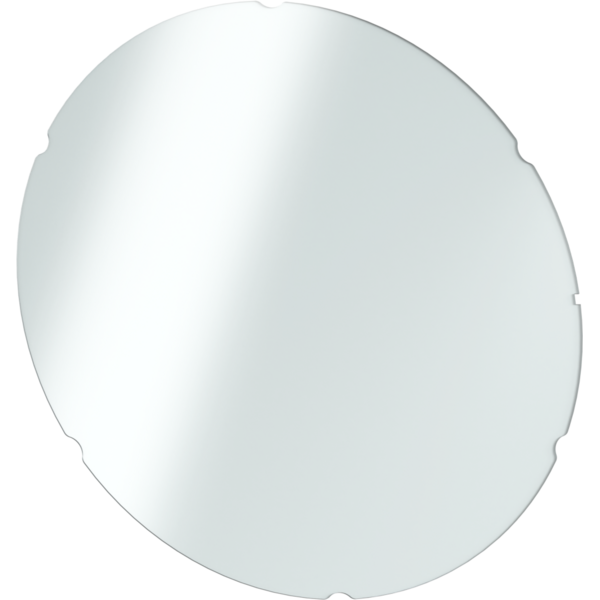

ARLFILTER40
ARLFILTER40
(optional)
Light diffusion filter for ARCSPOTL series, 40°
ARLFILTER60
ARLFILTER60
(optional)
Light diffusion filter for ARCSPOTL series, 60°
ARLFILTER1060
ARLFILTER1060
(optional)
Light diffusion filter for ARCSPOTL series, 10°x60°
ARLFILTER3060
ARLFILTER3060
(optional)
Light diffusion filter for ARCSPOTL series, 30°x60°
ARLHSNOOTGY
ARLHSNOOTGY
(optional)
Half snoot for ARCSPOTL series, RAL 7012

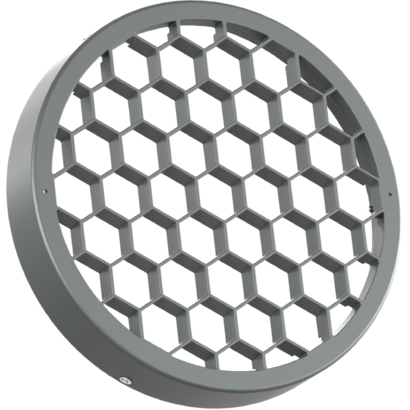

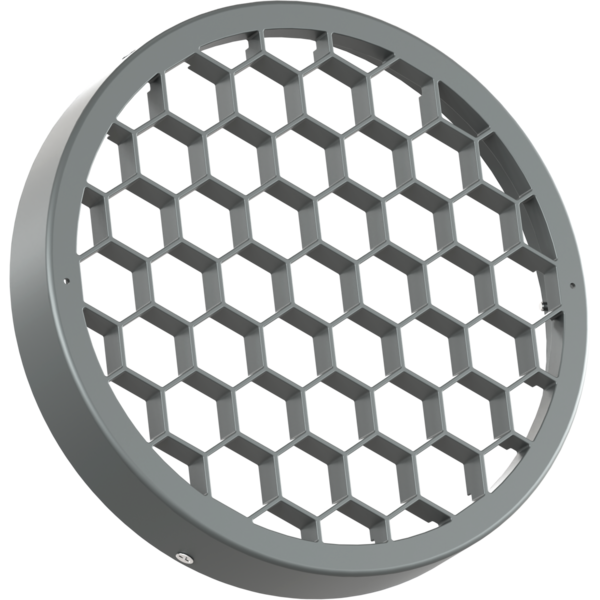

ARLHLOUVREGY
ARLHLOUVREGY
(optional)
Honeycomb louvre for ARCSPOTL series, RAL 7012
AWEXAC2L03
AWEXAC2L03
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
MOSUNIBRACKJR
MOSUNIBRACKJR
(optional)
Bracket for MOSAICOJR for wall mounting and suspension on poles
AWEXAC2L05
AWEXAC2L05
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
