ARTNETNODE
TRIBEby TRIBE

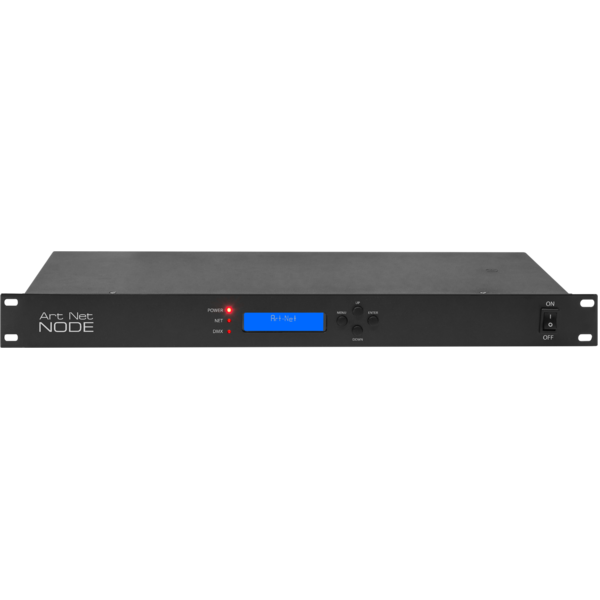

ArtNetNode

ArtNet->DMX converter, 1 ArtNet IN, 2 DMX IN, 8 DMX OUT, 8 universes

ARTNETNODE is a versatile rack-mountable Art-Net to DMX adapter with an integrated optical DMX splitter. It has two DMX inputs and eight opto-isolated DMX outputs which can be assigned to either of the DMX inputs or to the Art-Net input.

Main features:

  • 8 universes supported
  • Input: 1 x Art-Net, 2 x DMX512
  • Output: 8 x DMX512

PHOTO GALLERY

Technical specifications

CONTROL
  • Art-Net channels: ch
  • Display: LCD display
  • Input: 1 x ArtNet, 2 x DMX512
  • Output: 8 x DMX512
  • Other: available with 3 / 5 pole XLR connectors
ELECTRICAL
  • Mains power supply: 100-240 V 50/60 Hz
PHYSICAL
  • Signal connection: 3 / 5 xlr DMX, Art-Net
  • Power connection: IEC 10 A IN
  • Dimensions (WxHxD): 480x45x162mm / 18.9''x1.77''x6.38''
  • Rack unit: 1 standard 19'' rack unit made of steel
  • Weight: 1,8kg / 3.97lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Code
Connectors
ARTNETNODE3P
ARTNETNODE3P (DISCONTINUED)
XLR 3p
ARTNETNODE5P
ARTNETNODE5P
XLR 5p

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArtnetnode_USER_MANUAL_ITEN.pdf552KB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DArtnetnode_CAD_2D.dwg161KB
Technical drawingArtnetnode_TECHNICAL_DRAWING.pdf88KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.8 STABLE 02/08/2024 Improvement:
  • It is possible to select any IP address on the unit and not only 2.X.X.X or 10.X.X.X
To perform the firmware update, follow these steps:
  1. update with CTR file on DMX IN PORT 2
  2. update with DISP file on DMX IN PORT 1
