ASTRAHYB330
PROLIGHTS

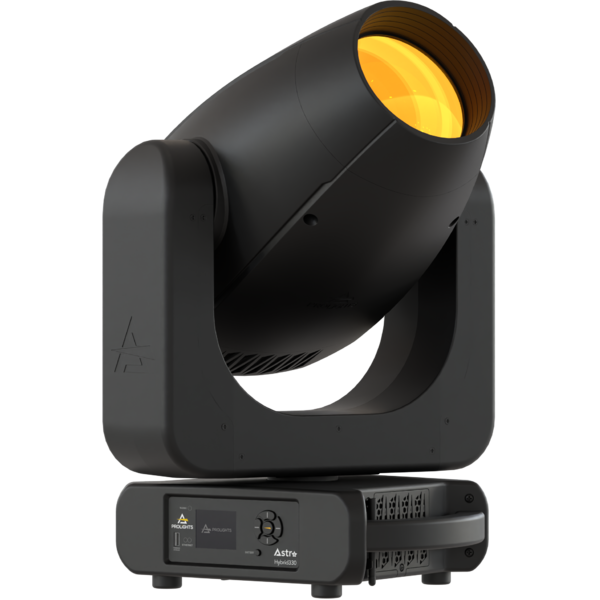

Astra Hybrid330 new

ORDER CODE: ASTRAHYB330

330W hybrid beam-spot light with 3.5-52° zoom and linear CMY

The Astra Hybrid330 is a bright LED hybrid moving head that boasts exceptional power relative to its compact size, producing an array of breathtaking visual effects.
Its optical system offers a linear range from 3.5° to 52°, furnished with a sizable 140mm front lens. This unique combination enables an intense beam and homogenous spotlight, providing an exceptional lumen output and surpassing the evenness offered by arc-discharge fixture in its category.
The comprehensive features of the Astra Hybrid330 encompass a variety of functions. These include aerial effects with a dense, parallel beam and sharp projection textures, pattern effects, linear CMY, three colour wheels, an animation wheel, dual overlapping prisms, frost, and two gobo wheels.

Main features:

  • 330W LED hybrid moving light
  • Zoom range from 3.5° to 52°
  • Full features with linear CMY, animation wheel, two gobos, three colours, two prisms, and frost

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 330W high-power white LED
  • CCT: 7.000
  • Luminous flux: (3,5°) 8'158 lm - (52°) 11'684lm
  • Lux: (3,5°) 97'996 lx - (52°) 1'566lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom: 3,5° - 52° motorised linear zoom
  • Lens diameter: 140mm / 5.51''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.400 K and 3.200 K
  • Colour wheel: 9 dichroic filters on 3 independent colour wheels
  • Colour wheel: High CRI colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
  • Fixed gobos: 11 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 29channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included or via USB pen drive
  • Other: Ethernet pass through in case of PSU or Master PCB failure
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
  • Max power consumption: 517W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,98
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 411x638x244mm / 16.18''x25.12''x9.61''
  • Weight: 21,6kg / 47.62lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

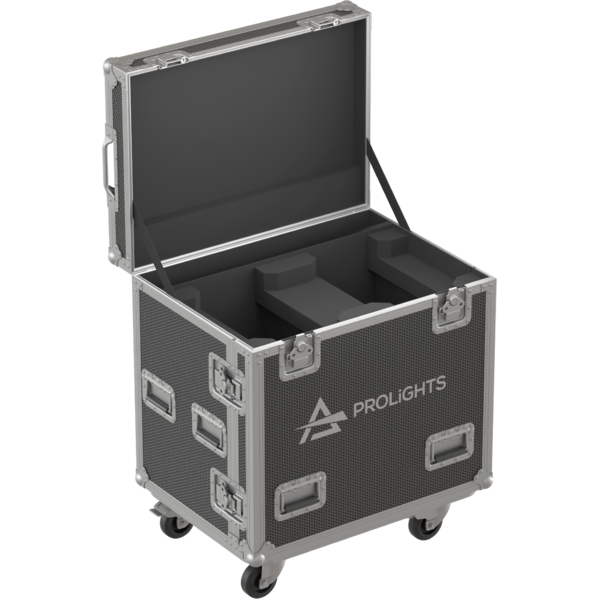

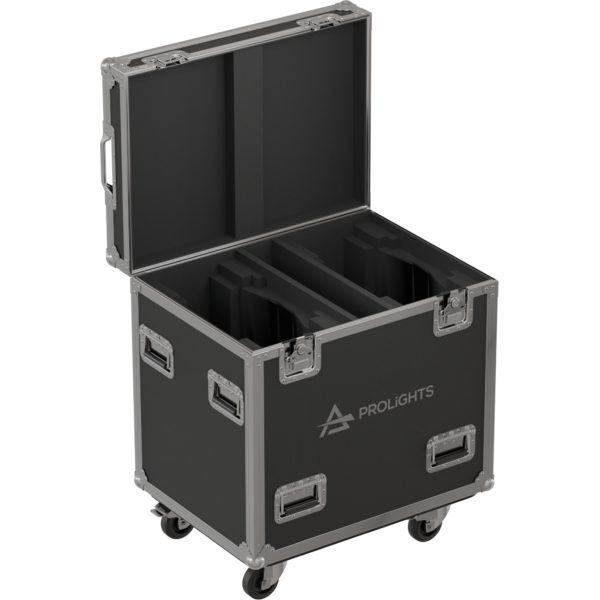

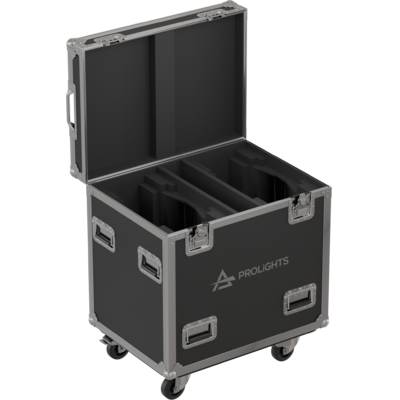

FCLASTRAH330
FCLASTRAH330
(optional)
Flight case for 2 pcs of ASTRAHYB330

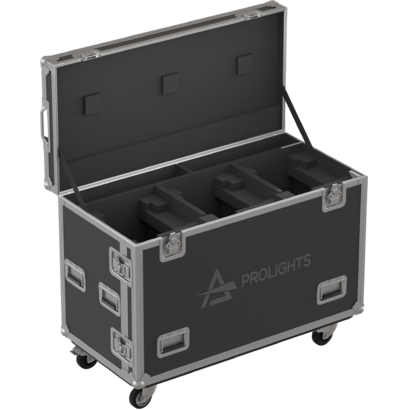

FCLASTRAP400
FCLASTRAP400
(optional)
Flight case for 3 pcs of ASTRAPROFILE400 / ASTRAHYB330

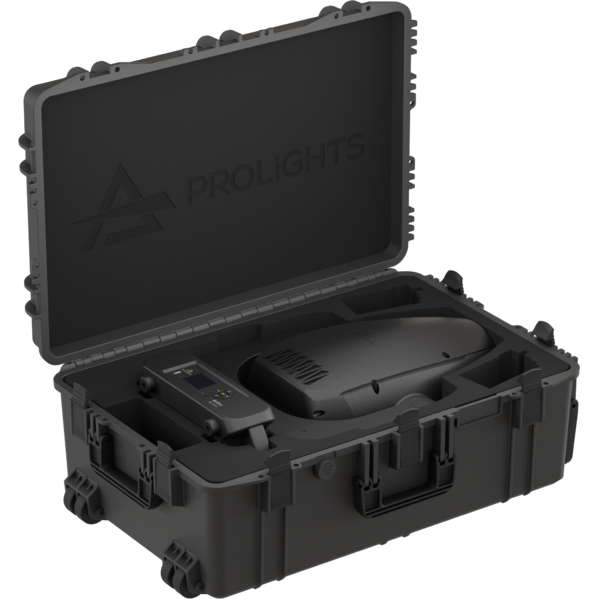

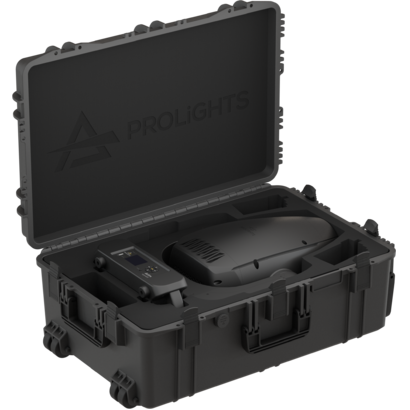

AHYB330BAG1U
AHYB330BAG1U
(optional)
Empty ABS case for 1 pc of ASTRAHYB330

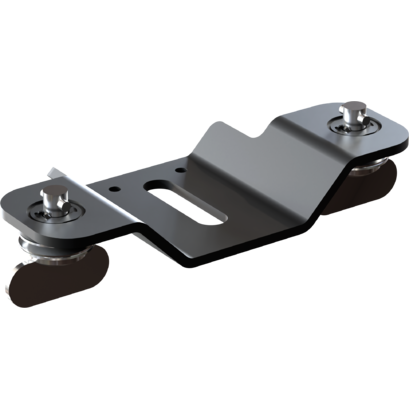

OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

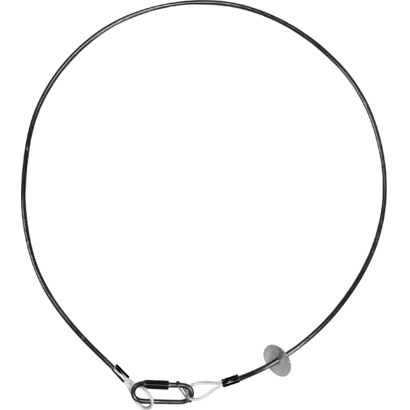

RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

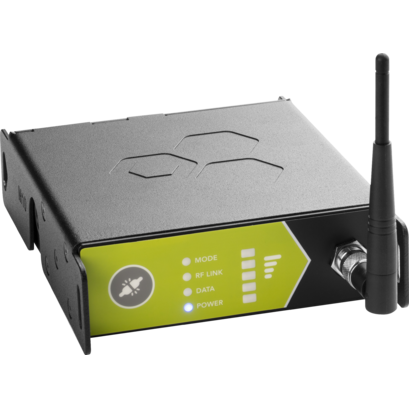

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

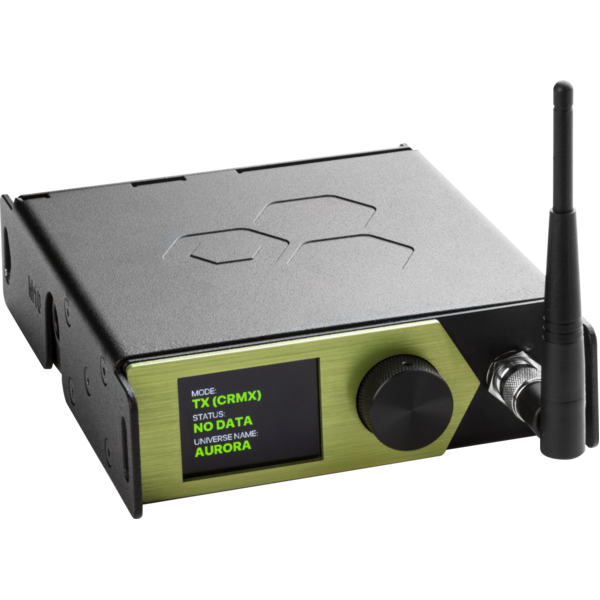

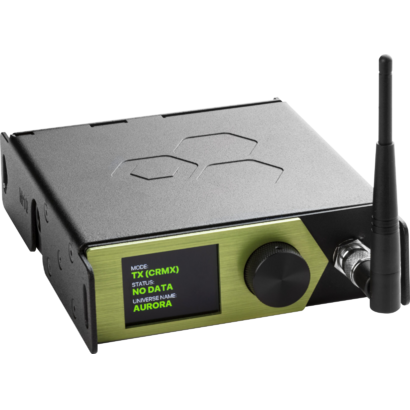

LRAURORA
LRAURORA
(optional)
Single Universe DMX/RDM transceiver with WiFi and Bluetooth
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astrahyb330_A4_DATASHEET_(EN).pdf 506KB
Tender Specification Astrahyb330_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Astrahyb330_USER_MANUAL_EN.pdf 7MB
User manual Astrahyb330_General_Safety_Information_EN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Astrahyb330_DMX_CHARTS.pdf 308KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 540KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ASTRAHYB330 Firmware rev. 0.0.17
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
astrahyb330_29ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights astra hybrid330 prelim 1.zipDownload

Photometrics

File name File size Download
IES prolights_astrahyb330_ldt_ies files.zip 19KB
PDF Photometrics Astrahyb330_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Astrahyb330_3D_SKETCHUP.skp 399KB
2D Astrahyb330_2D.dwg 4MB
3D Astrahyb330_3D.dwg 546KB
2D cad symbols Astrahyb330_2DSYMBOLS.dwg 75KB
Technical drawing Astrahyb330_TECHNICAL_DRAWING.pdf 707KB

Tech docs

File name File size Download
Color Document Astrahyb330_COLOR.pdf 408KB
Gobos Document Astrahyb330_GOBOS.pdf 411KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.17 BETA 26/07/2023 Improvement:
  • Improvements regarding Reset procedures.
  • Added Linking Key and Universe Metadata in Connect/Wireless menù.
  • Added support to CRMX Mode selection: TX CRMX, TX G4s, TX G3, RX.
  • If Rotation Gobo and Animation Wheel are inserted at the same time, the original power consumption is reduced by 30% .
Fixed bug:
  • The rotation of the index on the Gobo continues even if the encoder is released.
