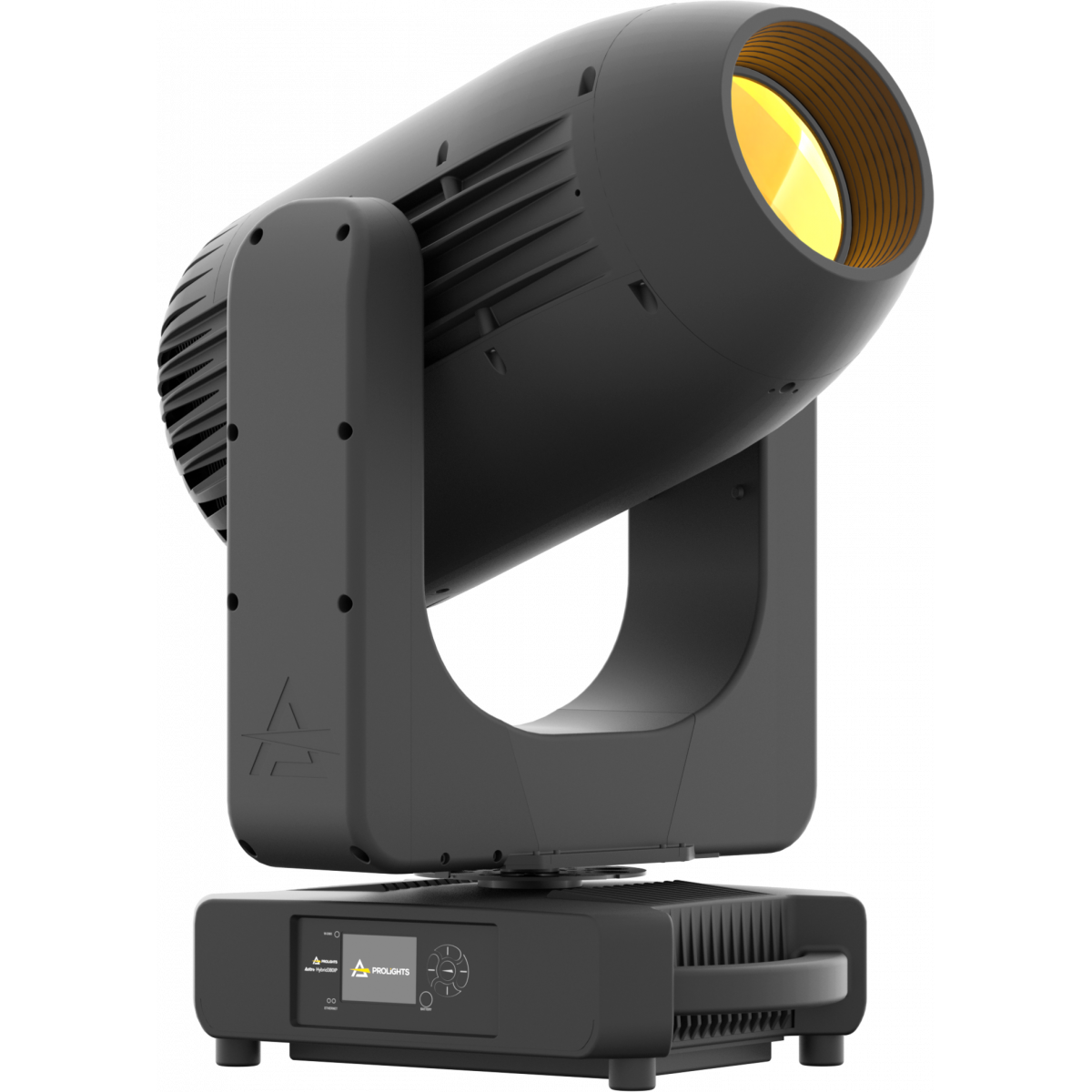

Astra Hybrid420IP

ORDER CODE: ASTRAHYB420IP

IP65 Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp

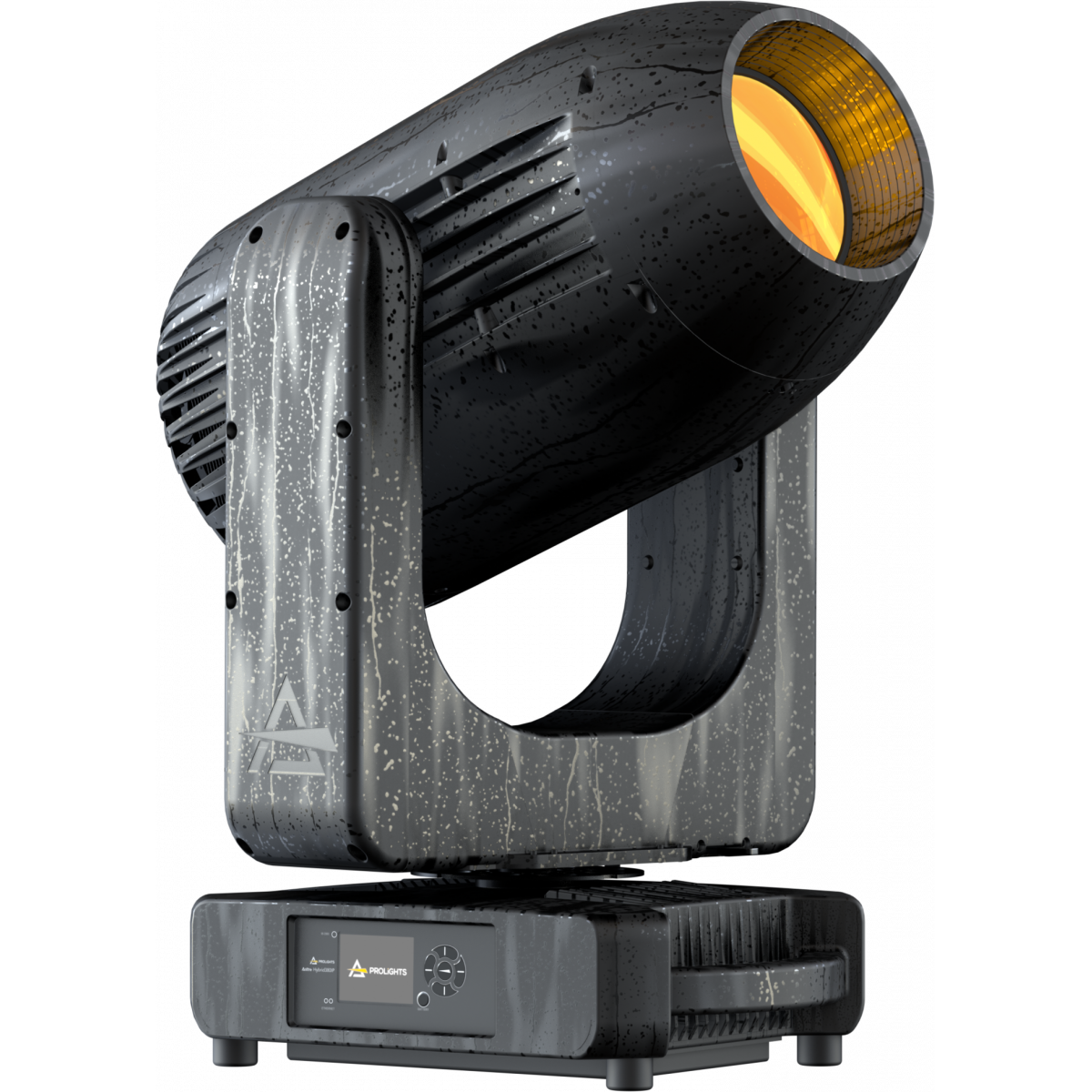

The Astra Hybrid420IP is the first waterproofed (IP65) hybrid moving light in the Astra range, designed for any large-scale touring applications and exterior installations.
Despite its waterproofed exterior, the unit meets the same performance and features as the indoor version, excelling both as a truly bright beam light and perfect spotlight, with tremendous brightness and superior evenness when comparing with other fixtures in the same category.
The Astra Hybrid420IP's optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420IP includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

Main features:

  • IP65 Hybrid moving light equipped with a 420W USHIO NSL421 lamp
  • Linear zoom ranging from 2.7° to 40°
  • Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms

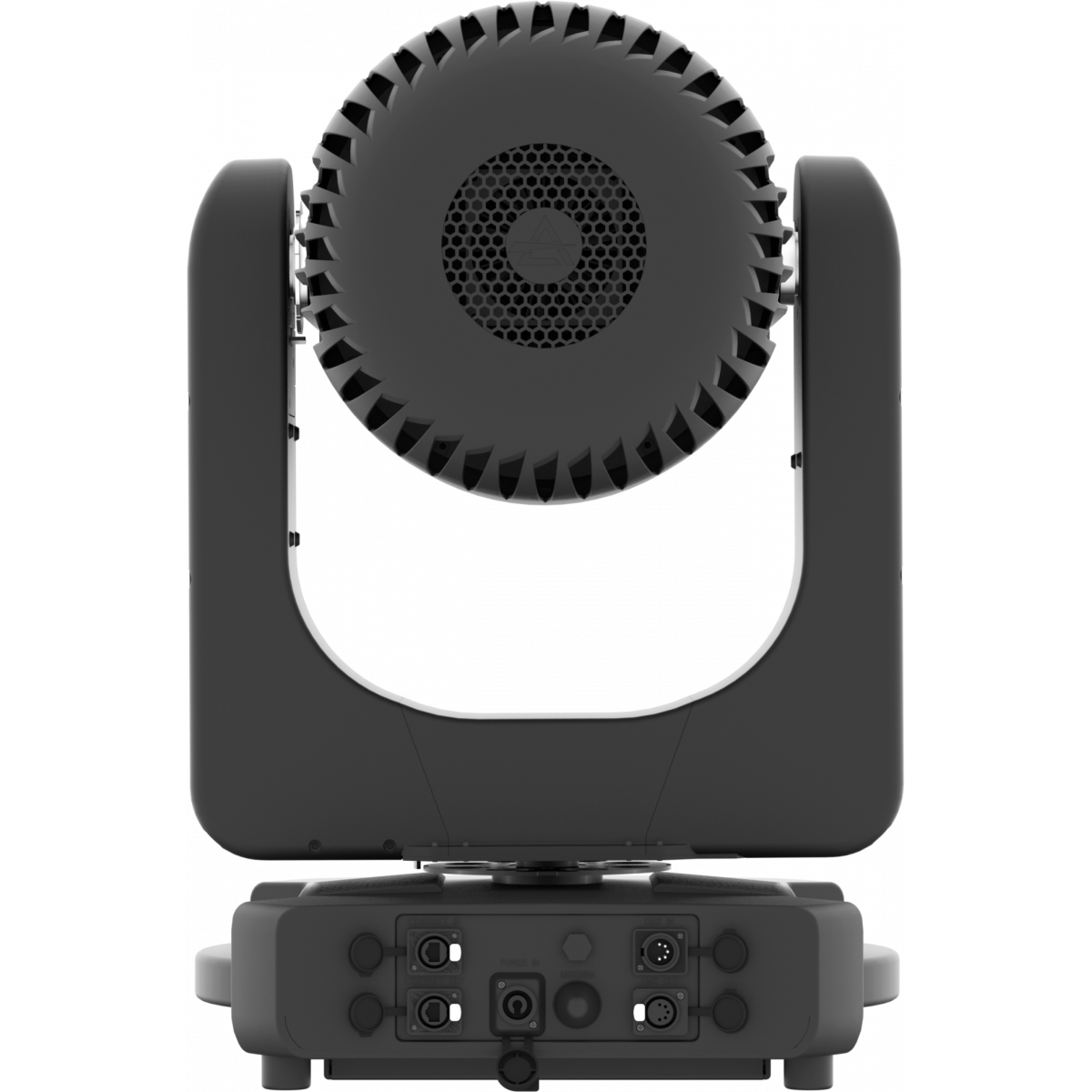

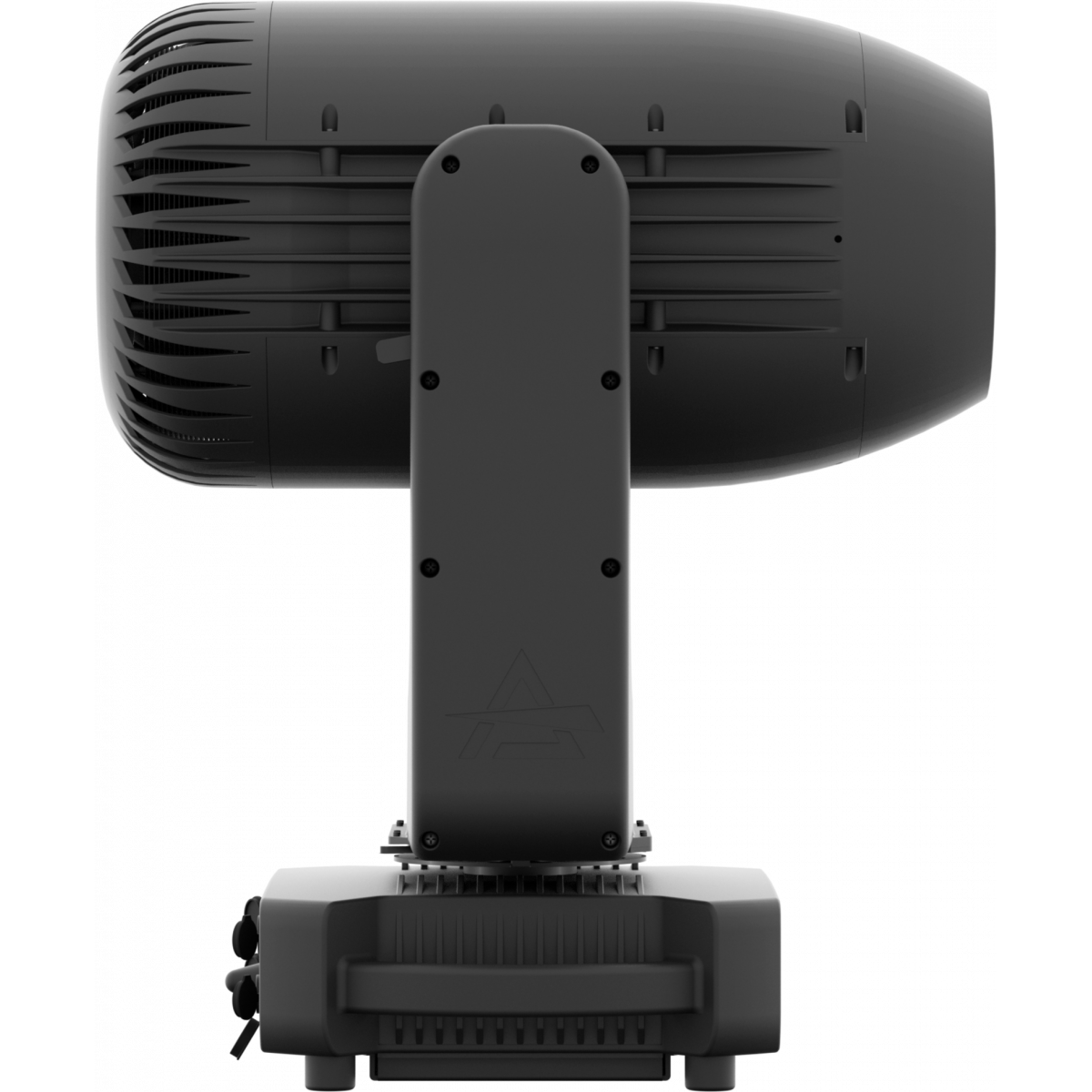

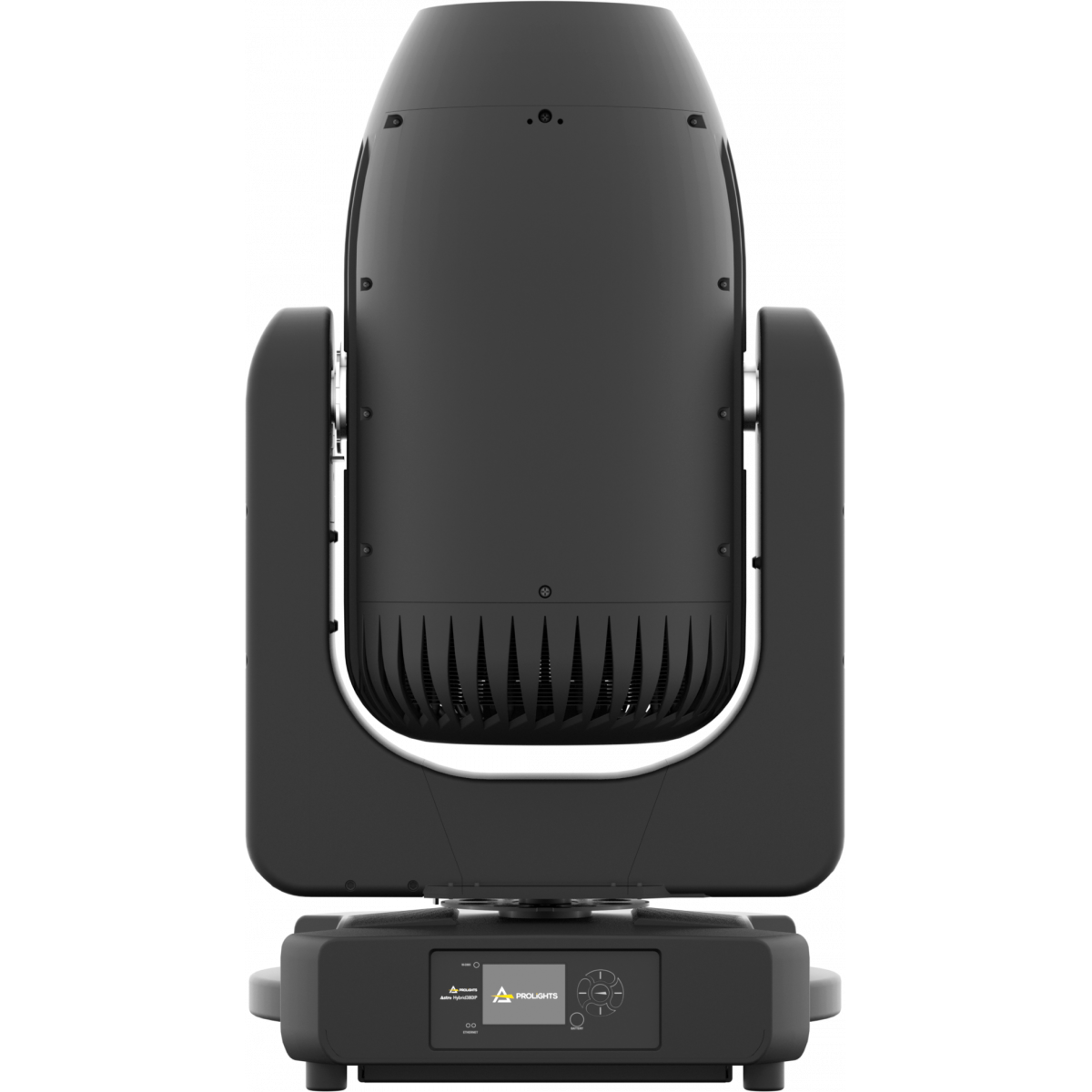

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 420W USHIO NSL421
  • CCT: 7.000
  • Luminous flux: 35.815lm
  • Lux: (2.7°) 99.284 lx - (40°) 281lx @15 m
  • Source life expectancy: 6.000 h
OPTICS
  • Zoom: 2.7° - 40° motorised linear zoom
  • Lens diameter: 153mm / 6.02''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 15 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
  • Fixed gobos: 18 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8f and 4f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 30channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 590W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 65 (*)
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 441x741x310mm / 17.36''x29.17''x12.2''
  • Weight: 42,1kg / 92.81lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAH420IP
FCLASTRAH420IP
(optional)
Flight case for 2 pcs of ASTRAHYB420 / ASTRAHYB420IP / ASTRAPROFILE600IP
OSIP
OSIP
(included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M10 hole
OSIPD13
OSIPD13
(optional)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0670B
RSR0670B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astrahyb420ip_LETTER_DATASHEET_(EN).pdf 679KB
Letter datasheet Astrahyb420ip_A4_DATASHEET_(EN).pdf 681KB
Tender Specification Astrahyb420ip_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Astrahyb420ip_USER_MANUAL_EN.pdf 9MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Astrahyb420ip_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Astrahyb420ip_DMX_CHARTS.pdf 733KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 446KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ASTRAHYB420IP Firmware rev. 1.0.10
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
PDF Photometrics Astrahyb420ip_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ASTRAHYB420IP_3D_SKETCHUP.zip 2MB
2D Astrahyb420ip_2D.dwg 13MB
3D ASTRAHYB420IP_3D.zip 1MB
2D cad symbols ASTRAHYB420IP_2DSYMBOLS.zip 130KB
Technical drawing Astrahyb420ip_TECHNICAL_DRAWING.pdf 548KB

Tech docs

File name File size Download
Color Document Astrahyb420ip_COLOR.pdf 164KB
Gobos Document Astrahyb420ip_GOBOS.pdf 293KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.10 STABLE 11/10/2023 Improvement:
  • Fan management improvements.
