CONTROLGO
PROLIGHTS

ControlGo new

ORDER CODE: CONTROLGO

Portable 1-Universe DMX Controller, RDM manager, CRMX and battery operated

ControlGo  is the ultimately flexible, multi functional lighting controller. This incredibly versatile, simple to use tool combines a fixture remote, RDM Tool, CRMX transmitter, DMX controller and DMX recorder into a single, portable and durable device.
Whether flashing out a film set, setting addresses on a tradeshow stand, or controlling battery uplighters, the ControlGO is THE device you need to get up and running quickly and easily.
Taking power from a host of options - NP-F or V-Lock batteries, DC 12-48V or USB-C - you won't find a place you cant find some power.
Featuring wired and CRMX wireless DMX & RDM, the ControlGO is compatible with up to 42 fixtures of any brand over 1 Universe. Its intuitive touchscreen interface, plus physical buttons and encoders, gives fast, easy and accurate access to its functions.

From Film sets to events … Lights, Control, Go!

Main features:

  • One Universe DMX Controller , RDM controller, DMX recorder, Remote UI
  • 5'' touchscreen with 4 RGB encoders and physical buttons for unprecedented user experience
  • Signal output through XLR, Wireless CRMX, and remote UI connector
  • Power sources: NPF batteries (batteries not included), V-mount adapter plate, 48V DC remote UI, 12-48V DC input through SF6-M 4p, USB type-C 5-12V power input (power cable not included)
See variants FIXTURE BUILDER

PHOTO GALLERY

ControlGo
ControlGo
ControlGo
ControlGo
ControlGo
ControlGo
ControlGo
ControlGo

Technical specifications

BODY
  • Hardware on-board: see available accessories
  • Body: sturdy policarbonate body
  • Body colour: black
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • DMX channels: 512channel
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 5" Touch LCD
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included), via USB pen drive or onboard memory
  • Other: 4 rotary push-encoders with RGB backlight
ELECTRICAL
  • Low Voltage DC mains: 12-48V via DC IN, 48V via Remote Connector, 5-9-12-20V via PD3.0 over USB-C, 7.2V via battery slots
  • Max power consumption: 8W
BATTERY
  • Battery: 7.2V NP-F550/F570/F750/F770/F960/F970 type battery or V-Mounts (14.4V) via dedicated accessory
  • Other: Batteries not included with the device.
PHYSICAL
  • IP rating: 20
  • Cooling: fan-free projector with a chassis designed for natural convection cooling
  • Signal connection: Seetronic XLR 5p OUT connector
  • Low Voltage DC connector: Weipu SA6(12-48V), Weipu SA12 (48V - RemoteConnector), USB type C PD3.0, Battery slots
  • Weight: 0.6kg / 1.32lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

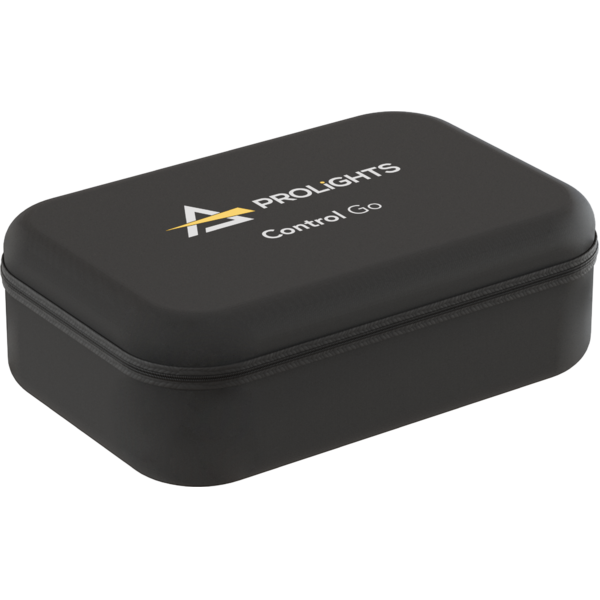

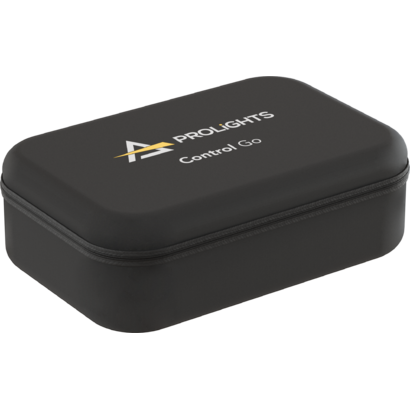

CTRGEVACASE
CTRGEVACASE
(Included)
Eva Case for CONTROLGO

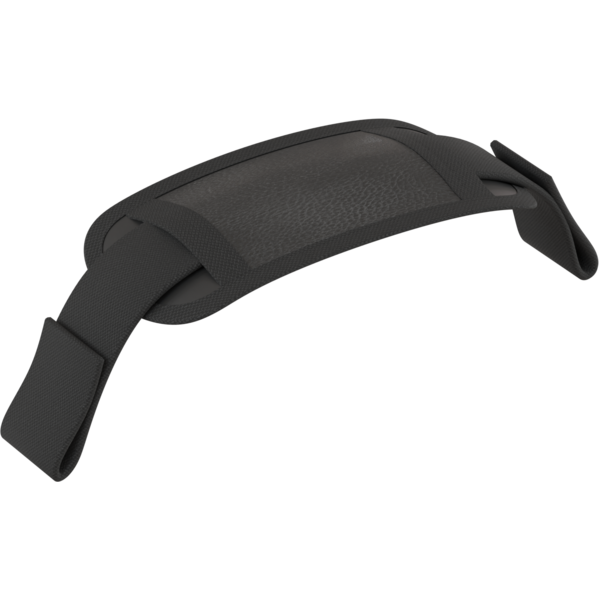

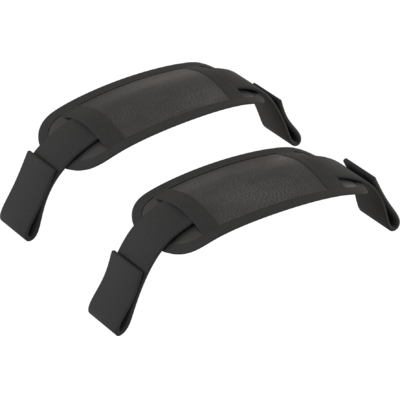

CTRGHANDLE
CTRGHANDLE
(Included)
Soft handle for CONTROLGO (1pcs)

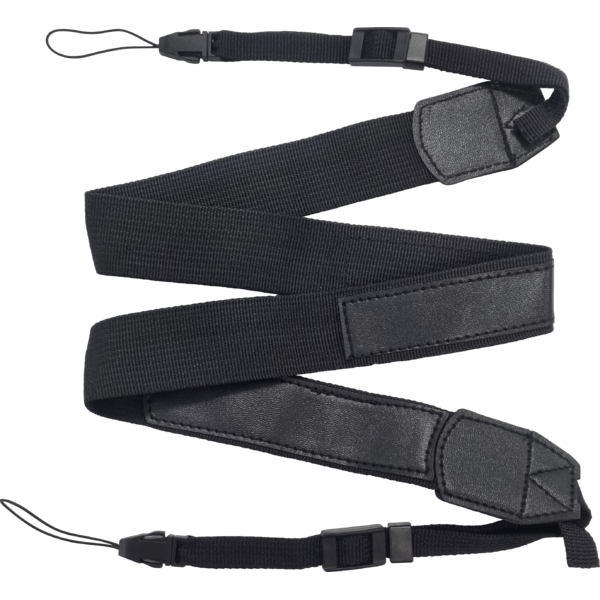

CTRGNL
CTRGNL
(Included)
Neck lanyard with double balancing and adjustable side strips for CONTROLGO

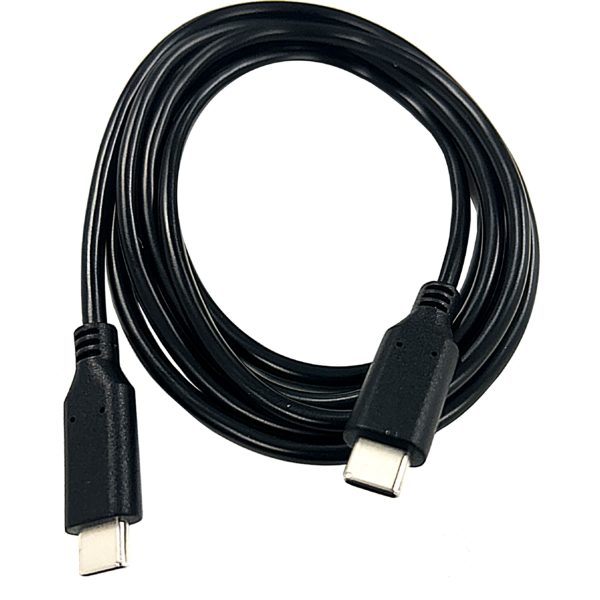

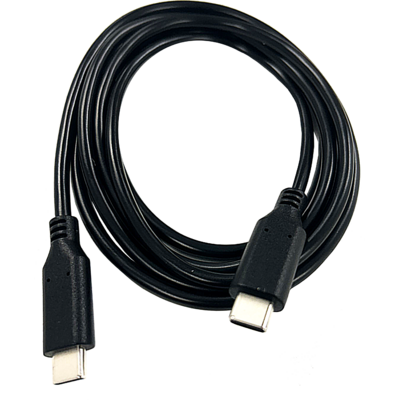

PRLUSBCL015
PRLUSBCL015
(Included)
USB-C to USB-C cable, 1,5 meter lenght

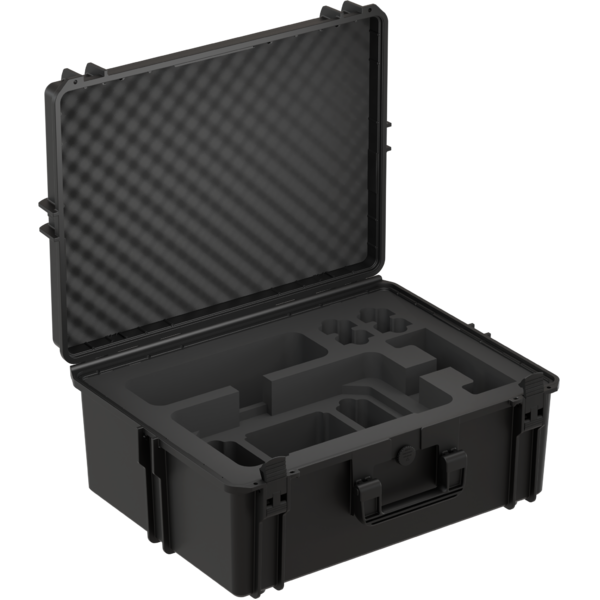

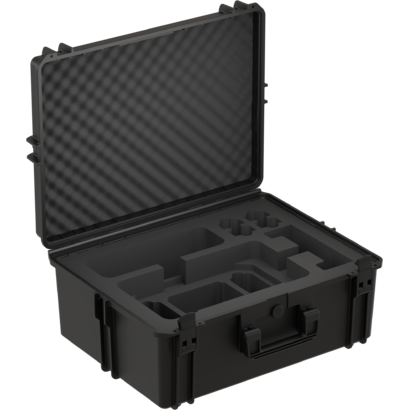

CTRGABSC
CTRGABSC
(Optional)
Empty ABS case for CONTROLGO

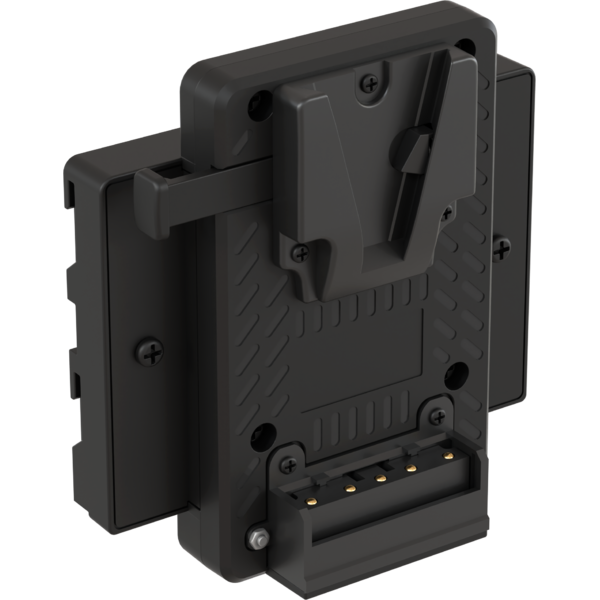

CTRGVMADP
CTRGVMADP
(Optional)
V-Mount adapter for CONTROLGO

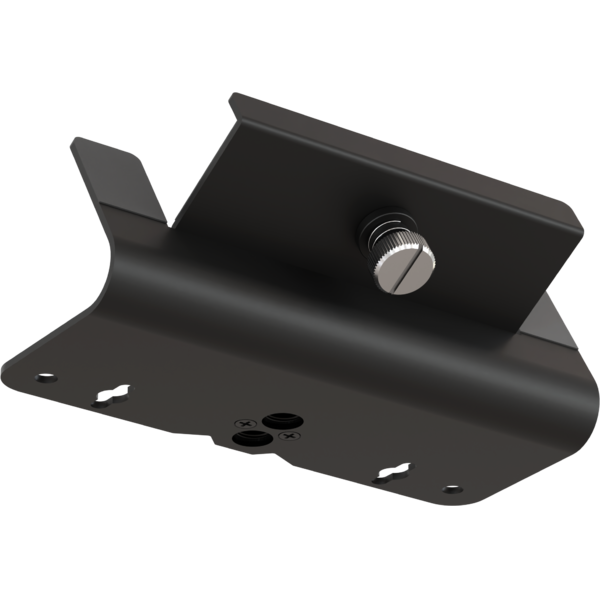

CTRGQMP
CTRGQMP
(Optional)
Quick mount plate for CONTROLGO

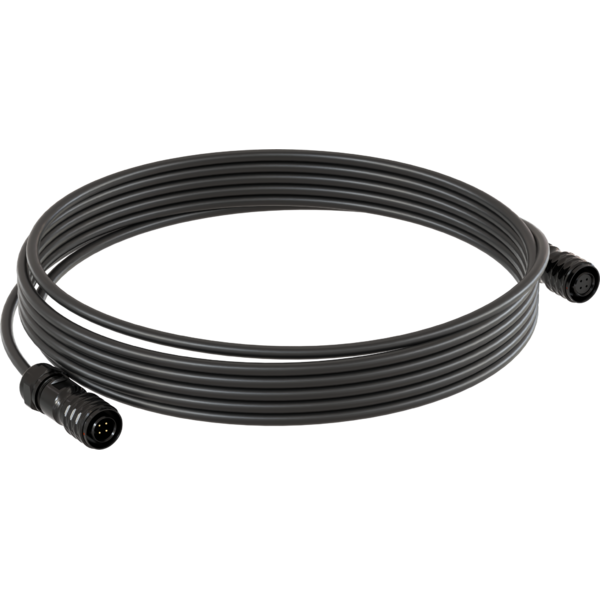

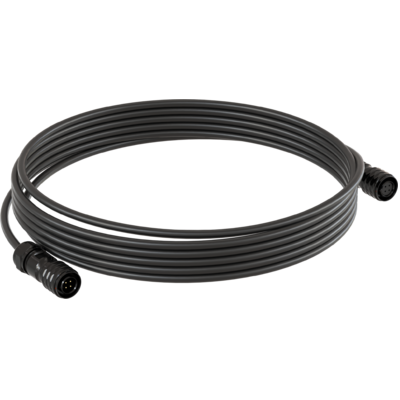

CTRGCABLE
CTRGCABLE
(Optional)
WEIPU SA12 7,5 m cable for CONTROLGO

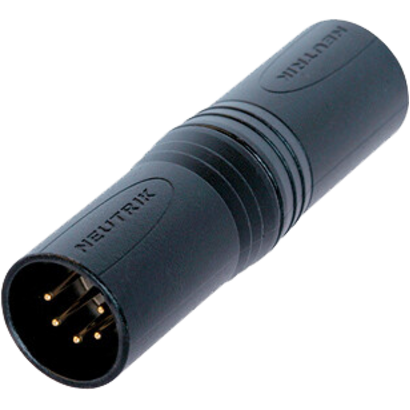

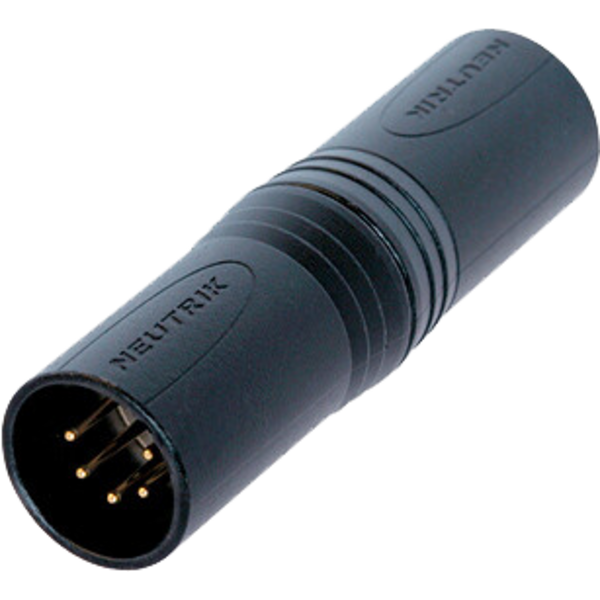

CANA5MMB
CANA5MMB
(Optional)
5 pole XLR male - 5 pole XLR male adapter, black finishing

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetControlgo_LETTER_DATASHEET_(EN).pdf322KB
Letter datasheetControlgo_A4_DATASHEET_(EN).pdf427KB
Tender SpecificationControlgo_TENDER_SPECIFICATION.pdf323KB

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPControlgo_3D.skp246KB
2DControlgo_CAD_2D.dwg2MB
3DControlgo_CAD_3D.dwg73KB
Technical drawingControlgo_TECHNICAL_DRAWING.pdf242KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 20/11/2024 Firmware update procedure:
  1. Format the USB stick in FAT32.
  2. Copy all the update files to the USB stick.
  3. Turn on the ControlGo and click on "Update".
  4. Select "sda1", then choose the file "updateControlGO_V1.1.00.0.sh" and install it.
  5. After the automatic reboot, go to ControlGO > Settings > Firmware Update > sda1 and select "CONTROLGO-V1.1.00.0.prl". Install the update by clicking on "Self Upgrade".
The detailed installation procedure is available in the attached PDF or on the website www.controlgo.it.

Known issues:
  1. DMX Recorded slots can be renamed but the new name is not been stored.
