DigiDriver IP

ORDER CODE: DIGIDRIVERIP

IP65 control and power unit for running video pixel products

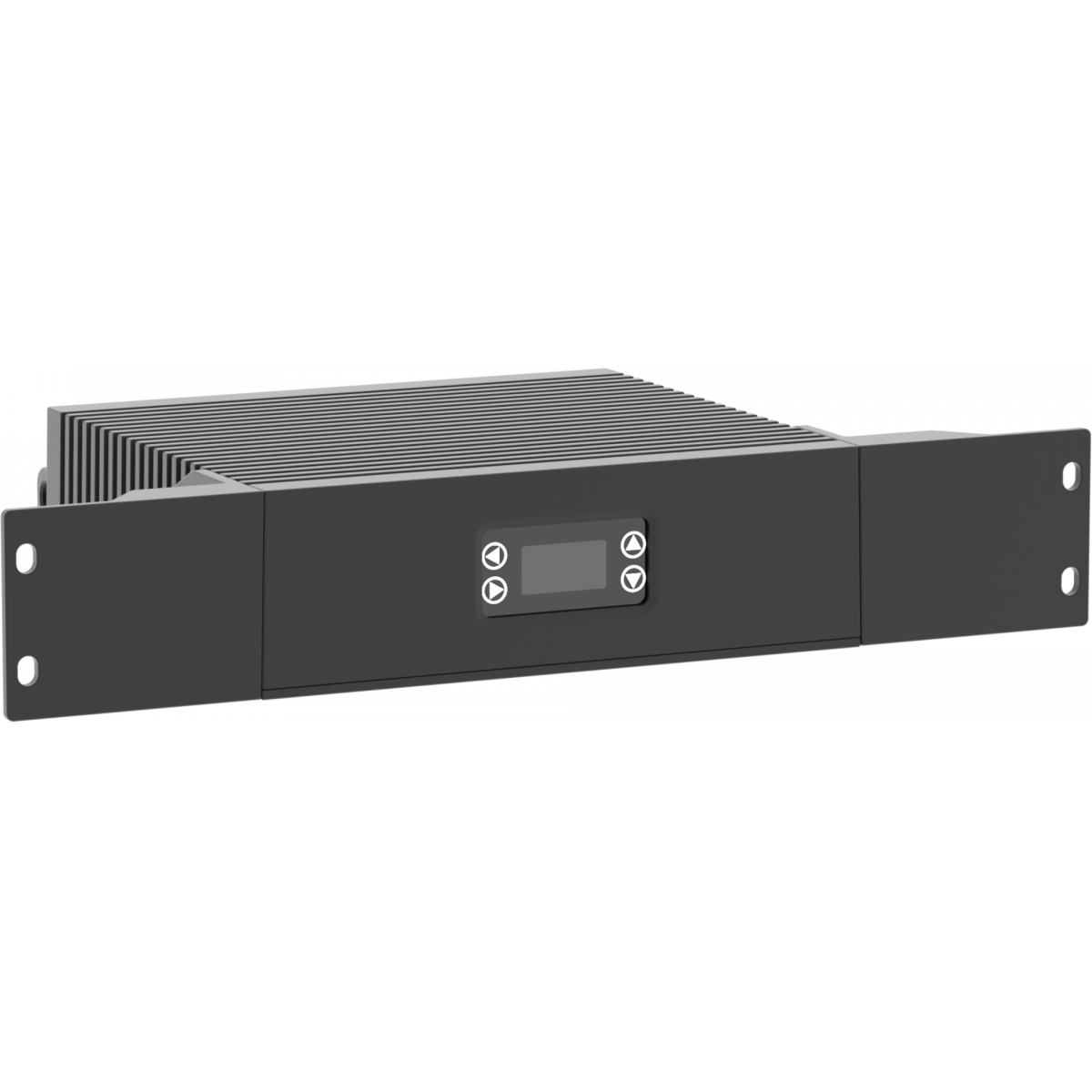

DigiDriver IP is a driver which provides power and processing to the DigiStrip IP. It has 2 outputs and can control up to 20 DigiStrip IP100 (10 DigiStrip IP100 for each port) and 40 DigiStrip IP50 (20 DigiStrip IP50 for each port) - each offering the control of up to 2.000 pixels in a one rack unit, offering 20 DMX universes and 550 W of power in and out. DigiDriver IP cannot control DigiStrip, DigiTube and DigiTile. DigiDriver IP is compatible with Art-Net, Kling-Net and sACN protocols and runs signal and power over a 4 pole XLR cable that allow wiring of units in a chain. The user interface consists of a black OLED display for settings, protocol selection, network address and test patterns. IP 65 rating allows for the usage at outdoor events so humidity and rain are no longer a worry.

Main features:

  • Art-Net, Kling-Net and sACN control protocol supported
  • Power and signal output up to 20 DigiStrip IP100 or 40 DigiStrip IP50
  • IP65 for outdoor events
  • Firmware update with NET cable without interface

PHOTO GALLERY

Technical specifications

BODY
  • Hardware on-board: Included rack-mount hardware
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: 2U rack
CONTROL
  • Control units: 20 x DIGISTRIPIP100 or 40 x DIGISTRIPIP50
  • Art-Net channels: 20x512ch
  • Protocols: Art-Net, Kling-Net, sACN
  • Pixel control: pixel2pixel control

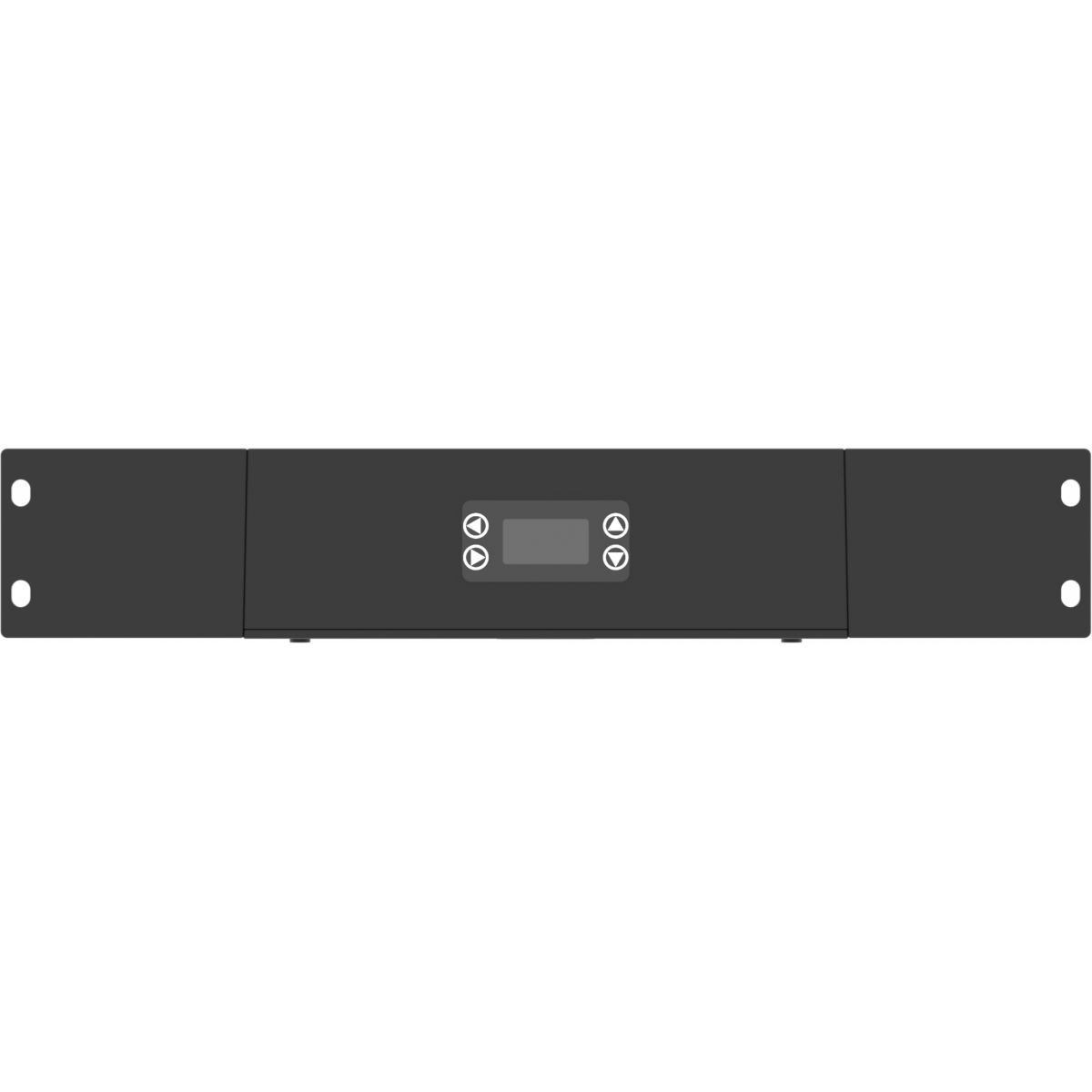

  • Display: Graphic User Interface
ELECTRONICS
  • Operating temperature: -20° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 550W
  • Output (at 230V): 5 units on a single power line
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations

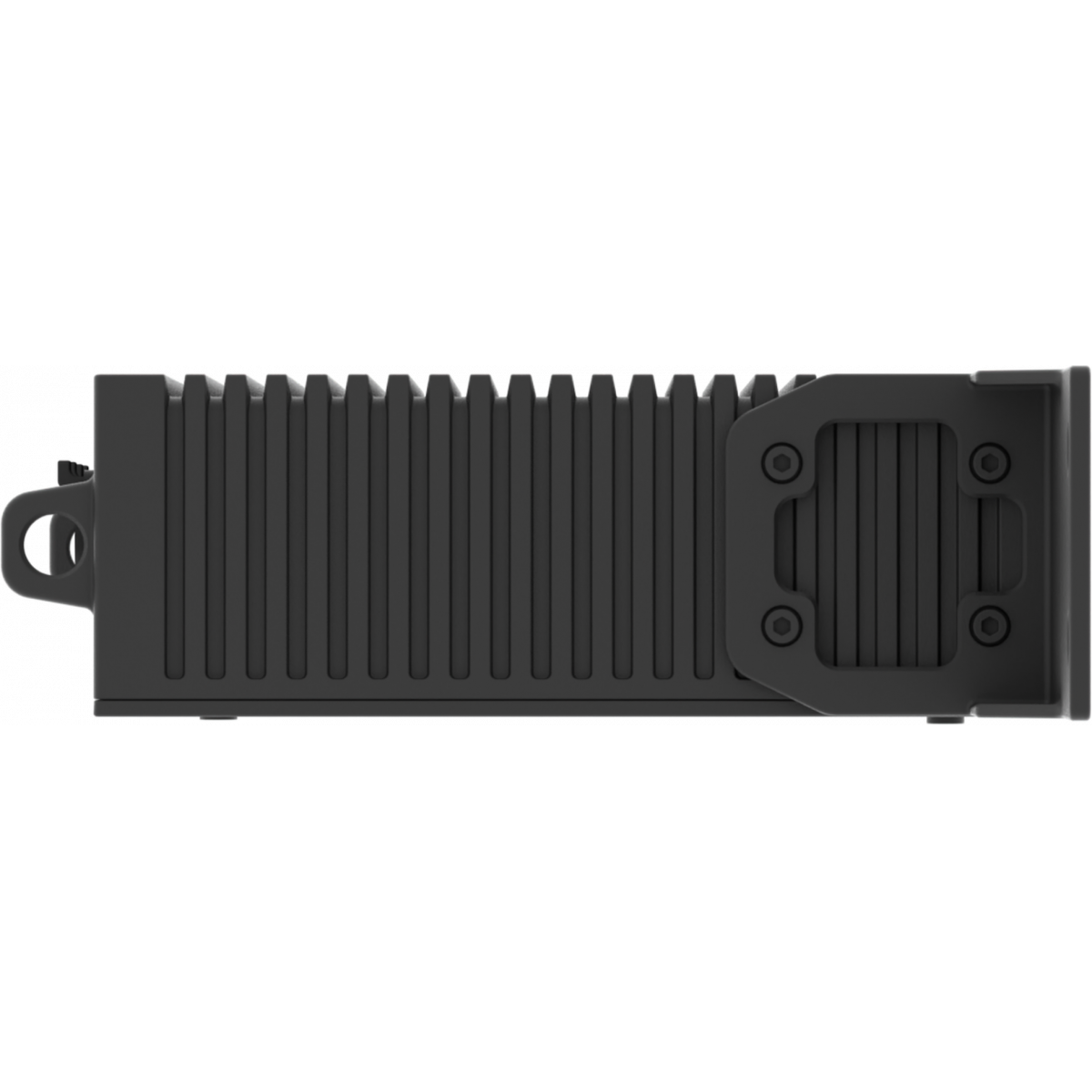

  • Cooling: passive cooling and fan-free
  • Suspension and fixing: any position with quick-lock omega brackets

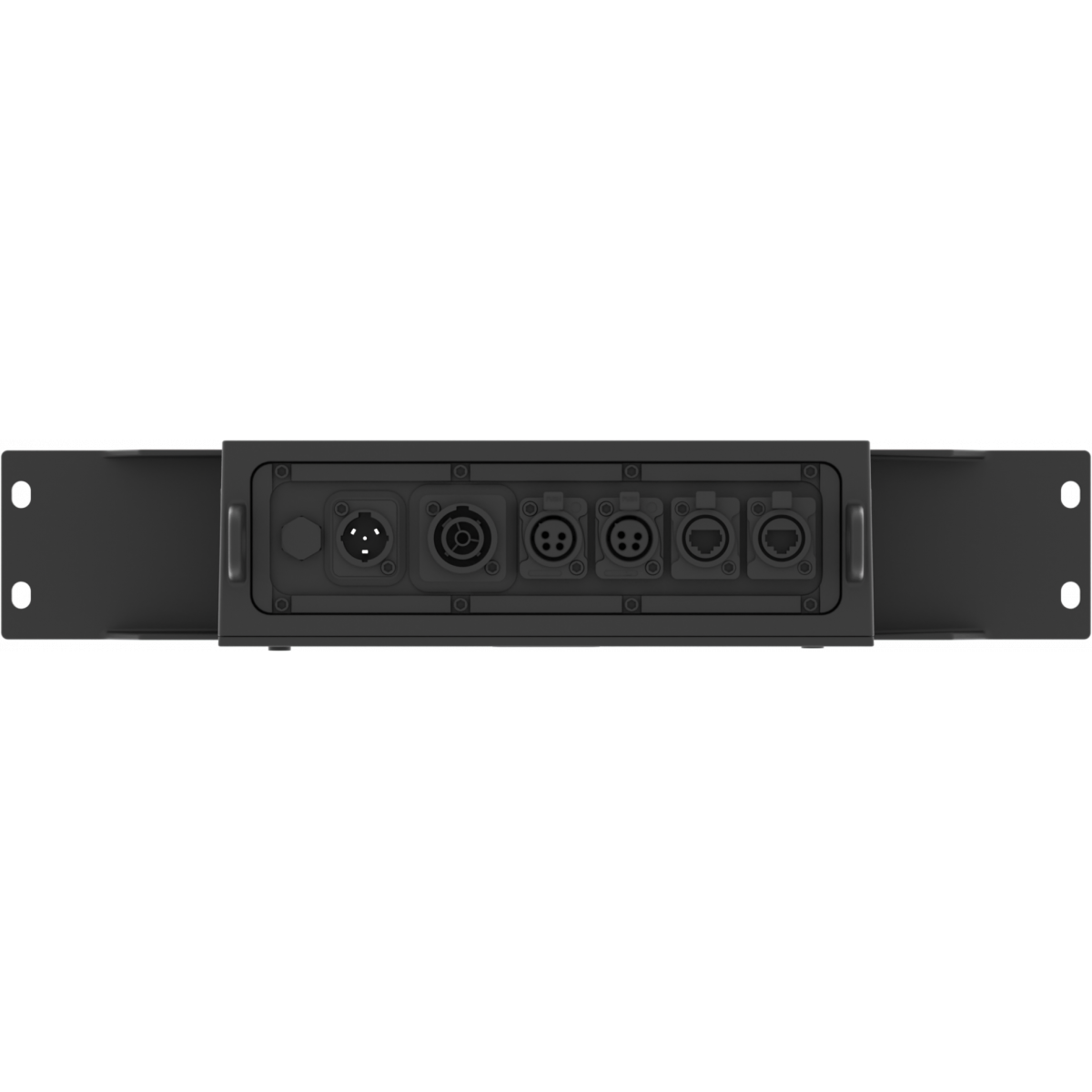

  • Signal connection: 2xRJ45 and 4p out
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 483x84x250mm / 19.02''x3.31''x9.84''
  • Weight: 4.5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS25D13
OS25D13
(optional)
Quick-Lock omega bracket, M12 hole
DIGICABLEIP
DIGICABLEIP
(optional)

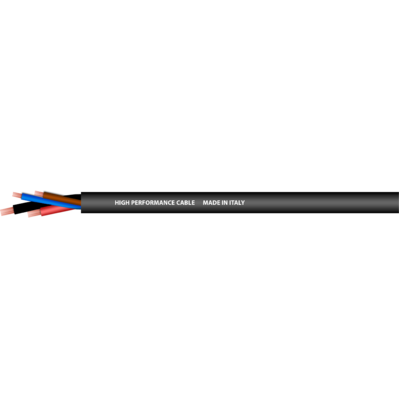

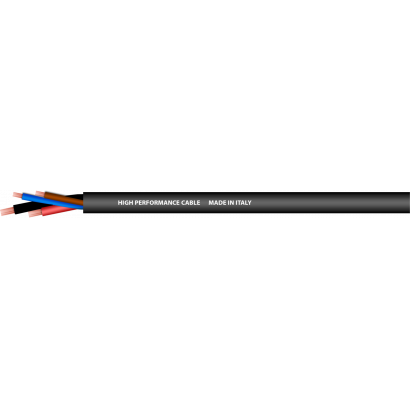

DIGI IP series signal 4-pin cable
DIGILINKIP
DIGILINKIP
(optional)

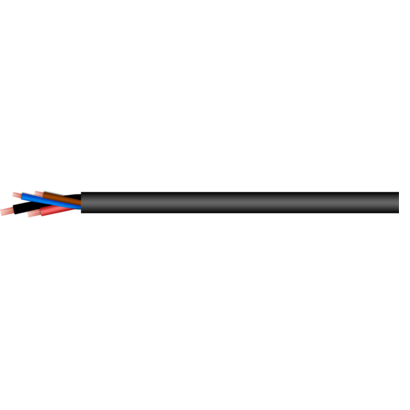

Digi IP series signal 4-pin cable

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Digidriverip_2D.dwg 1MB
3D Digidriverip_3D.dwg 13MB
Technical drawing Digidriverip_TECHNICAL_DRAWING.pdf 339KB

Tech docs

File name File size Download

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 06/12/2019 Added different dmx charts for simplify pixel2pixel usage. Rev. 1.0
1.2 STABLE 16/01/2019
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 06/12/2019 Added different dmx charts for simplify pixel2pixel usage. Rev. 1.0
1.2 STABLE 16/01/2019
