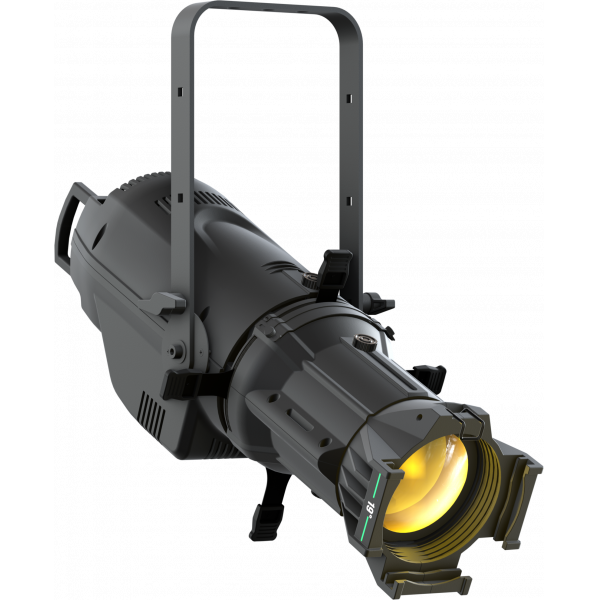

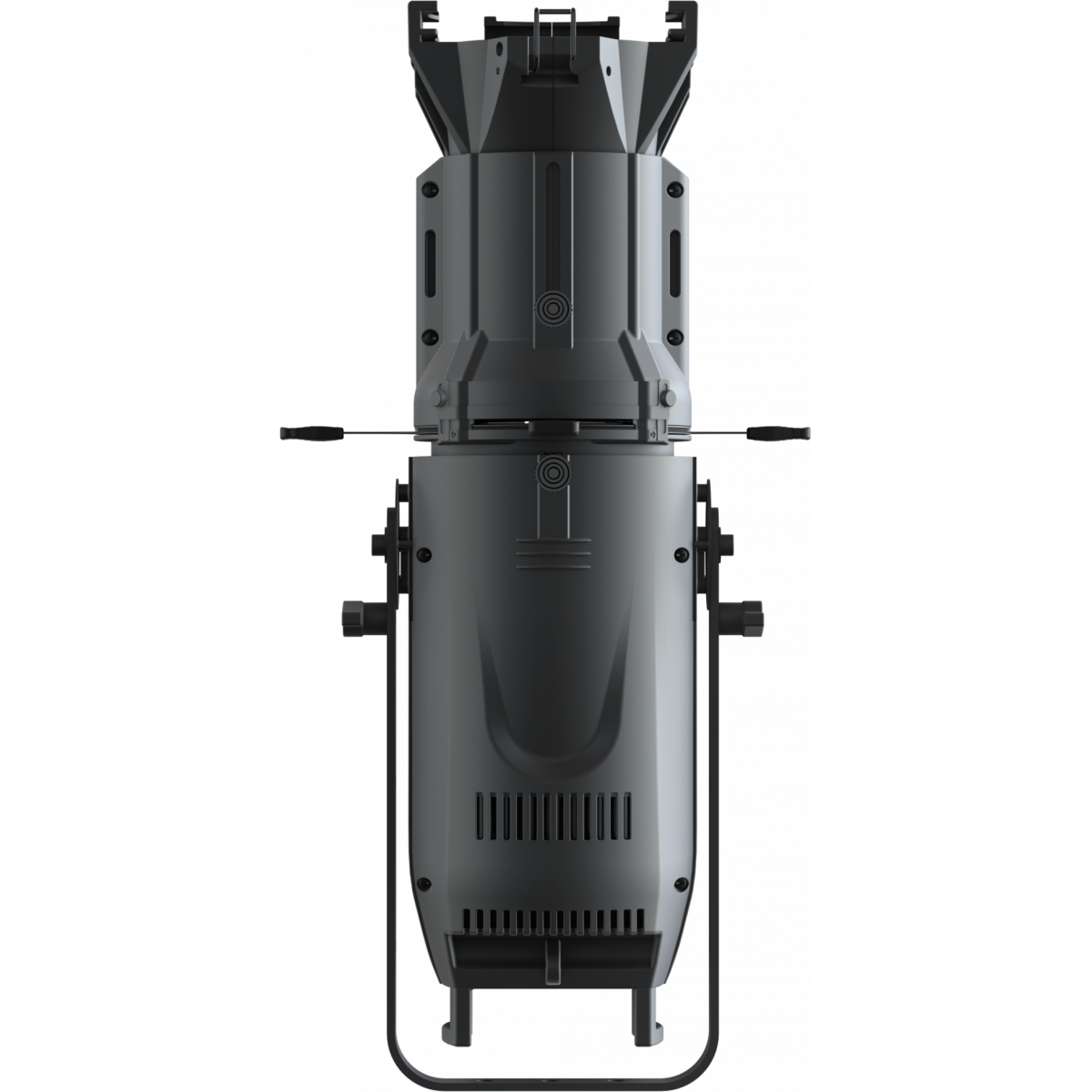

EclProfile CT+

High quality six colours LED ellipsoidal, tunable white and colour mixing

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.
Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.
The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio  functions, such as +/- green correction on linear white CCT.

SPEKTRAMain features:

  • Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
  • RGB / CMY / HSI / XY / RAW colours control of the six colours LED array for easy access to any desired colour.
  • Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).

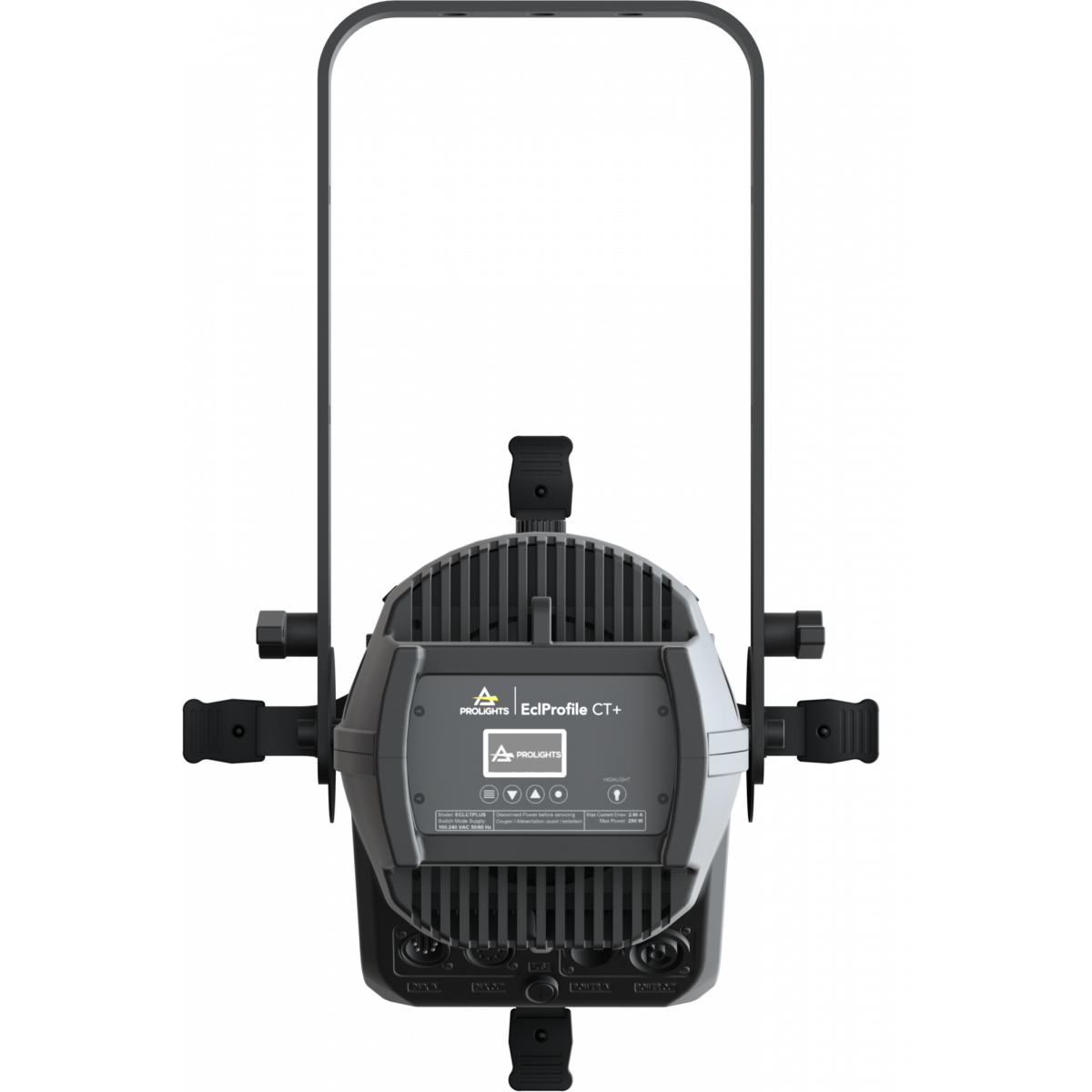

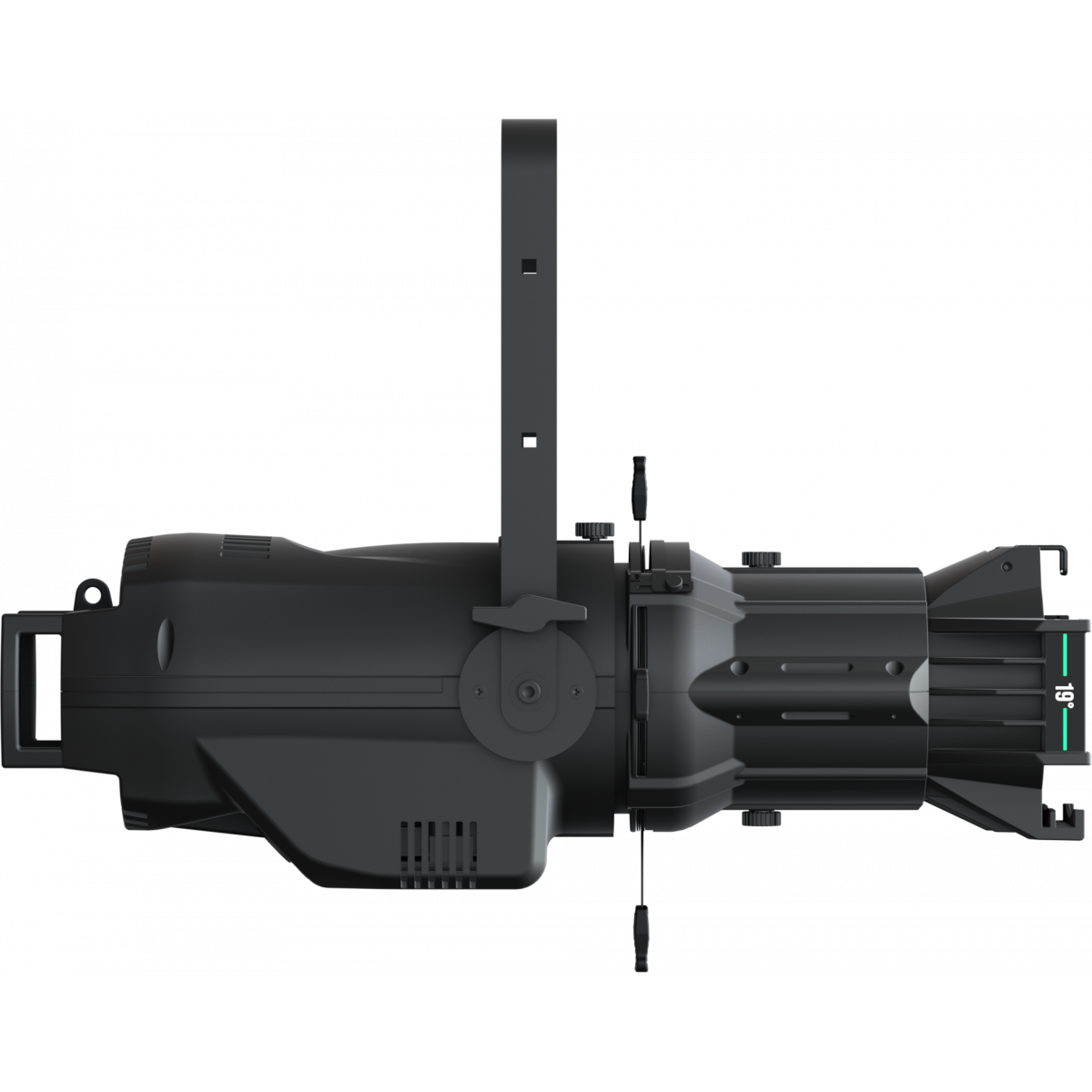

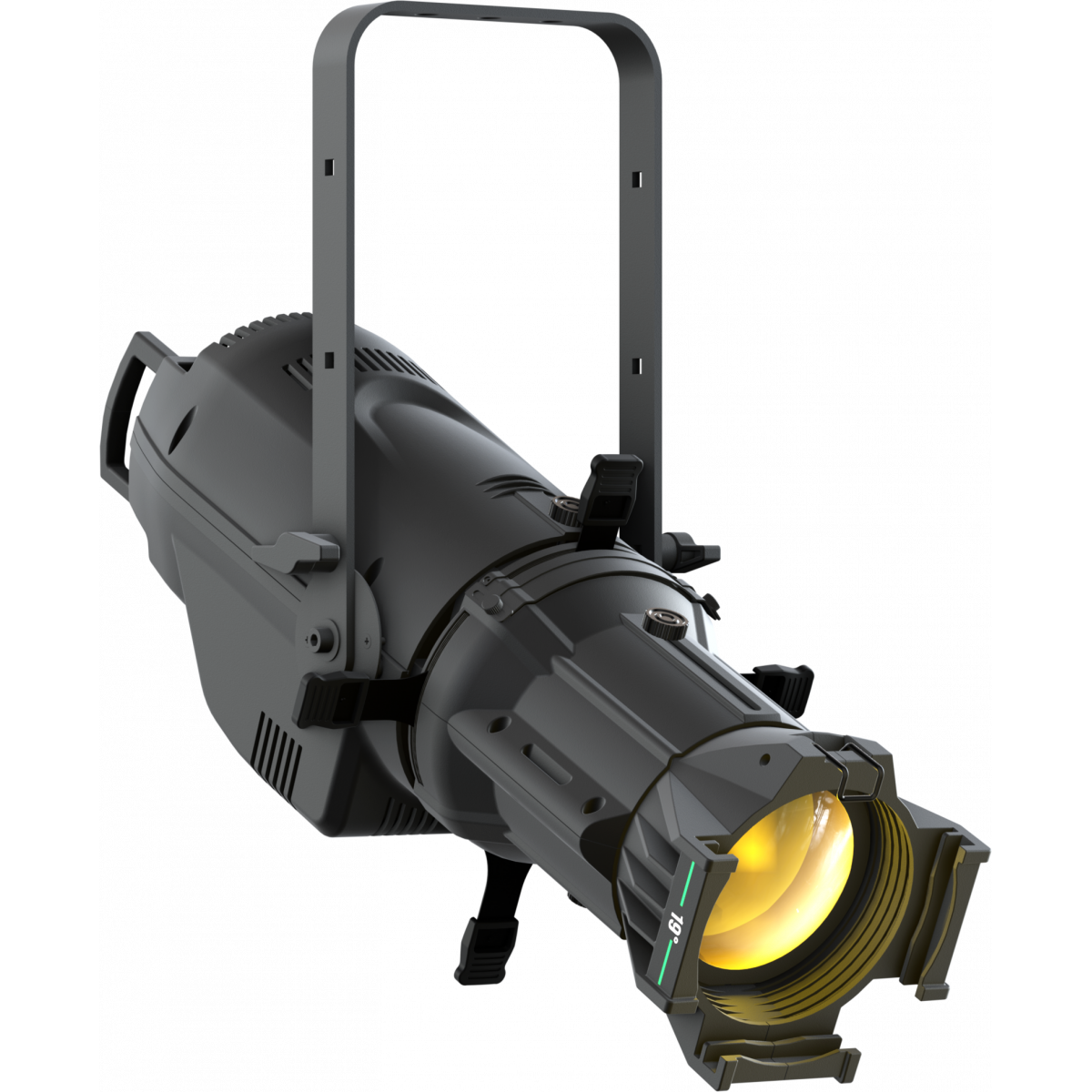

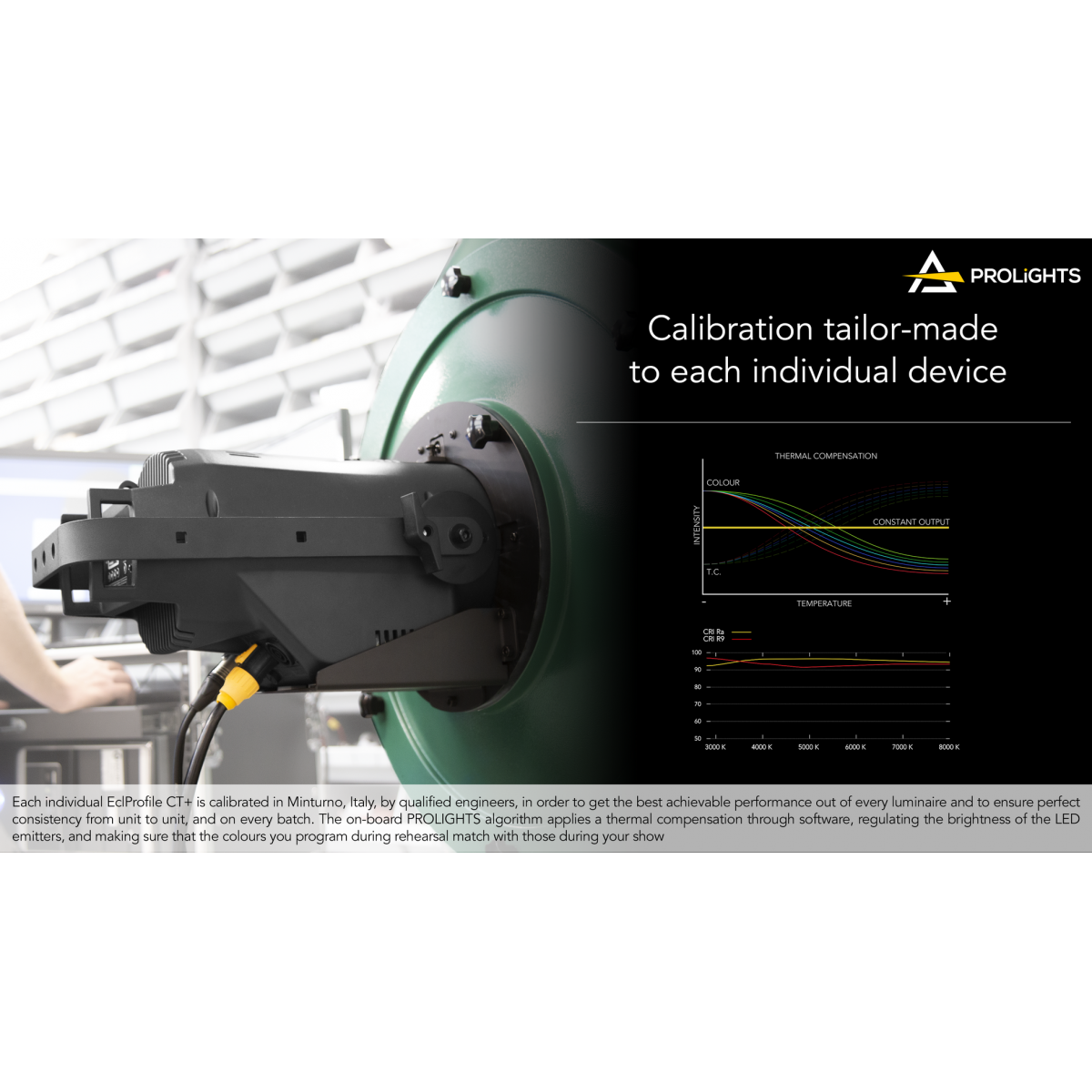

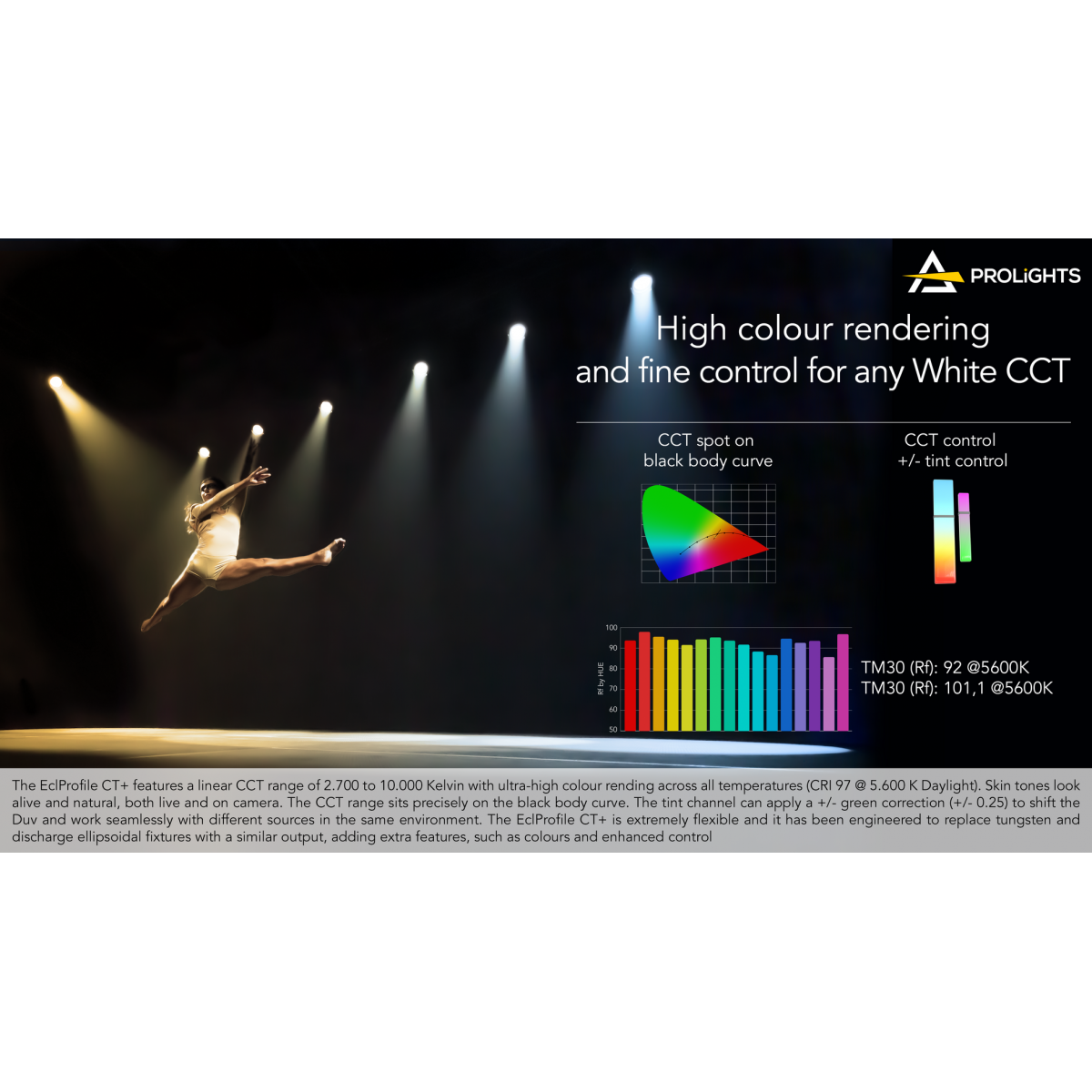

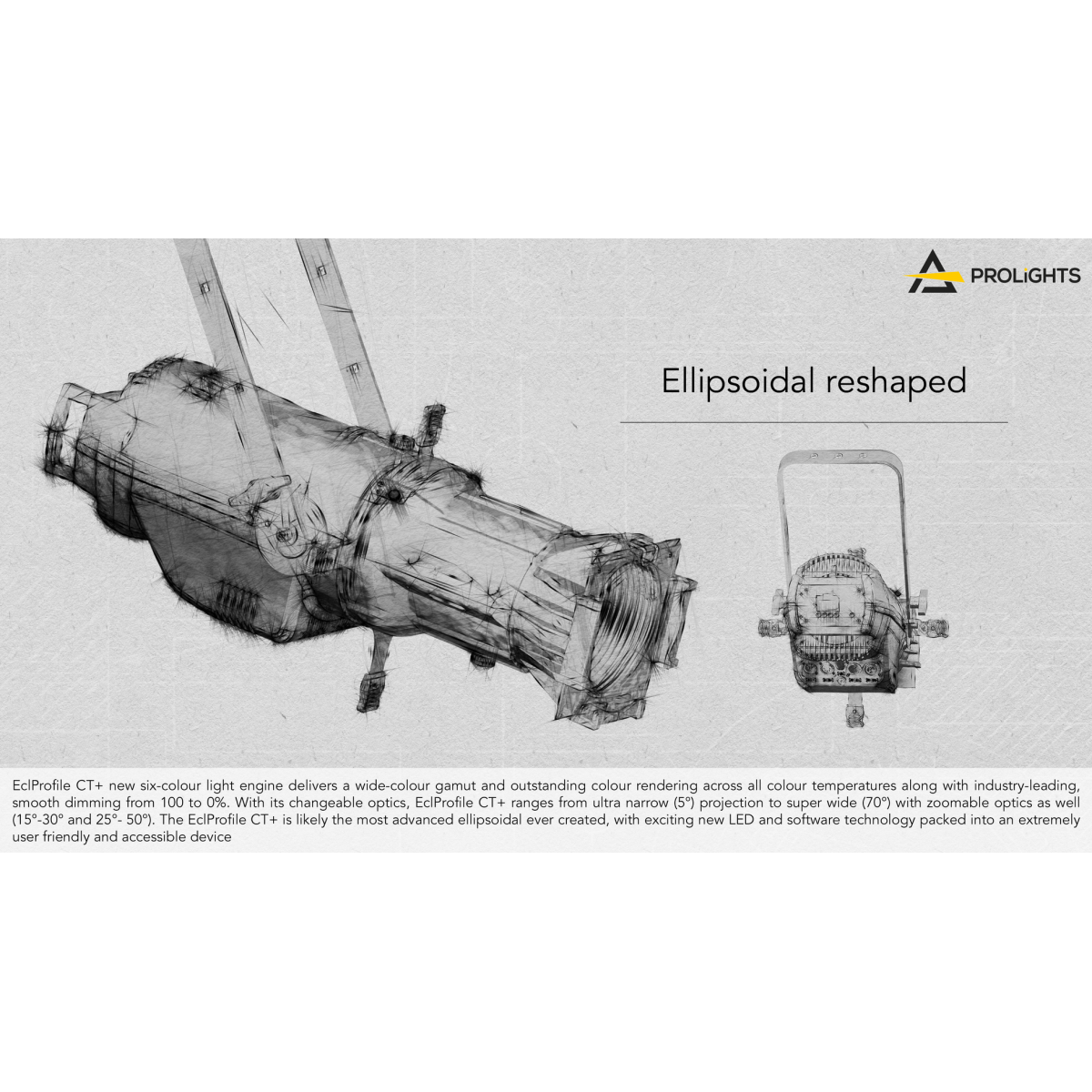

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

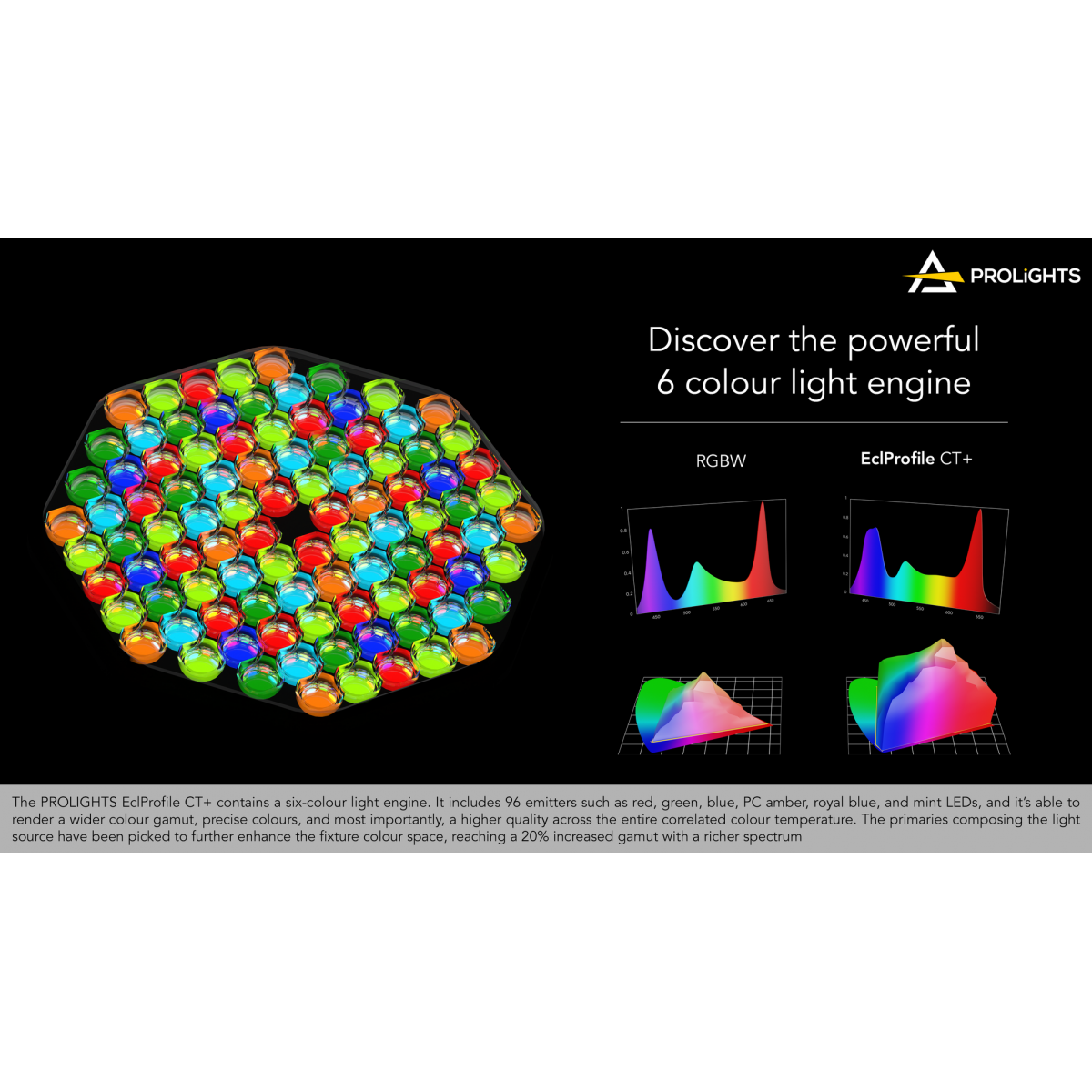

  • Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
  • CCT: @full 5.000
  • Luminous flux: (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430lm @full
  • Luminous flux: (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817 @full
  • Lux: (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
  • Lux: (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974lx @5 m full
  • CRI: 93,7 @3.200 K; 97,6 @5.600 K
  • R9: 98,6 @3.200 K; 98,2 @5.600 K
  • TLCI: 95 @5.600 K
  • TM30 Rf: 92 @5.600 K
  • TM30 Rg: 100,1 @5.600 K
  • Source life expectancy: > 50.000 h

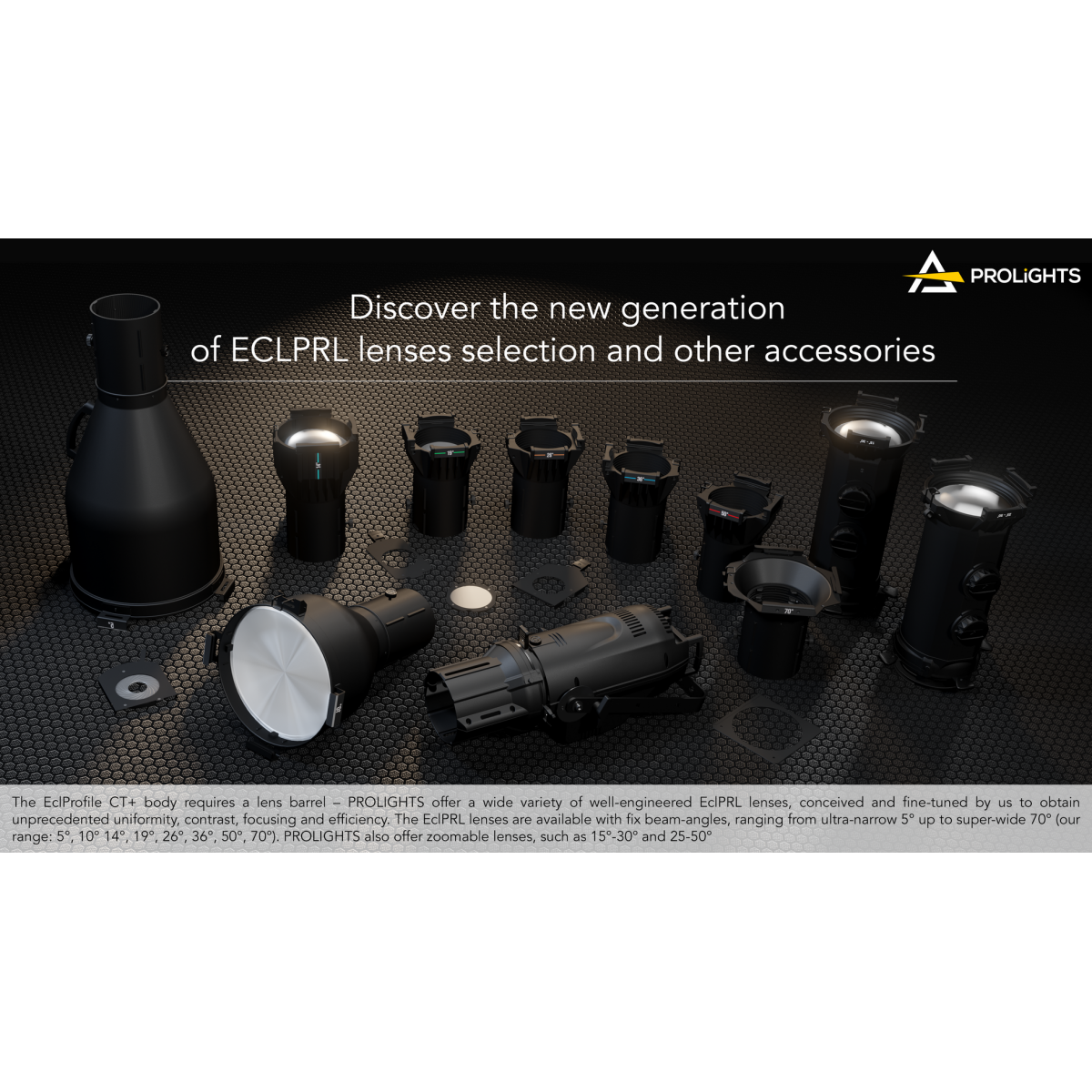

OPTICS
  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB, Royal Blue, Mint, PC Amber
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
  • DMX channels: UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XYchannel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included (through dedicated software)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 264x259x539mm / 10.39''x10.2''x21.22''
  • Weight: 7,9kg / 17.42lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLCTPLUSBK
ECLCTPLUSBK
Black

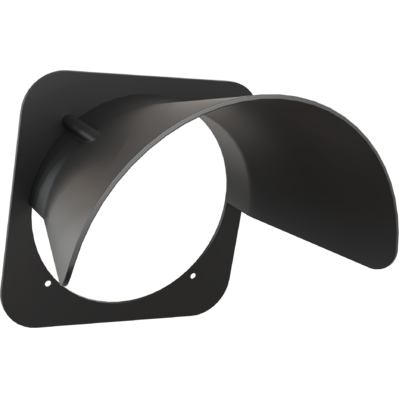

Accessories & Related Products

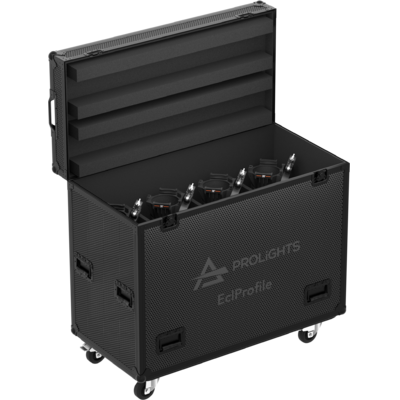

FCLECLPR
FCLECLPR
(optional)

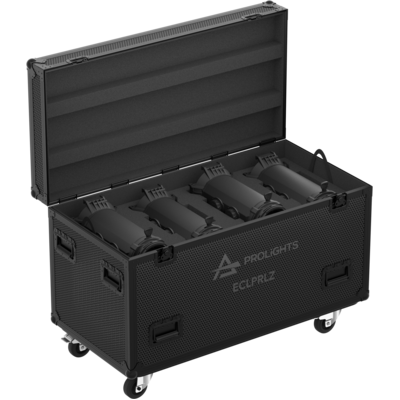

Flightcase to contain 8 pcs ECLFS,ECLFW or ECLCTPLUS with lenses 19°,26°,36°,50°
FCLECLPRLZ
FCLECLPRLZ
(optional)
Flightcase to contain 8 ECLPRLZ zoom lenses

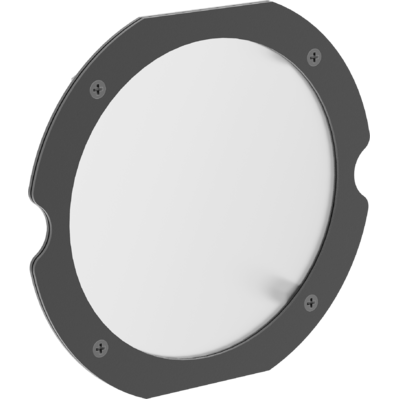

<b>EclPrl</b> Smooth filter
EclPrl Smooth filter
(optional)

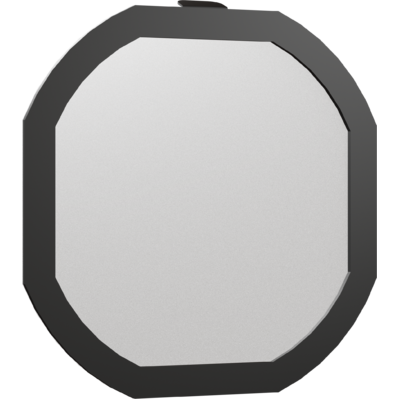

Smooth/homogenizer filter with aluminium frame and magnets for Ecl Profile fixtu
<b>EclPrl</b> Pole Operated Yoke
EclPrl Pole Operated Yoke
(optional)

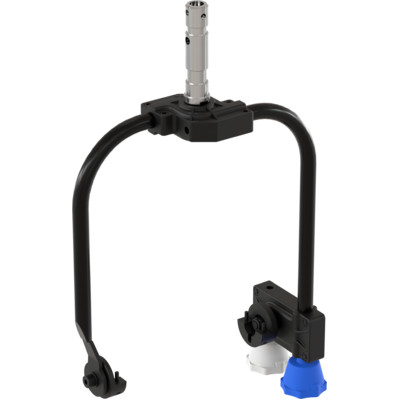

Pole operated yoke for ECL Profile fixtures
ECLLB05BK
ECLLB05BK
(optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing

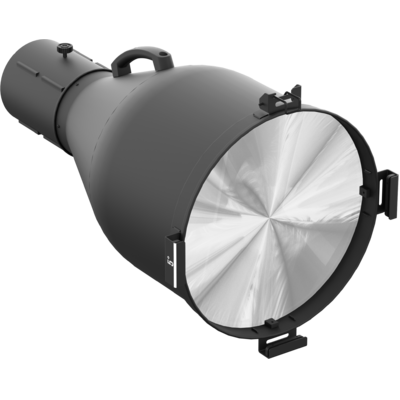

ECLPRL05BK
ECLPRL05BK
(optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(optional)

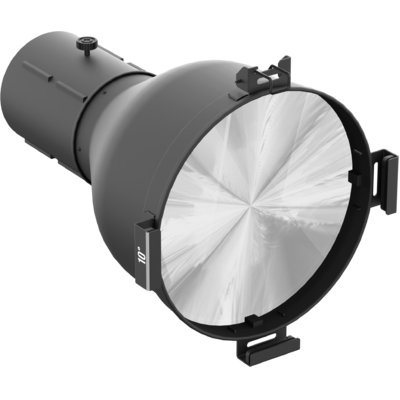

10° PRL lens barrel for EclProfile fixtures, black housing

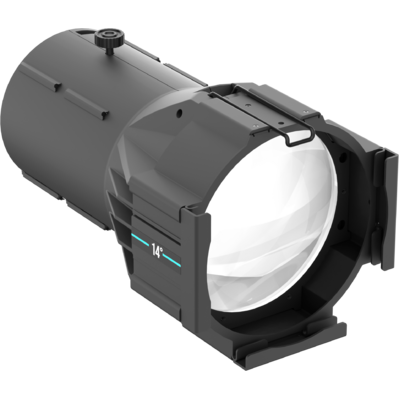

ECLPRL14BK
ECLPRL14BK
(optional)
14° PRL lens barrel for EclProfile fixtures, black housing

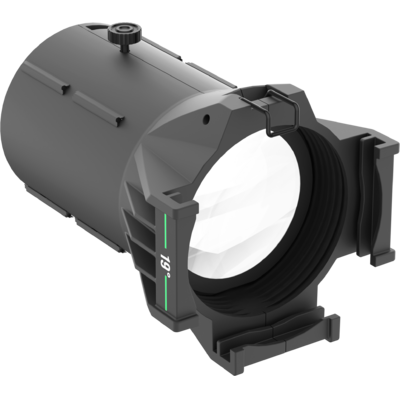

ECLPRL19BK
ECLPRL19BK
(optional)
19° PRL lens barrel for EclProfile fixtures, black housing

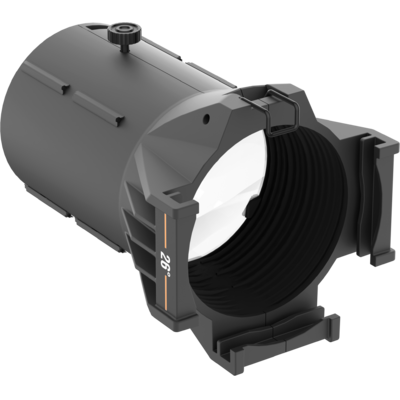

ECLPRL26BK
ECLPRL26BK
(optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(optional)

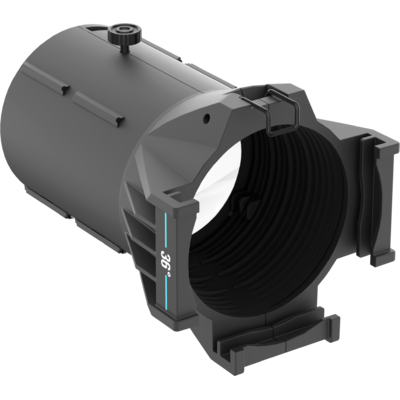

36° PRL lens barrel for EclProfile fixtures, black housing

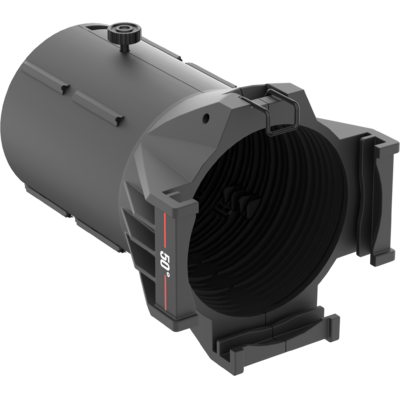

ECLPRL50BK
ECLPRL50BK
(optional)
50° PRL lens barrel for EclProfile fixtures, black housing

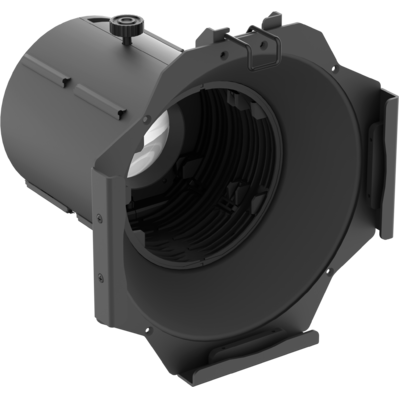

ECLPRL70BK
ECLPRL70BK
(optional)
70° PRL lens barrel for EclProfile fixtures, black housing

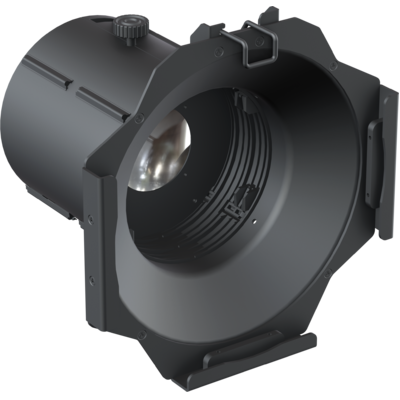

ECLPRL90BK
ECLPRL90BK
(optional)
90° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)

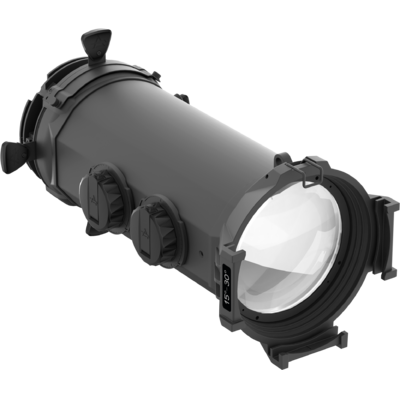

Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)

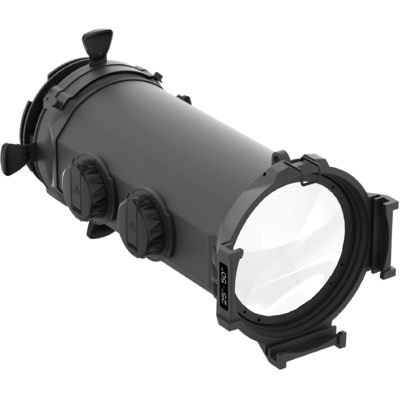

Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRTPG
ECLPRTPG
(optional)
Gel filter frame for ECL Profile PRL lens barrel, comp. with 19°,26°,36° and 50°
ECLPRGHA
ECLPRGHA
(optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRGH
ECLPRGH
(optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRIRIS
ECLPRIRIS
(optional)
Iris accessory for ECL Profile fixtures

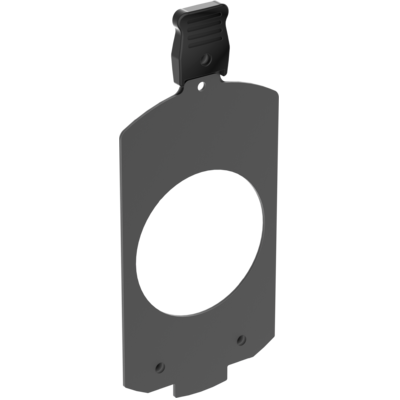

ECLPRSEF1
ECLPRSEF1
(optional)
Soft edge filter and holder kit for ECL Profile fixtures
ECLLZLLKA
ECLLZLLKA
(optional)

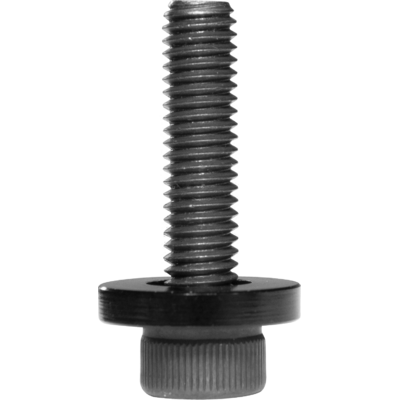

Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclctplus_A4_DATASHEET_(EN).pdf 530KB
Letter datasheet Eclctplus_A4_DATASHEET_(IT).pdf 395KB
Letter datasheet Eclctplus_LETTER_DATASHEET_(EN).pdf 497KB
Tender Specification Eclctplus_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclctplus_Guideline_for_mounting_ECLLZ.pdf 968KB
User manual Eclctplus_FIRMWARE_UPDATE.pdf 631KB
User manual Eclctplus_USER_MANUAL_EN.pdf 9MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclctplus_USER_MANUAL_FR.pdf 9MB

DMX chart & personalities

File name File size Download
DMX chart Eclctplus_DMX_CHARTS.pdf 68KB
VectorWorks +Eclprlz2550_VECTORWORKS_SYMBOLS.vwx 628KB
VectorWorks +Eclprl14_VECTORWORKS_SYMBOLS.vwx 605KB
VectorWorks +Eclprl19_VECTORWORKS_SYMBOLS.vwx 947KB
VectorWorks +Eclprlz1530_VECTORWORKS_SYMBOLS.vwx 635KB
VectorWorks +Eclprl05_VECTORWORKS_SYMBOLS.vwx 1012KB
VectorWorks +Eclprl70_VECTORWORKS_SYMBOLS.vwx 664KB
VectorWorks +Eclprl50_VECTORWORKS_SYMBOLS.vwx 959KB
VectorWorks +Eclprl26_VECTORWORKS_SYMBOLS.vwx 960KB
VectorWorks +Eclprl10_VECTORWORKS_SYMBOLS.vwx 634KB
VectorWorks +Eclprl36_VECTORWORKS_SYMBOLS.vwx 959KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ECLCTPLUSBK Firmware rev. 1.30.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclctplus_basic cmy (4ch).fdfDownload
eclctplus_basic rgb (4ch).fdfDownload
eclctplus_extended cmy (12ch).fdfDownload
eclctplus_extended rgb (12ch).fdfDownload
eclctplus_raw direct (10ch).fdfDownload
eclctplus_raw direct 16b (16ch).fdfDownload
eclctplus_standard cmy (9ch).fdfDownload
eclctplus_standard rgb (9ch).fdfDownload
eclctplus_xy (10ch).fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclct+_bck.hog4showDownload
eclprofile ct+.hog4libDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLCTPLUSBK Firmware rev. 1.30.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclct+_bck.hog4showDownload
eclprofile ct+.hog4libDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclctplus_ies files.zip 78KB
LDT prolights_eclctplus_ldt files.zip 75KB
PDF Photometrics Eclctplus_PRL19_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL50_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL36_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL26_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL14_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL15-30_PHOTOMETRICS_REPORT.pdf 4MB
PDF Photometrics Eclctplus_PRL70_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL25-50_PHOTOMETRICS_REPORT.pdf 4MB
PDF Photometrics Eclctplus_PRL5_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclctplus_PRL10_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D revit ECLCTPLUS_3D_REVIT.zip 15MB
3D sketchup ECLCTPLUS_3D_SKETCHUP.zip 28MB
2D ECLCTPLUS_2D.zip 117MB
2D cad symbols ECLCTPLUS_2DSYMBOLS.zip 644KB
3D ECLCTPLUS_3D.zip 15MB
Technical drawing ECLCTPLUS_TECHNICAL DRAWINGS.zip 5MB

Tech docs

File name File size Download
Noise Report Eclctplus_NOISE_REPORT.pdf 288KB

Software

File name File size Download
Software ECLFWIP/CT+ Firmware Updater 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOXPRO UPBOXPRO UPBOX2P5 UPBOX2P5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.30.3 STABLE 27/03/2023 Improvements:
  • Minor improvements to display management.
Rev. 2.0
Rev. 1.0

Info Request

News

30 November 2023
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
For its global premiere on the stage of Vienna's Ronacher Theater, the musical " Rock me Amadeus - The Falco Musical " was brilliantly...
24 November 2023
NicLen expands its inventory with Astra Hybrid330
NicLen expands its inventory with Astra Hybrid330
NicLen has expanded its rental park by acquiring the Astra Hybrid330 . Provided by Lightpower, PROLIGHTS distributor in Germany, this...
21 November 2023
Prolights products on the top of Europe
Prolights products on the top of Europe
PROLIGHTS products took part in the new interactive installation “Top of Europe” at the Jungfraujoch railway station, the highest...
16 November 2023
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023, hosted at the Constanța Masters in the City Park Mall, was illuminated by a lighting setup composed...
14 November 2023
Jet Wash7 illuminates the Vibes' Urban Garden room
Jet Wash7 illuminates the Vibes' Urban Garden room
PROLIGHTS' Jet Wash7 illuminated the Urban Garden room of the Vibes complex in Eindhoven. From a sports center to a location for corporate...
10 November 2023
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products illuminated the Marrageddon festival, an unprecedented celebration of Italian hip-hop, conceived and hosted by hip-hop...
07 November 2023
EclFresnel CT+ Series - Revolutionizing LED Fresnels
EclFresnel CT+ Series - Revolutionizing LED Fresnels
PROLIGHTS proudly introduces the EclFresnel CT+ series , an innovative range of LED Fresnel fixtures designed to redefine the standard...
03 November 2023
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
The PROLIGHTS EclPanel TWC series shone in a recent television commercial featuring the iconic Indian cricket player, Mr. MS Dhoni,...
30 October 2023
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College in Brisbane, Australia, has upgraded its auditorium with an all-LED lighting rig  including the Prolights...
26 October 2023
Prolights illuminates the new location of Science Park Towers
Prolights illuminates the new location of Science Park Towers
The grand unveiling of the new Science Park Towers headquarters within the Jonkoping Science Park showcased a state-of-the-art, innovative...
24 October 2023
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Belconnen Art Center has chosen Prolights' EclDisplay range as the main lighting system for its innovative and modern Window Gallery,...
19 October 2023
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family brilliantly illuminated the unforgettable "A Show Larger than Life" performance at the iconic Hamburger Börs...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
