ECLEXPOFL300FC
PROLIGHTS

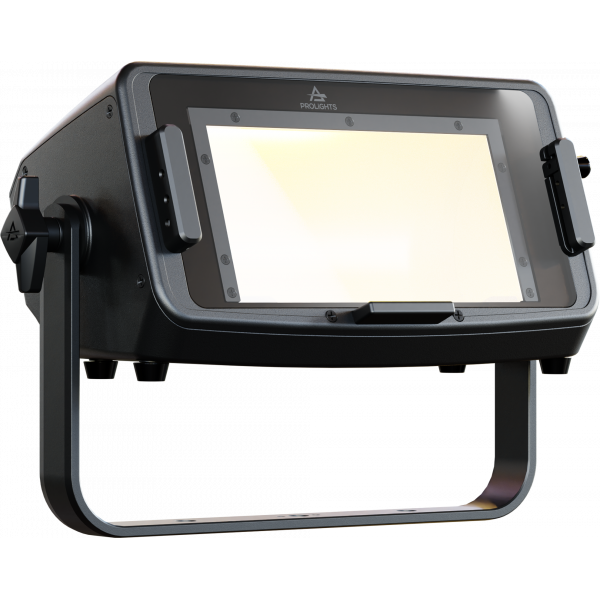

EclExpo Flood300FC

300W Full Colour RGB+WarmWhite asymmetric LED floodlight

The EclExpo Flood300FC is a Full Spectrum high power LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.
The EclExpo Flood300FC has a calibrated 300W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.
Its unique design and performance set a new standard for exhibition floodlights.

SPEKTRA

Main features:

  • 300W calibrated RGB+WarmWhite source, with high CRI and TM30
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
See variants

PHOTO GALLERY

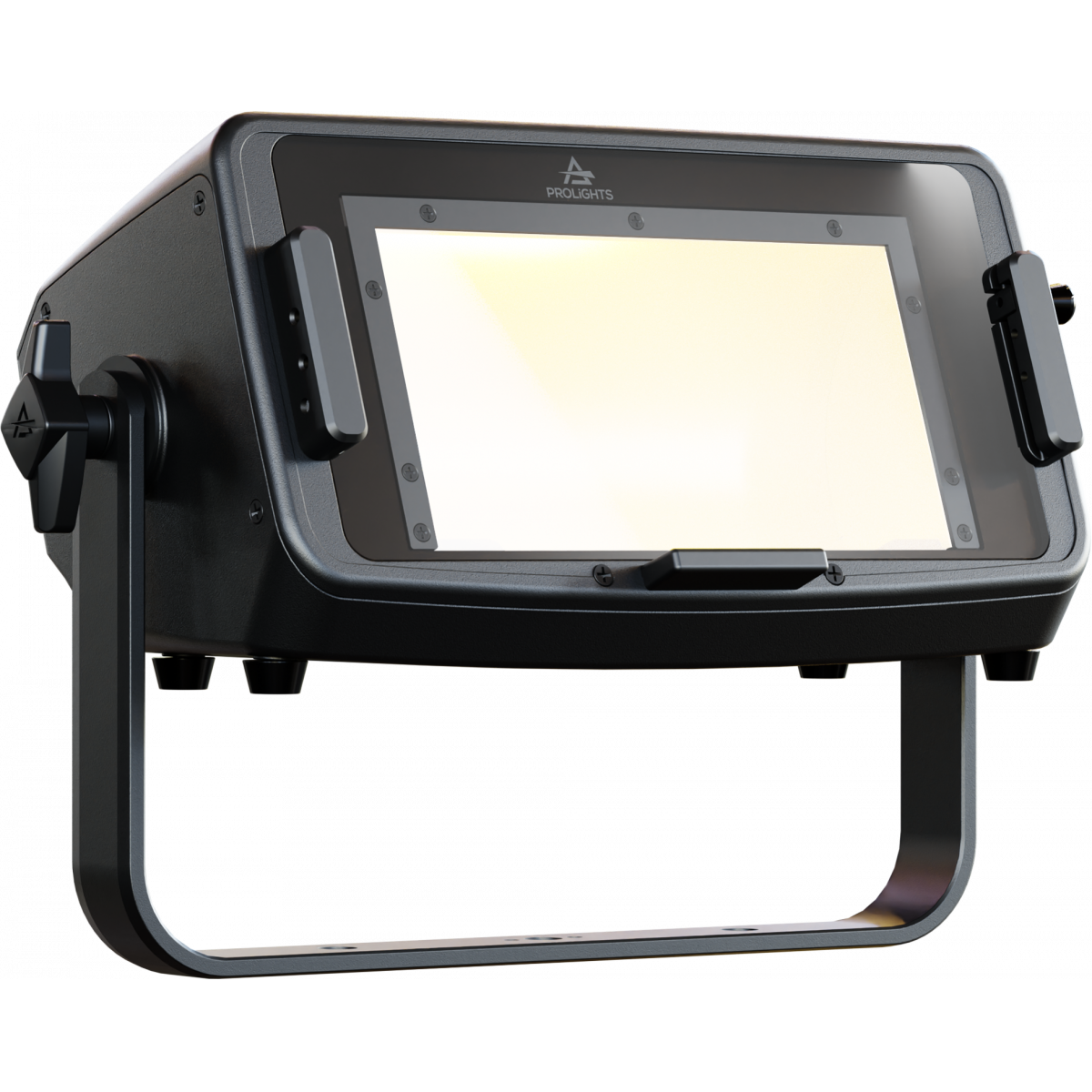

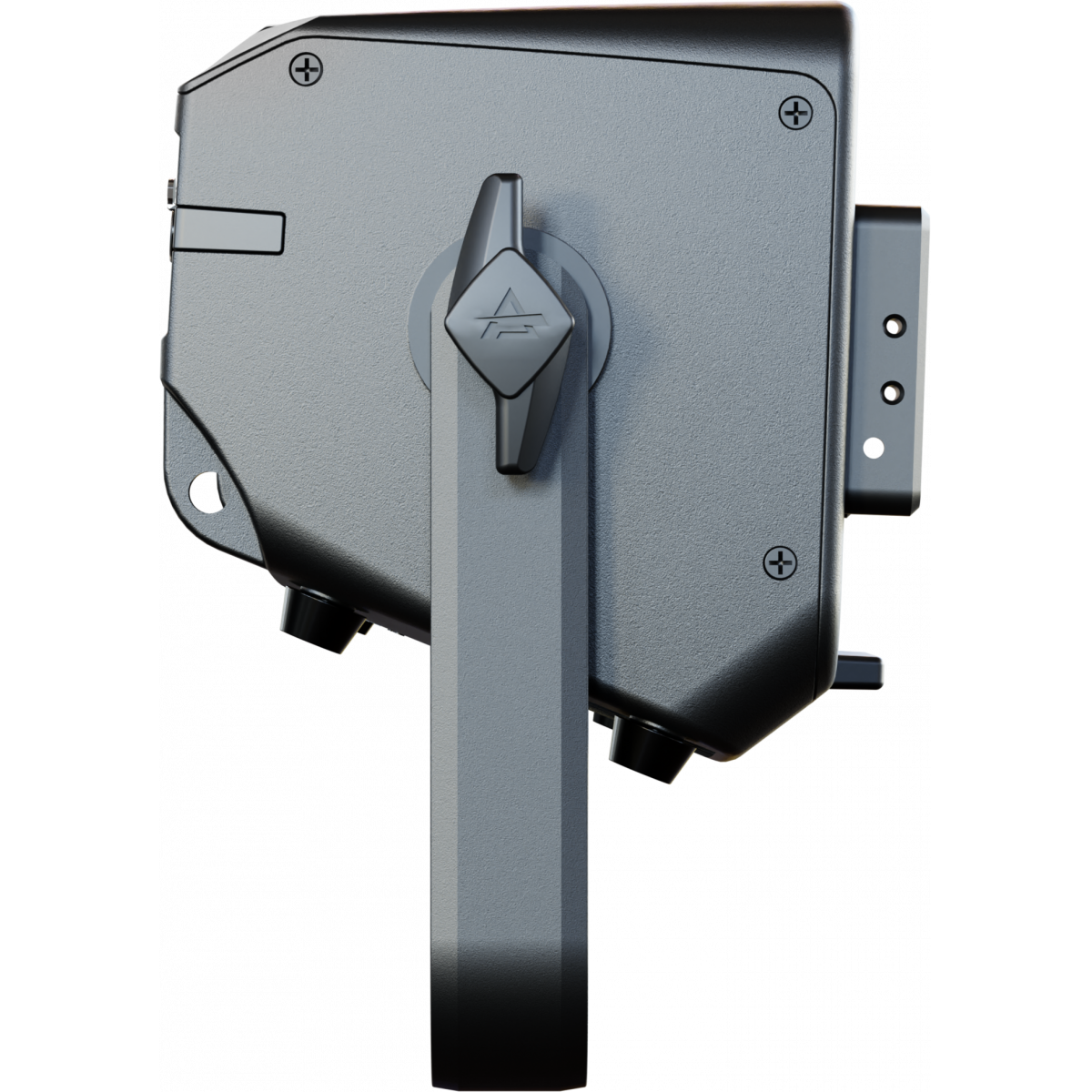

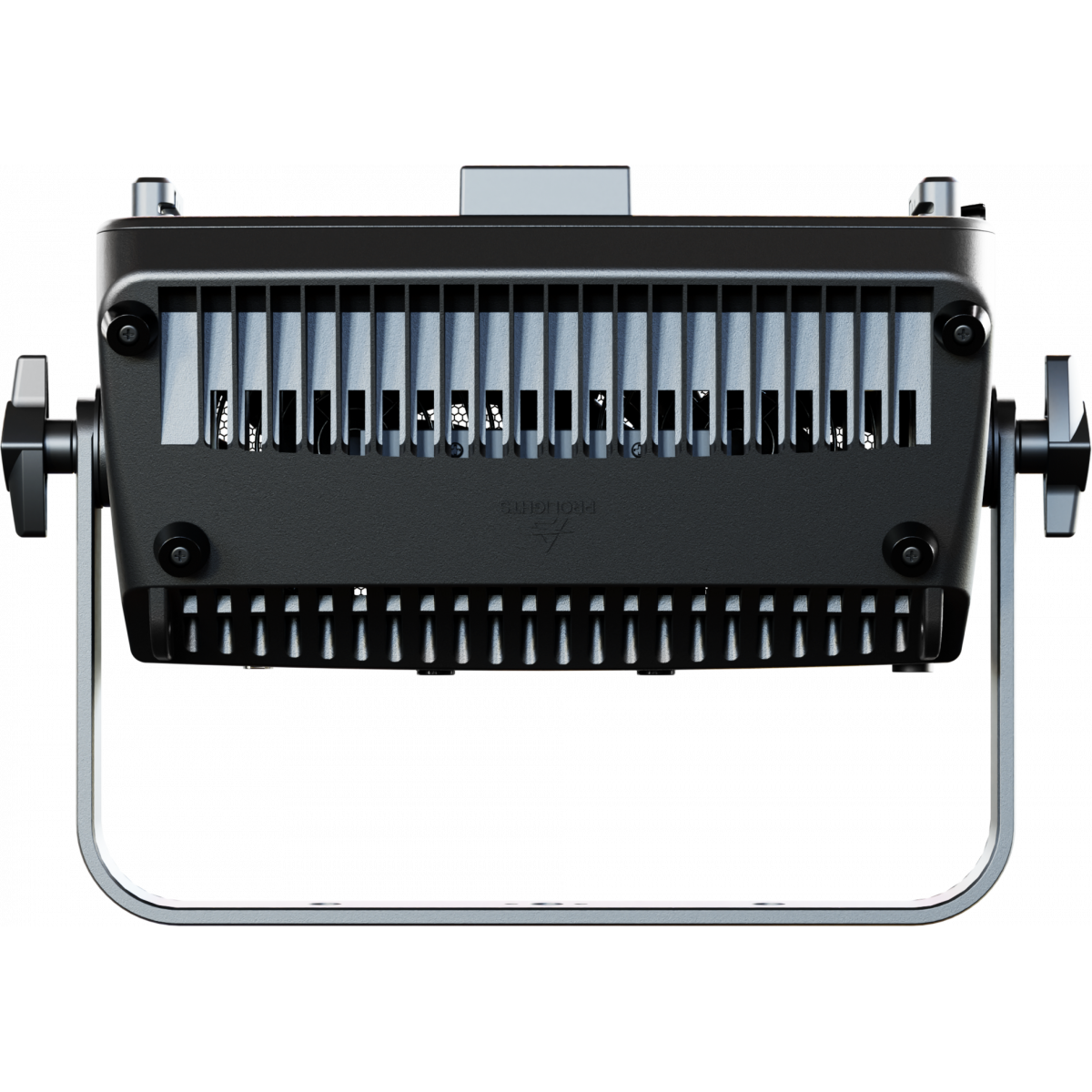

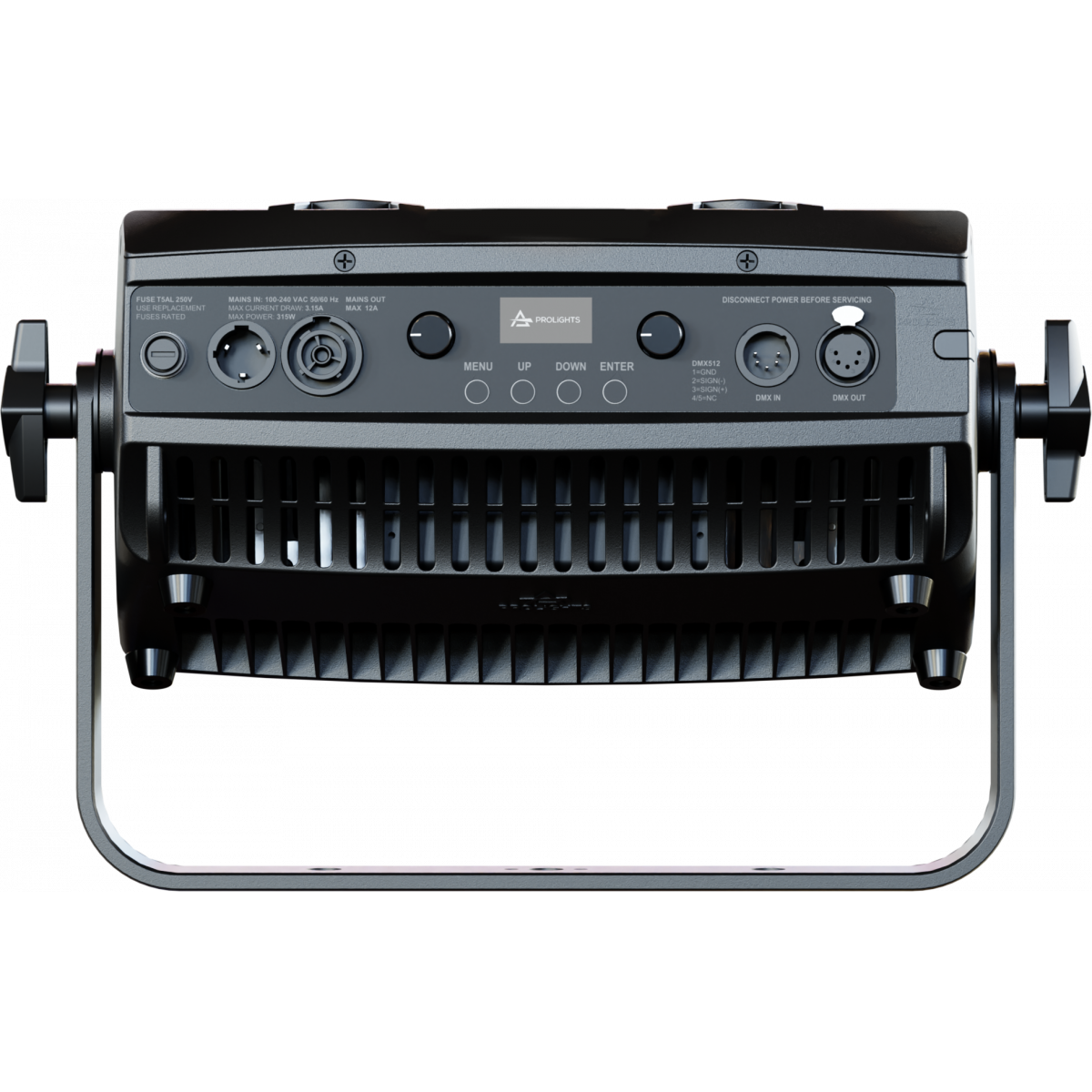

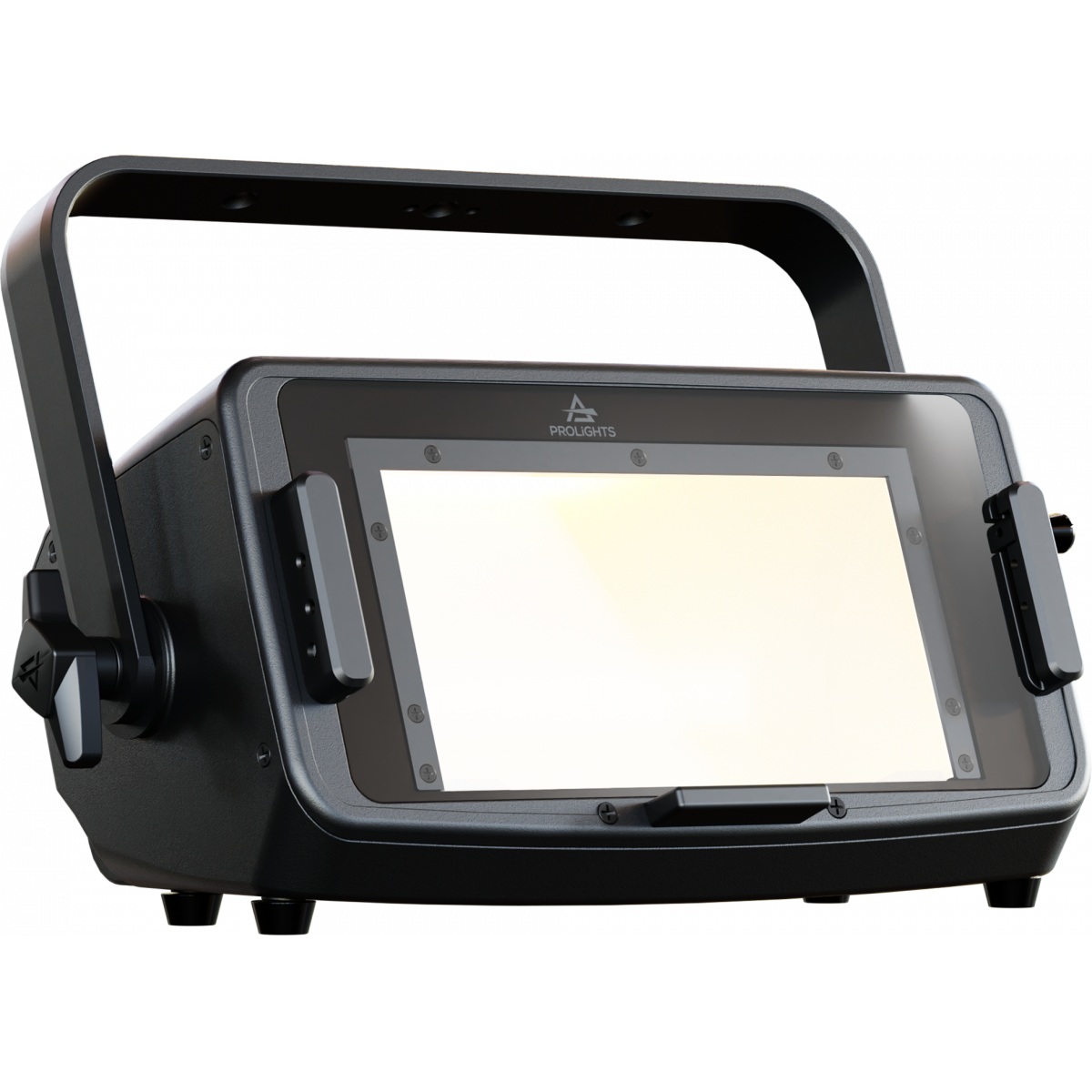

EclExpo Flood300FC
EclExpo Flood300FC
EclExpo Flood300FC
EclExpo Flood300FC
EclExpo Flood300FC

Technical specifications

LIGHT SOURCE
  • Source: 300W RGB + Warm White LED
  • Luminous flux: 10'197 @3.200 K
  • Lux: 119lx @5 m
  • CRI: 93,6 @5'600K
  • R9: 95,2 @5'600K
  • TLCI: 93 @5'600K
  • TM30 Rf: 91,7 @5'600K
  • TM30 Rg: 105,3 @5'600K
  • Source life expectancy: > 20.000 h
OPTICS
  • Optics: asymmetrical beam reflector in pure aluminium 99,6%
  • Beam angle: (H) 100° x (V) 60°
  • Additional optics: 5° smooth filter on-board
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast magnesium body
  • Body colour: RAL 9004
  • Other: see available accessories
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 2 rotatory knobs
  • DMX channels: 1/2/5/9/10/12/18channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 300W
  • Standby power: 3,2W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,97
  • Inrush current: 230VAC/64A, 110VAC/37A
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 391x247x210mm / 15.39''x9.72''x8.27''
  • Weight: 5,2kg / 11.46lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLEXPOFL300FCBK
ECLEXPOFL300FCBK
Black

Accessories & Related Products

FCLEXPOFL300VW
FCLEXPOFL300VW
(optional)
Flight case for 6 pcs of ECLEXPOFL300 series
ECLEXPOFL300VWFFB
ECLEXPOFL300VWFFB
(optional)
Filter frame for ECLEXPOFL300VW, black finishing
<b>ECLEXPOFL300VW</b> Barndoor
ECLEXPOFL300VW Barndoor
(optional)
Barndoor for ECLEXPOFL300 series, black finishing
ECLEXPOFL300VWWKB
ECLEXPOFL300VWWKB
(optional)
CRMX Timo Fx kit for ECLEXPOFL300VW, black finishing
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclexpofl300fc_A4_DATASHEET_(EN).pdf 499KB
Tender Specification Eclexpofl300fc_TENDER_SPECIFICATION.pdf 3MB

User manual

DMX chart & personalities

File name File size Download
DMX chart Eclexpofl300fc_DMX_CHARTS.pdf 112KB
ECLEXPOFL300FC Firmware rev. 1.1.02.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Eclexpofl300fc_3D.skp 352KB
2D Eclexpofl300fc_CAD_2D.dwg 5MB
3D Eclexpofl300fc_CAD_3D.dwg 521KB
2D cad symbols Eclexpofl300fcbk_CAD_2DSYMBOLS.dwg 58KB
Technical drawing Eclexpofl300fc_TECHNICAL_DRAWING.pdf 520KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 464KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download
Noise Report Eclexpofl300fc_NOISE_REPORT.pdf 686KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 07/10/2024 New Function:
  • Added Dimmer Curve "High Res@Low"
