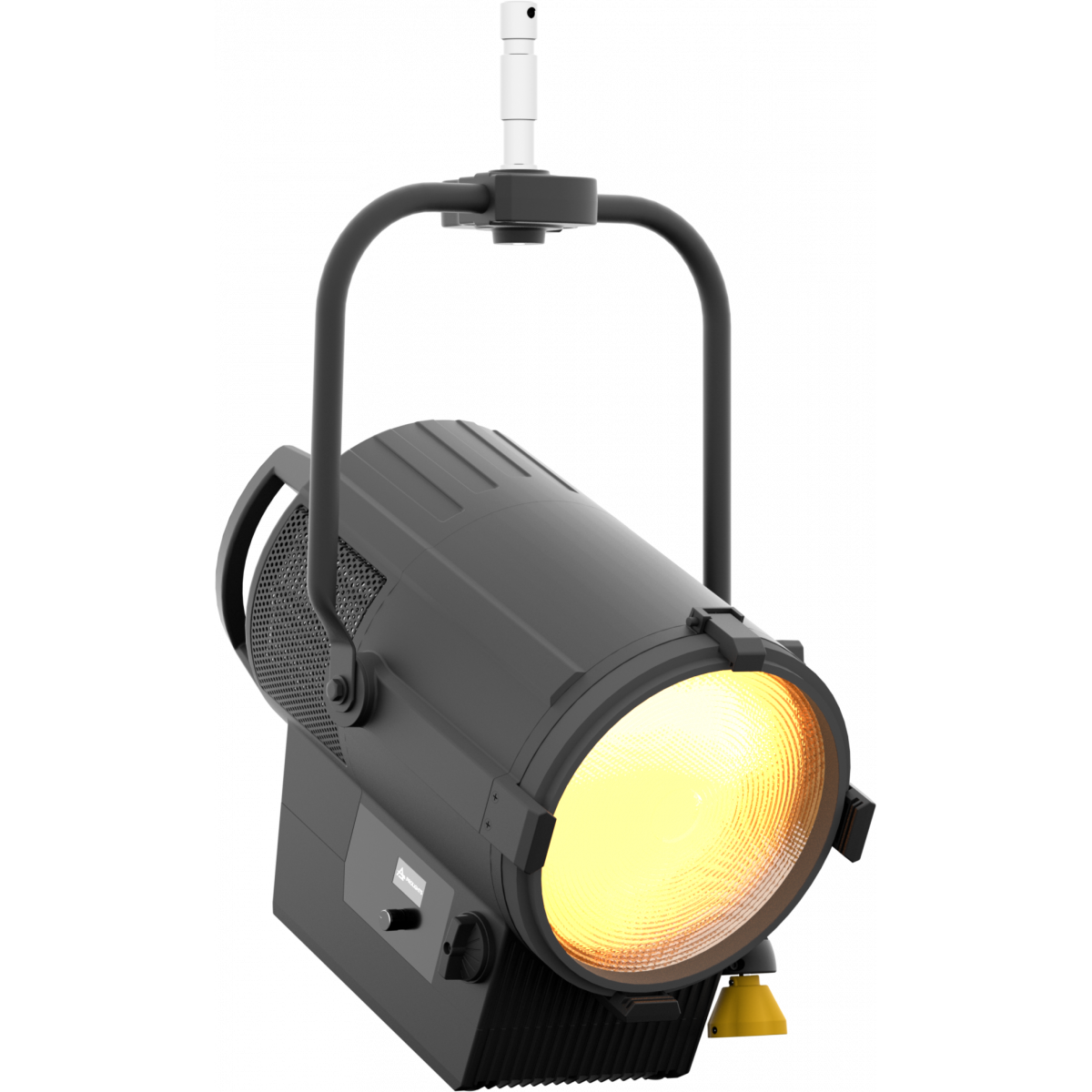

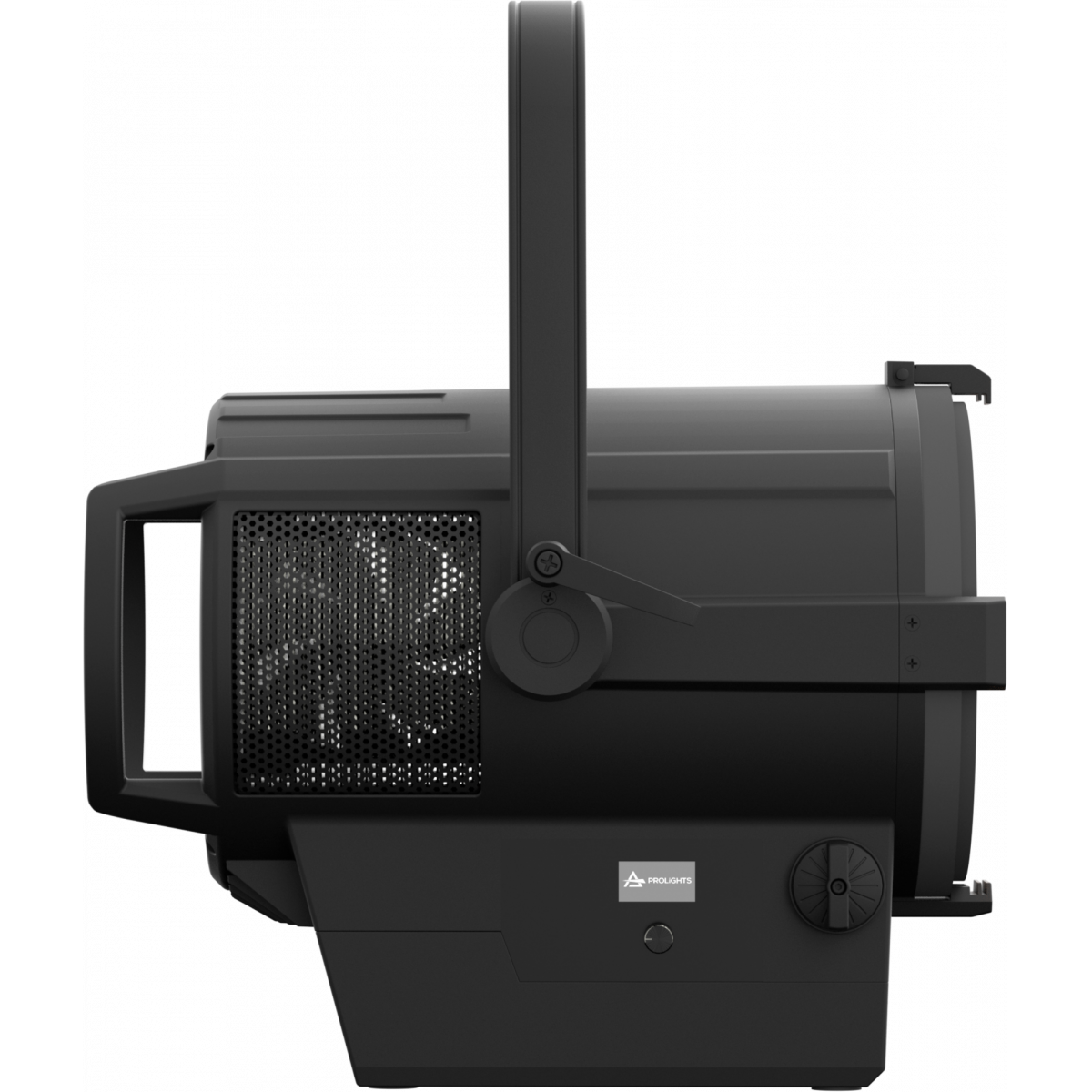

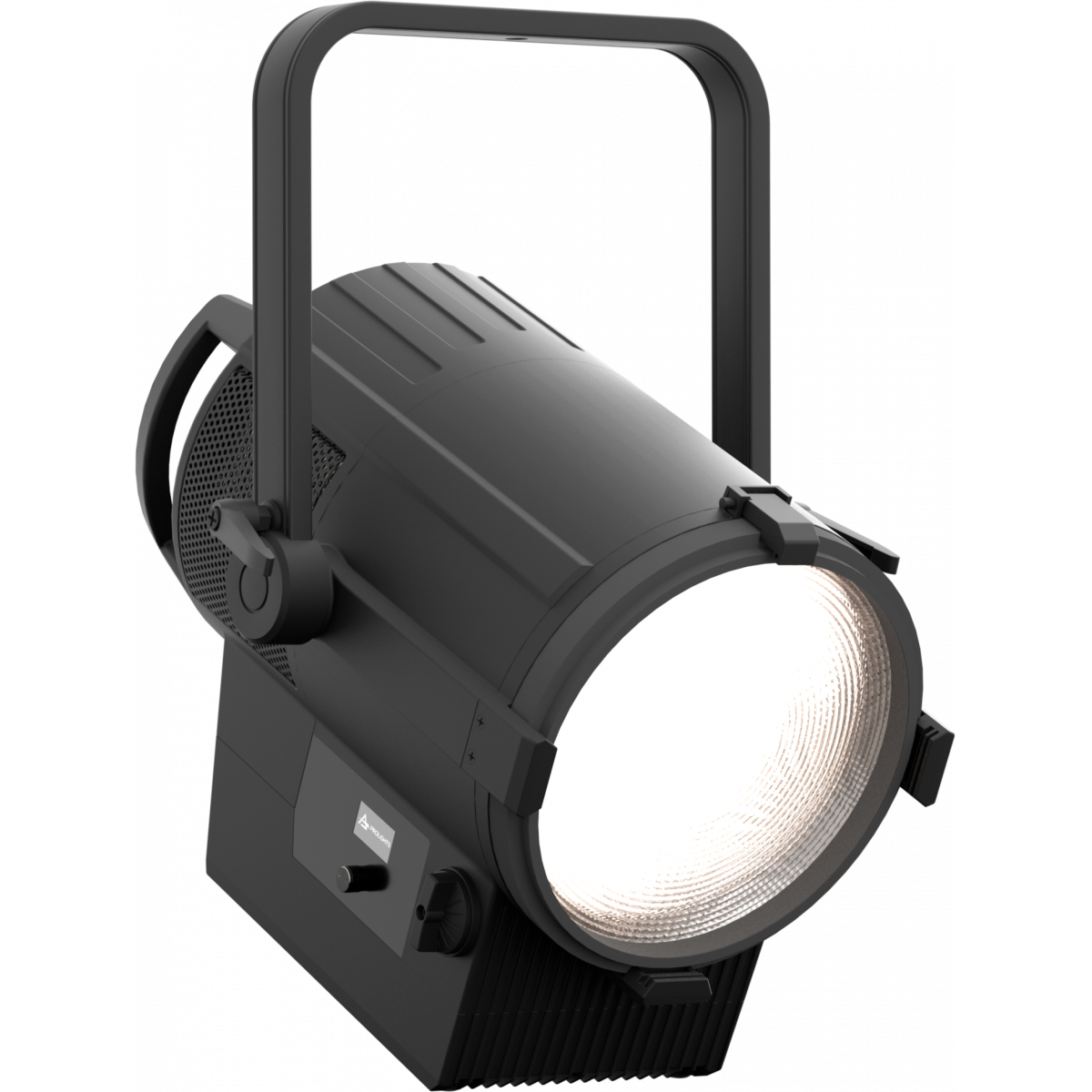

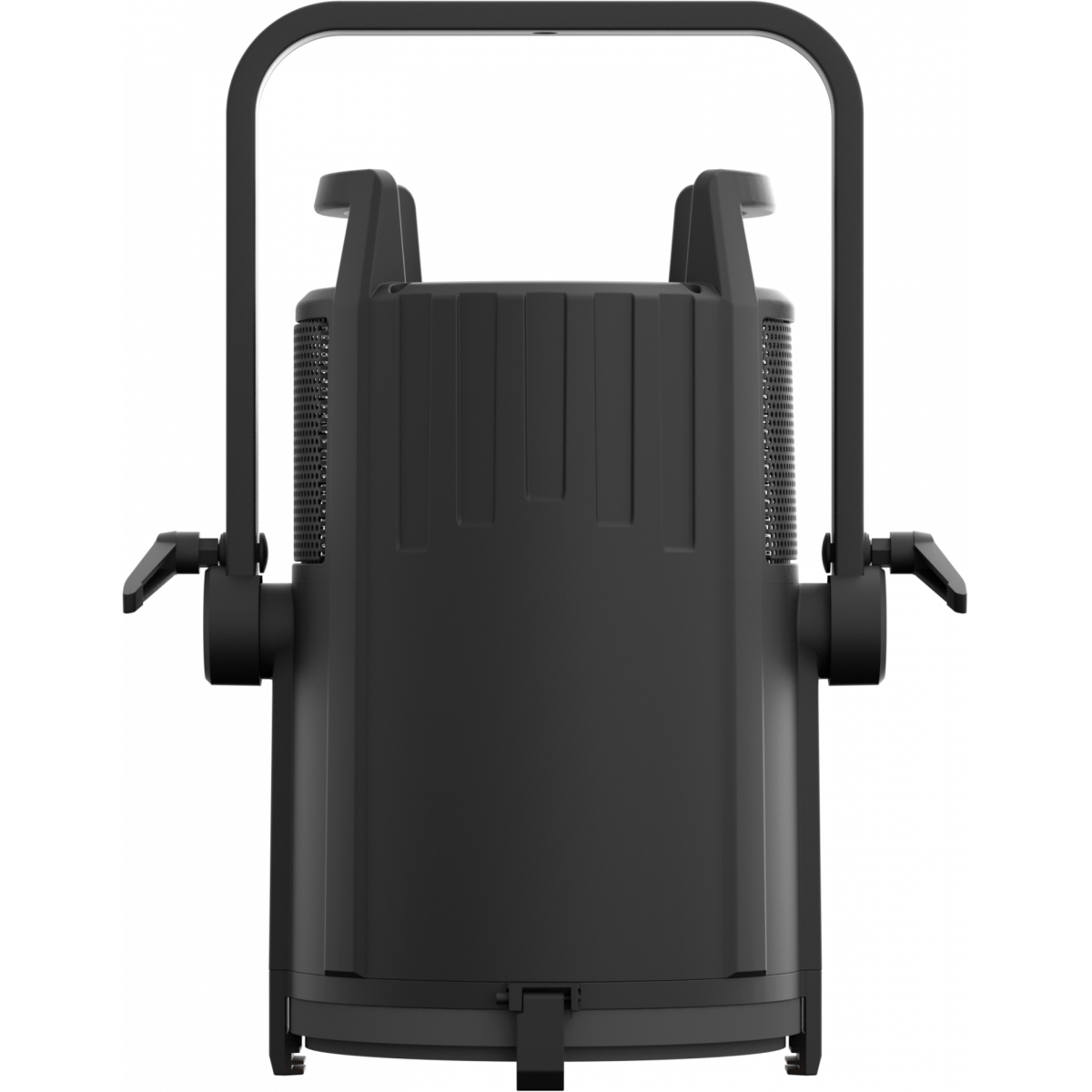

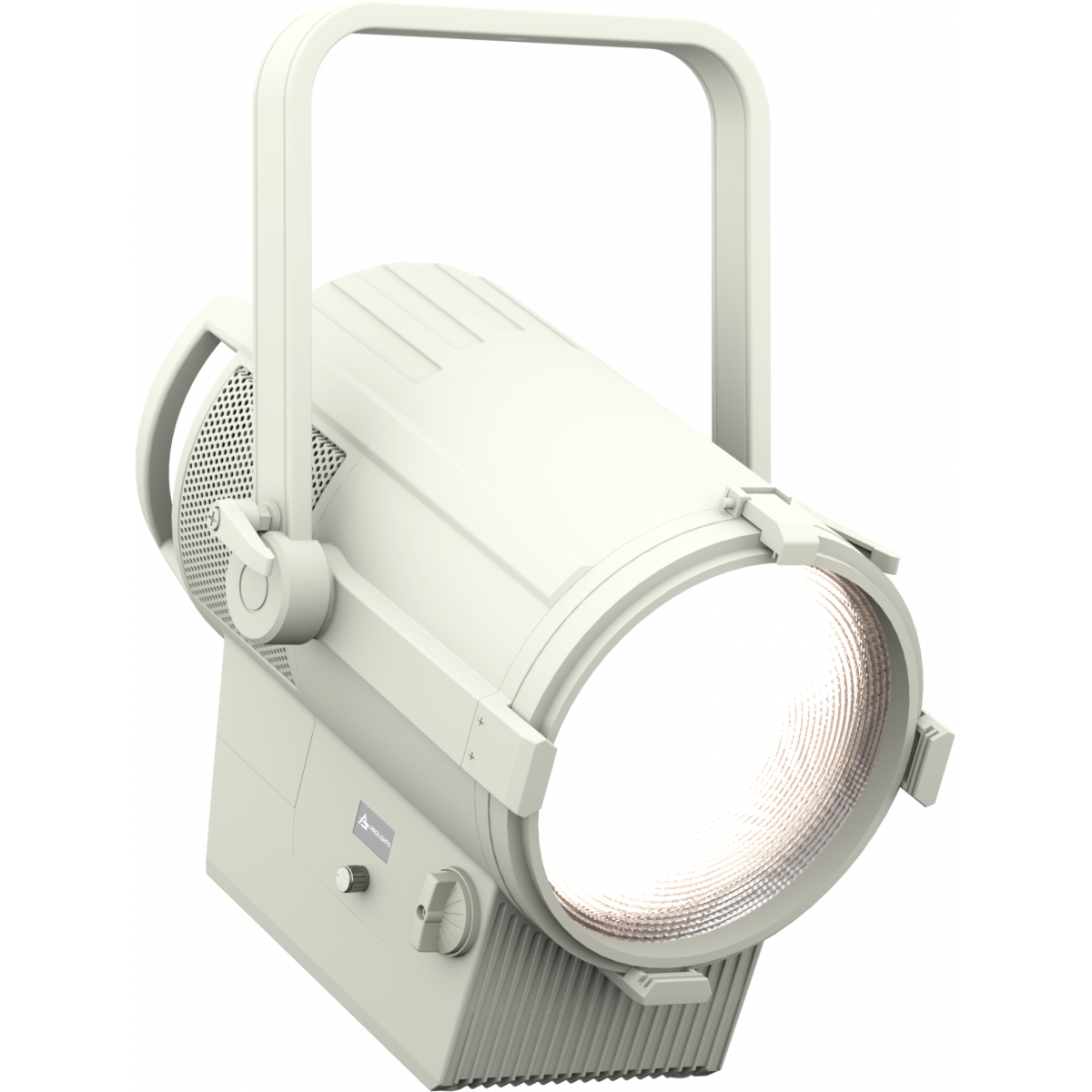

EclFresnel 2K

LED Fresnel with HB white source, to replace 2.000W lamp

EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens with 16° to 64° zoom range
  • Silent operation for studio and stage use

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 500W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600
  • Luminous flux: (TU) (16°) 20'256 lm; (64°) 26'126lm @full
  • Luminous flux: (DY) (16°) 26'255 lm; (64°) 32'428 lm @ full
  • Lux: (TU) (16°) 9'047 lx - (64°) 1'770lx @5 m full
  • Lux: (DY) (16°) 11'975 lx - (64°) 2'306lx @5 m full
  • CRI: (TU) >94; (DY) >91
  • R9: (TU) >73; (DY) >80
  • TLCI: (TU) >93; (DY) >93
  • TM30 Rf: (TU) >92; (DY) >88
  • TM30 Rg: (TU) <103; (DY) <104
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 16° - 64° manual
  • Lens diameter: 250mm / 9.84''
  • Lens type: Fresnel zoom lens
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: warm white
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan angle: (for pole operated version) 360° with manual regulation
  • Tilt angle: (for pole operated version) 180° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
  • Other: Spigot 28 mm
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 - 1 / 2 - 2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 500W
  • Output (at 230V): 4 units on a single power line
  • Power factor: >0,96
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 421x537x456mm / 16.57''x21.14''x17.95''
  • Dimensions with PO system (WxHxD): 401x691x456mm / 15.79''x27.2''x17.95''
  • Weight: 17,2kg / 37.92lbs
  • Weight with PO system: 18kg / 39.68lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
Finishing
ECLFR2KTU
ECLFR2KTU
3.200 K
94
73
26'126 lm
Black

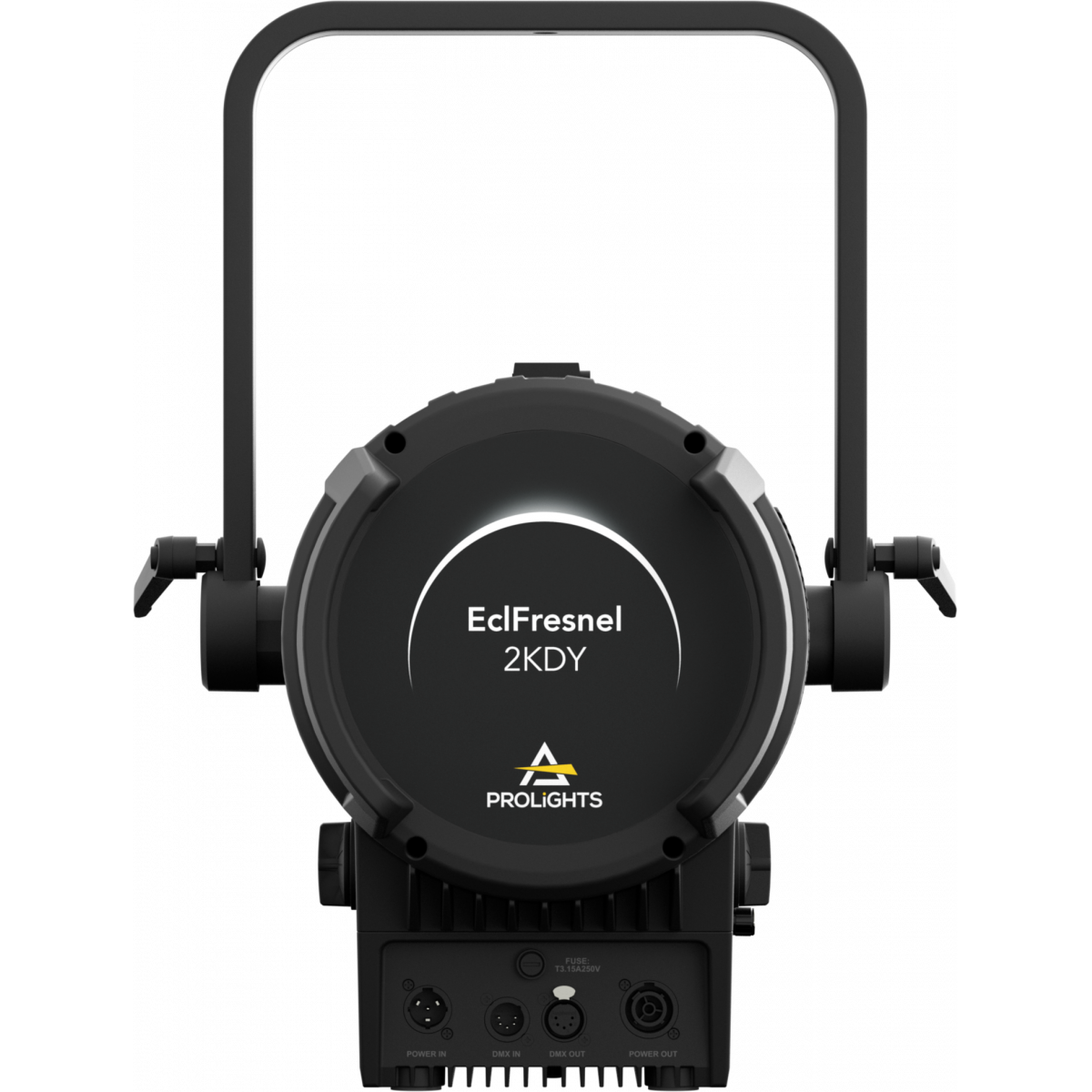

ECLFR2KDY
ECLFR2KDY
5.600 K
91
80
32'428 lm
Black

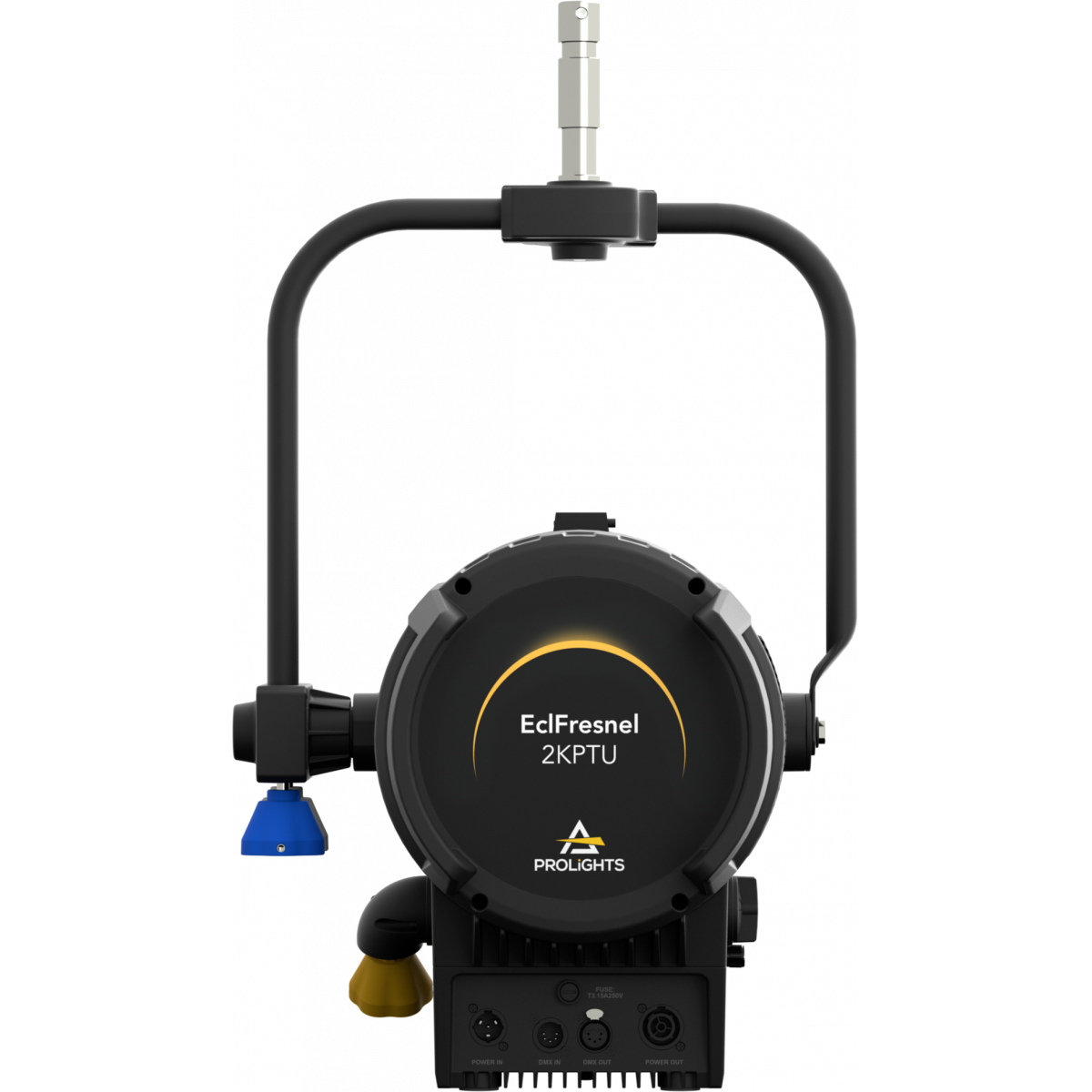

ECLFR2KPTU
ECLFR2KPTU
3.200 K
94
73
26'126 lm
Black
ECLFR2KPDY
ECLFR2KPDY
5.600 K
91
80
32'428 lm
Black

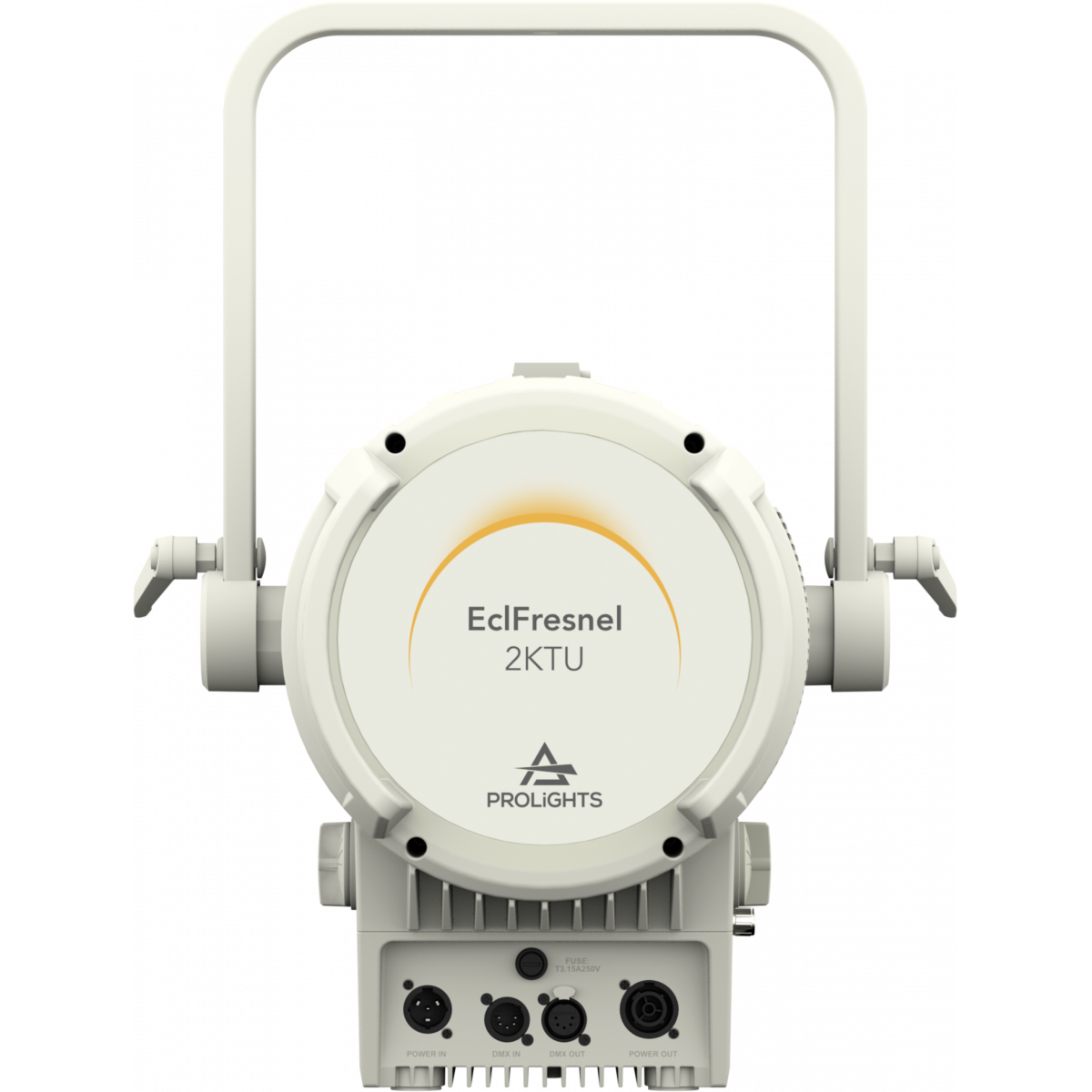

ECLFR2KTUWH
ECLFR2KTUWH
3.200 K
94
73
26'126 lm
White
ECLFR2KDYWH
ECLFR2KDYWH
5.600 K
91
80
32'428 lm
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)

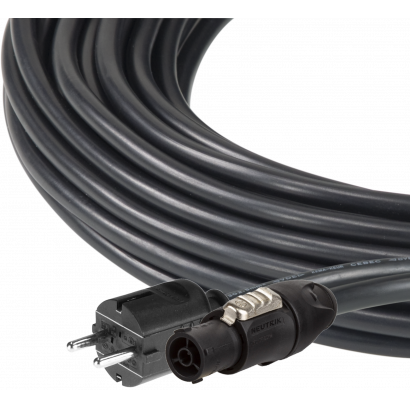

Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)

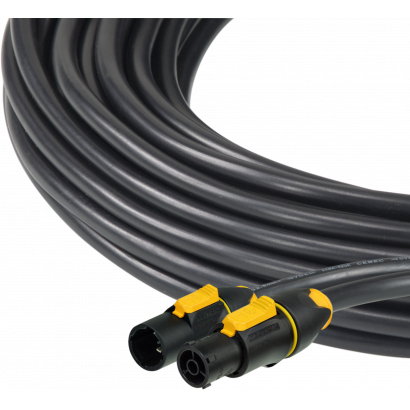

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

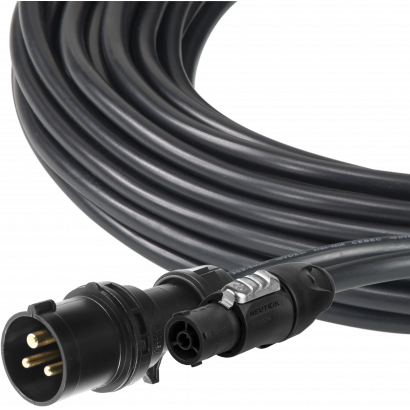

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)

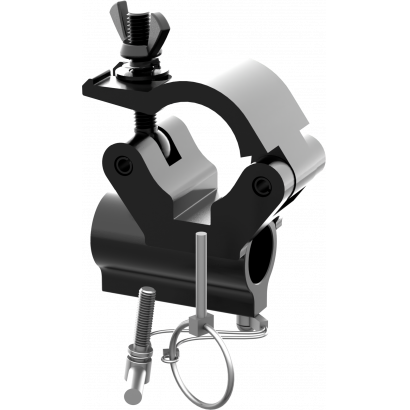

Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

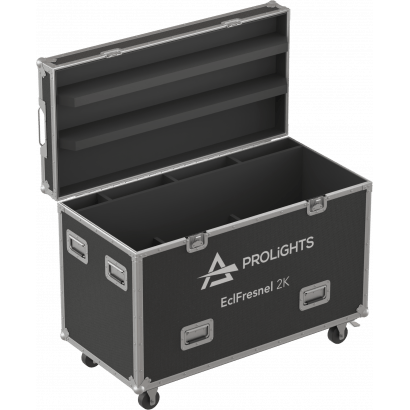

FCLECLFR2K
FCLECLFR2K
(optional)
Flight case for 3 pcs of ECLFR2K
ECLFR2KBD
ECLFR2KBD
(included)

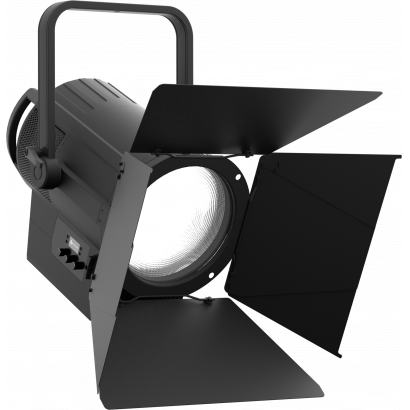

Barn door with directional flaps to adjust the light beam
ECLFR2KTPG
ECLFR2KTPG
(included)

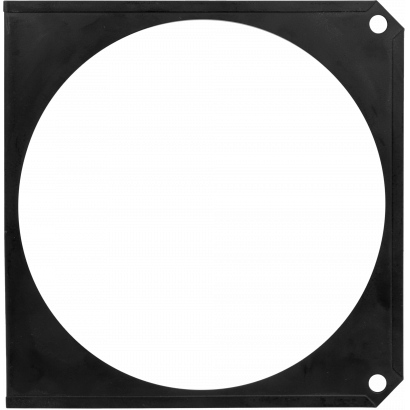

Gel filter frame for ECLFR2K projectors
ECLFRSPG
ECLFRSPG
(included)

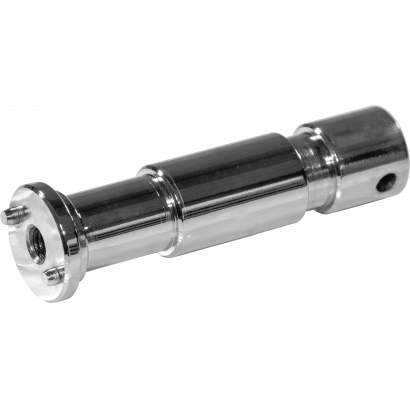

Spigot for PROLIGHTS fixtures
EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)

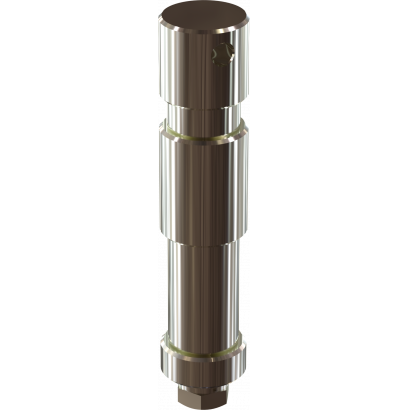

28mm spigot for fixtures, M10 bolt

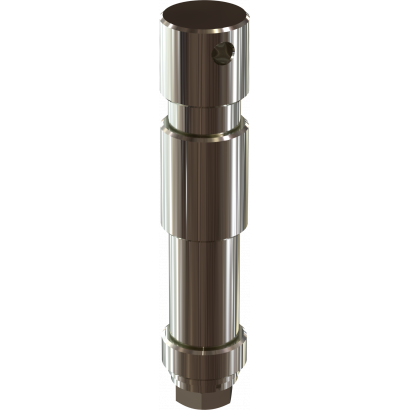

SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
