ECLJRG2
TRIBEby TRIBE

EclProfile JrProG2

The compact and versatile profile with an onboard 25° - 50° zoom lens

EclProfile JrG2 is the new affordable LED profile by TRIBE, featuring a new level of performance in the field of ellipsoidal with LED technology with a high flux 100W COB LED and a uniform projection. The design of the EclProfile JrG2 makes it a flexible fixture to project from any distance thanks to the manual zoom.

Main features:

  • Colour temperature: tungsten 3.000 K, daylight 5.000 K
  • High-efficiency optics maximising uniformity of projection, framing precision and colour temperature stability over the entire dimming curve
  • 25° - 50° manual zoom
  • Includes gobos holder and gel frame holder
See variants

PHOTO GALLERY

EclProfile JrProG2
EclProfile JrProG2
EclProfile JrProG2
EclProfile JrProG2

Technical specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: (TU) 3.100 K - (DY) 5.000
  • Luminous flux: (TU) 3'851 lm - (DY) 3'757
  • Lux: (25°) TU 3'990 lx - DY 3'243lx @3 m
  • Lux: (50°) TU 1'340 lx - DY 1'262lx @3 m
  • CRI: (TU) 83 - (DY) 81
  • Other: TM30-15RF/RG: (TU) 83 / 96 - (DY) 80 / 97 - TLCI: (TU) 71 - (DY) 66
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 25° - 50° manual zoom lens
  • Lens type: high-quality glass lens optics
  • Other: 25° - 50° zoom lens included
DYNAMIC EFFECTS
  • Gobo size: M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 3channel
  • Display: LED display user interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 105,5W
  • Max power consumption (at 120V): 105,2W
  • Output (at 230V): 35 units on a single power line
  • Output (at 120V): 19 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: DMX 5p IN/OUT
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 259x430x529mm / 10.2''x16.93''x20.83''
  • Weight: 5,76kg / 12.7lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Code
CT
COLOR
POWER
SIGNAL
ECLJRG2PROTUBK
ECLJRG2PROTUBK
TU - 3000K
Black
PowerCon IN/OUT
5p IN/OUT
ECLJRG2PROTUWH
ECLJRG2PROTUWH (DISCONTINUED)
TU - 3000K
White
PowerCon IN/OUT
5p IN/OUT
ECLJRG2PRODYBK
ECLJRG2PRODYBK (DISCONTINUED)
DY - 5000K
Black
PowerCon IN/OUT
5p IN/OUT

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ECLJRGH
ECLJRGH
(Included)

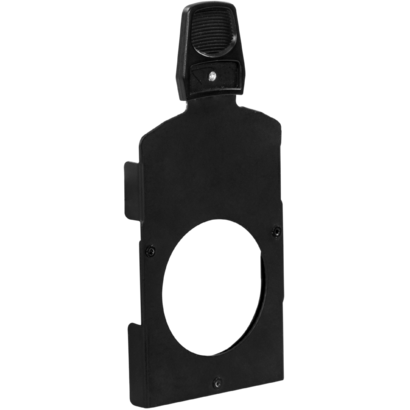

Gobo holder for ECLJR profilers
ECLJRTPG
ECLJRTPG
(Included)

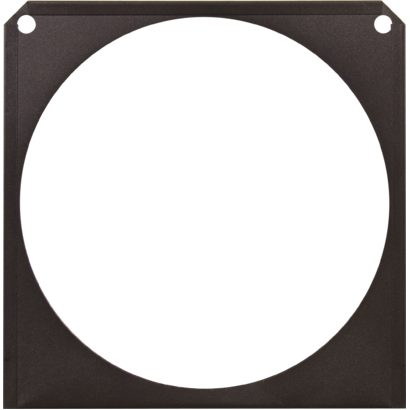

Filter frame for ECLJR profilers
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcljrg2prodybk_A4_DATASHEET(EN).pdf229KB

User manual

File name File size Download
User manualEcljrg2_USER_MANUAL.pdf6MB

DMX chart & personalities

File name File size Download
DMX chartEcljrg2_DMX_CHARTS.pdf41KB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DEcljrg2_CAD_2D.dwg8MB
Technical drawingEcljrg2_TECHNICAL_DRAWING.pdf294KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 22/08/0008 Introduced "Silent Mode".
