ECLNPTWCPACK
PROLIGHTS

EclNanoPanel TWCPack

ORDER CODE: ECLNPTWCPACK

Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire, with a surprisingly powerful 1,800 lumen output.
This compact-sized fixture has the same colour technology as the other soft lights, producing rich colours, high quality white tones, colour gel matching, and on-board pixel cinema effects.
The EclNanoPanel TWC has 3 precision encoder, with multiple Stand Alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
Each of the 4 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
EclNanoPanel brings ultimate color control: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, Source emulation and industry-standard Color gels.
There are multiple, magnetized beam-shaping optical accessories available, including barndoors, diffusers, etc, and on-board threads for easy mounting on stands or camera rigs.
The fixture is controlled from its on-board user interface, or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

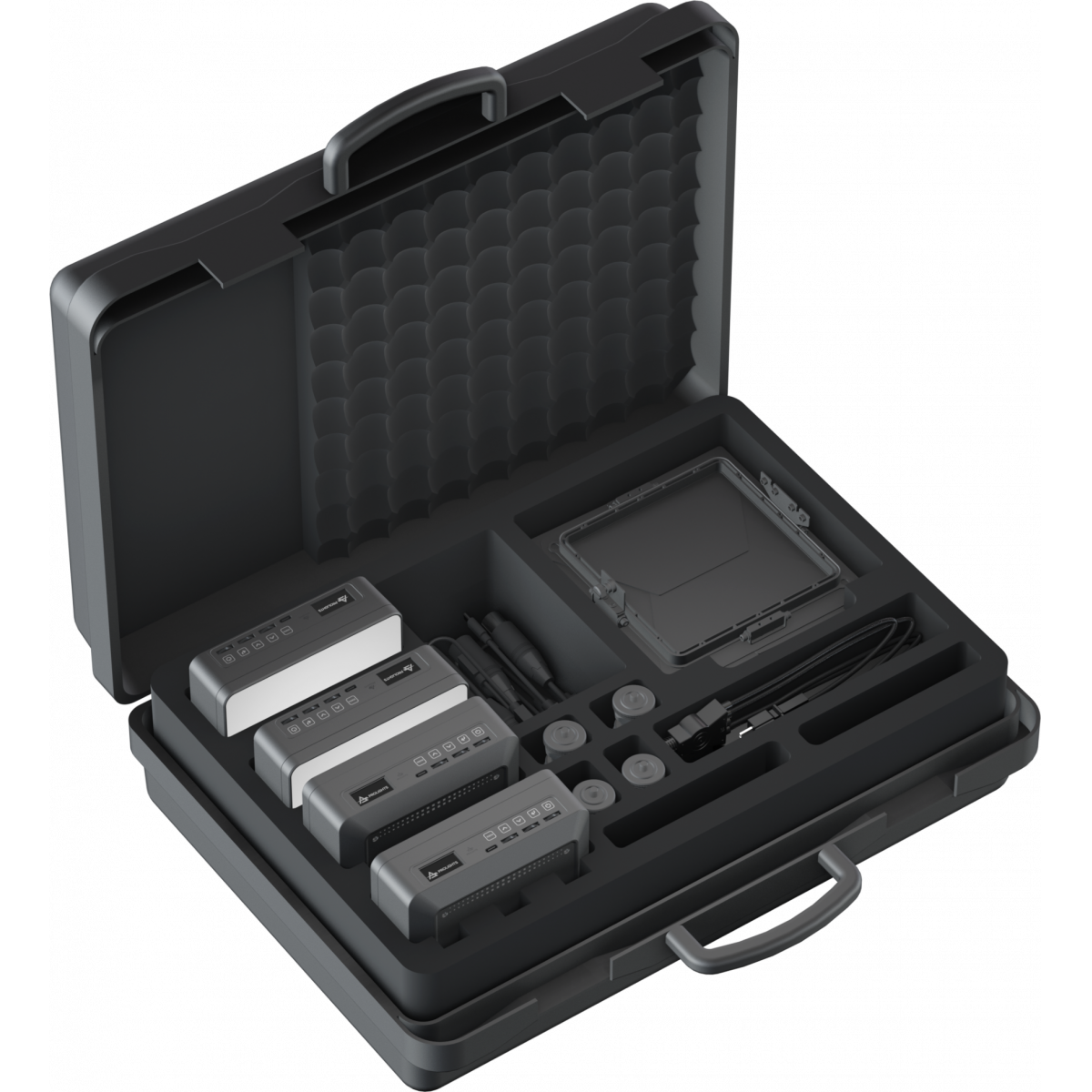

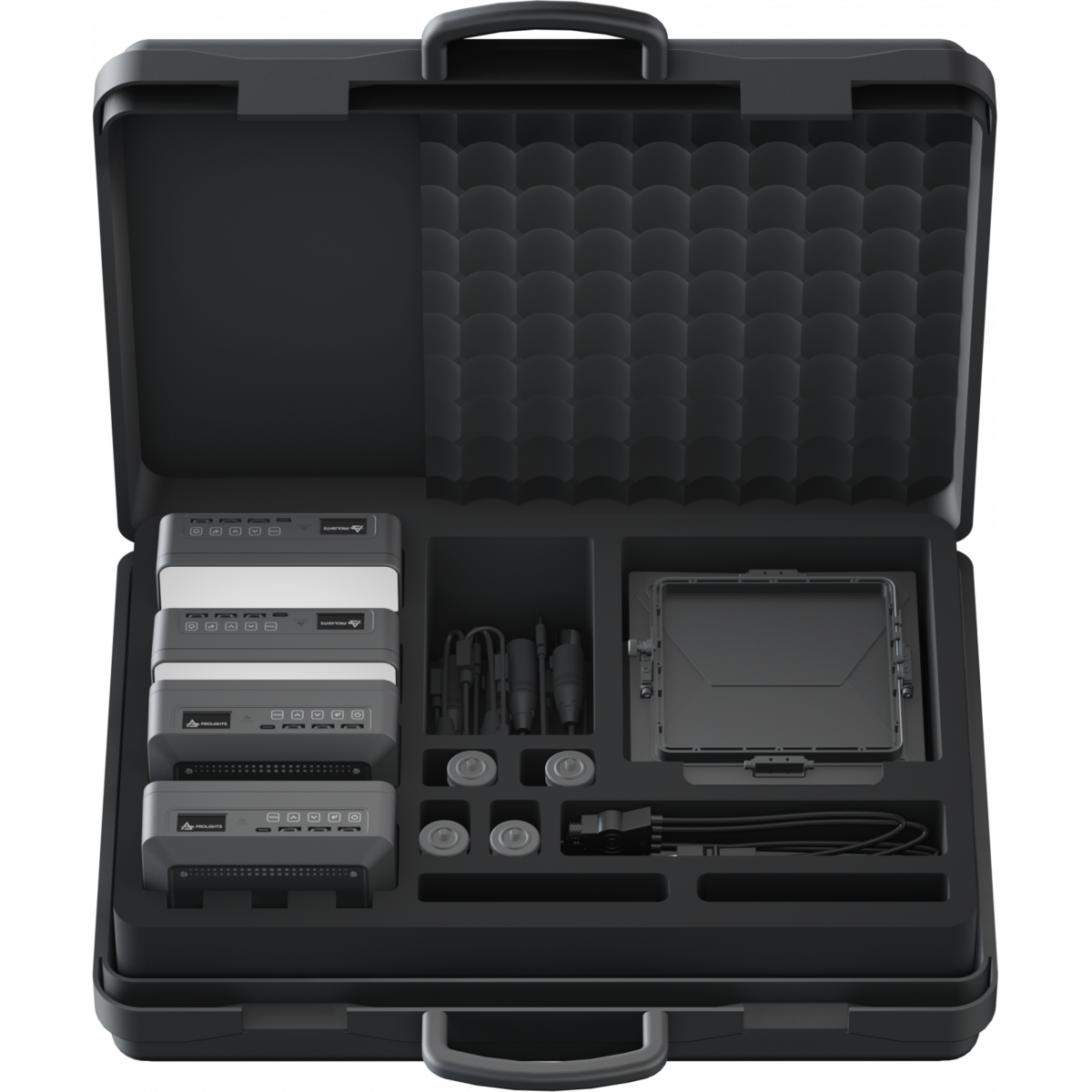

The pack includes:

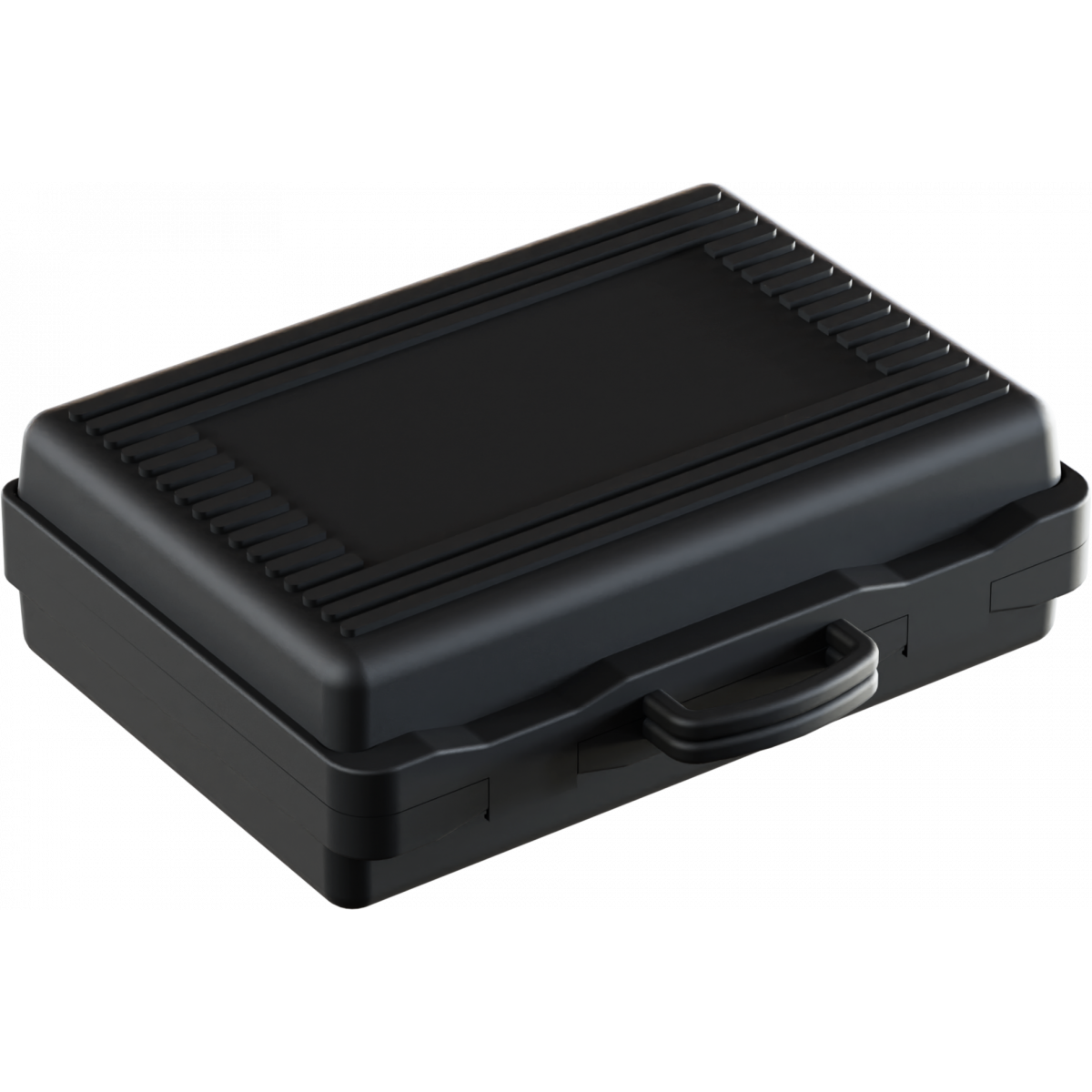

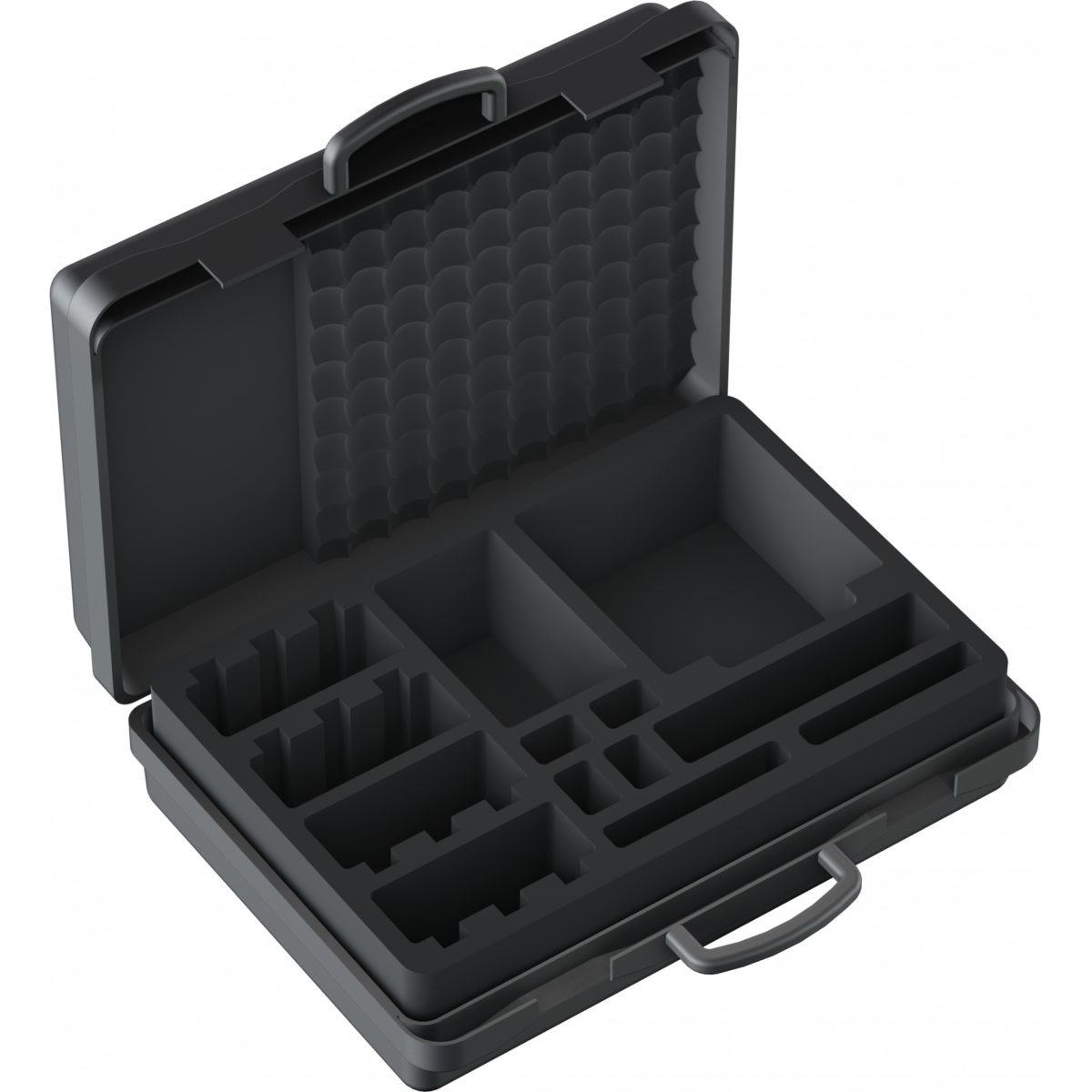

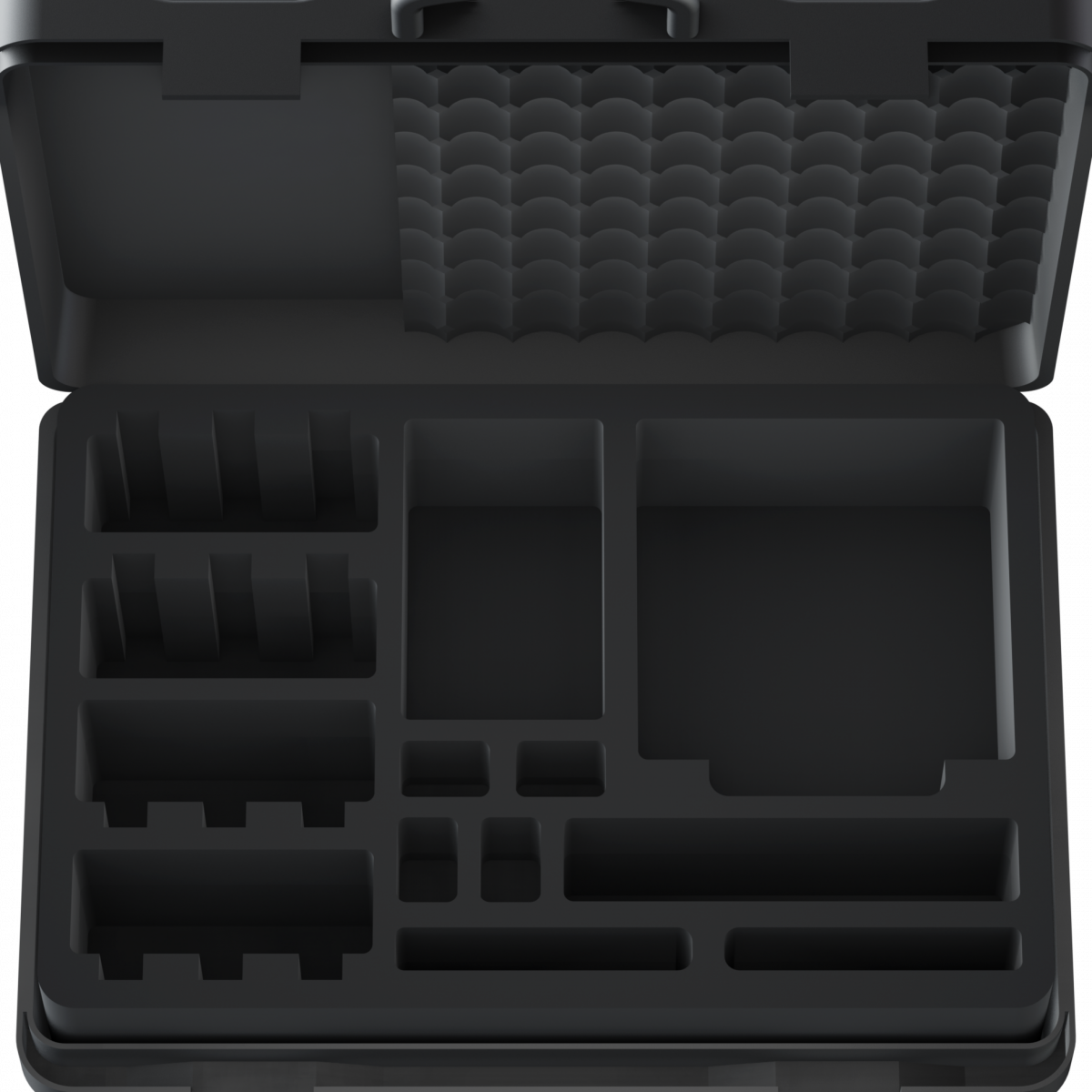

1 x ABS case
4 x ECLNANOPANELTWC (includes: ENPTWCFILTERLD on-board)
1 x 4-way charger
4 x position articulated joint (ENPTWCPAJ)
4 x barndoors (ENPTWCBD)
4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male (ENPTWCYCABLE)
1 x User Manual


SPEKTRA

Main features:

  • Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered
  • 30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output.
  • Magnetized beam-shaping optical accessories available

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 30W RGB + Warm White
  • Luminous flux: 1'829 @3.200 K with LD filter
  • Lux: 690lx @1 m
  • CRI: 94,6 @3.200 K; 94,9 @5.600 K
  • R9: 97,1 @3.200 K; 96 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 97,7 @3.200 K; 89,3 @5.600 K
  • TM30 Rg: 102,5 @3.200 K; 102,3 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 105°
  • Field angle: 159°
  • Lens type: magnetic light density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2,800 K - 10,000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • FX generator: 4 controllable sections
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy policarbonate body
  • Body colour: black
CONTROL
  • Protocols: CRMX+W-DMX, DMX512, RDM
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOX1+ENPTWCYCABLE (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
  • Max power consumption: 32 W
  • Mains power supply: DC 12V
  • Power factor: >0,97
BATTERY
  • Battery: 11.1V lithium
  • Estimated battery life: (selectable) 2 h - 6 h - 8 h - 12 h - 18h
  • Re-charge connection: USB type C
  • Re-charge time: 2,5h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M5 and 1/4'' threaded insert for easy installation
  • Adaptors: USB type C to XLR connectors
  • Low Voltage DC connector: USB type C
  • Dimensions (WxHxD): 150x150x69.5mm / 5.91''x5.91''x2.74''
  • Weight: 1,2kg / 2.65lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Versions

Accessories & Related Products

ENPTWCBD
ENPTWCBD
(Included)

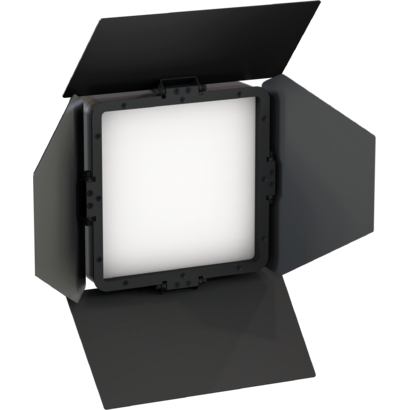

Barn door with 4 directional flaps to adjust the light beam

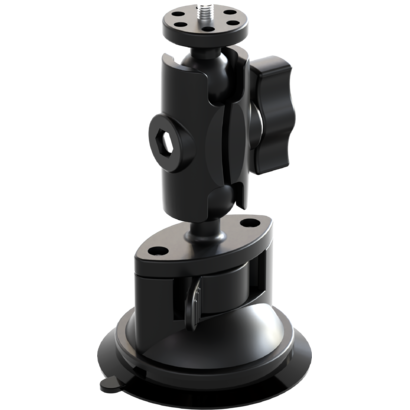

ENPTWCAS
ENPTWCAS
(Optional)
Fixing system with suction cup for ECLNANOPANELTWC

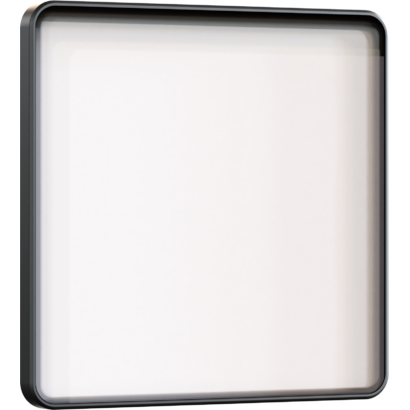

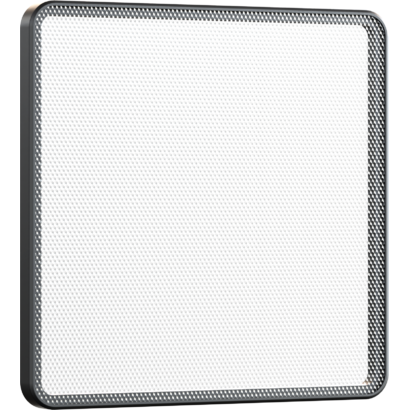

ENPTWCFILTERINT
ENPTWCFILTERINT
(Optional)
Front intensified diffusion filter for ECLNANOPANELTWC
ENPTWCFILTERHD
ENPTWCFILTERHD
(Optional)
Front high diffusion filter (less output) for ECLNANOPANELTWC
ENPTWCFILTERMD
ENPTWCFILTERMD
(Optional)
Front medium diffusion filter for ECLNANOPANELTWC
ENPTWCFILTERLD
ENPTWCFILTERLD
(Included)
Front low diffusion filter (more output) for ECLNANOPANELTWC

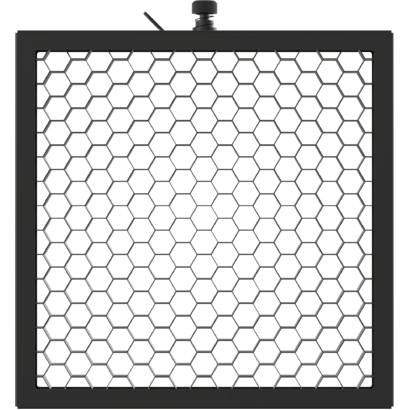

ENPTWCEC30
ENPTWCEC30
(Optional)
30 degree egg crate for ECLNANOPANELTWC
ENPTWCEC4C
ENPTWCEC4C
(Optional)
4 chamber egg crate for ECLNANOPANELTWC

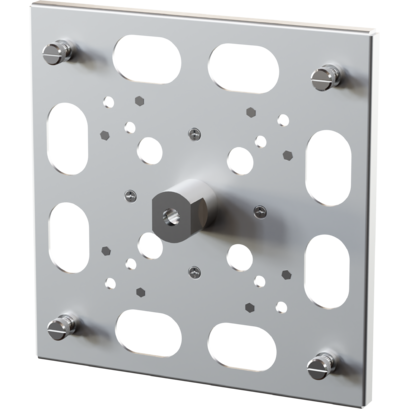

ENPTWCRMP
ENPTWCRMP
(Optional)
Rear metal plate for ECLNANOPANELTWC
ENPTWCEC60
ENPTWCEC60
(Optional)
60 degree egg crate for ECLNANOPANELTWC

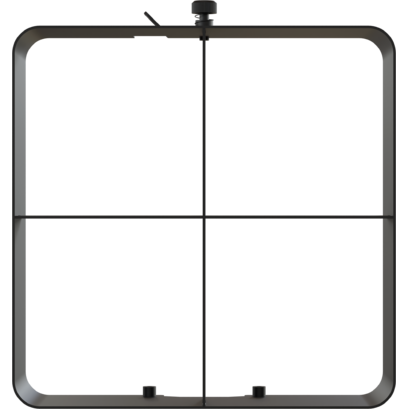

ENPTWCMP2X2
ENPTWCMP2X2
(Optional)
Metal plate to hold multiple ECLNANOPANELTWC together as a 2X2 matrix
ENPTWCMP4X1
ENPTWCMP4X1
(Optional)

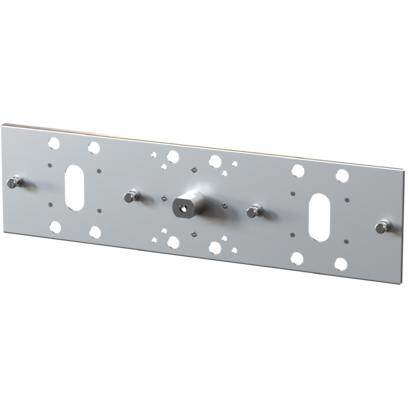

Metal plate to hold multiple ECLNANOPANELTWC together in a 4X1 linear format
ENPTWCMP2X1
ENPTWCMP2X1
(Optional)

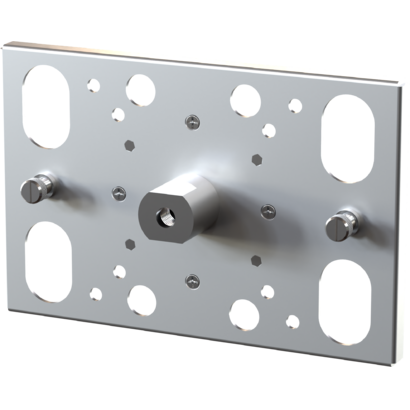

Metal plate to hold multiple ECLNANOPANELTWC together in a 2X1 linear format

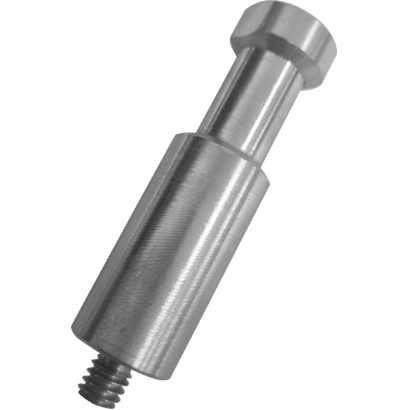

ENPTWCPAJSPG
ENPTWCPAJSPG
(Optional)
16 mm spigot for ENPTWCPAJ (ECLNANOPANELTWC)

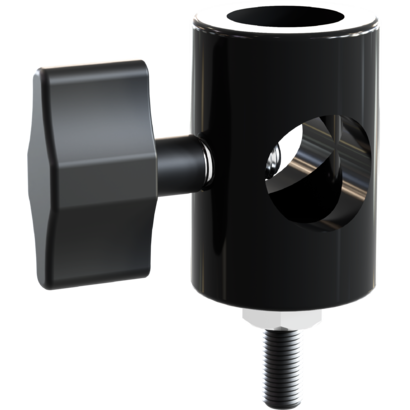

ENPTWCSA
ENPTWCSA
(Optional)
Spigot adapter for ECLNANOPANELTWC

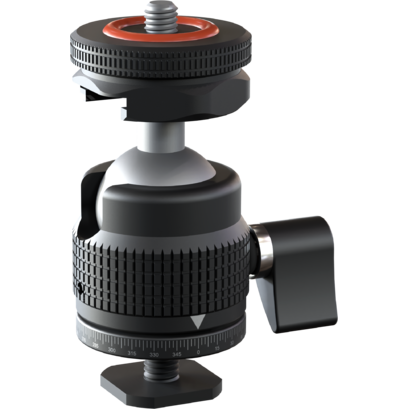

ENPTWCPAJ
ENPTWCPAJ
(Included)
Position articulated joint for ECLNANOPANELTWC
ENPTWCMAG
ENPTWCMAG
(Optional)
Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100

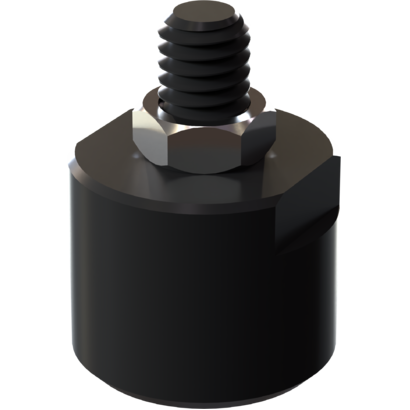

EST100MAGADP
EST100MAGADP
(Optional)
M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100
ENPTWCMAGADP
ENPTWCMAGADP
(Optional)
M10 to 1/4'' adapter to use ENPTWCMAG with ECLNANOPANELTW
EST100FY
EST100FY
(Optional)
Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100
ENPTWCCHARGER
ENPTWCCHARGER
(Optional)
Single charger for ECLNANOPANELTWC

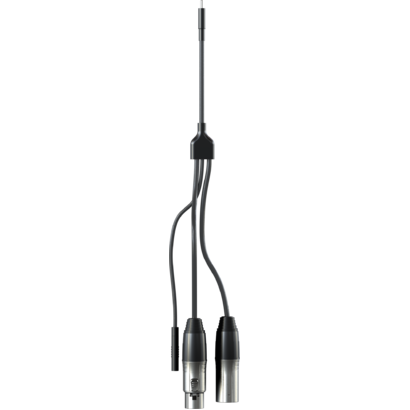

ENPTWCYCABLE
ENPTWCYCABLE
(Included)
Y Cable from USB-C male to XLR 5P male, XLR 5P female and USB-C female
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
ENPTWCSB
ENPTWCSB
(Optional)

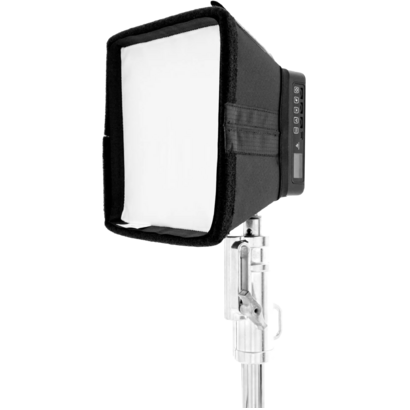

SnapBag for ECLNANOPANELTWC by DoP choice

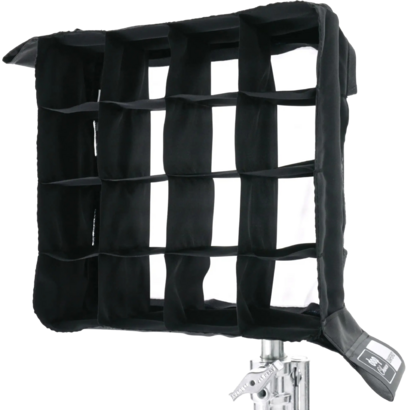

ENPTWCSG4SB40
ENPTWCSG4SB40
(Optional)
40° SnapGrid for SnapBag for ECLNANOPANELTWC by DoP choice
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth

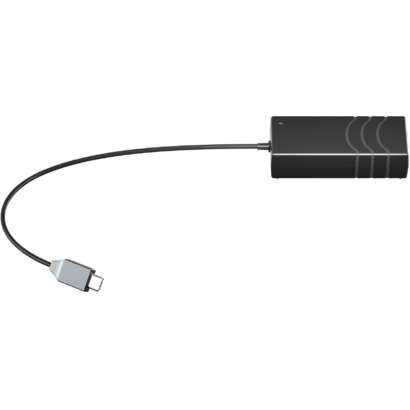

UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclnptwcpack_A4_DATASHEET_(EN).pdf507KB

DMX chart & personalities

File name File size Download
DMX chartEclnptwcpack_DMX_CHARTS.pdf1MB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DEclnptwcpack_CAD_2D.dwg3MB
Technical drawingEclnptwcpack_TECHNICAL_DRAWING.pdf234KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/05/2023 Improvements:
  • Improved wireless indicator symbology.

Fixed bugs:
  • Switching from Stand Alone CCT to Stand Alone HSI or from Fixed Colors to HSI, the fixture produces a green flash.
  • Switching from White Preset to Manual Colour and switching from Spektra Calibration=OFF to Spektra Calibration=ON, sometimes fixture produces a white flash.
  • Switching from Manual colour to Source emulation, fixture flashes the colour previously selected in Manual Colour.
  • Switching from Fixed Colors to HSI, light source decreases its output intensity.
  • Switching from Stand Alone XY to Stand Alone Effect, the fixture momentarily switches off the light source.
  • Spektra Calibration not correctly working on Standalone.
