EclPanel IPSoft1x1 new

ORDER CODE: ECLPANELIPSOFT1X1

1x1 Soft Source LED Panel, IP65 with 300W power and 6 colors source

The EclPanel IPSoft1x1 is a 1x1 format IP65 Soft Light, featuring high quality of light in all weather conditions.

EclPanel IPSoft range is engineered with a 6-color LED light source controllable in 4 section, maximizing the light flux and delivering a beautiful soft projection with outstanding quality and rich color spectrum.

Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.

Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.

SPEKTRA

Main features:

  • 300W 6 color Soft Light in 1x1 format
  • IP65 water and dust resistant
  • 4 section pixel control and built-in lighting effects for film applications
  • Silent operation with multiple fan modes
See variants

PHOTO GALLERY

EclPanel IPSoft1x1
EclPanel IPSoft1x1
EclPanel IPSoft1x1
EclPanel IPSoft1x1

Technical specifications

LIGHT SOURCE
  • Source: 300W 6 colour LEDs source
  • Luminous flux: (HB) 32'640 lm - (HQ) 28'471 lm @3.200 K
  • Luminous flux: (HB) 32'544 lm - (HQ) 27'321 lm @5.600 K
  • Lux: (HB) 514 lx - (HQ) 447lx @5 m 3.200 K
  • Lux: (HB) 512 lx - (HQ) 428lx @5 m 5.600K
  • CRI: 95,6 @3.200K; 96 @5.600 K
  • R9: 93,8 @3200K; 96 @5.600 K
  • TLCI: 85 @3200K; 92 @5.600 K
  • TM30 Rf: > 92 @3.200K; > 92 @5.600 K
  • TM30 Rg: < 106 @3.200K; < 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 157°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, Gel, HSI, Source Emulation
  • CCT: CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation
  • White presets: 1.850 K - 20.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: color space selection, linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Stand Alone: selectable mode through 4 RGB backlight push-encoders
  • Pixel control: 4 section control
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 3.5" with new UI
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: Ethernet pass through in case of failure
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 6 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 300W
  • Standby power: 110V (60Hz): 13,2W; 230V (50Hz): 12,9W
  • Output (at 230V): 9 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Seetronic RJ45 IN/OUT
  • Power connection: IP65 Seetronic powerCON TRUE IP65 IN/OUT
  • Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V
  • Dimensions (WxHxD): 529x433x142mm / 20.83''x17.05''x5.59''
  • Weight: 12kg / 26.46lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

FCLPANELIP1X13U
FCLPANELIP1X13U
(Optional)

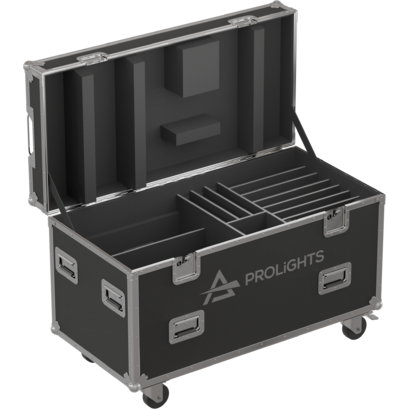

Flight case for 3 pcs of ECLPANELIP1X1HARD or ECLPANELIP1X1SOFT
EPIP2X1X1RMP2U
EPIP2X1X1RMP2U
(Optional)
Rigging metal plate for ECLPANELIP series to mount the products in arrays, 2U
EPIP2X1X1RMP4U
EPIP2X1X1RMP4U
(Optional)
Rigging metal plate for ECLPANELIP series to mount the products in arrays, 4U

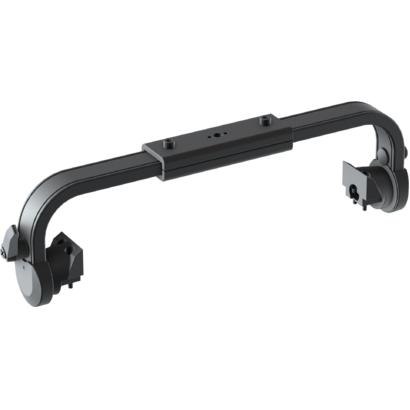

ECLPANELJRPOYO
ECLPANELJRPOYO
(Optional)
Pole operated aluminium yoke bracket for ECLPANELTWCJR

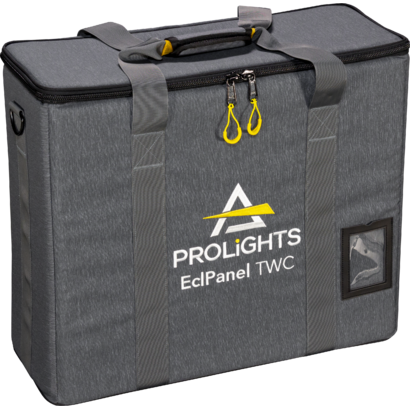

EPTWCJRBAG1U
EPTWCJRBAG1U
(Optional)
Bag for 1 pc of ECLPANELTWCJR

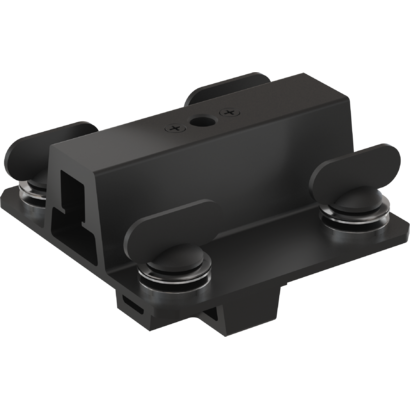

EPTWCBRKM
EPTWCBRKM
(Optional)
Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
EPTWCBHEAD
EPTWCBHEAD
(Optional)

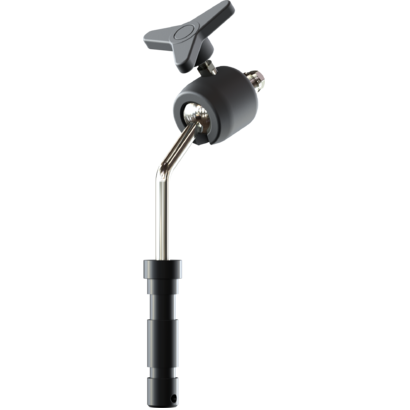

Ball head joint for center mount bracket EPTWCBRK series
EPTWCJRFILTERINT
EPTWCJRFILTERINT
(Optional)
Front intensified diffusion filter for ECLPANELTWCJR
EPTWCJRFILTERHD
EPTWCJRFILTERHD
(Optional)
Front high diffusion filter (less output) for ECLPANELTWCJR

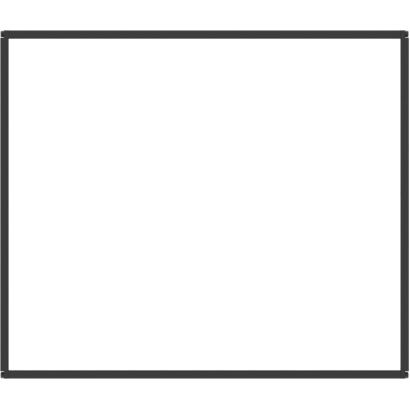

EPTWCJRFILTERMD
EPTWCJRFILTERMD
(Included)

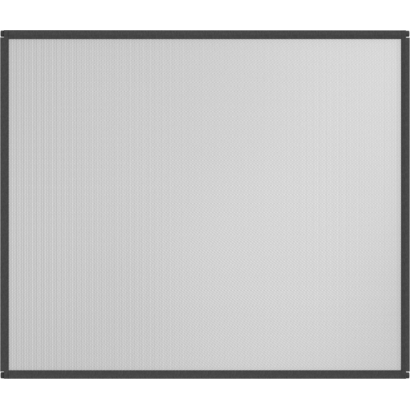

Front medium diffusion filter for ECLPANELTWCJR
EPTWCJRFILTERLD
EPTWCJRFILTERLD
(Optional)
Front low diffusion filter (more output) for ECLPANELTWCJR
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
EPTWCJREC30
EPTWCJREC30
(Optional)

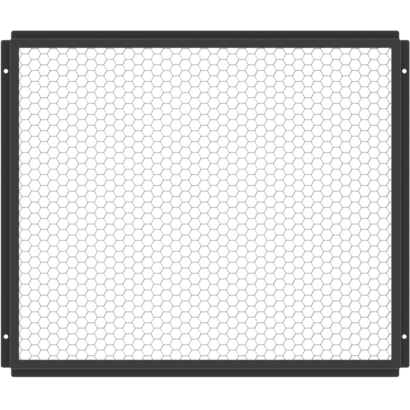

30 degree egg crate for ECLPANELTWCJR
EPTWCJREC60
EPTWCJREC60
(Optional)
60 degree egg crate for ECLPANELTWCJR
EPTWCJREC4C
EPTWCJREC4C
(Optional)
4 chamber egg crate for ECLPANELTWCJR

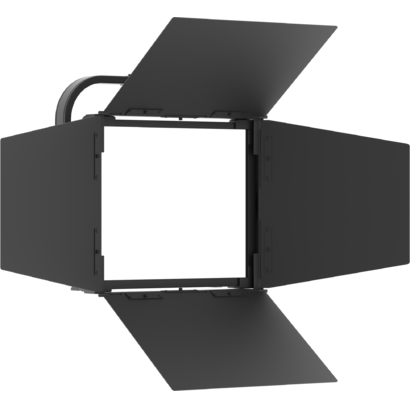

EPTWCJRBD
EPTWCJRBD
(Optional)
Barn door with 4 directional flaps to adjust the light beam

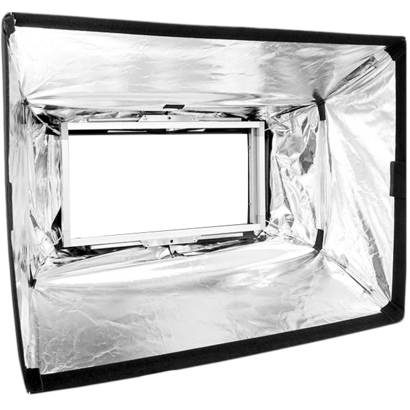

EPTWCJRSB11
EPTWCJRSB11
(Optional)

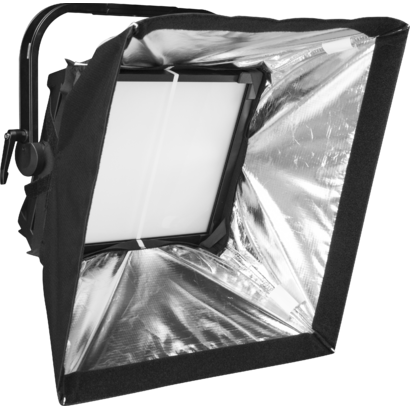

SnapBag 1x1 for ECLPANELTWCJR by DoP choice
EPTWCJRSG4SB1140
EPTWCJRSG4SB1140
(Optional)

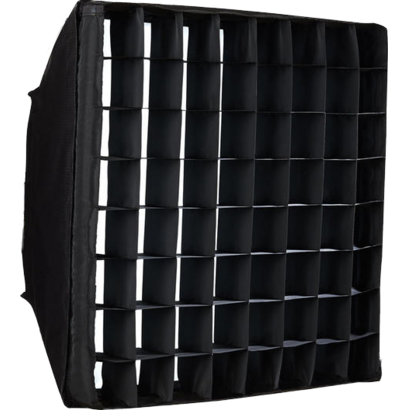

40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice

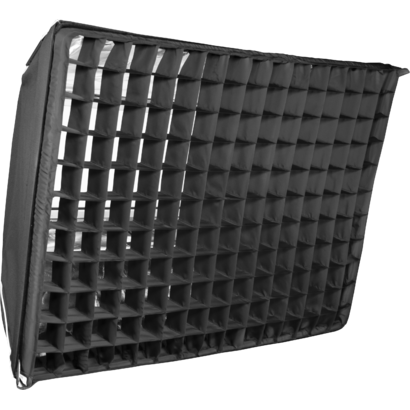

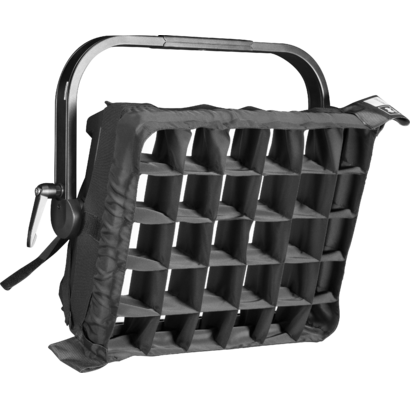

EPTWCJRSG1140
EPTWCJRSG1140
(Optional)
40° SnapGrid, 1x1 for ECLPANELTWCJR by DoP choice

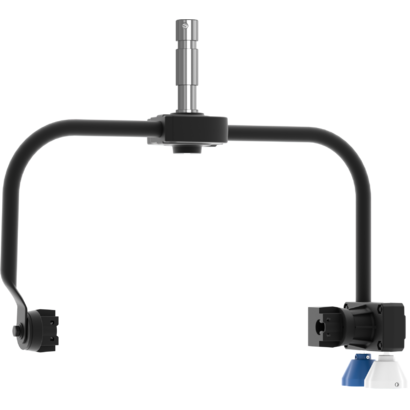

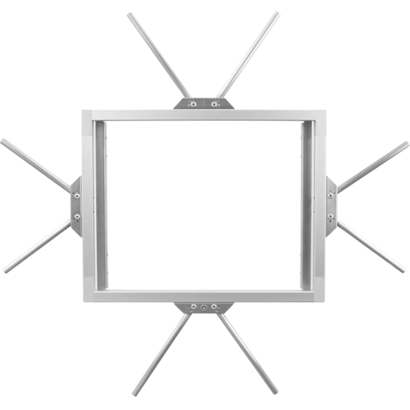

EPSREM
EPSREM
(Optional)
Rabbit-Ears 1x1 MINI for ECLPANELTWCJR by DoP choice
EPSBRL3
EPSBRL3
(Optional)

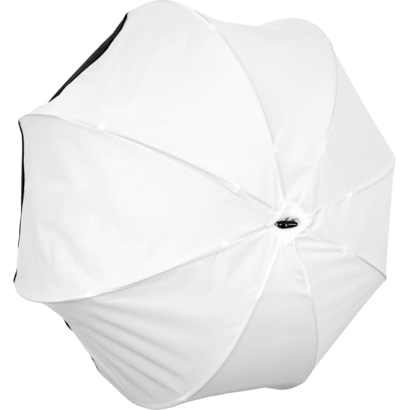

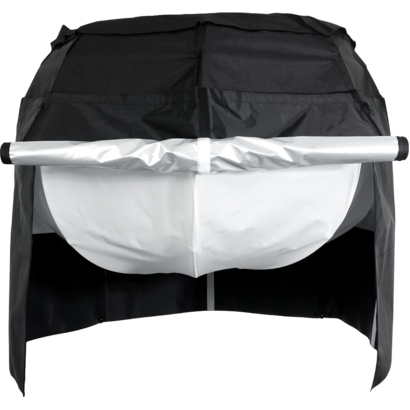

Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Carry Bag
EPSBRL3C4
EPSBRL3C4
(Optional)
Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper
EPSBRM
EPSBRM
(Optional)
SnapBag Medium to be mounted on Rabbit Ears by DoP.
EPSGCM40
EPSGCM40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Medium (EPSBRM)

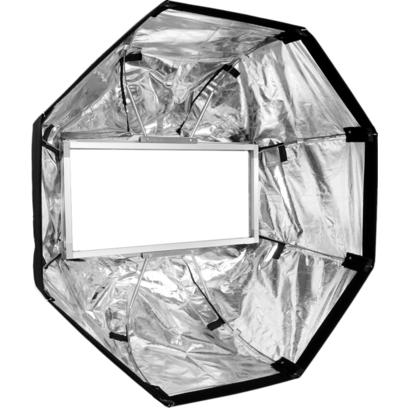

EPSBRO3
EPSBRO3
(Optional)

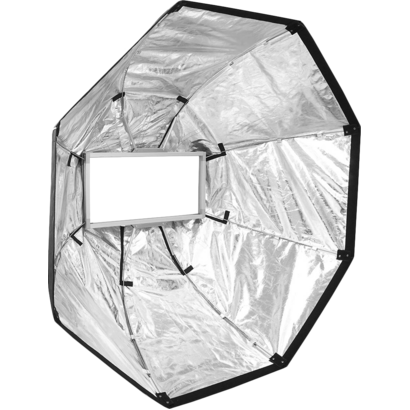

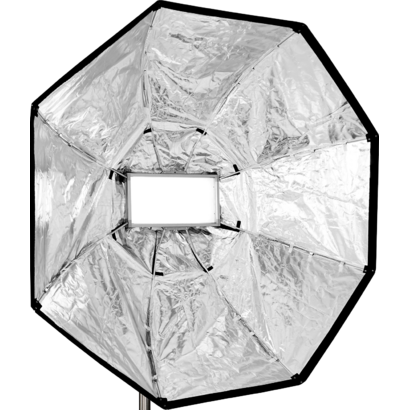

Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP.

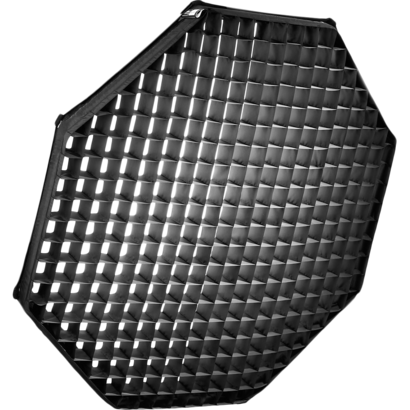

EPSGC3W40
EPSGC3W40
(Optional)

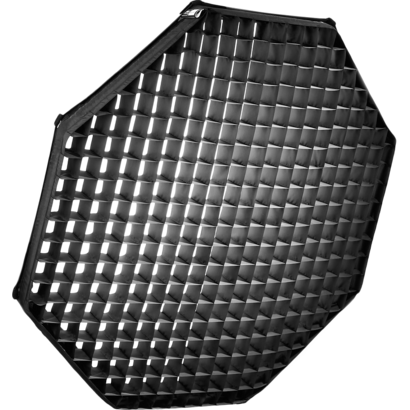

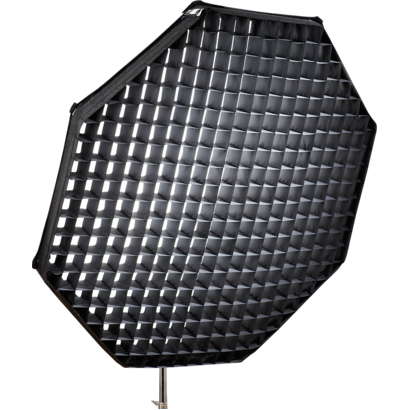

40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3)
EPSBRO5
EPSBRO5
(Optional)
Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP.
EPSGC5W40
EPSGC5W40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5)
EPSBRO7
EPSBRO7
(Optional)
Snapbag Octa 7' to be mounted on Rabbit-Ears by DoP.
EPSGC7W40
EPSGC7W40
(Optional)
40° SnapGrid, to be mounted on Snap Bag Octa 7' (EPSBRO7)
EPSBCMNSM
EPSBCMNSM
(Optional)

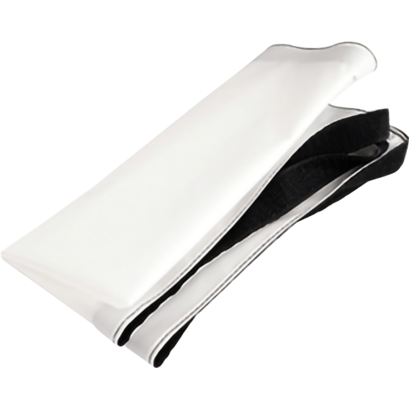

Diffusion MAGIC cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSF
EPSBCMNSF
(Optional)
Diffusion FULL Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSH
EPSBCMNSH
(Optional)
Diffusion HALF Grid cloth for Snapbag 60x60cm(EPTWCJRSB11) by DoP choice
EPSBCMNSQ
EPSBCMNSQ
(Optional)
Diffusion QUARTER Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSQFM
EPSBCMNSQFM
(Optional)
Diff. cloth SET (1/4, 1/1,MAGIC) for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPTWCJRLANT11
EPTWCJRLANT11
(Optional)

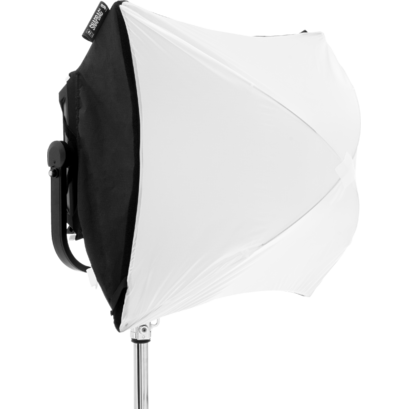

Snapbag Lantern for ECLPANELTWCJR by DoP. Incl. Lantern, Backcovers, Carry Bag
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpanelipsoft1x1_LETTER_DATASHEET_(EN).pdf435KB
Tender SpecificationEclpanelipsoft1x1_TENDER_SPECIFICATION.pdf254KB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclpanelipsoft1x1_DMX_CHARTS.pdf2MB
ECLPANELIPSOFT1X1 Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclpanelipsoft1x1_3D.skp367KB
2DEclpanelipsoft1x1_CAD_2D.dwg7MB
3DEclpanelipsoft1x1_CAD_3D.dwg159KB
2D cad symbolsEclpanelipsoft1x1_CAD_2DSYMBOLS.dwg31KB
Technical drawingEclpanelipsoft1x1_TECHNICAL_DRAWING.pdf342KB
VectorWorksECLPANELIPSOFT1X1_SYMBOLS.vwx456KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB

Tech docs

File name File size Download
Noise ReportEclpanelipsoft1x1_NOISE_REPORT.pdf604KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 01/07/2025 FIRST STABLE RELEASE

Improvements:
  • Improved Dimmer management
  • Improved CCT accuracy
  • Improved Stand Alone Management
  • In Legacy 2M20 Mode, increased speed for Color macro transition
  • Improved Dimmer management in M37 DMX Mode and Pixels Modes.
  • Improved sACN protocol management.
Fixed Bugs:
  • RDM via Artnet does not work correctly.
  • Legacy 2M20Ch channel control does not work properly.
  • Battery shortcut not working for status screen and editor screen
  • Stand Alone Master-Slave do not work properly.
  • Configuraton Presets are not settable via Control Ch.
  • The fixture loses the link to the transmitting station if CRMX@OFF and then CRMX@ON are set. Whenever the wirelss is then switched off, TX Link must be re-established from the transmitting station.
  • Fixed minor bugs
 Rev. 1.0

Info Request

News

Gallery Wash series - Cube‑Shaped LED WallWash for Seamless Blend Across Vertical Surfaces
June 30, 2025
Gallery Wash series - Cube‑Shaped LED WallWash for Seamless Blend Across Vertical Surfaces
PROLIGHTS introduces the Gallery Wash series , a range of cube-shaped LED wallwash luminaires developed for precise and uniform vertical illumination in galleries, showrooms and low ceiling broadcast sets. Thanks to a custom linear LED source combined
PROLIGHTS Illuminates Ermal Meta's concert at Albania's ancient Butrint
June 26, 2025
PROLIGHTS Illuminates Ermal Meta's concert at Albania's ancient Butrint
The evocative ruins of the Butrint archaeological site in Albania provided a striking backdrop for Ermal Meta 's concert. PROLIGHTS lighting fixtures, supplied by ASLV , the official PROLIGHTS distributor in Albania, turned the evening into a magical
Introducing PROLIGHTS Astra Beam120IP: Laser-Powered IP65 Pure Beam Moving Head
June 19, 2025
Introducing PROLIGHTS Astra Beam120IP: Laser-Powered IP65 Pure Beam Moving Head
PROLIGHTS is proud to announce the launch of Astra Beam120IP , a formidable beam moving head that sets a new standard in the IP65 category. Engineered for both indoor and outdoor large-stage applications, Astra Beam120IP leverages a 120W phosphor laser
SunBlast Power at Nameless Festival
June 16, 2025
SunBlast Power at Nameless Festival
The shores of Lake Como once again hosted the Nameless Music Festival , Italy's premier electronic music event with a growing international reputation. Now in its latest edition, the festival drew more than 90,000 attendees and featured over 100 artists
PROLIGHTS Introduces EclFresnel CT+ XL IP: The Industry's Brightest IP65-Rated Full-Spectrum LED Fresnel
June 05, 2025
PROLIGHTS Introduces EclFresnel CT+ XL IP: The Industry's Brightest IP65-Rated Full-Spectrum LED Fresnel
PROLIGHTS expands its successful series of LED Fresnel with the launch of the EclFresnel CT+XLIP , a powerhouse Fresnel engineered to replace traditional 5 kW tungsten and 2.5 kW HMI fixtures in both indoor and outdoor environments. With its robust IP65-rated
PROLIGHTS HaluPix Duo Sets the Scene for Jan-Rapowanie's “Groteska” Tour
June 03, 2025
PROLIGHTS HaluPix Duo Sets the Scene for Jan-Rapowanie's “Groteska” Tour
Polish rap phenomenon Jan-Rapowanie took his new “ Groteska ” tour across the country, pairing uncompromising beats with an equally uncompromising visual design. At the heart of the stage look was the PROLIGHTS HaluPix Duo , supplied by Show Design
Australia lights up its pavilion at Expo 2025 Osaka with PROLIGHTS
May 23, 2025
Australia lights up its pavilion at Expo 2025 Osaka with PROLIGHTS
“ Chasing the Sun " is the central theme of the Australia Pavilion at Expo Osaka , showcasing Australia's unique energy, cultural diversity, creativity, and stunning natural landscapes. Designed by the Australian firm Buchan , the pavilion guides visitors
PROLIGHTS HaluPix Duo Illuminates the Scene at Must Be the Music
May 20, 2025
PROLIGHTS HaluPix Duo Illuminates the Scene at Must Be the Music
The Polish edition of ' Must Be the Music ', recently captivated audiences with a stunning performance by the young Gracjana Górka during the semi-finals, where the powerful voice of the singer was perfectly matched by a dynamic lighting design. For
PROLIGHTS expands its partnership with Gobo in Finland
May 16, 2025
PROLIGHTS expands its partnership with Gobo in Finland
After many years of successful collaboration with Gobo in Denmark and Sweden, PROLIGHTS is pleased to announce the expansion of this partnership as Gobo Oy becomes the sole distributor for PROLIGHTS products in Finland, starting August 1, 2025. With their
PROLIGHTS HaluPix DUO joins Guus Meeuwis on tour
May 14, 2025
PROLIGHTS HaluPix DUO joins Guus Meeuwis on tour
The Dutch festival season got off to a thrilling start as Guus Meeuwis took the stage at Paaspop 2025 with an explosive performance and a striking new floor set, made possible by the PROLIGHTS HaluPix Duo . For this special event, light designer Marco
A new professional lighting setup for Hart van Hapert with PROLIGHTS
May 08, 2025
A new professional lighting setup for Hart van Hapert with PROLIGHTS
Hart van Hapert , the multifunctional cultural centre located in the Dutch town of Hapert, has recently enhanced its spaces with a professional-grade lighting system. The venue, which includes a Foyer, Church Hall, and Auditorium, now benefits from a
PROLIGHTS shapes the atmosphere for Esmeralda at the Latvian National Opera
May 06, 2025
PROLIGHTS shapes the atmosphere for Esmeralda at the Latvian National Opera
At the heart of Riga's cultural scene, the Latvian National Opera has just premiered the ballet Esmeralda , with PROLIGHTS fixtures playing a key role in the show's visual storytelling. A total of 26 ArcSpot DOTFC units, supplied by Rock Distribution
Subscribe to our Newsletter
Loading...
