ECLPENDANTJRFC

EclPendant JrFC

100W RGB+WarmWhite innovative pendant light

The EclPendant Jr is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant Jr has a 100-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant Jr was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant Jr has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

SPEKTRA

5 YEARS WARRANTY

Main features:

100W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
Extensive mounting option possibilities, optics and accessories are all easily changeable

See variants

PHOTO GALLERY

EclPendant JrFC

EclPendant JrFC

EclPendant JrFC

EclPendant JrFC

Technical specifications

LIGHT SOURCE

Source: 100W RGBWW LEDs
Luminous flux: 5'099 @Full
Lux: 794lx @5 m full
CRI: 94,5 @3200K; 94,8 @5600K
R9: 94,9 @3200K; 96,1 @5600K
TLCI: 98@3200K;
TM30 Rf: 93,6 @3200K; 92,4 @5600K
TM30 Rg: 105,2 @3200K; 104 @5600K
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

Beam angle: 20°
Field angle: 40°
Lens diameter: 122mm / 4.8''
Lens type: fresnel lens
Other: see available accessories

COLOUR SYSTEM

Colour mixing: RGB + Warm White
CCT: CCT control, + / - green correction, tungsten emulation
Colour wheel: gel filters included
Macros: several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

Body: sturdy die-cast aluminium body
Body colour: RAL 9004 or RAL 9010

Protocols: DALI Type8, DMX512, RDM, CRMX
DMX channels: UNO / DUO / Basic / Standard / Extendedchannel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
Other: 16bit control of dimmer and colour

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1-30 Hz, electronic
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 40.000 Hz

Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: DC 48V for emergency light use
Max power consumption: 112W
Output (at 230V): 24 units on a single power line
Power factor: > 0,93

IP rating: 20
Cooling: Heatsink with heat pipes, passive cooling and fan-free
Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)

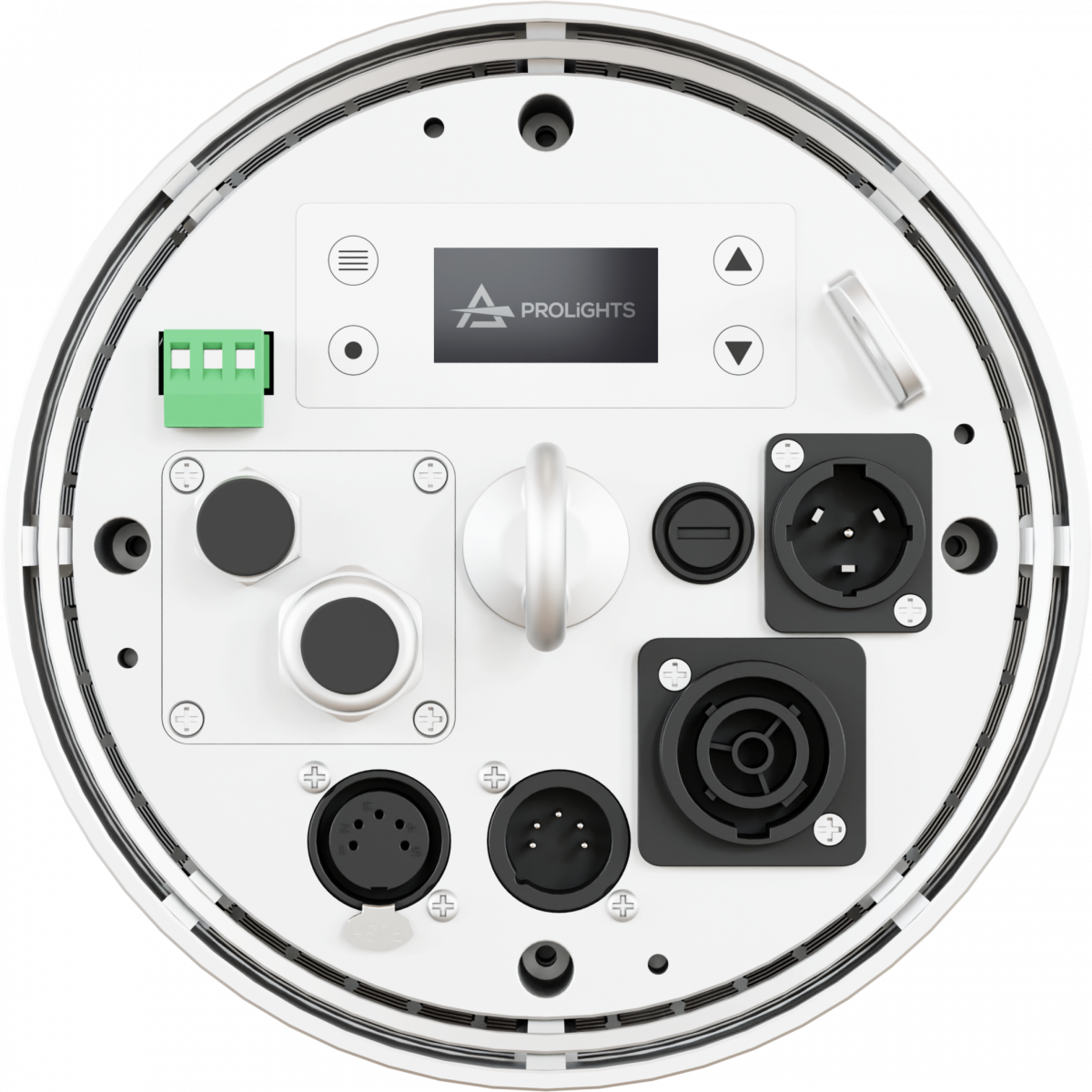

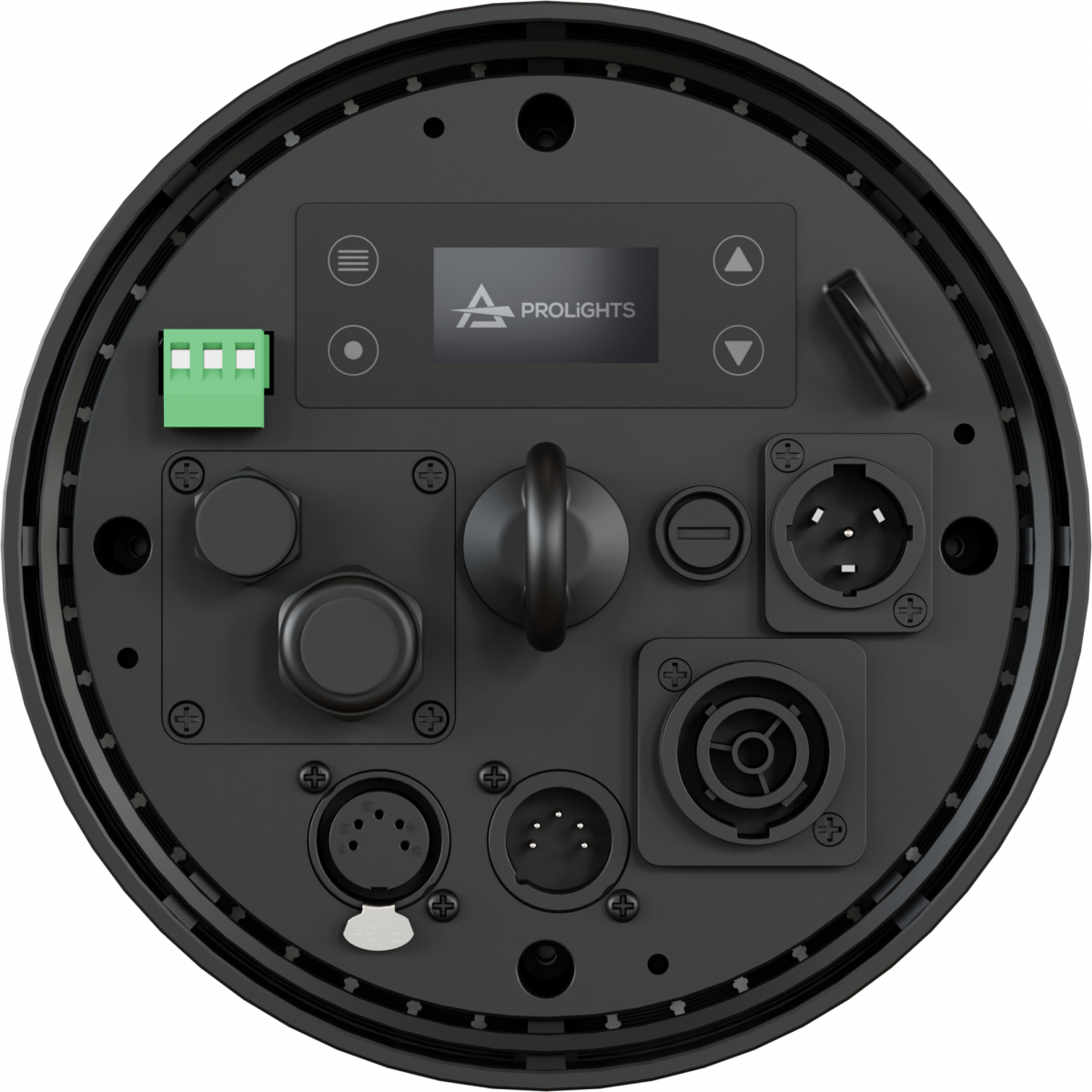

Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
Low Voltage DC connector: DC 48V through screw terminal block
Dimensions (WxHxD): 170x321x170mm / 6.69''x12.64''x6.69''
Weight: 5kg / 11.02lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x ECLPENDANTJRFC
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
User Manual
NOTE: no hanging bracket ECLPENDJRHGBRK on board to the fixture

Versions

Code

Finishing

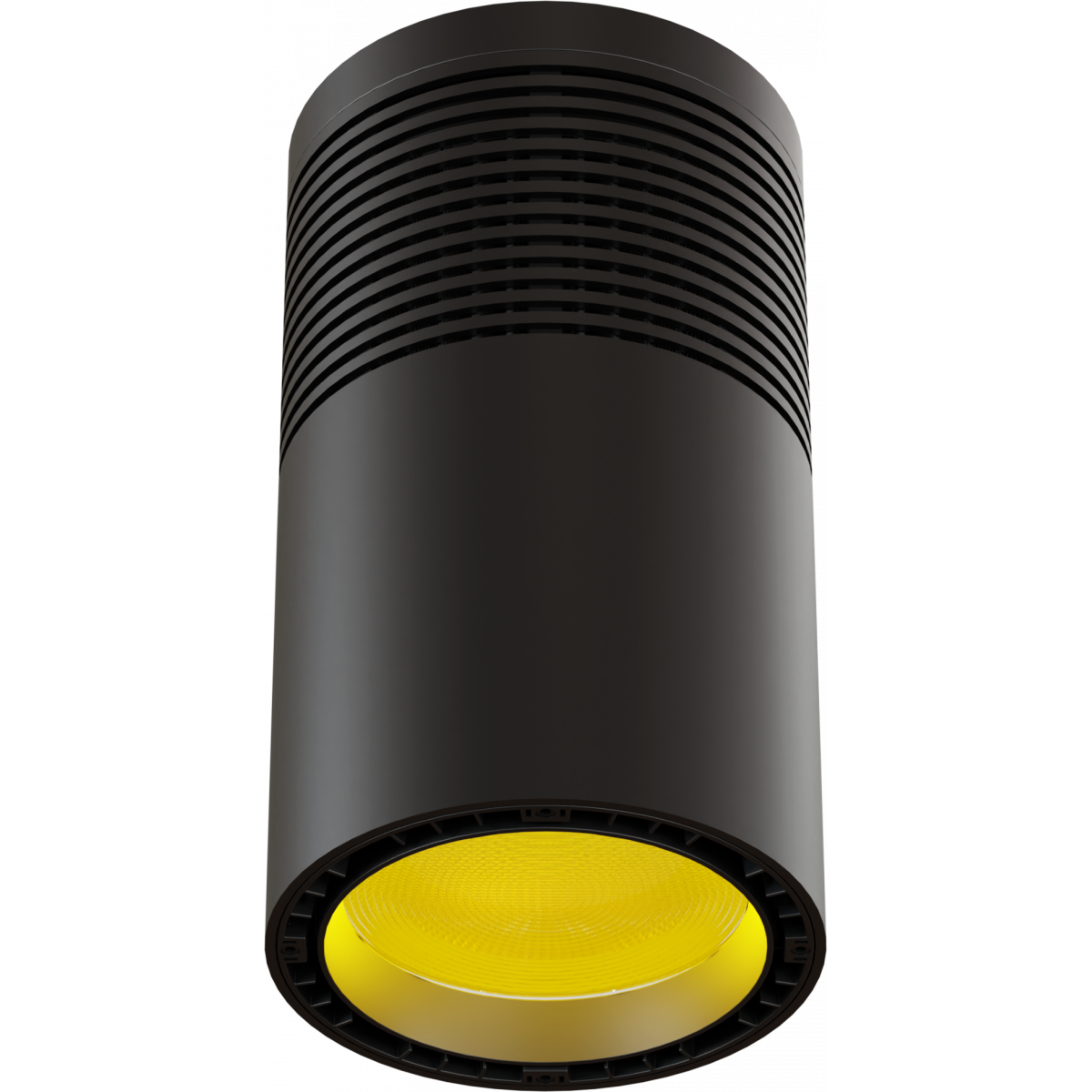

ECLPENDANTJRFCBK

Black

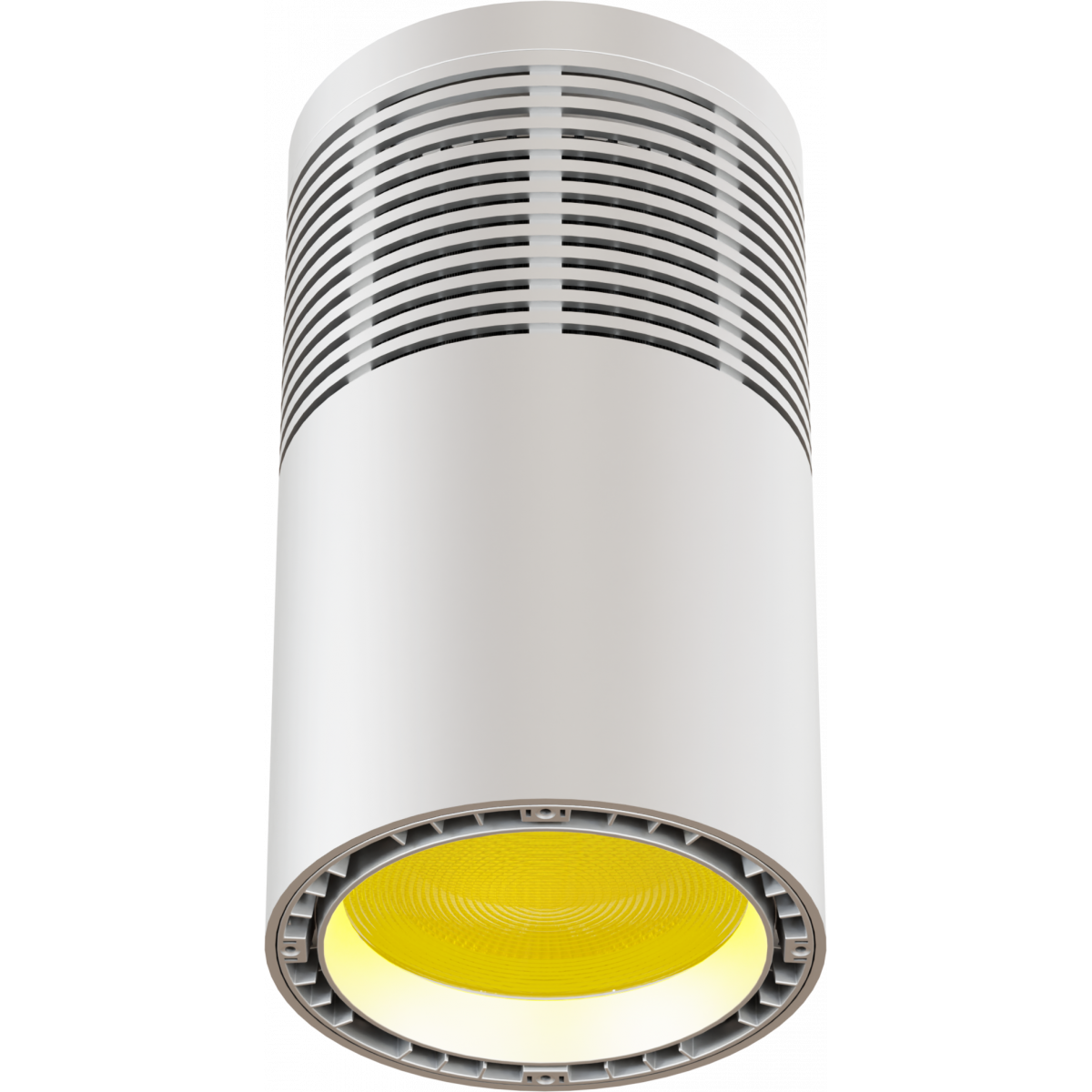

ECLPENDANTJRFCWH

White

VIDEOS

Accessories & Related Products

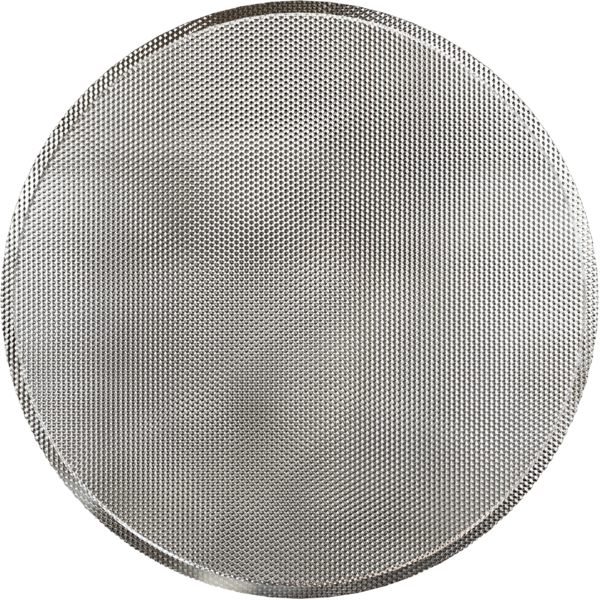

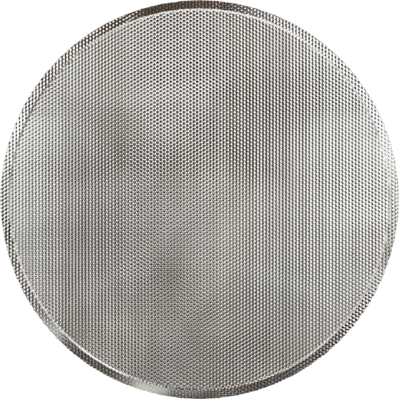

ECLPENDJRLENS60

ECLPENDJRLENS60

(Optional)

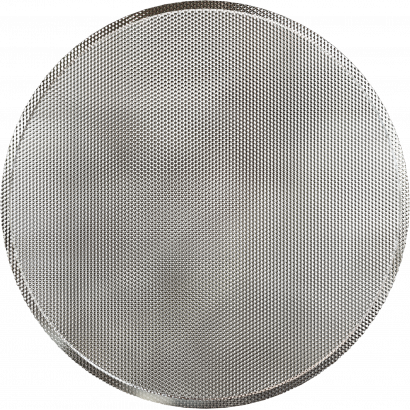

ECLPENDANTJR series 60° lens

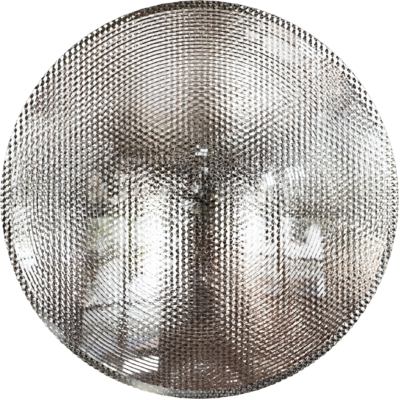

ECLPENDJRLENS40

ECLPENDJRLENS40

(Optional)

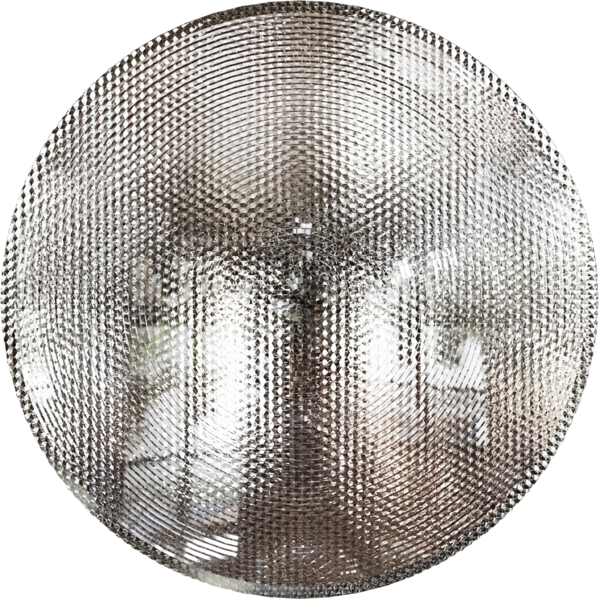

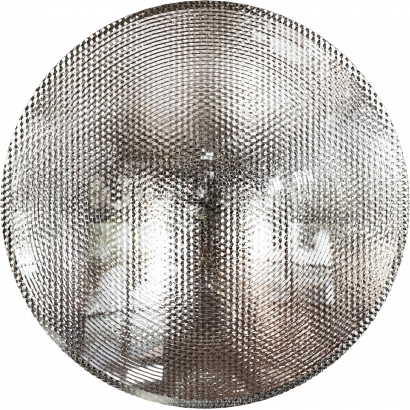

ECLPENDANTJR series 40° lens

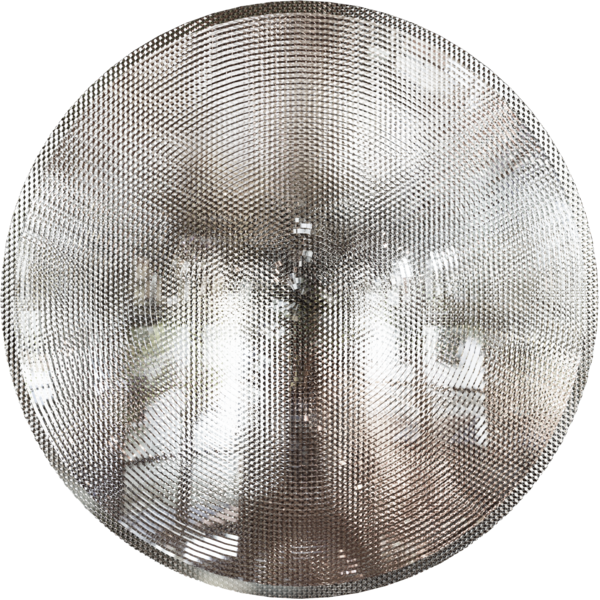

ECLPENDJRLENS20

ECLPENDJRLENS20

(Included)

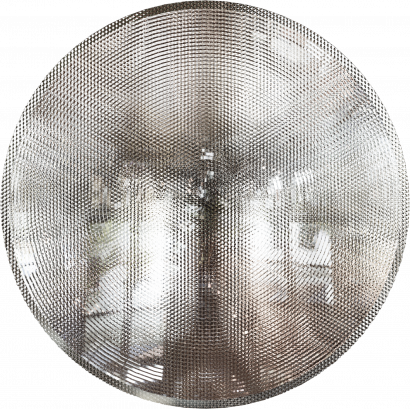

ECLPENDANTJR series 20° lens

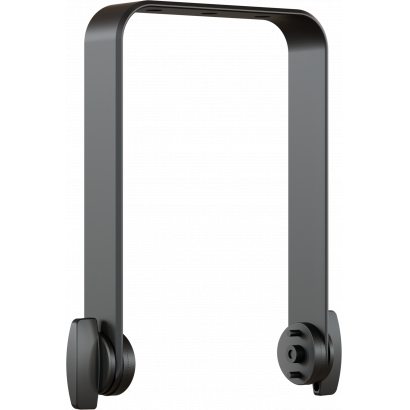

ECLPENDJRHGBRKBK

ECLPENDJRHGBRKBK

(Optional)

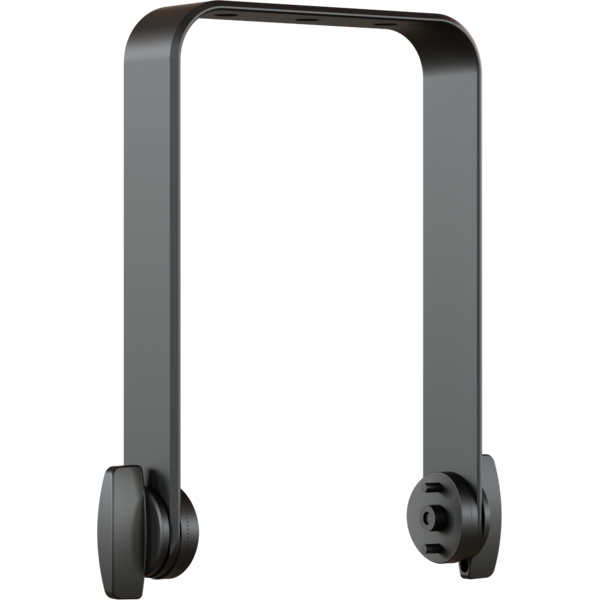

Hanging bracket for ECLPENDANTJR series, black

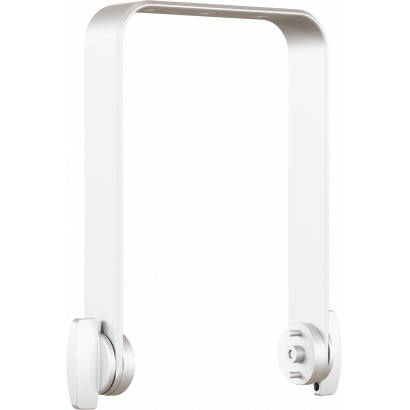

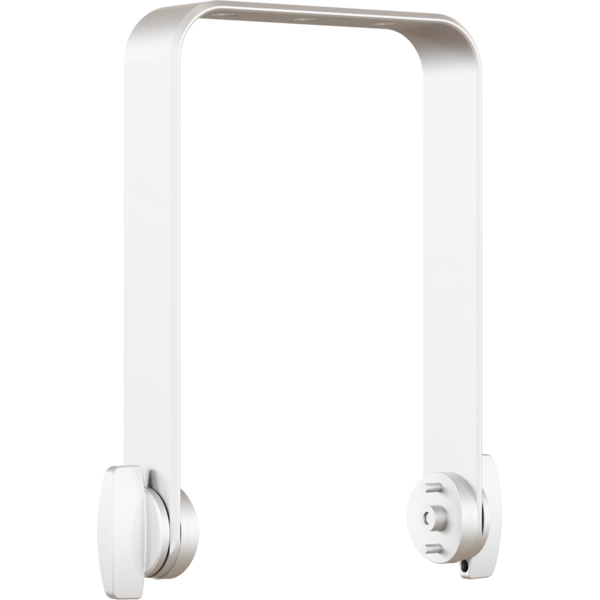

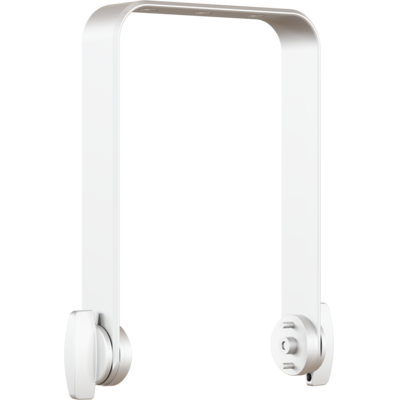

ECLPENDJRHGBRKWH

ECLPENDJRHGBRKWH

(Optional)

Hanging bracket for ECLPENDANTJR series, white

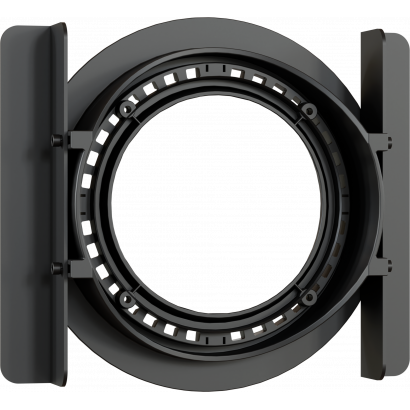

ECLPENDJRRECKITBK

ECLPENDJRRECKITBK

(Optional)

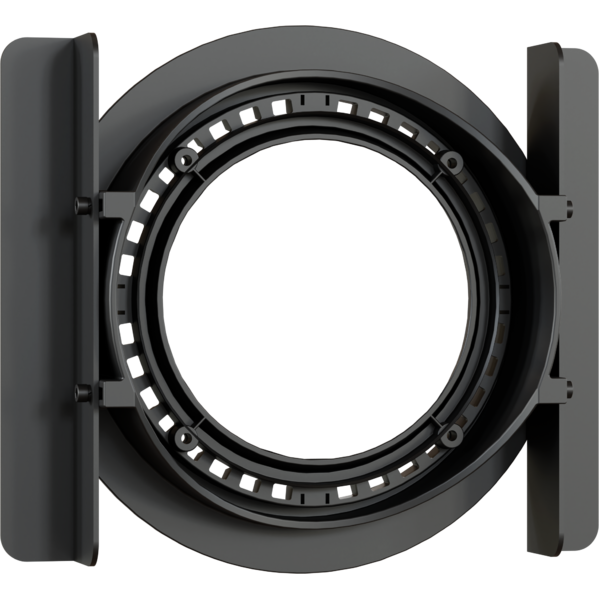

Ceiling recessed kit for ECLPENDANTJR series, black

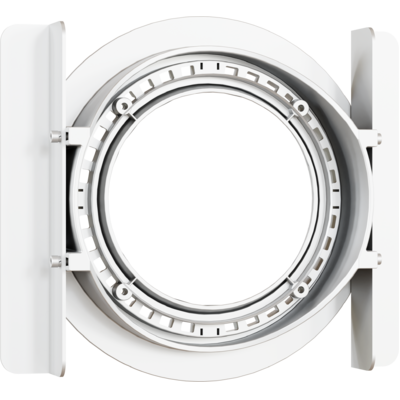

ECLPENDJRRECKITWH

ECLPENDJRRECKITWH

(Optional)

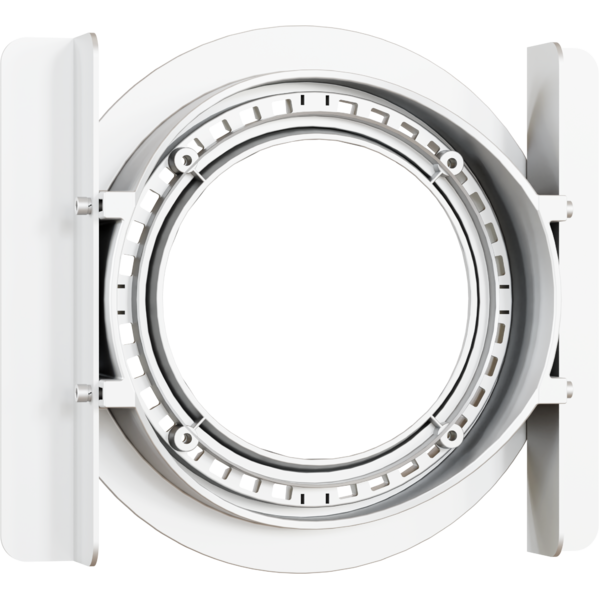

Ceiling recessed kit for ECLPENDANTJR series, white

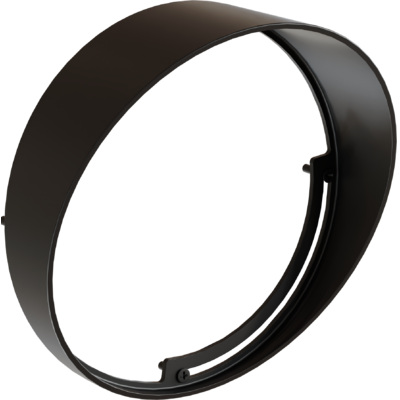

ECLPENDJRHSNOOTBK

ECLPENDJRHSNOOTBK

(Optional)

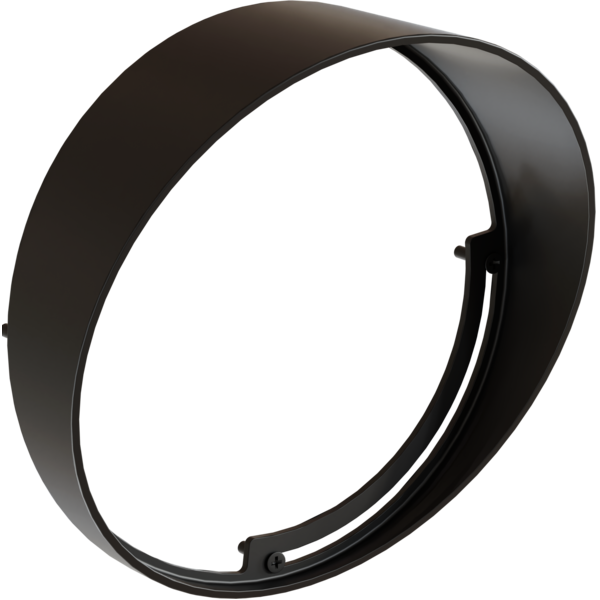

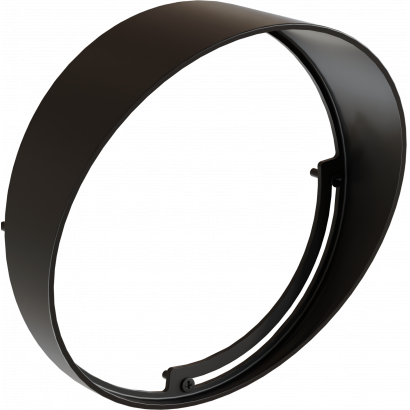

Half snoot for ECLPENDANTJR series, black

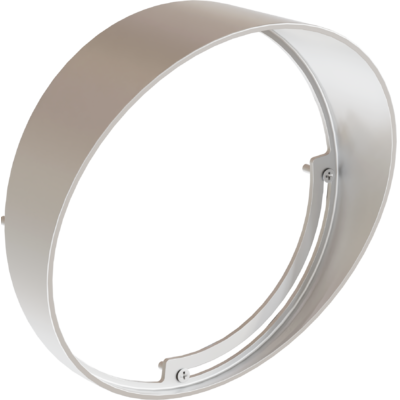

ECLPENDJRHSNOOTWH

ECLPENDJRHSNOOTWH

(Optional)

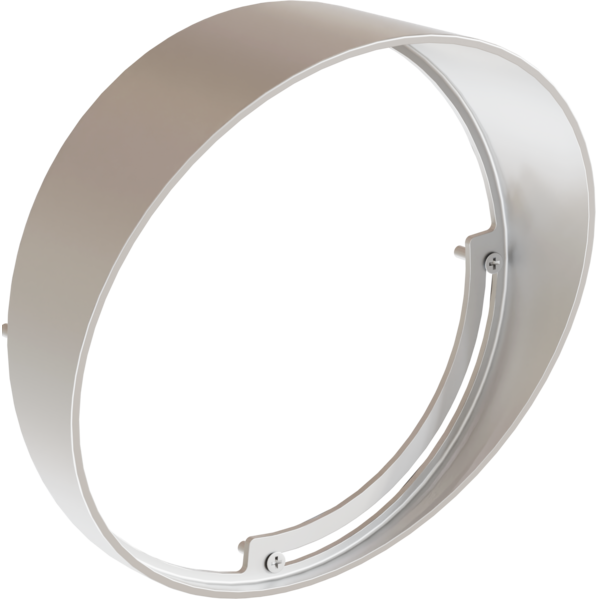

Half snoot for ECLPENDANTJR series, white

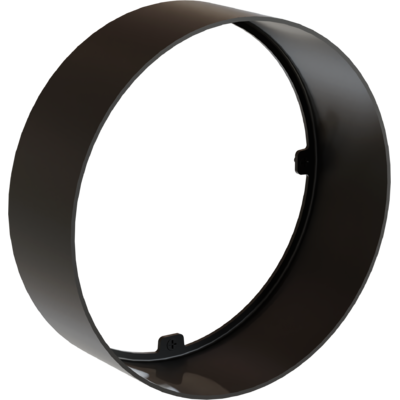

ECLPENDJRFSNOOTBK

ECLPENDJRFSNOOTBK

(Optional)

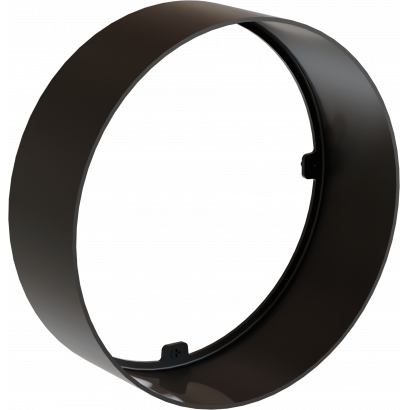

Full snoot for ECLPENDANTJR series, black

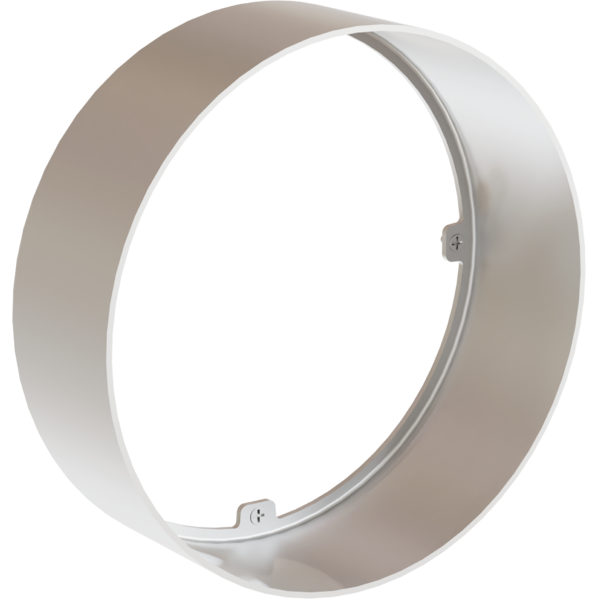

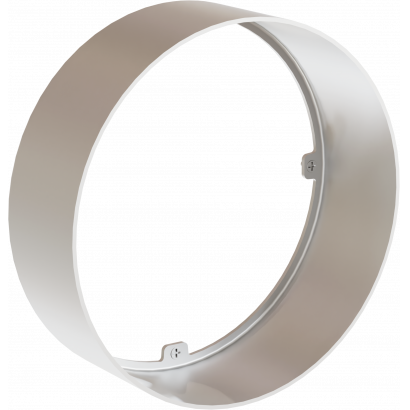

ECLPENDJRFSNOOTWH

ECLPENDJRFSNOOTWH

(Optional)

Full snoot for ECLPENDANTJR series, white

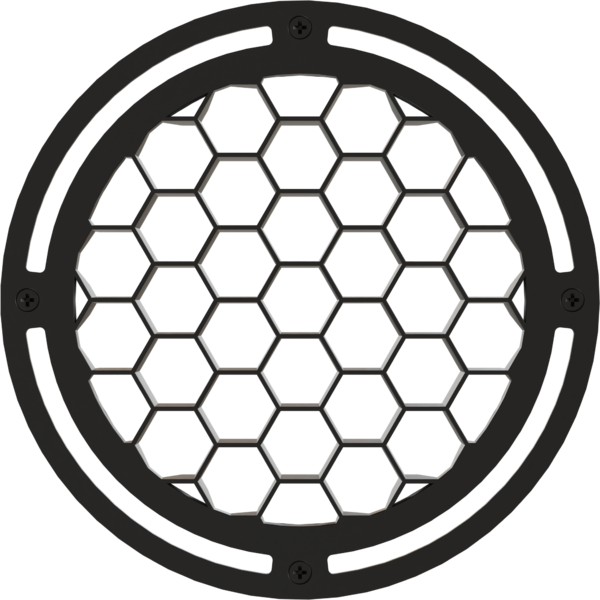

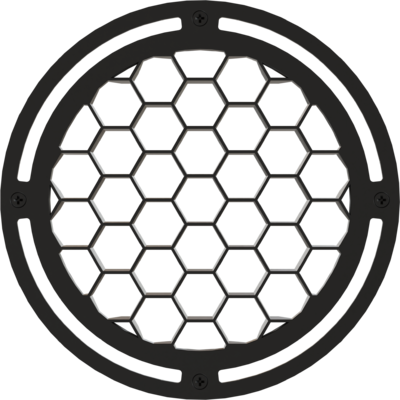

ECLPENDJRHLOUVBK

ECLPENDJRHLOUVBK

(Optional)

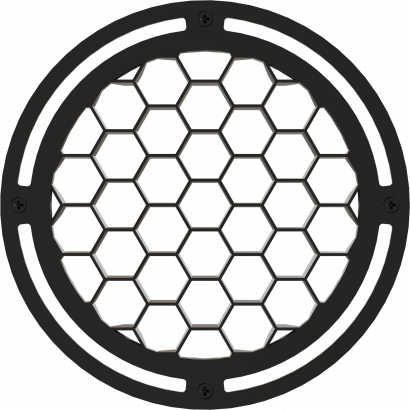

Honeycomb louvre for ECLPENDANTJR series, black

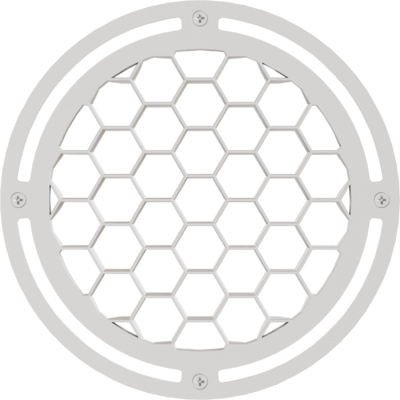

ECLPENDJRHLOUVWH

ECLPENDJRHLOUVWH

(Optional)

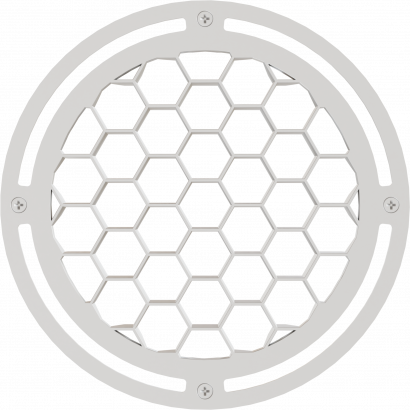

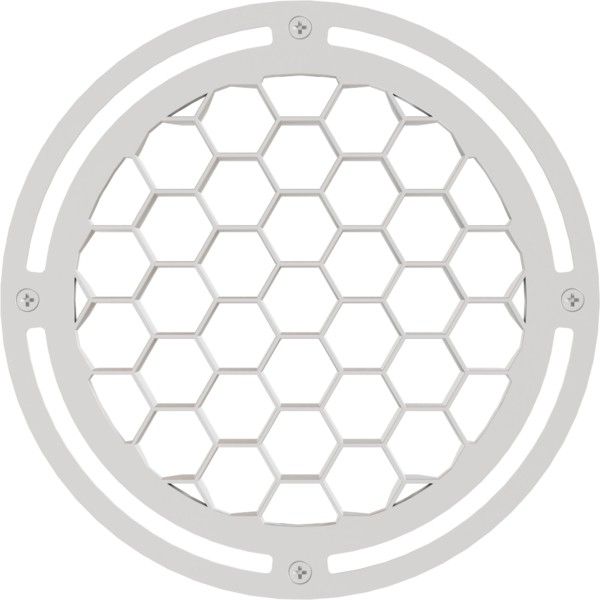

Honeycomb louvre for ECLPENDANTJR series, white

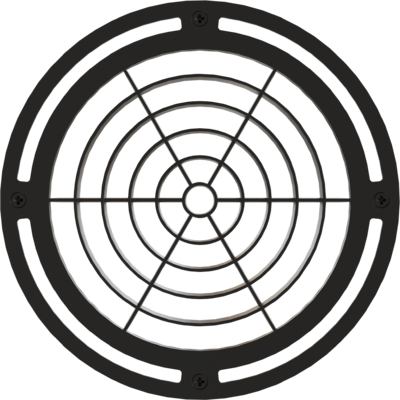

ECLPENDJRCLOUVBK

ECLPENDJRCLOUVBK

(Optional)

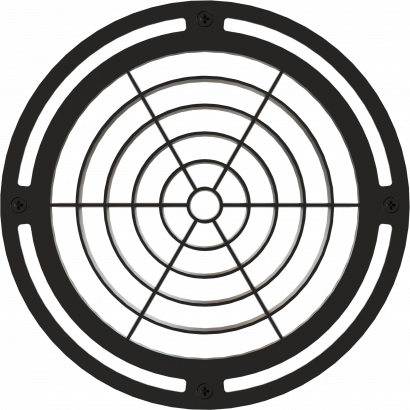

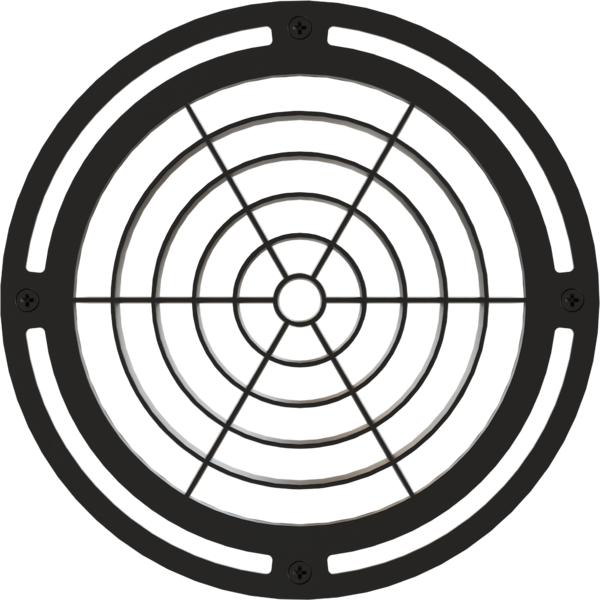

Concentric louvre for ECLPENDANTJR series, black

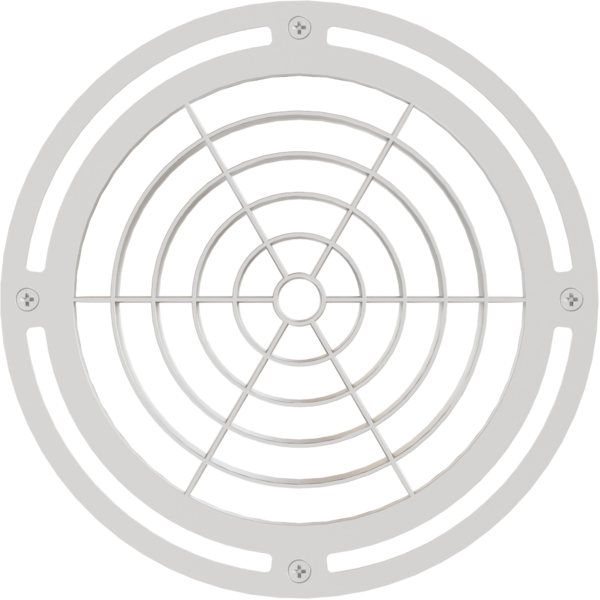

ECLPENDJRCLOUVWH

ECLPENDJRCLOUVWH

(Optional)

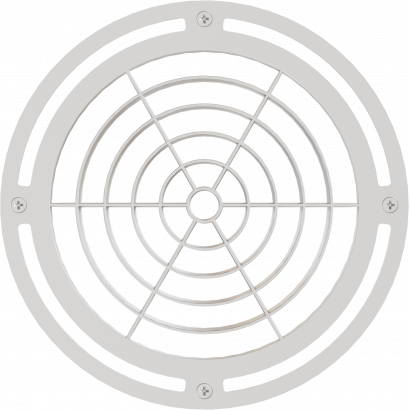

Concentric louvre for ECLPENDANTJR series, white

ECLPENDJRBDBK

ECLPENDJRBDBK

(Optional)

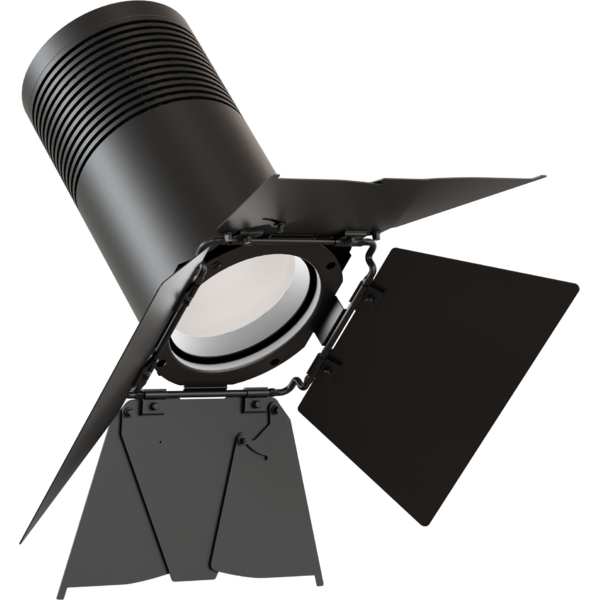

Barn door with 8 directional flaps to adjust the light beam, ECLPENDANTJR, black

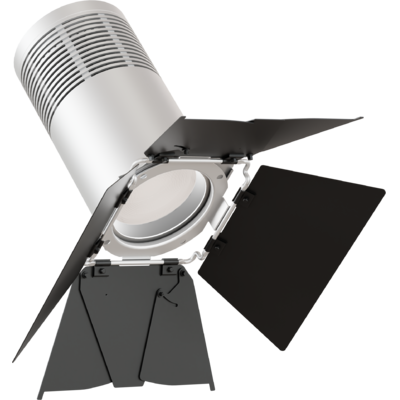

ECLPENDJRBDWH

ECLPENDJRBDWH

(Optional)

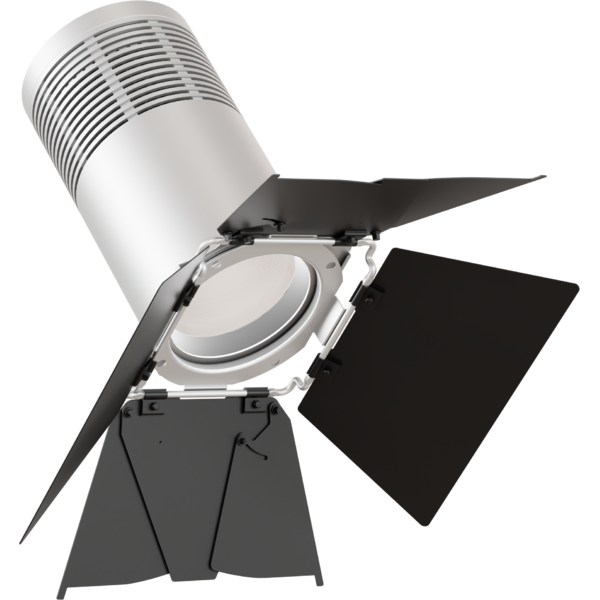

Barn door with 8 directional flaps to adjust the light beam, ECLPENDANTJR, white

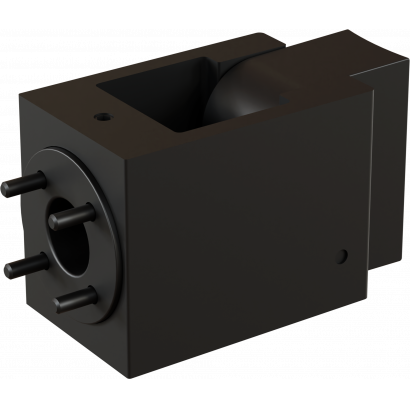

ECLPENDWALLBRKBK

ECLPENDWALLBRKBK

(Optional)

Wall mounting bracket for ECLPENDANT series, black

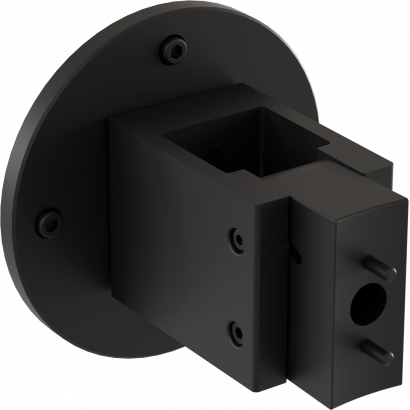

ECLPENDWALLBRKAWH

ECLPENDWALLBRKAWH

(Optional)

Ring adapter for ECLPENDWALLBRK (not included), white

ECLPENDWALLBRKWH

ECLPENDWALLBRKWH

(Optional)

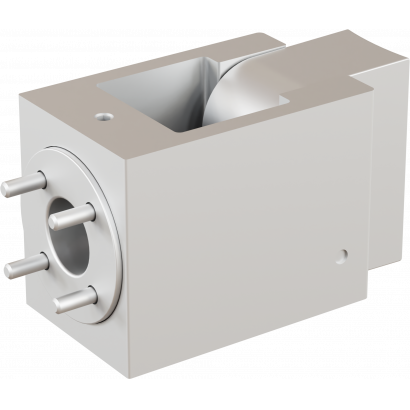

Wall mounting bracket for ECLPENDANT series, white

ECLPENDWALLBRKABK

ECLPENDWALLBRKABK

(Optional)

Ring adapter for ECLPENDWALLBRK (not included), black

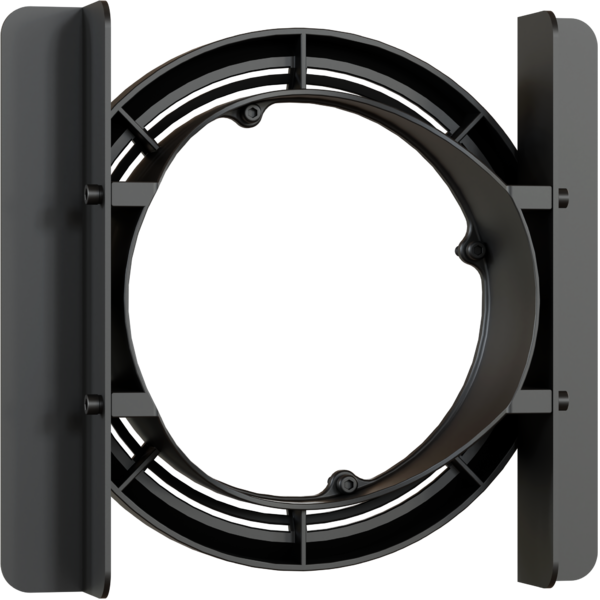

ECLPENDJCEILKITBK

ECLPENDJCEILKITBK

(Optional)

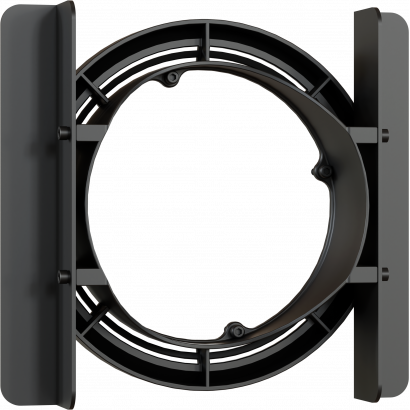

Ceiling-mounted kit (surface) for ECLPENDANTJR series, black

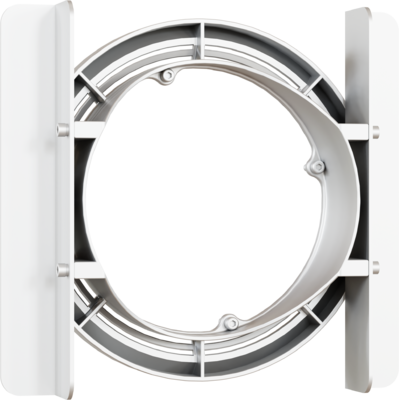

ECLPENDJCEILKITWH

ECLPENDJCEILKITWH

(Optional)

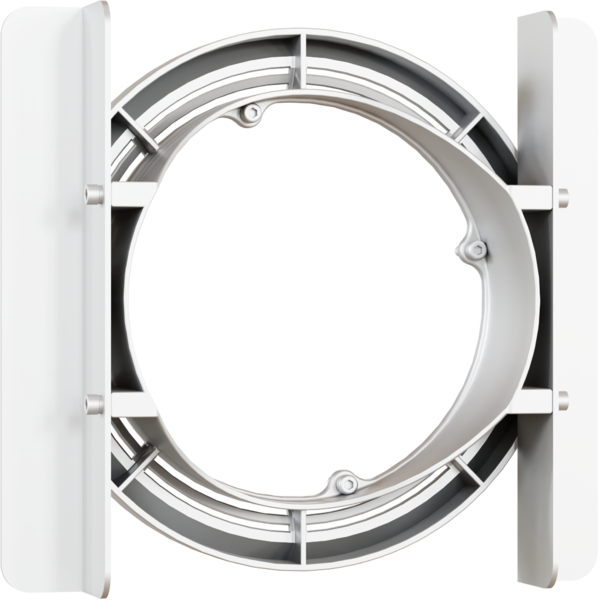

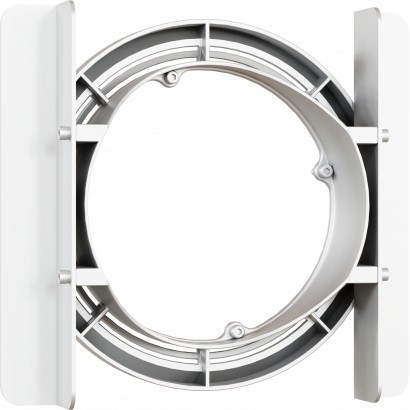

Ceiling-mounted kit (surface) for ECLPENDANTJR series, white

TOUR53415L03

(Optional)

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

C6002B

C6002B

(Optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

RSR0630B

RSR0630B

(Optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

9533FXWL03

9533FXWL03

(Optional)

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

9513FXWL03

9513FXWL03

(Optional)

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

958225L03

958225L03

(Optional)

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

UPBOXPRO

UPBOXPRO

(Optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

	File name	File size	Download
	Eclpendantjrfc_A4_DATASHEET_(EN).pdf	525KB
	Eclpendantjrfc_TENDER_SPECIFICATION.pdf	4MB

User manual

	File name	File size	Download
	Eclpendantjrfc_USER_MANUAL_EN.pdf	7MB
	GENERAL_SAFETY_INFORMATION.pdf	12MB

DMX chart & personalities

	File name	File size	Download
	Eclpendantjrfc_DMX_CHARTS.pdf	111KB

ECLPENDANTJRFC Firmware rev. 1.1.01.0

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

ECLPENDANTJRFC Firmware rev. 1.1.00.0

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

manufacturer fixture library (Link)

Photometrics

	File name	File size	Download
	prolights_ecpendantjrfc_ldt_ies files.zip	72KB
	Eclpendantjrfc_PHOTOMETRICS_REPORT.pdf	5MB
	Download DIALux product catalogue	-

CAD symbols & drawings

	File name	File size	Download
	ECLPENDANTJRFC_3D_SKETCHUP.zip	4MB
	ECLPENDANTJRFC_2D.zip	19MB
	ECLPENDANTJRFC_3D.zip	9MB
	ECLPENDANTJRFC_2DSYMBOLS.zip	222KB
	ECLPENDANTJRFC_TECHNICAL DRAWINGS.zip	3MB
	ECLPENDANTJRFC_SYMBOLS.zip	918KB
	PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx	488MB
	PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx	317MB

Tech docs

	File name	File size	Download

Software

	File name	File size	Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:

Firmware updates require the UPBOXPRO compatible with all Prolights products
It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
UpBox_Tool software is compatible with all UPBOX interfaces
To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide

Revision	Release date	Firmware changelog	HW Compatibility
Update Tool: UPBOXPRO
Check hardware changelog before downloading firmware
1.1.01.0 STABLE	03/05/2023	New functions: Spektra Calibration: new modes available ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced. PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output. OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures. When the fixture is connected in DALI, the display shows the address used. Improvements: Improved Dimmer Fade In/Out performance when Led Frequency@1200Hz. Improved White Point accuracy. Improved CCT alignement between ECLPENDANTFC and ECLPENDANTJRFC. Fixed bugs: After setting DMX BLACKOUT and removing the data signal, the fixture goes to BLACKOUT but slowly turn OFF the light source. Reconnecting the data signal, the fixture exit by Blackout mode with a fade. After setting DMX EMERGENCY and removing the data signal, the fixture goes to EMERGENCY but slowly turn ON the light source at full. Reconnecting the data signal, the fixture exit by Emergency mode with a fade. Strobe Channel @ 0 DMX Value not corresponding to Open function. Using Dali protocol, the transition between Scenes is performed with a random Fade timing.	Rev. 1.0 Rev. 2.0
1.1.00.0 STABLE	16/01/2023	First stable release.	Rev. 1.0 Rev. 2.0

Info Request

CPC Production Services relies on PROLIGHTS for professional lighting

March 14, 2025

CPC Production Services relies on PROLIGHTS for professional lighting

Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology

PROLIGHTS Lights Up the Stage at Vibe Budapest

March 12, 2025

PROLIGHTS Lights Up the Stage at Vibe Budapest

The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which

PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support

March 11, 2025

PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support

PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity

PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco

March 07, 2025

PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco

The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and

Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions

March 04, 2025

Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions

Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces

The Valencia's Museu de les Ciències shines with PROLIGHTS

February 27, 2025

The Valencia's Museu de les Ciències shines with PROLIGHTS

In the stunning setting of the Museu de les Ciències de Valencia, an exhibition center that invites visitors to explore the evolution of life, science, and technology through interactive experiences and scientific animations, NOX AUDIOVISUALES chose

HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!

February 26, 2025

HaluPix Duo Wins rAVe [PUBS] Best of ISE 2025 Award!

PROLIGHTS has been recognized at the rAVe [PUBS] Best of ISE 2025 awards , with HaluPix Duo winning the title of Best New Event Lighting Product in the Rental, Staging & Live Events category. This award highlights the product's innovation, performance,

PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!

February 13, 2025

PROLIGHTS Unveils the Smart BatPlus Neo: Redefining battery uplight, again!

PROLIGHTS is proud to announce the launch of the Smart BatPlusNeo , the latest innovation in battery uplighting product category . Building on the success of the legendary SmartBat Plus series, this next-generation fixture brings groundbreaking advancements

February 11, 2025

PROLIGHTS launches Jet Profile 300LT: Compact, Long-Throw Profile moving light

PROLIGHTS announces the release of the Jet Profile300LT , an all-new moving profile fixture that merges high-precision keylight with the power and reach of a long-throw fixture. Delivering superior aerial effects and long-distance projections, the Jet

February 07, 2025

PROLIGHTS Launches Astra Profile900: The New Flagship Moving Profile in the High-Power Class

PROLIGHTS announces the release of the Astra Profile900 , a moving head designed to address the needs of lighting professionals in live productions, studios, theatres, and events. Combining brightness, adaptability, and advanced motion technology, the

PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire

February 05, 2025

PROLIGHTS Launches Astra Hybrid260IP: All-Weather Phosphor Laser Hybrid Luminaire

PROLIGHTS announces the release of the Astra Hybrid260IP , a next-generation hybrid moving head luminaire that delivers unmatched performance and versatility in both indoor and outdoor events. Equipped with a 260W White Phosphor Laser source, the Astra

PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams

February 03, 2025

PROLIGHTS Introduces HaluPix DUO: Blending Pixel Surfaces with Dynamic Beams

PROLIGHTS is proud to announce the launch of the HaluPix Duo , a cutting-edge dual-layer LED matrix panel that introduces a new level of innovation in lighting design for stages and television. This 50x50 cm panel seamlessly combines powerful, long-throw

Subscribe to our Newsletter
