ECLST100PACK
PROLIGHTS


EclSoft Tube100Pack

ORDER CODE: ECLST100PACK

100 cm, battery-powered soft tube for Film & TV, IP65, with an RGB + Warm White LED source, wireless or wired

The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.

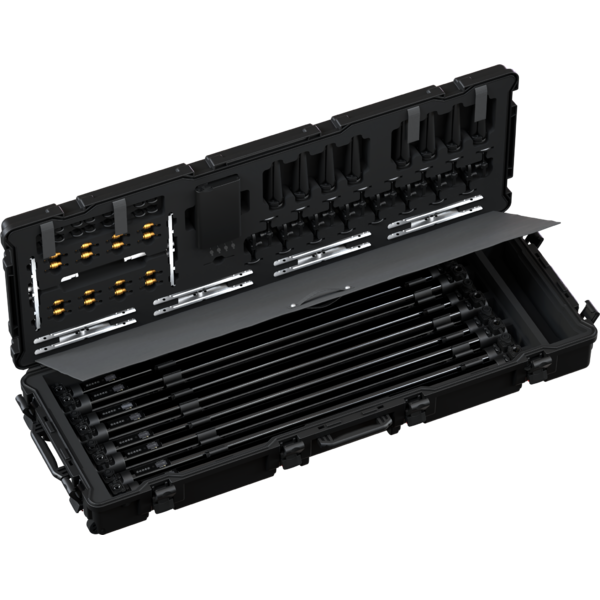

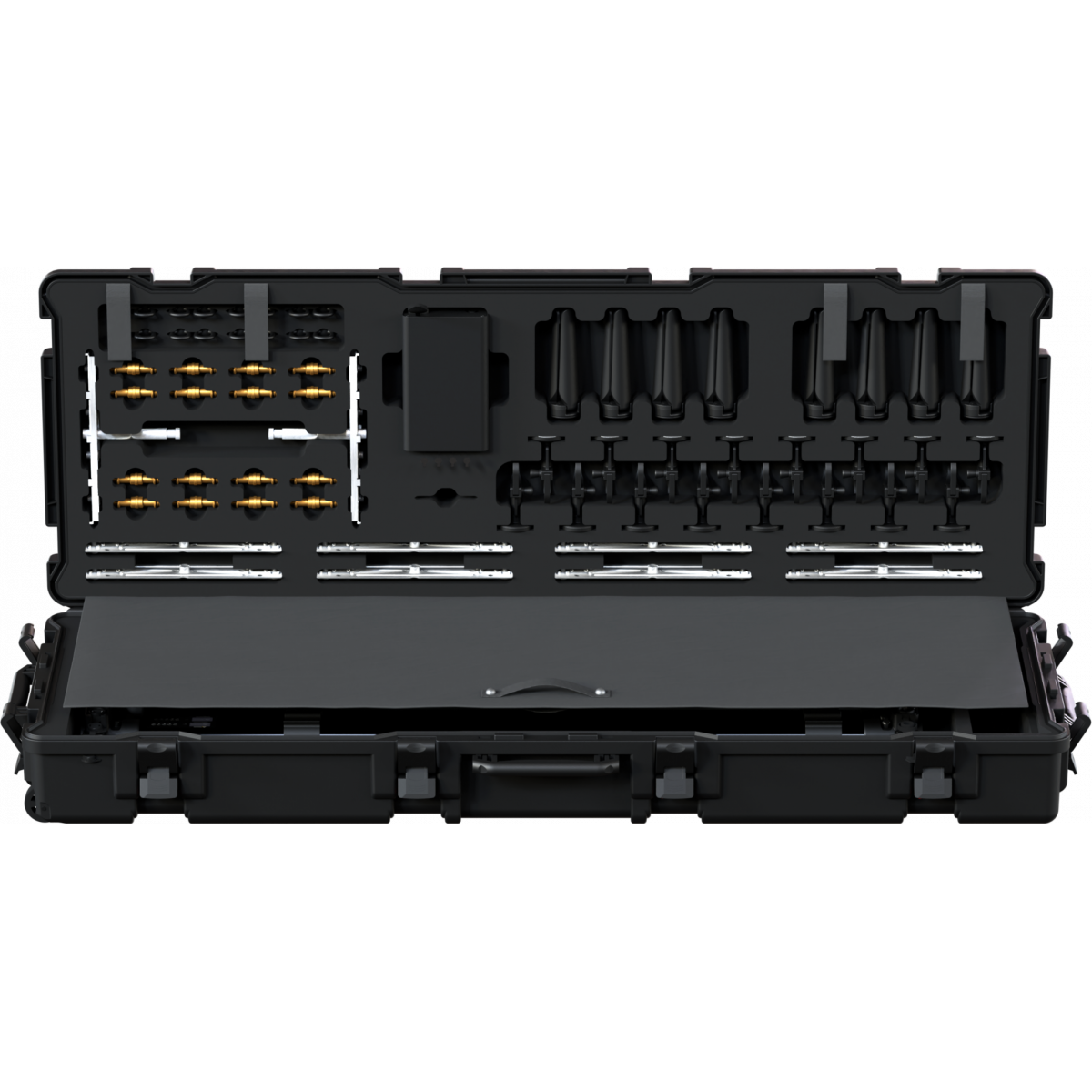

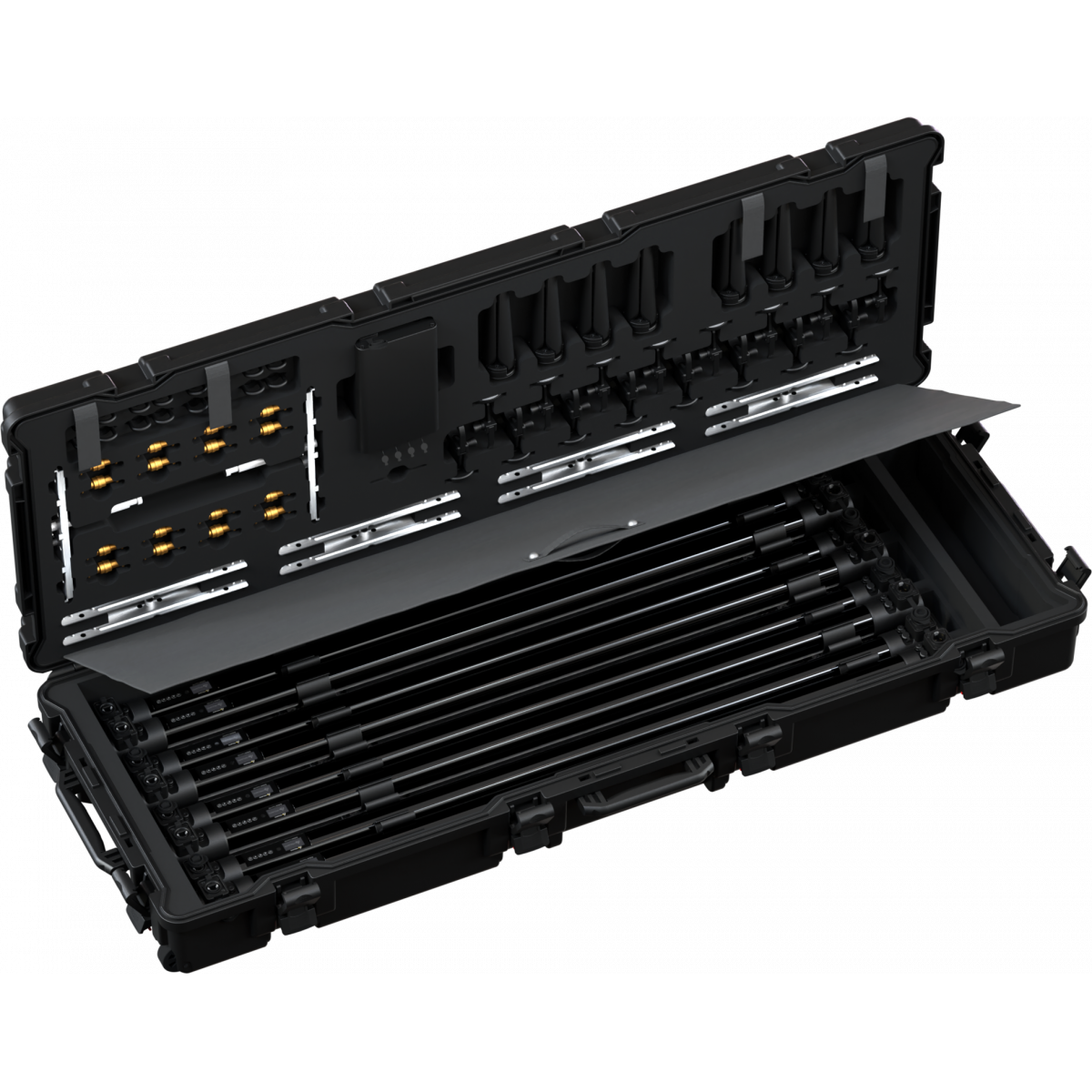

The pack includes:

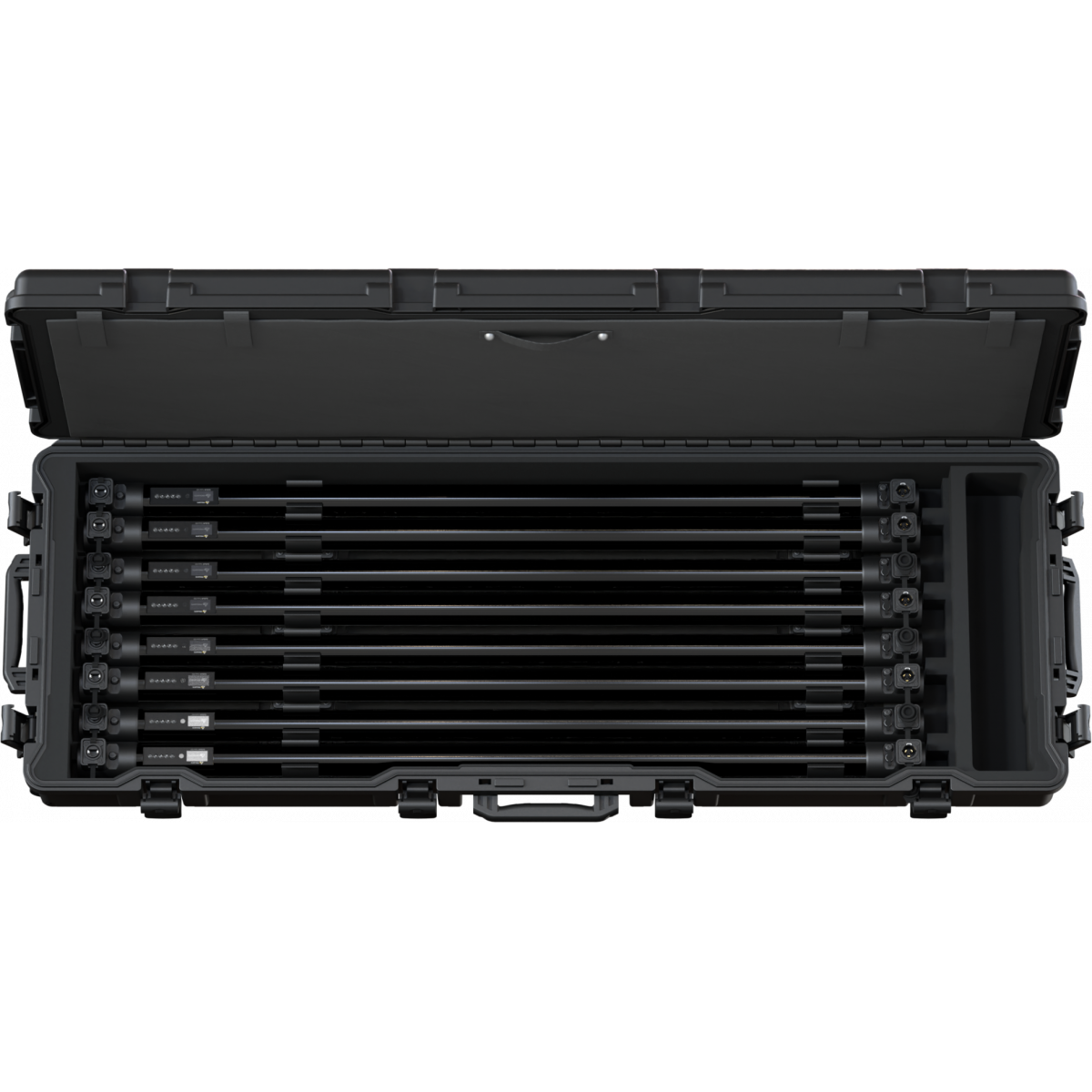

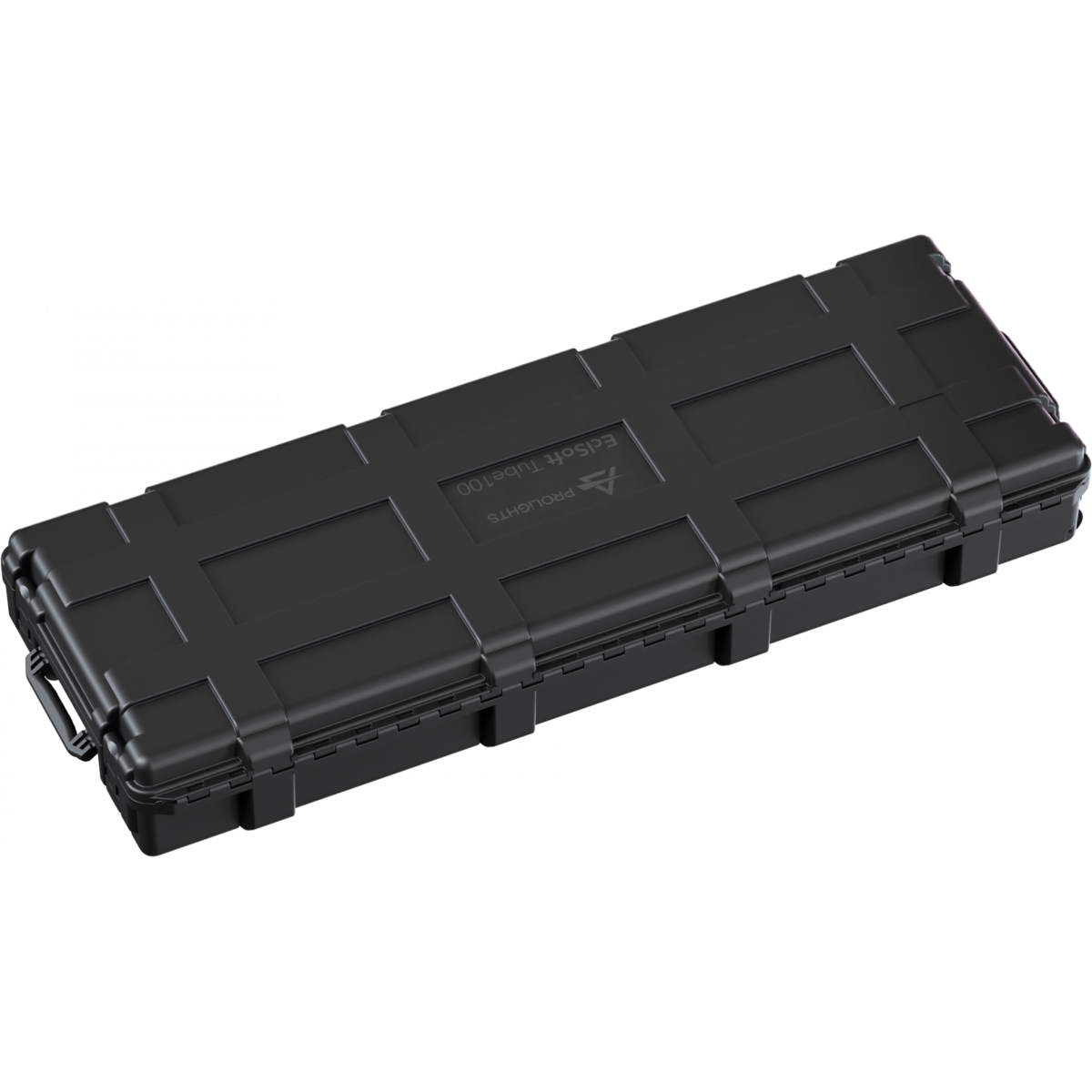

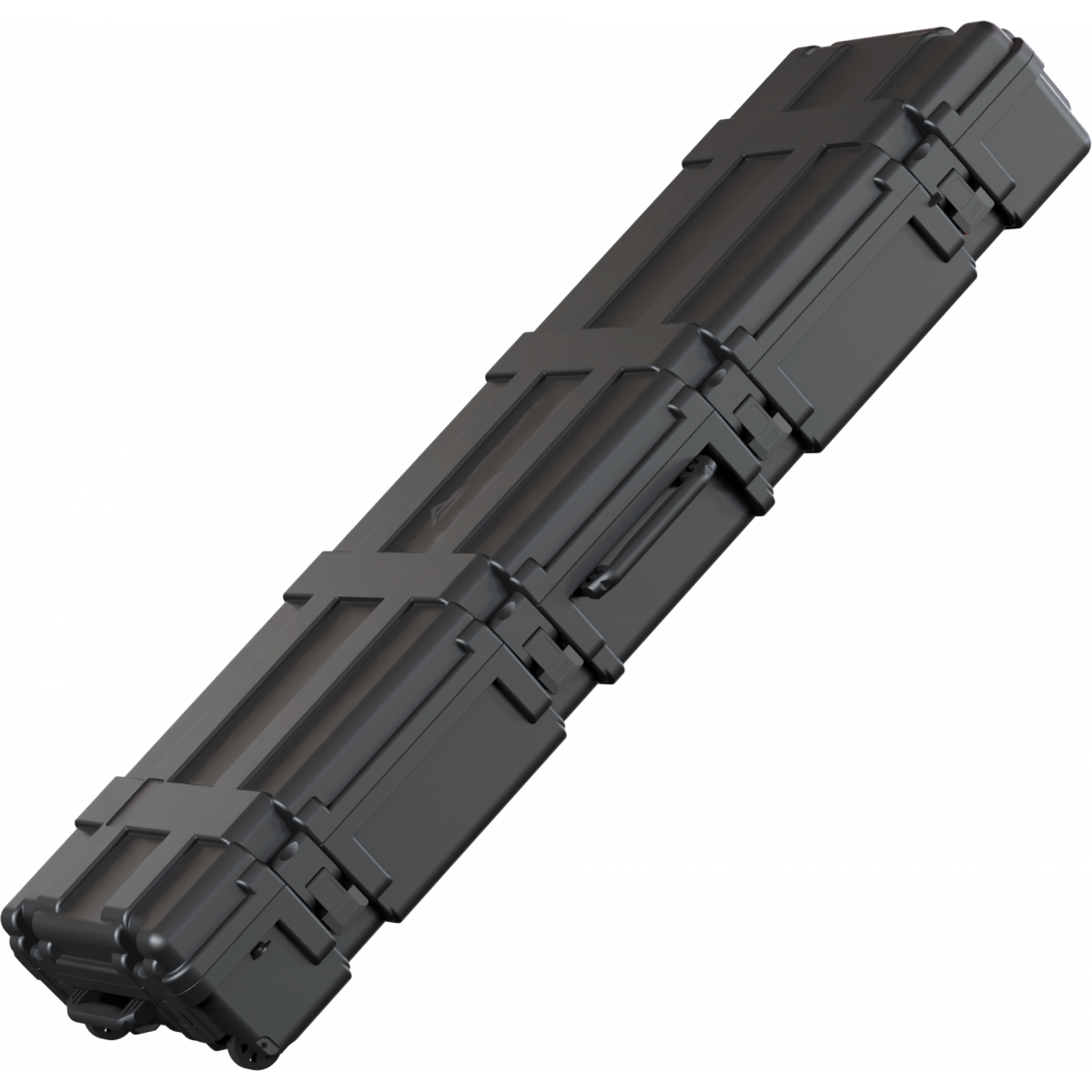

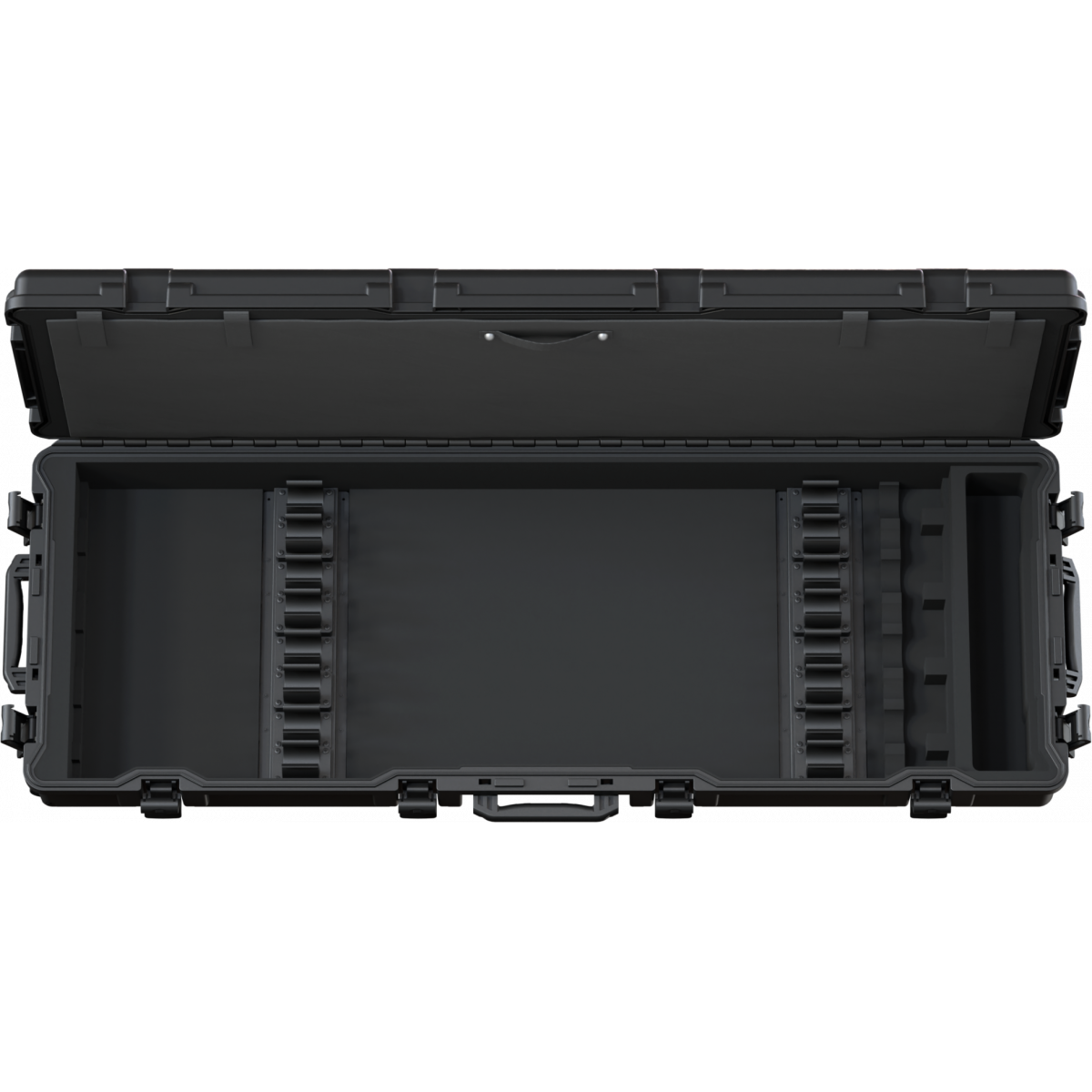

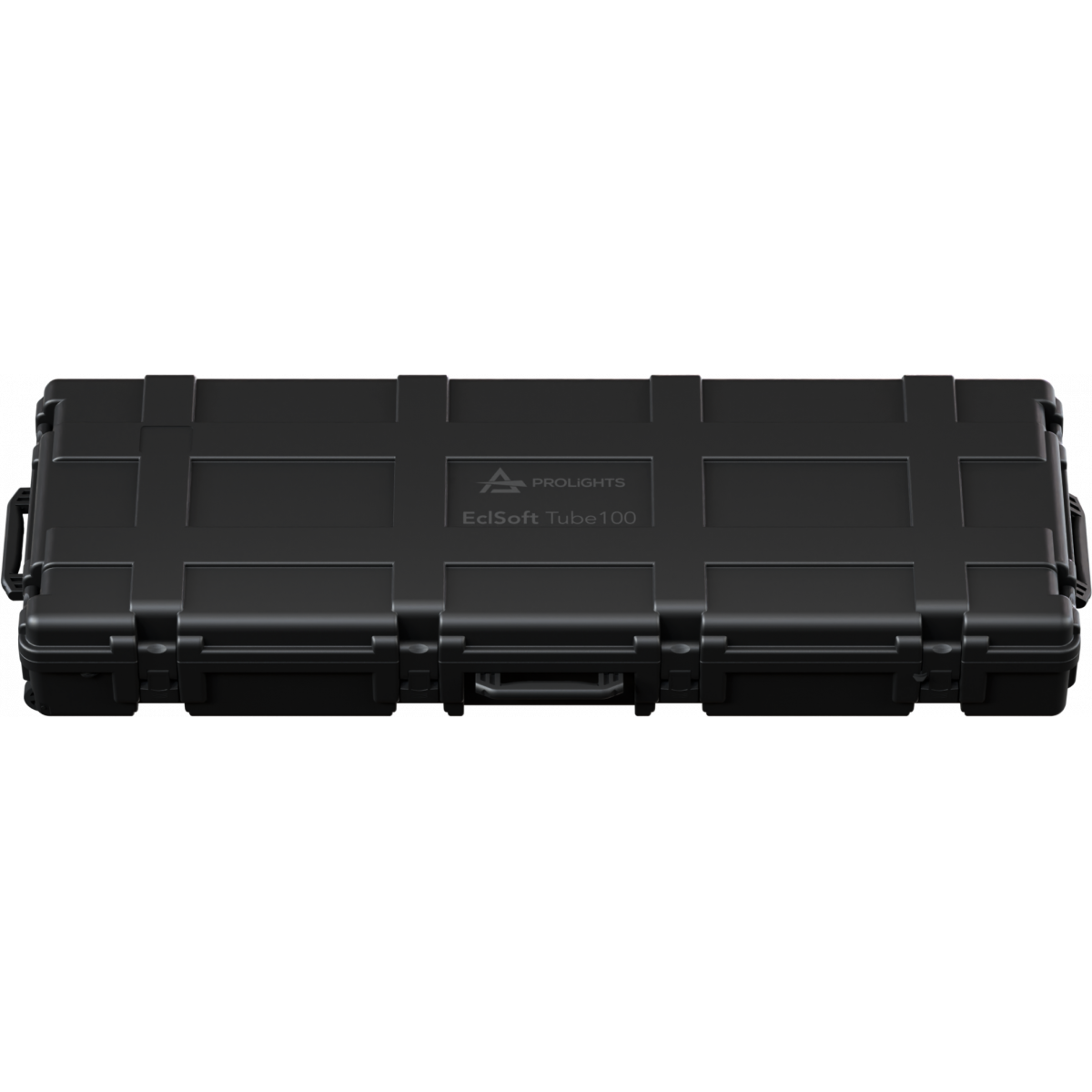

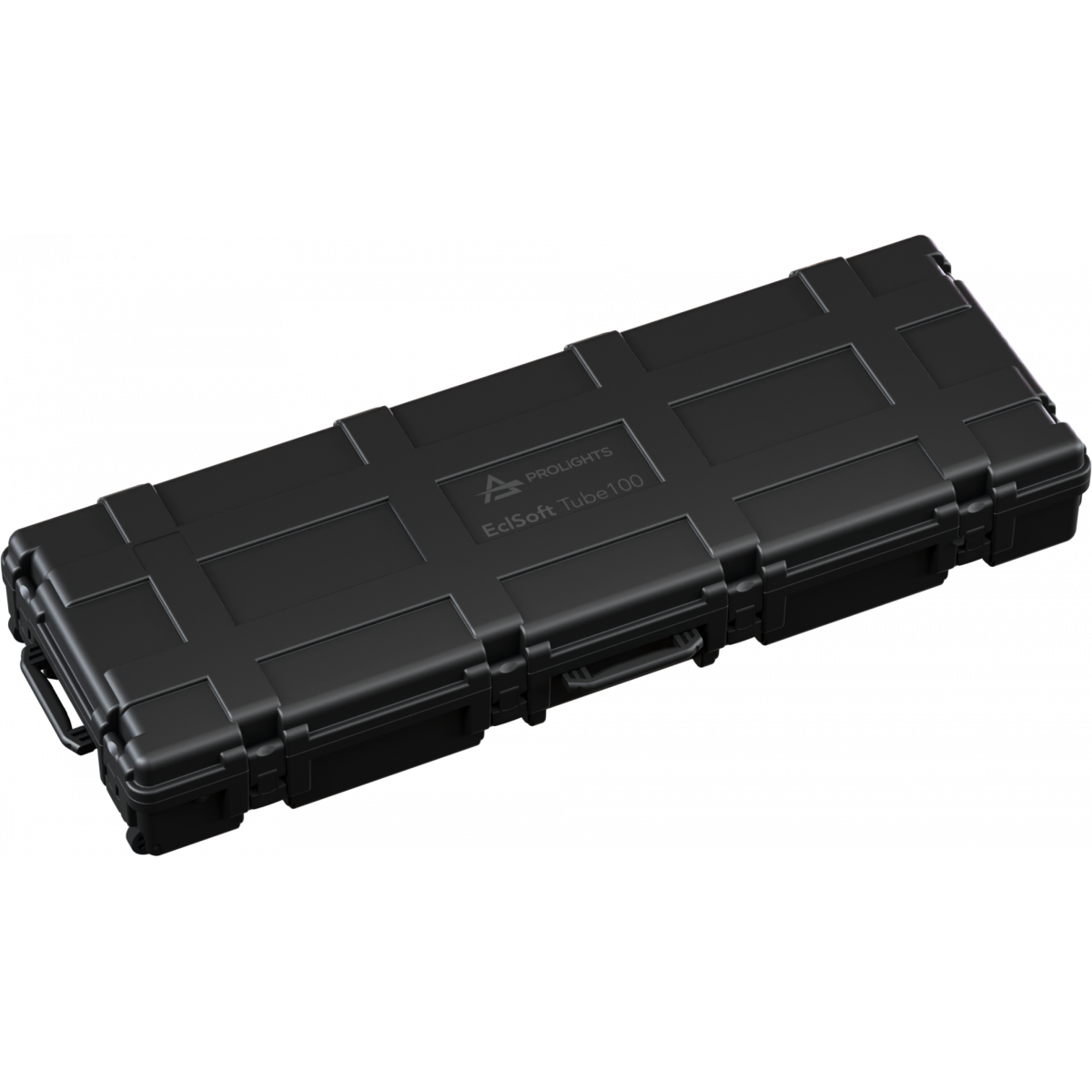

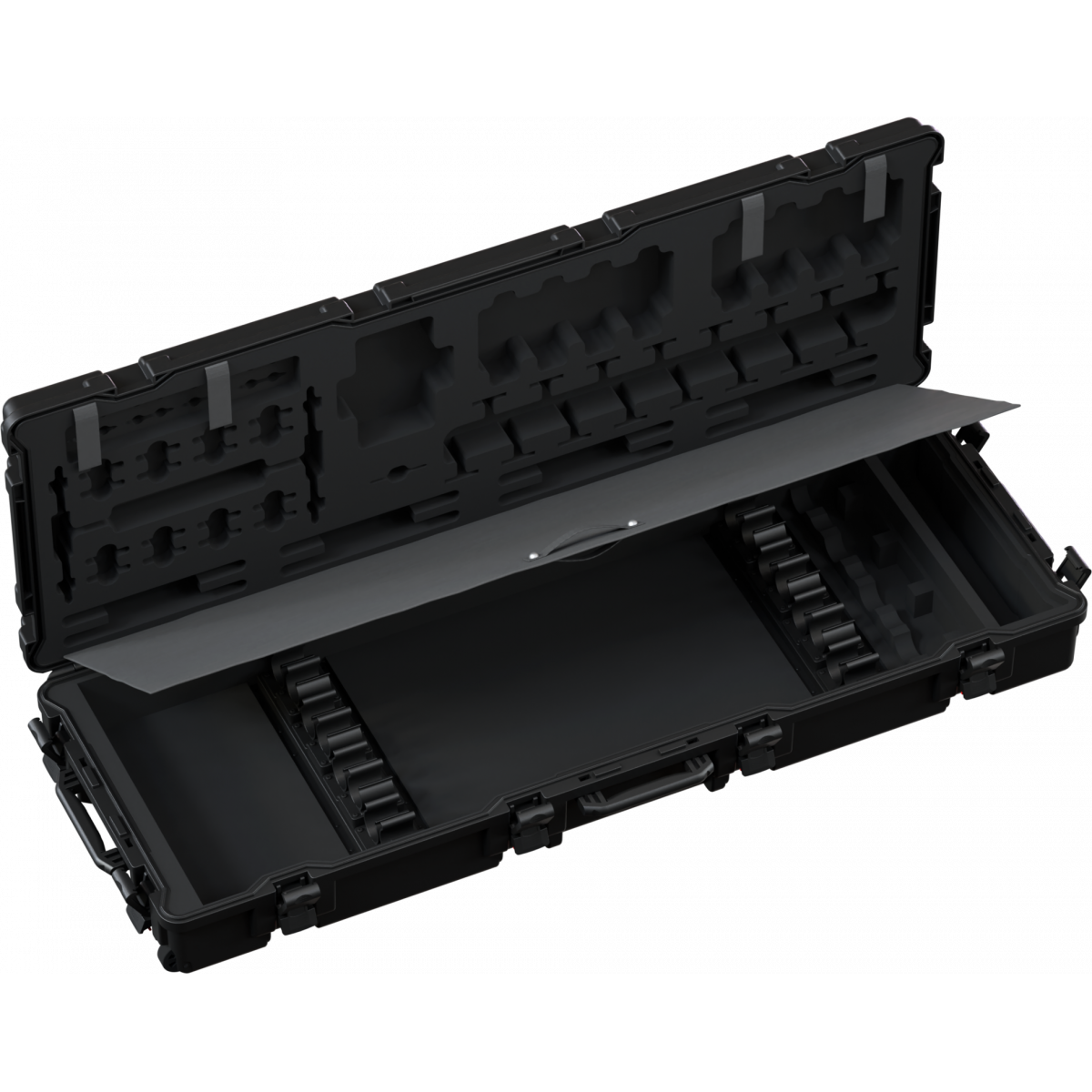

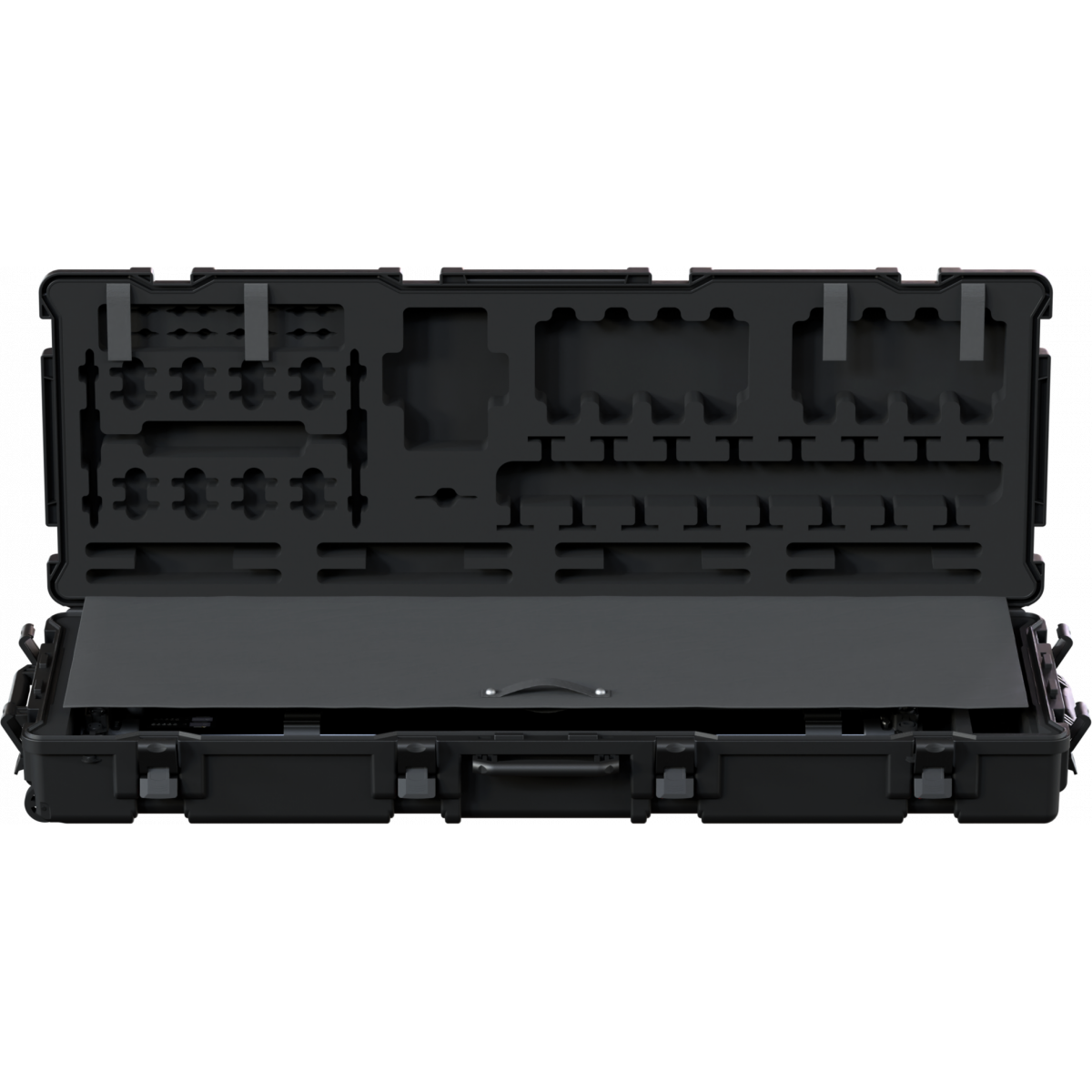

1 x ABS case

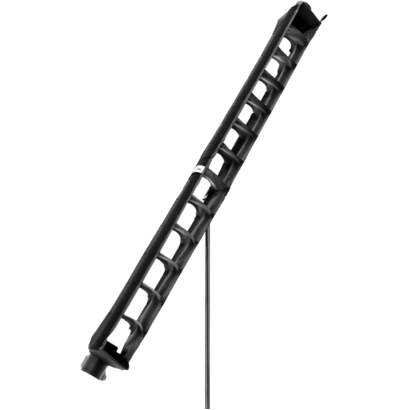

8 x ECLSOFTTUBE100

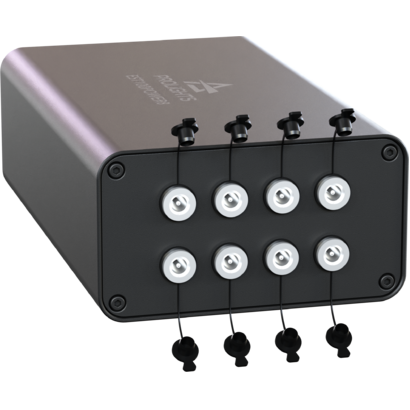

1 x 8-way charger (EST100POWER8)
8 x tripods (EST100FY)

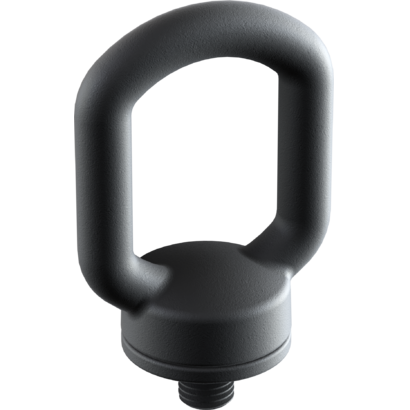

16 x eyebolts (EST100EB)

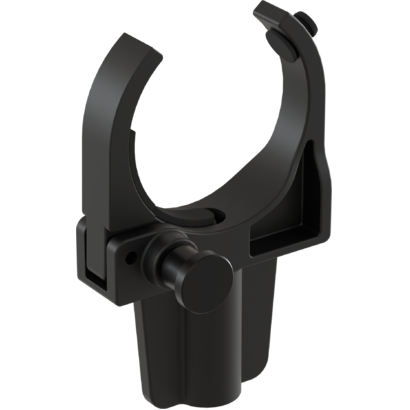

16 x clamps with magnets (EST100OSPLUS with ENPTWCMAG)
16 x baby pins (EST100BP)

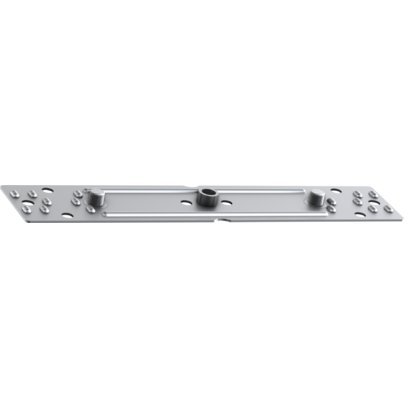

8 x wingplate (EST100WP)
2 x crossplate (EST100CP)
1 x User Manual


Main features:

  • Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
  • Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
  • IP65 for outdoor applications

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 48W RGB + Warm White
  • Luminous flux: 2'386lm @full
  • Lux: 71lx @3 m
  • Lux: 161lx @2 m
  • CRI: 93
  • R9: 92
  • TLCI: 91
  • TM30 Rf: 91
  • TM30 Rg: 105
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 128°
  • Field angle: 199°
  • Lens type: frosted acrylic tube
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • FX generator: 16 sections with adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy policarbonate and die casting aluminium
  • Body colour: black on the back and white wash on the front
CONTROL
  • Protocols: Art-Net, Kling-Net, sACN, CRMX+W-DMX
  • DMX channels: main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 3.000 / 6.000 /12.000 / 24.000 Hz
ELECTRICAL
  • Max power consumption: 55 W
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 24V
  • Power factor: >0,96
BATTERY
  • Battery: 24V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
  • Re-charge connection: DC with jack and AC with standard powercon connector
  • Re-charge time: 5h/max
  • Battery status: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through external charger
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M5 threaded insert for eye bolt, floor stand and clamp for wall installation
  • Data connection: Seetronic RJ45 IP65 IN
  • Power connection: DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 1.163x50x50mm / 0.05''x1.97''x1.97''
  • Weight: ()49,4kg / 0lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Versions

Accessories & Related Products

EST100OSPLUS
EST100OSPLUS
(optional)
Clamp for ECLSOFTTUBE100

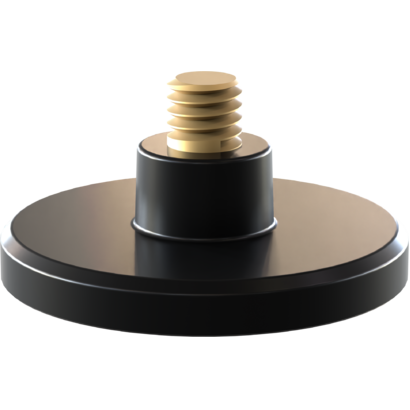

ENPTWCMAG
ENPTWCMAG
(included)
Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100
EST100MAGADP
EST100MAGADP
(optional)

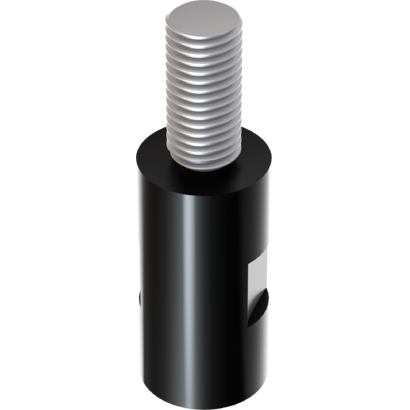

M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100
EST100FY
EST100FY
(included)

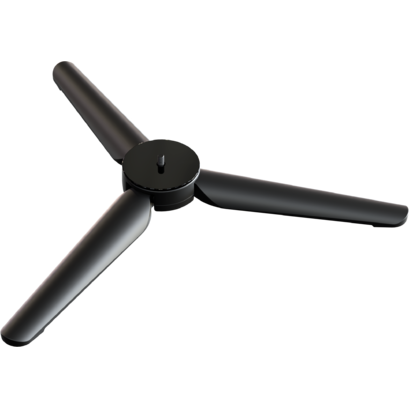

Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100
EST100EB
EST100EB
(included)
Eyebolt for ECLSOFTTUBE100
EST100BP
EST100BP
(included)

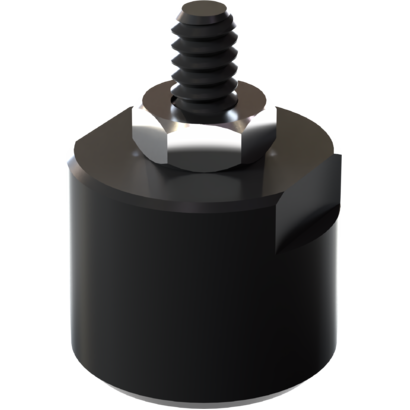

Baby Pin for ECLSOFTTUBE100
EST100WP
EST100WP
(included)
Wingplate for ECLSOFTTUBE100
EST100CP
EST100CP
(included)

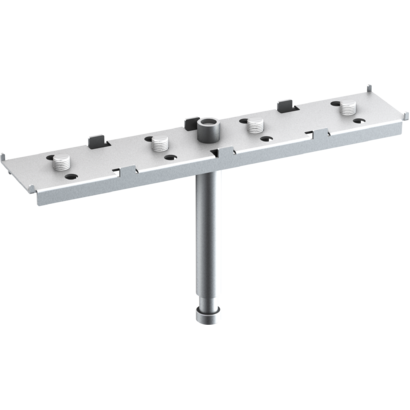

Crossplate for ECLSOFTTUBE100
EST100SPCR
EST100SPCR
(optional)
Spacer for ECLSOFTTUBE100
EST100POWER8
EST100POWER8
(included)
8-way charger for ECLSOFTTUBE100
EST100POWER
EST100POWER

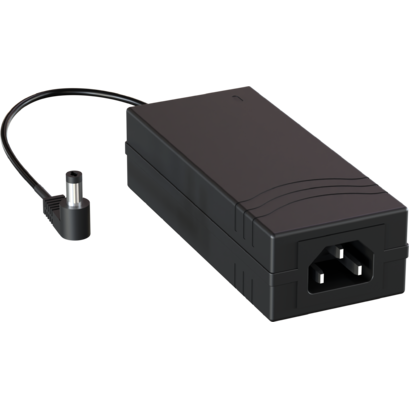

(optional)
Single charger for ECLSOFTTUBE100
PRL-IRC
PRL-IRC
(optional)

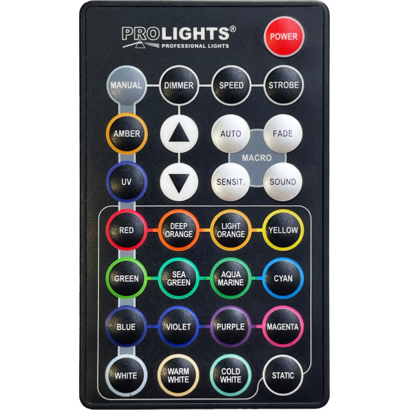

RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
EST100SB
EST100SB
(optional)

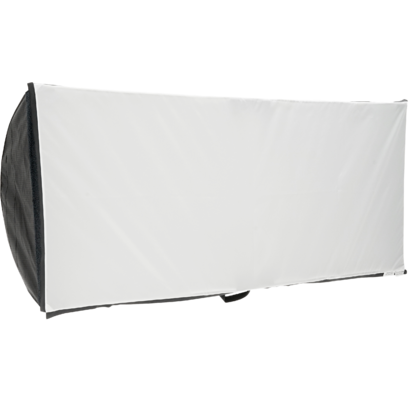

SnapBag per fino a 4 pcs ECLSOFTTUBE100 by DoP choice
EST100SG40
EST100SG40
(optional)
40° SnapGrid, for ECLSOFTTUBE100 by DoP choice
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

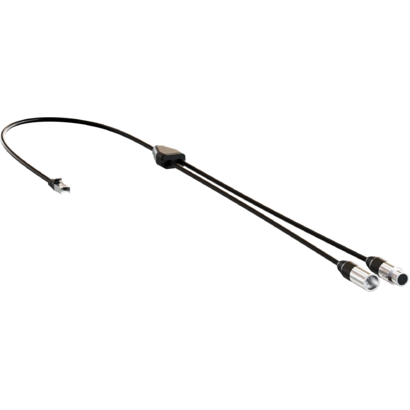

EST100UPBOXI
