HALUPIXDUOPACK
PROLIGHTS

HaluPix Duo Pack new

ORDER CODE: HALUPIXDUOPACK

Pack with 4 HALUPIXDUO, flight case, 4 power cables

The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.
Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.
The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.
HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.
In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

The pack includes:

  • 4 x HALUPIXDUO
  • 1 x flight case (FCLHALUPIXDUO)
  • 4 x power cables


HALUPIXDUOPACK weight: 108 kg

Main features:

    {DESC_CARATTERISTICHE}

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Light source: 7 x 7 4° 2700K LEDs + 21 x 21 120° RGB+WW LEDs
  • Luminous flux: 11'388 lm (total) @Full
  • Luminous flux: 7'391 lm (beam layer) | 12'555 lm (pixel layer) @Full
  • Lux: (total) 23'686lx @5 m full
  • Lux: (beam layer) 51'268 lx | (pixel layer) 173lx @5 m full
  • CRI: (beam layer) > 80 @2700K; (pixel layer) 94 @3200K; 91,5 @5600K
  • R9: (pixel layer) 94,8 @3200K; 95,8 @5600K
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (beam layer) 3,6°; (pixel layer) 116°
  • Field angle: (beam layer) 6,8°; (pixel layer) 155°
  • Additional optics: available optional optics for beam LEDs 12°, 24°
  • Other: Pixel pitch (BEAMs) 72 mm | (PIXELs) 24 mm
COLOUR SYSTEM
  • Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
BODY
  • Bracket system: spigot for tripod use and bracket for truss rigging
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: weatherproof IP65 construction with magnesium alloy
  • Curve configurations: -10° to +15° with onboard mechanics - back accessories for ground applications compatible with KAPPAX Ledwall
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX
  • DMX channels: from 12 channels to 1855channel
  • Pixel control: pixel2pixel control
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: up to 6 independent selectable dimmer curves per source
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 500W
  • Standby power: 14,8 W
  • Output (at 230V): 4 units on a single power line
  • Output (at 120V): 2 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: spigot for tripod use, bracket for truss rigging and hardware for connection of more units
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 500x500x133mm / 19.69''x19.69''x5.24''
  • Weight: 16,3kg / 35.94lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus

Versions

Accessories & Related Products

FCLHALUPIXDUO
FCLHALUPIXDUO
(Optional)

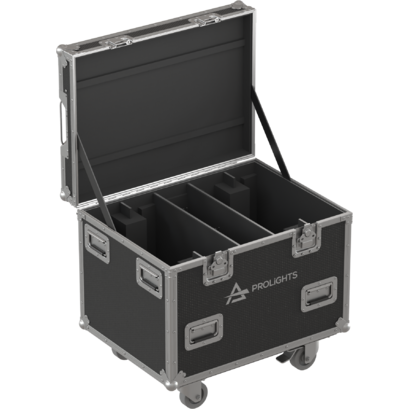

Flight case for 4 pcs HALUPIXDUO
HDL12
HDL12
(Optional)

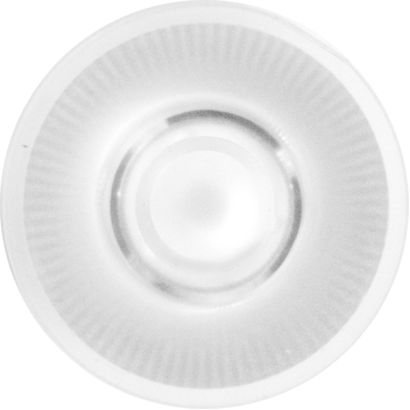

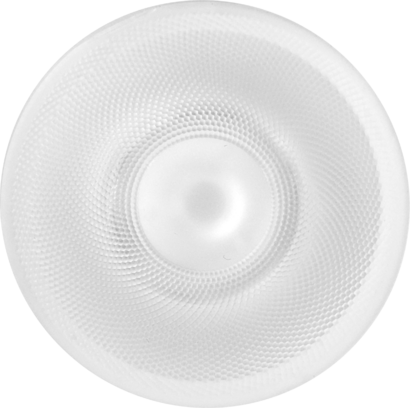

Optional Beam Lenses 12° for HALUPIXDUO
HDL24
HDL24
(Optional)
Optional Beam Lenses 24° for HALUPIXDUO
OS25PLUS
OS25PLUS
(Optional)

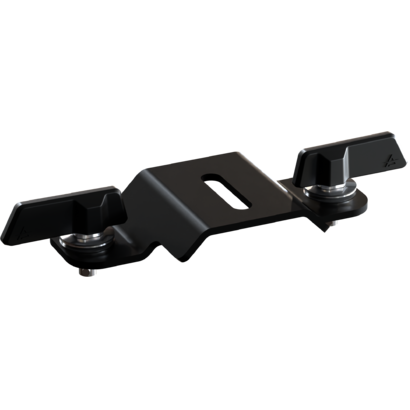

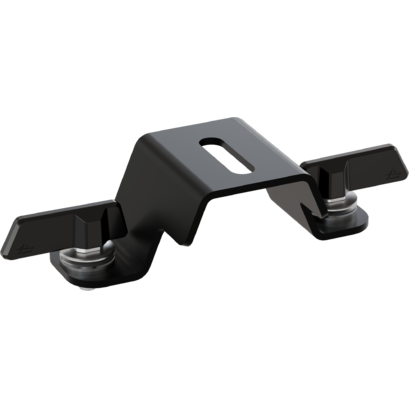

Quick-lock omega bracket, M12 hole
OS25H3PLUS
OS25H3PLUS
(Optional)
Quick-lock omega bracket, 6 cm height, M12 hole
HDWK
HDWK
(Optional)

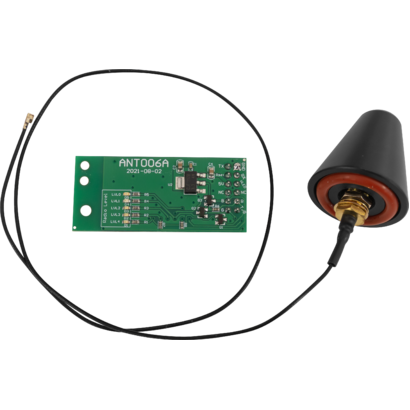

Wireless Kit for HALUPIXDUO
ECLFRSPG
ECLFRSPG
(Optional)

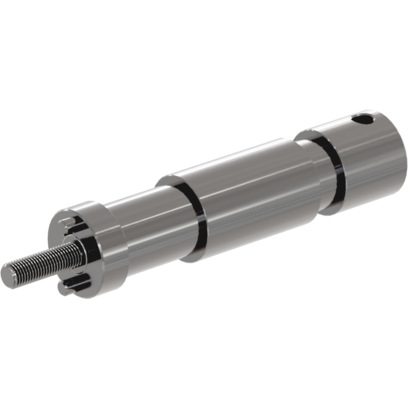

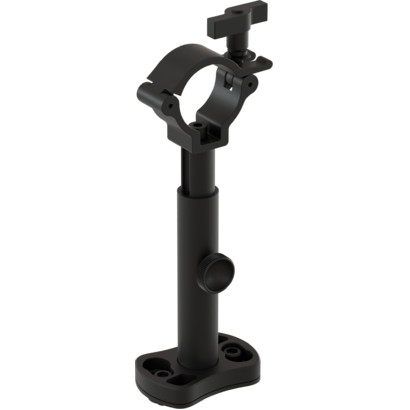

Spigot for PROLIGHTS fixtures
VBSPG
VBSPG
(Optional)
Spigot for HALUPIXDUO
VBJMPF
VBJMPF
(Optional)

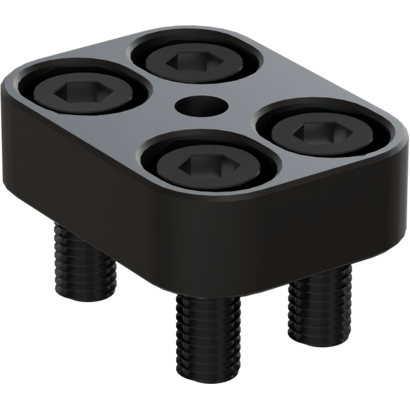

Metal joint used to connect 4 pcs HALUPIXDUO cabinets in flat configuration, M10 hole
VBJMPC
VBJMPC
(Optional)

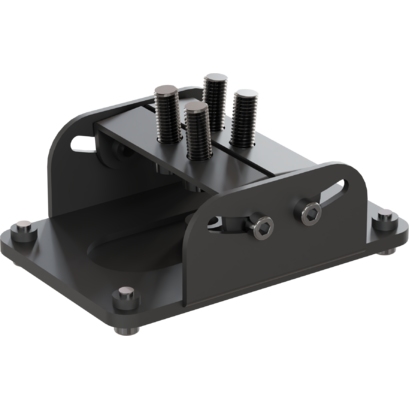

Metal joint used to connect 4 pcs HALUPIXDUO cabinets in curve configuration, M10 hole
VBHGB01
VBHGB01
(Optional)

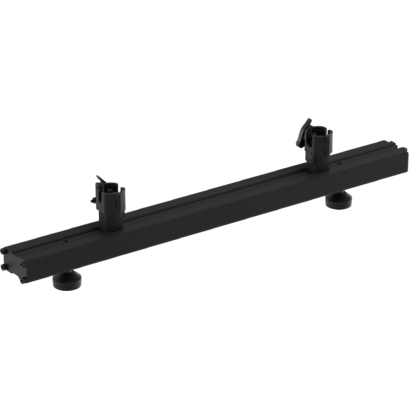

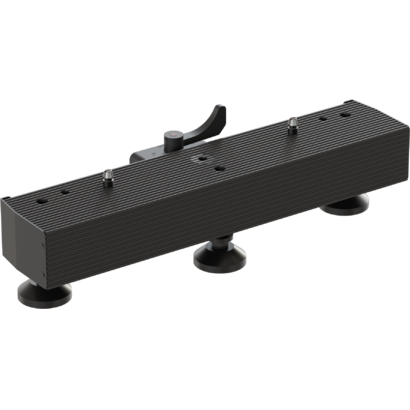

Fly bar / ground bar for HALUPIXDUO, 1 column
VBHGB02
VBHGB02
(Optional)

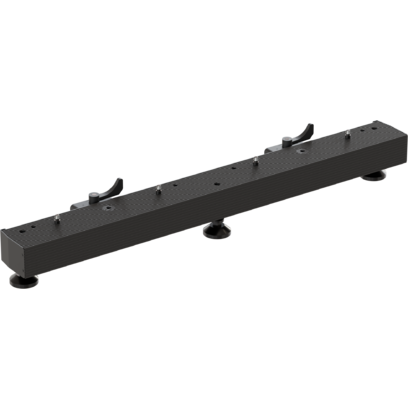

Fly bar / ground bar for HALUPIXDUO, 2 column
KSXCJB
KSXCJB
(Optional)

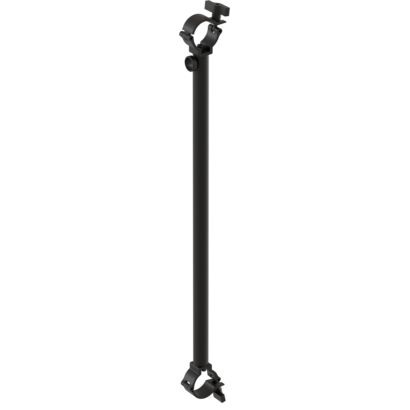

Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXSPC
KSXSPC
(Optional)

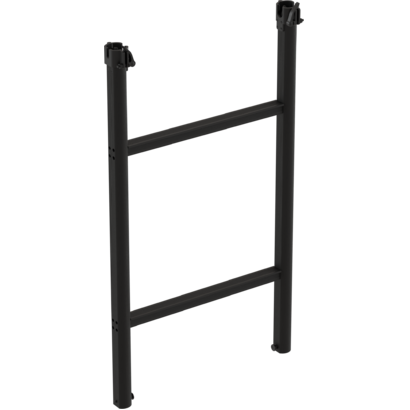

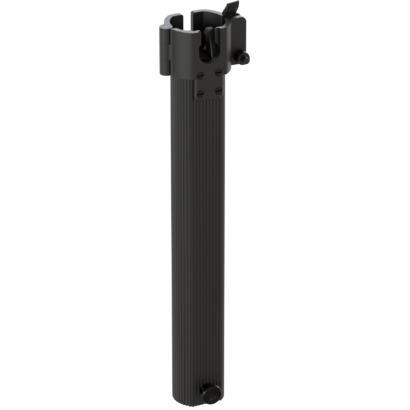

Ground structure spacer for HALUPIXDUO
KSXBS21
KSXBS21
(Optional)

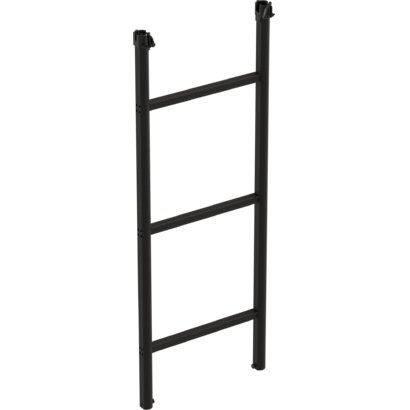

2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
LRAURORA
LRAURORA
(Optional)
Single Universe DMX/RDM transceiver with WiFi and Bluetooth
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chartHalupixduopack_DMX_CHARTS.pdf447KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
