EclMiniFresnel

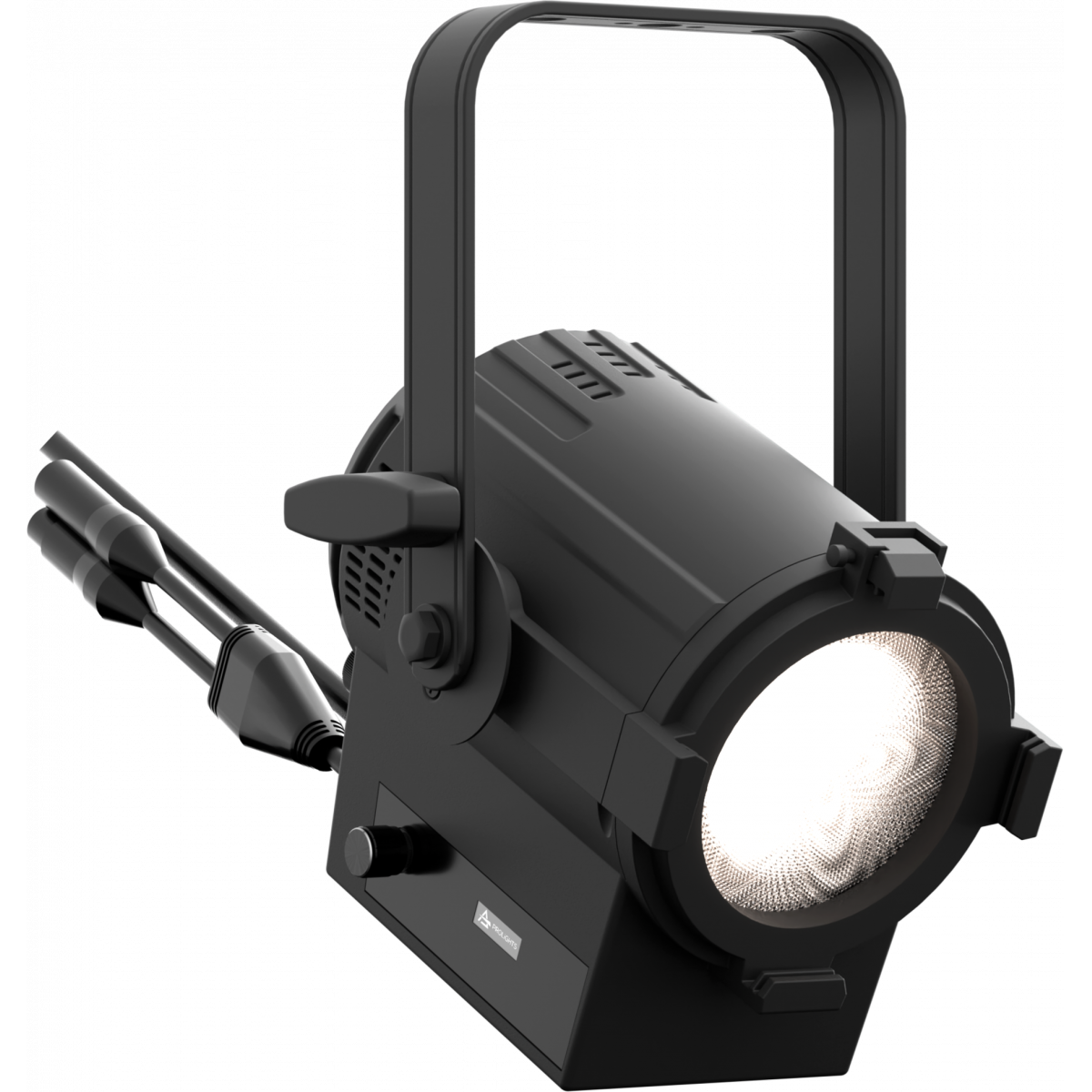

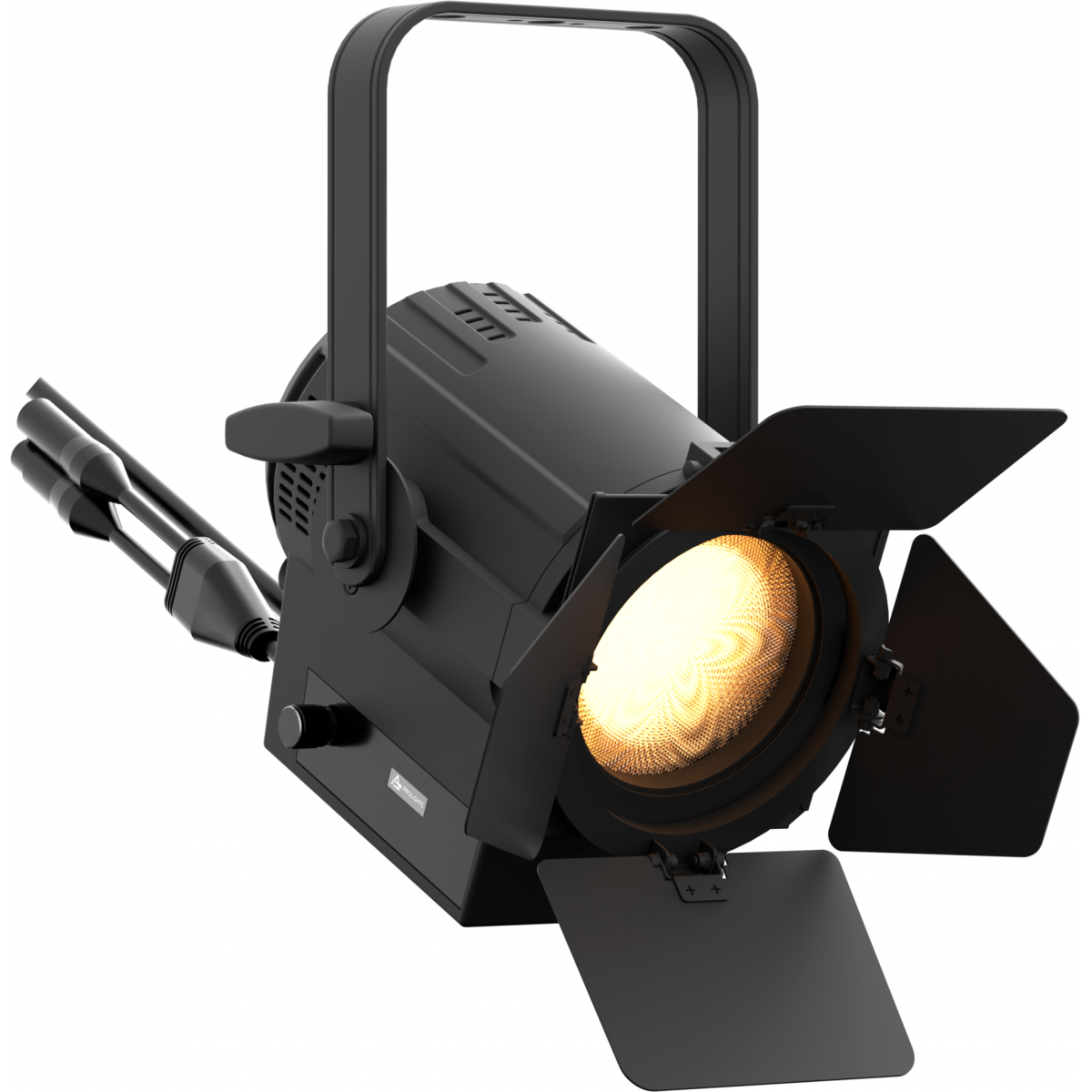

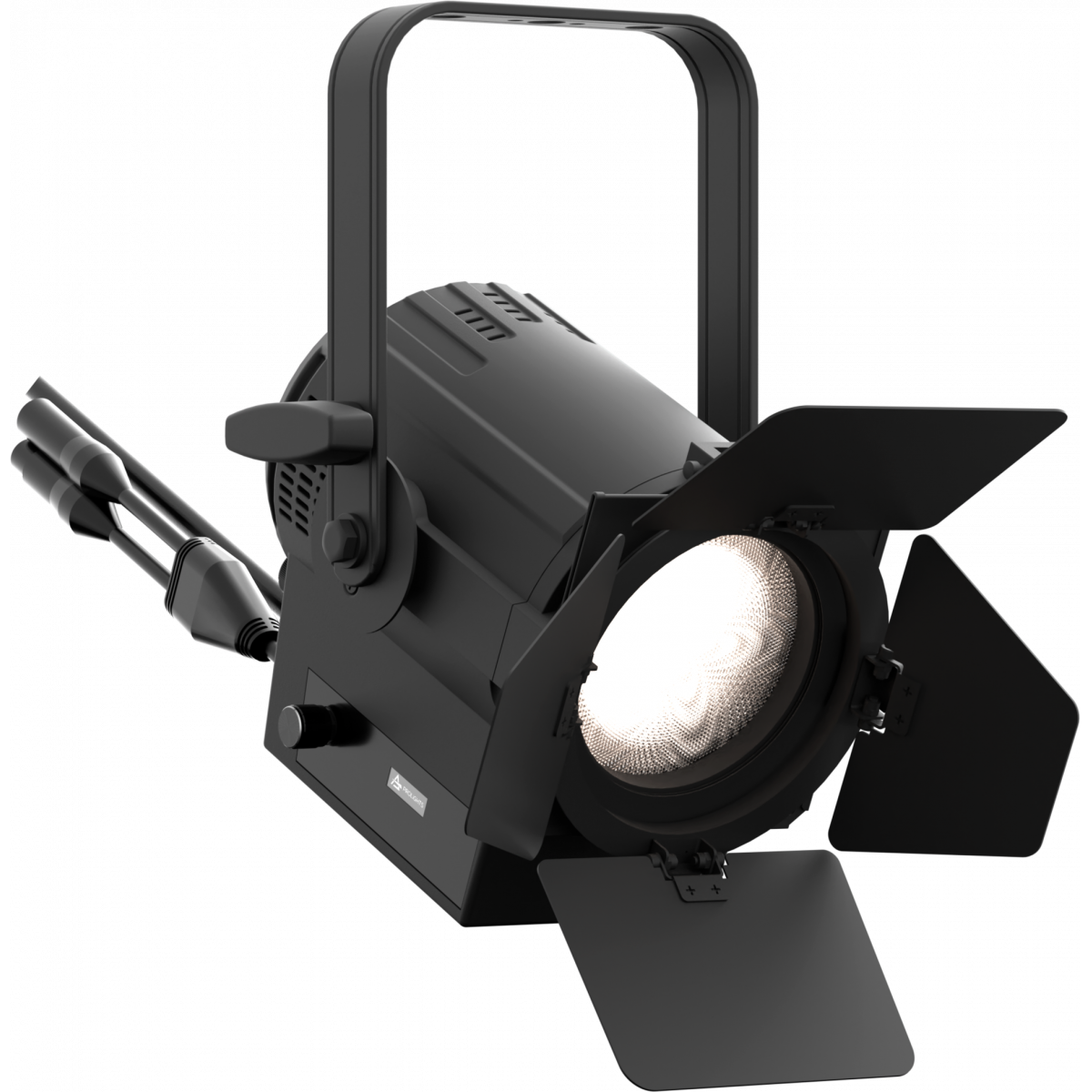

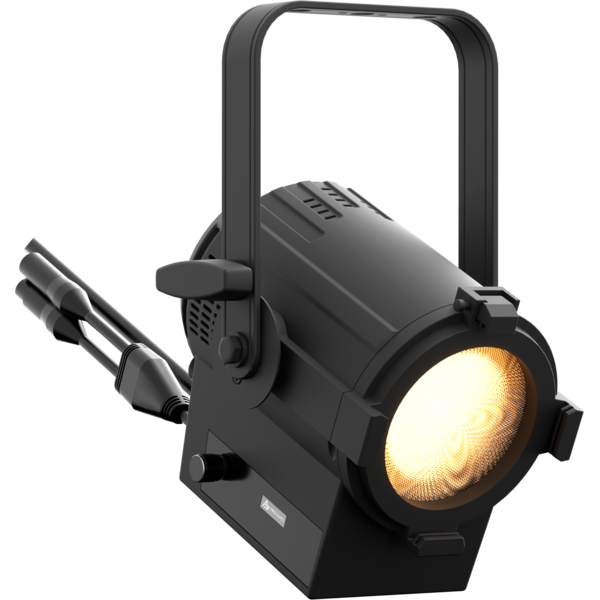

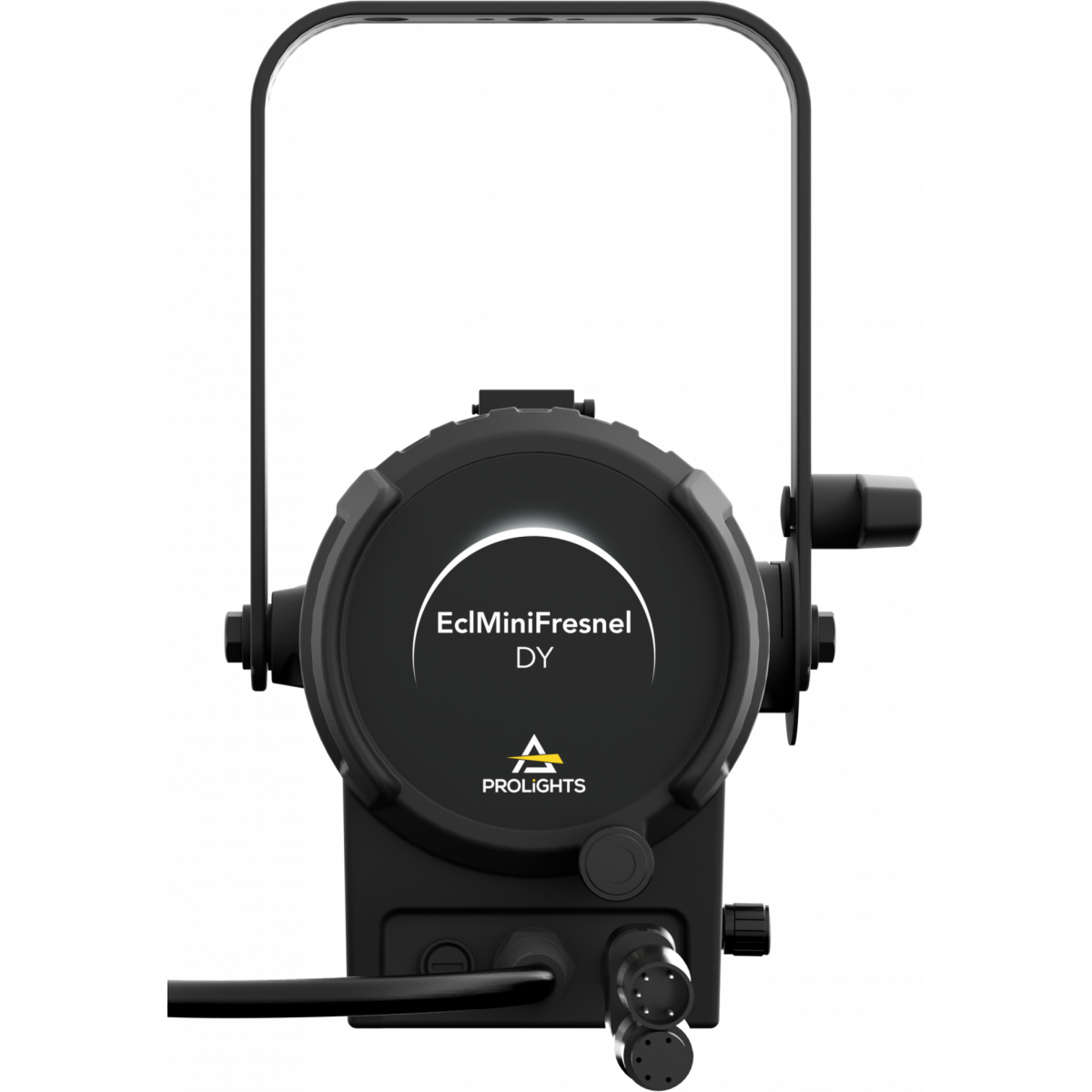

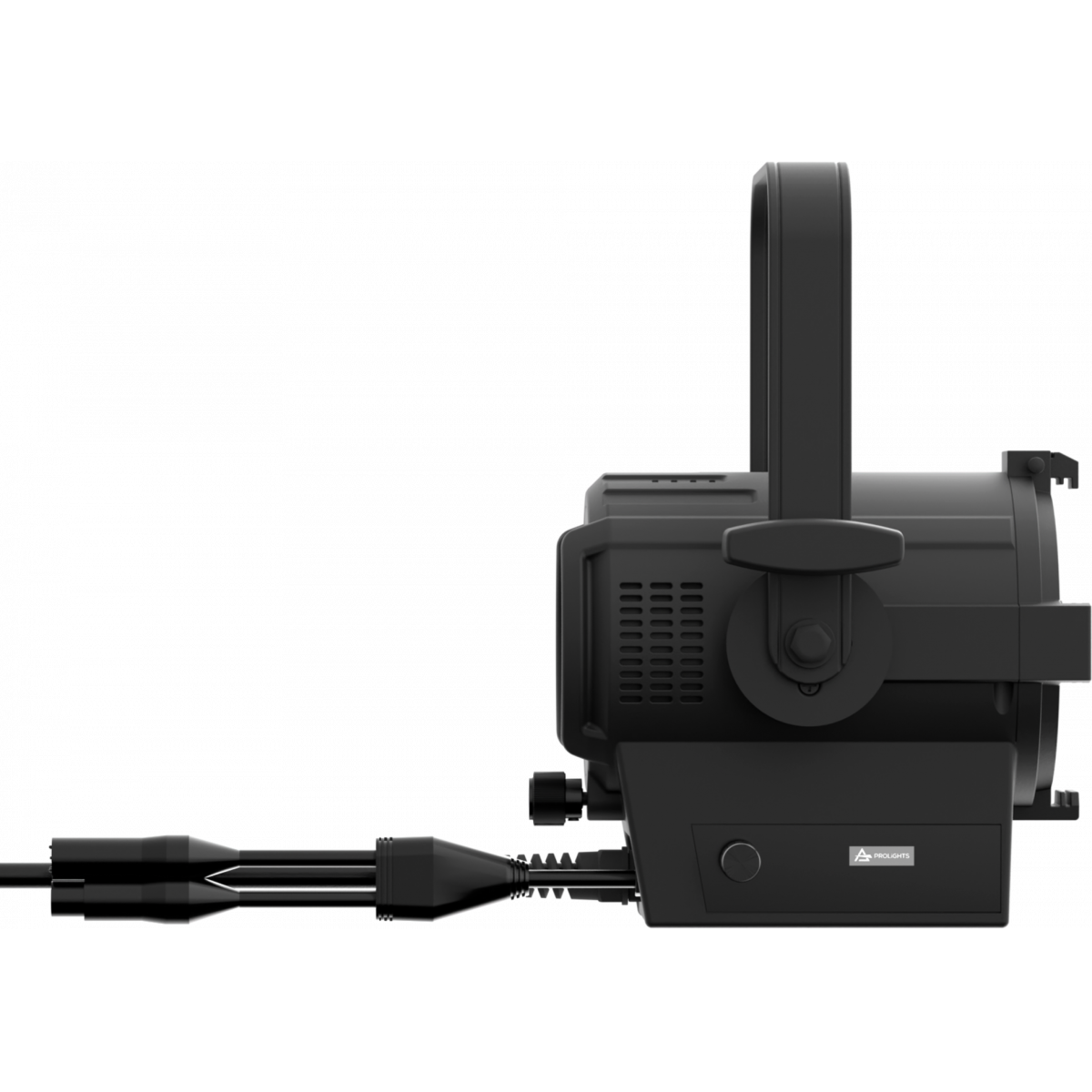

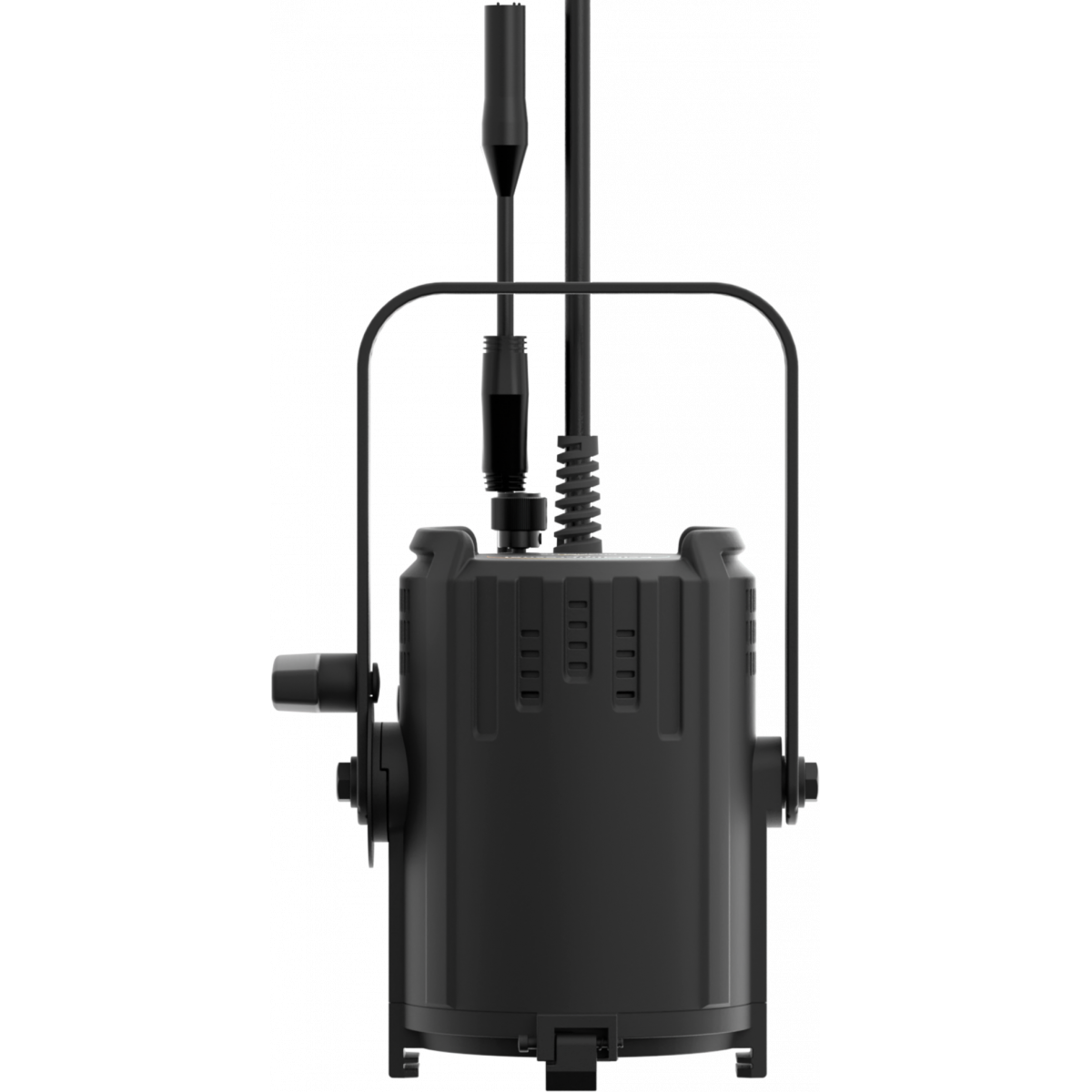

LED fresnel with HB white source, to replace 300W lamp

EclMiniFresnel is the LED replacement for a standard tungsten 300W Fresnel. Featuring all the output characteristics of a traditional Fresnel, but with the added benefits of beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclMiniFresnel adds all the advantages of the LED to the traditional Fresnel.

Main features:

  • TU (3.000 K) and DY (5.000 K) versions available both with HD dimming
  • Fresnel lens with 21° to 79° manual zoom range
  • Truly silent operation making it perfect for studio and stage use
See variants

PHOTO GALLERY

EclMiniFresnel
EclMiniFresnel
EclMiniFresnel
EclMiniFresnel
EclMiniFresnel
EclMiniFresnel
EclMiniFresnel
EclMiniFresnel

Technical specifications

LIGHT SOURCE
  • Source: 40W LED (driven @ 35W)
  • CCT: (TU) 3.000 K - (DY) 5.000
  • Luminous flux: (TU) (21°) 856 lm; (79°) 2'183 @Full
  • Luminous flux: (DY) (21°) 1'168 lm (79°) 2'851 lm @full
  • Lux: (TU) (21°) 236 lx - (79°) 86lx @5 m full
  • Lux: (DY) (21°) 321 lx - (79°) 113lx @5 m full
  • CRI: (TU) >92 - (DY) >81
  • TLCI: (TU) >93; (DY) >67
  • TM30 Rf: (TU) >90; (DY) >80
  • TM30 Rg: (TU) >99; (DY) >95
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 21° - 79° manual
  • Lens diameter: 3.93'' - 100mm / 0.15''
  • Lens type: Fresnel zoom lens
  • Other: spigot not included; gel frame and barndoors included
COLOUR SYSTEM
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: aluminium die-casting
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2-1 / 2-2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 35W
  • Power factor: >0,55
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: DMX 5p IN/OUT
  • Power connection: bare end connection
  • Dimensions (WxHxD): 191x281x203mm / 7.52''x11.06''x7.99''
  • Weight: 2,38kg / 5.25lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
MINIECLFRTU
MINIECLFRTU
3.000K
92
2'183 lm
MINIECLFRDY
MINIECLFRDY
5.000K
81
2'851 lm

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures

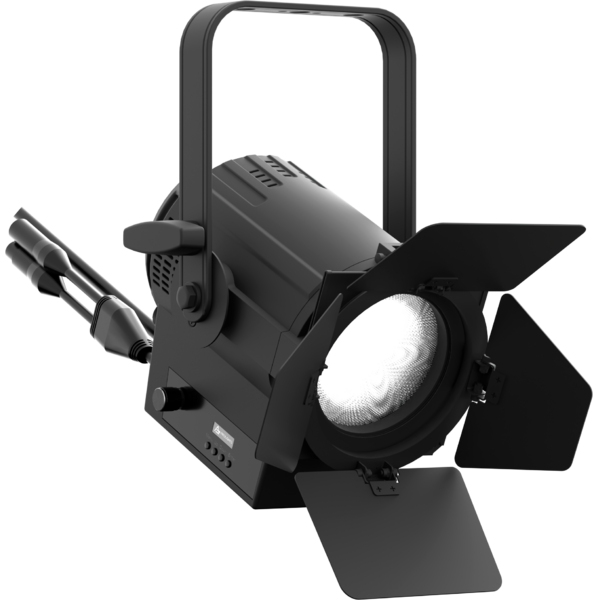

MINIECLFRBD
MINIECLFRBD
(Included)
Black&White& White barn door 4 directional flaps to adjust the light beam, black

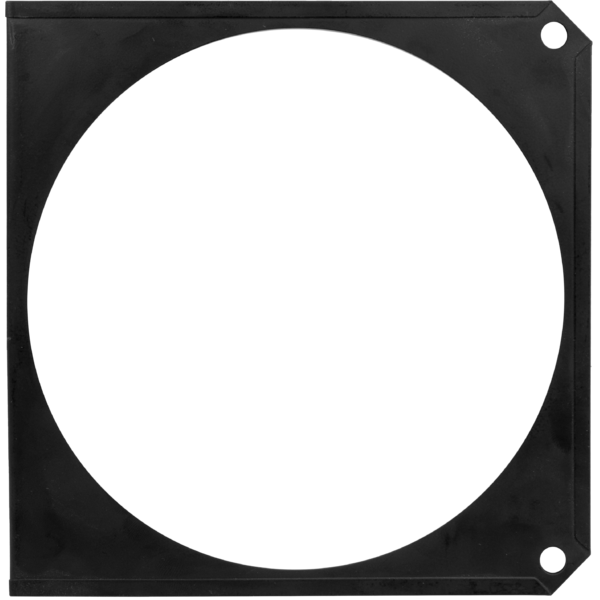

MINIECLFRTPG
MINIECLFRTPG
(Included)
Filter frame for MINIECLFR series
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMinieclfr_A4_DATASHEET_(EN).pdf472KB
Tender SpecificationMinieclfrtu_TENDER_SPECIFICATION.pdf3MB
Tender SpecificationMinieclfrdy_TENDER_SPECIFICATION.pdf2MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMinieclfr_DMX_CHARTS.pdf76KB
MINIECLFRTU Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_minieclfrtu_1ch.hedDownload
prolights_minieclfrtu_2ch1.hedDownload
prolights_minieclfrtu_2ch2.hedDownload
prolights_minieclfrtu_3ch.hedDownload
prolights_minieclfrtu_5ch.hedDownload
prolights_minieclfrdy_1ch.hedDownload
prolights_minieclfrdy_2ch1.hedDownload
prolights_minieclfrdy_2ch2.hedDownload
prolights_minieclfrdy_3ch.hedDownload
prolights_minieclfrdy_5ch.hedDownload
MINIECLFRDY Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMinieclfrtu_3D.skp720KB
3D revitMINIECLFR_3D_REVIT.zip2MB
2D cad symbolsMINIECLFR_2DSYMBOLS.zip119KB
3DMinieclfrtu_CAD_3D.dwg589KB
2DMinieclfrtu_CAD_2D.dwg589KB
Technical drawingMinieclfrtu_TECHNICAL_DRAWING.pdf344KB
VectorWorksMINIECLFR_SYMBOLS.zip1MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 13/12/2018 10 second default display backlight
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
