MOSAICOC5M
PROLIGHTS

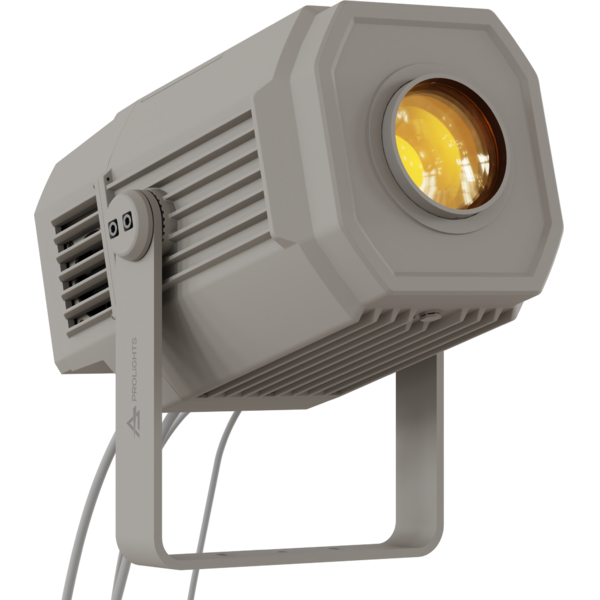

Mosaico C5M new

ORDER CODE: MOSAICOC5M

250W IP66 with C5-M treatment zoomable LED image projector with animation wheel

Mosaico is a powerful exterior LED image projector with C5-M treatment for use in in challenging saline environments or near the sea, for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'667 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.

5 YEARS WARRANTY

Main features:

  • IP66 allowing long-lasting installation with minimal maintenance
  • C5-M treatment for permanent exterior installation also in marine environment
  • Beam angle zooming from 12.9° to 46.5° allows for flexible use and opens up a new level of effects
  • Extremely bright with over 11'667 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations
See variants

PHOTO GALLERY

Mosaico C5M
Mosaico C5M
Mosaico C5M
Mosaico C5M

Technical specifications

LIGHT SOURCE
  • Source: 250W high-power white LED
  • CCT: 8.500
  • Luminous flux: (12.9°) 10'740 lm - (46.5°) 11'667 @Full
  • Lux: (12.9°) 10'512 lx - (46.5°) 1'409lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 12,9° - 46,5° motorised linear zoom
  • Lens diameter: 109mm / 4.29''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour wheel: 14 colour filters on two colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 23 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
  • Special features: interchangeable animation wheel through magnets and record scenes and create chases and shows throughout these scenes
BODY
  • Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
  • Body colour: RAL 9006
  • Other: Inspectable cover window for gobos replacement and maintenance
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: Stand Alone programmer and playback
  • DMX channels: 12 / 14 / 16 / 19channel
  • Wireless Control: included, LumenRadio TiMo receiver
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1~30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 320W
  • Standby power: 56 W
  • Output (at 230V): 6 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Data connection: W-DMX transreceiver
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 332x425x453mm / 13.07''x16.73''x17.83''
  • Weight: 19,3kg / 42.55lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
MOSBRACK
MOSBRACK
(Optional)
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
FCLMOSAICO
FCLMOSAICO
(Optional)
Flightcase for 2x MOSAICO, foam shells included
GBVMAP001
GBVMAP001
(Optional)
Gobo Mapping, F size, black and white (gobo holder included)
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMosaicoc5m_A4_DATASHEET_(EN).pdf439KB
Tender SpecificationMosaicoc5m_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMosaicoc5m_DMX_CHARTS.pdf160KB

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMosaicoc5m_3D.skp307KB
3D RFAMosaicoc5m_3D.rfa616KB
2D cad symbolsMosaicoc5m_CAD_2DSYMBOLS.dwg59KB
3DMosaicoc5m_CAD_3D.dwg522KB
2DMOSAICOC5M_2D.zip5MB
Technical drawingMosaicoc5m_TECHNICAL_DRAWING.pdf259KB
VectorWorksVECTORWORKS_SYMBOLS.vwx443KB

Tech docs

Software

File name File size Download

Firmware
