Mosaico L

ORDER CODE: MOSAICOL

300W IP66 zoomable LED image projector with an animation wheel and framing shutters

The Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.
Built in a durable IP66 die-cast housing, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorized framing shutters that precisely focus within a certain projection area.
It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated facade building lighting.

5 YEARS WARRANTY

Main features:

  • IP66 for long-lasting installations, with minimal maintenance needed
  • 7°- 49° linear zoom system, for both near and long throw installation
  • 300W White LED engine (8,000K), with up to 11'700 lumen output
  • Extensive feature set including 7 colour-filters on wheel, 7 interchangeable rotating gobos, animation wheel and motorized framing shutters

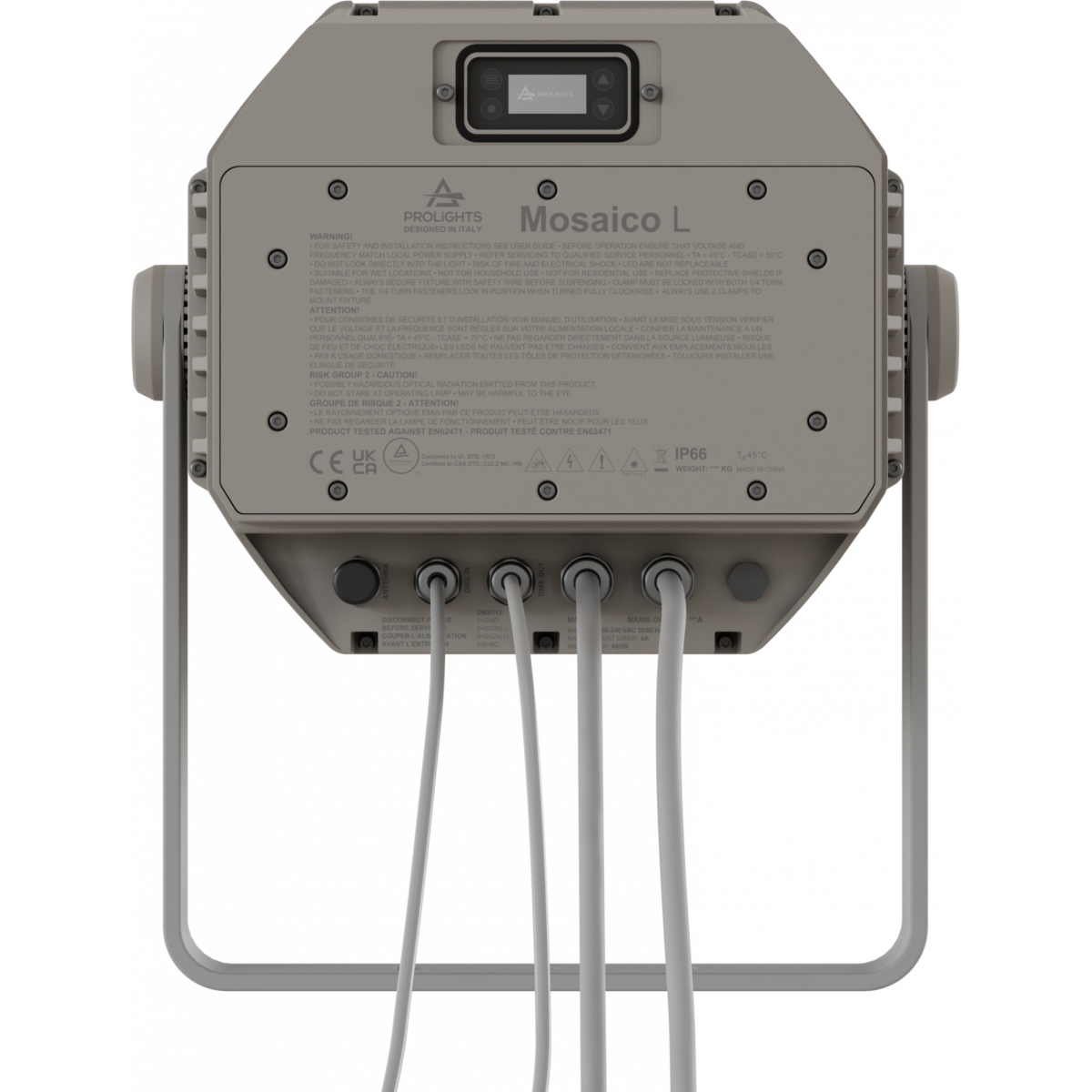

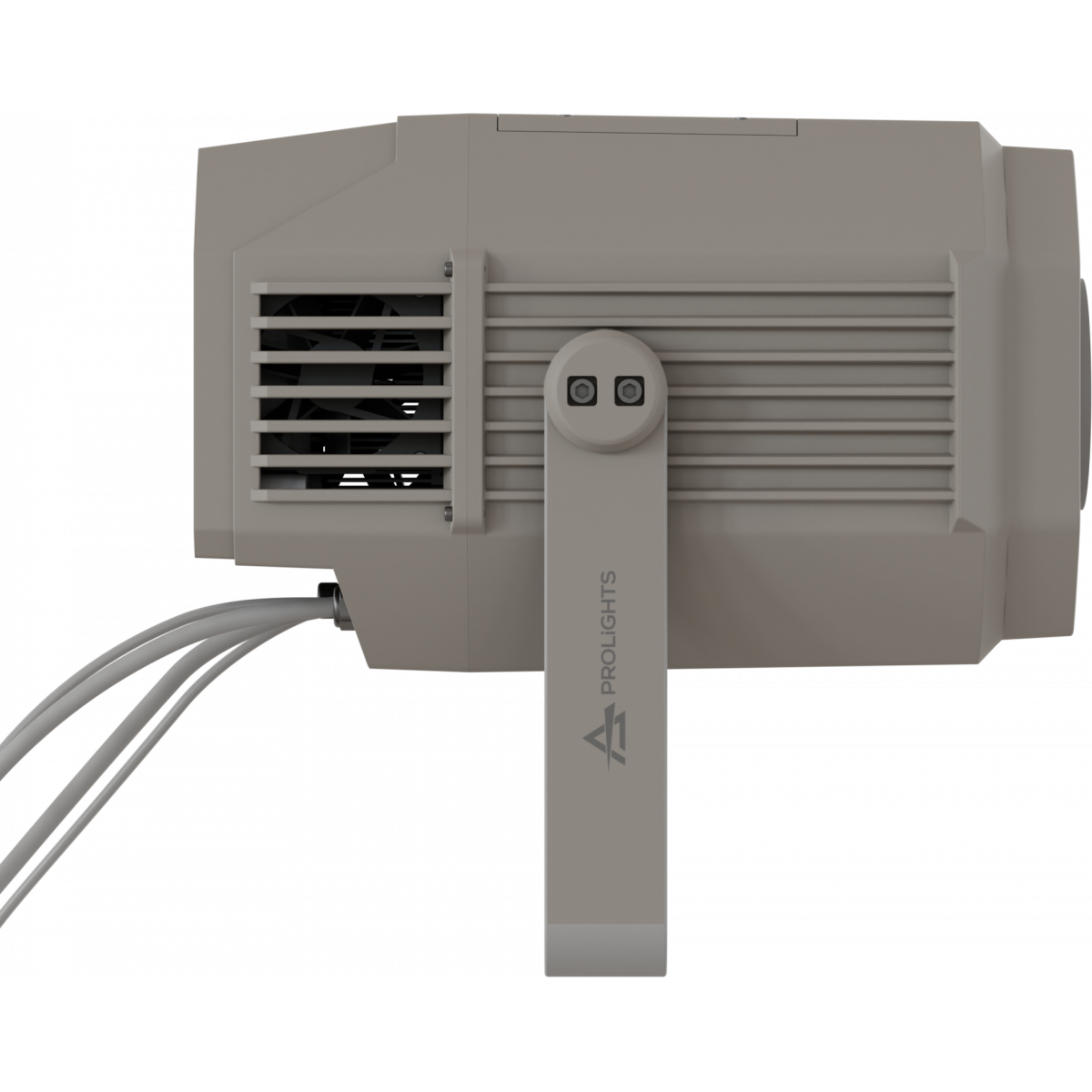

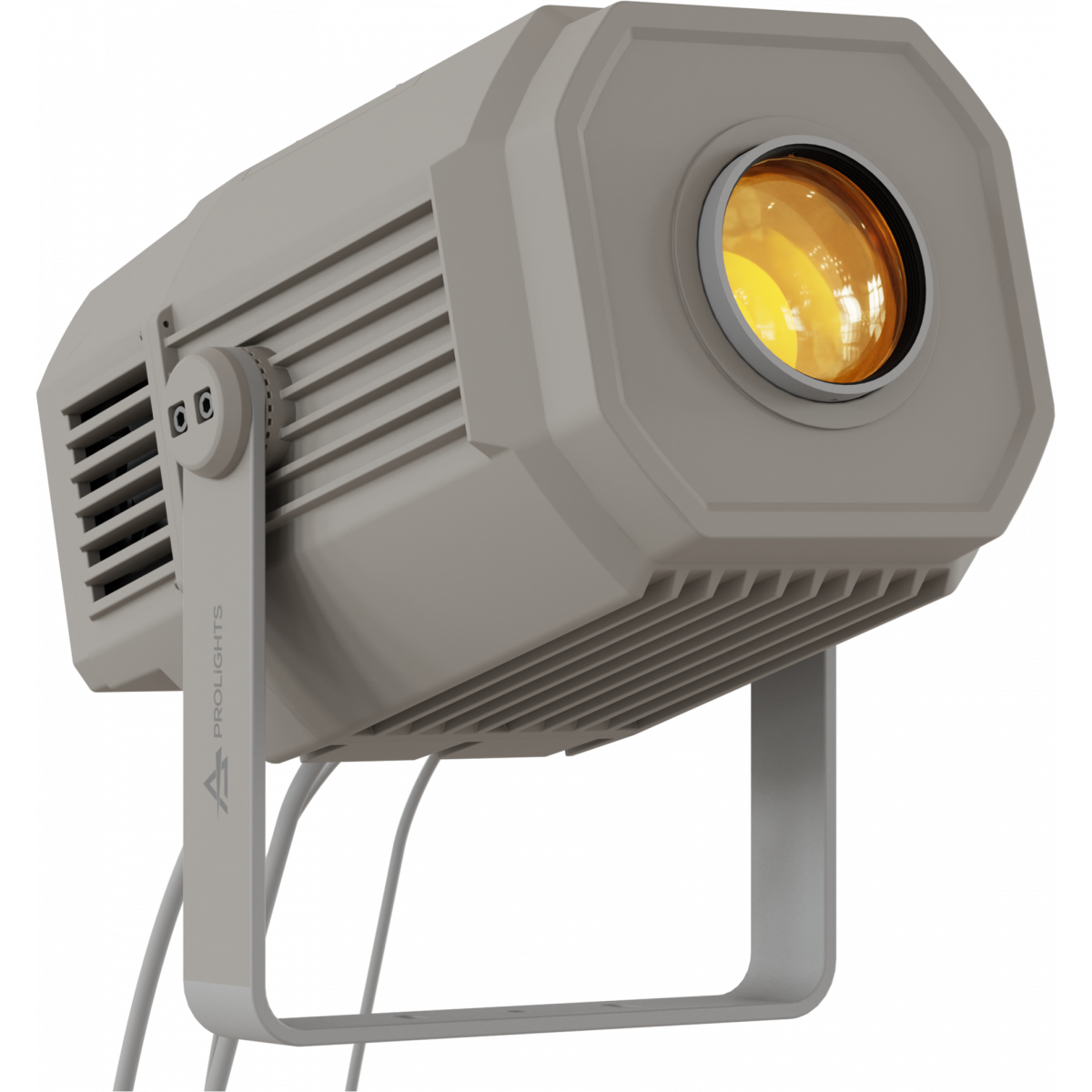

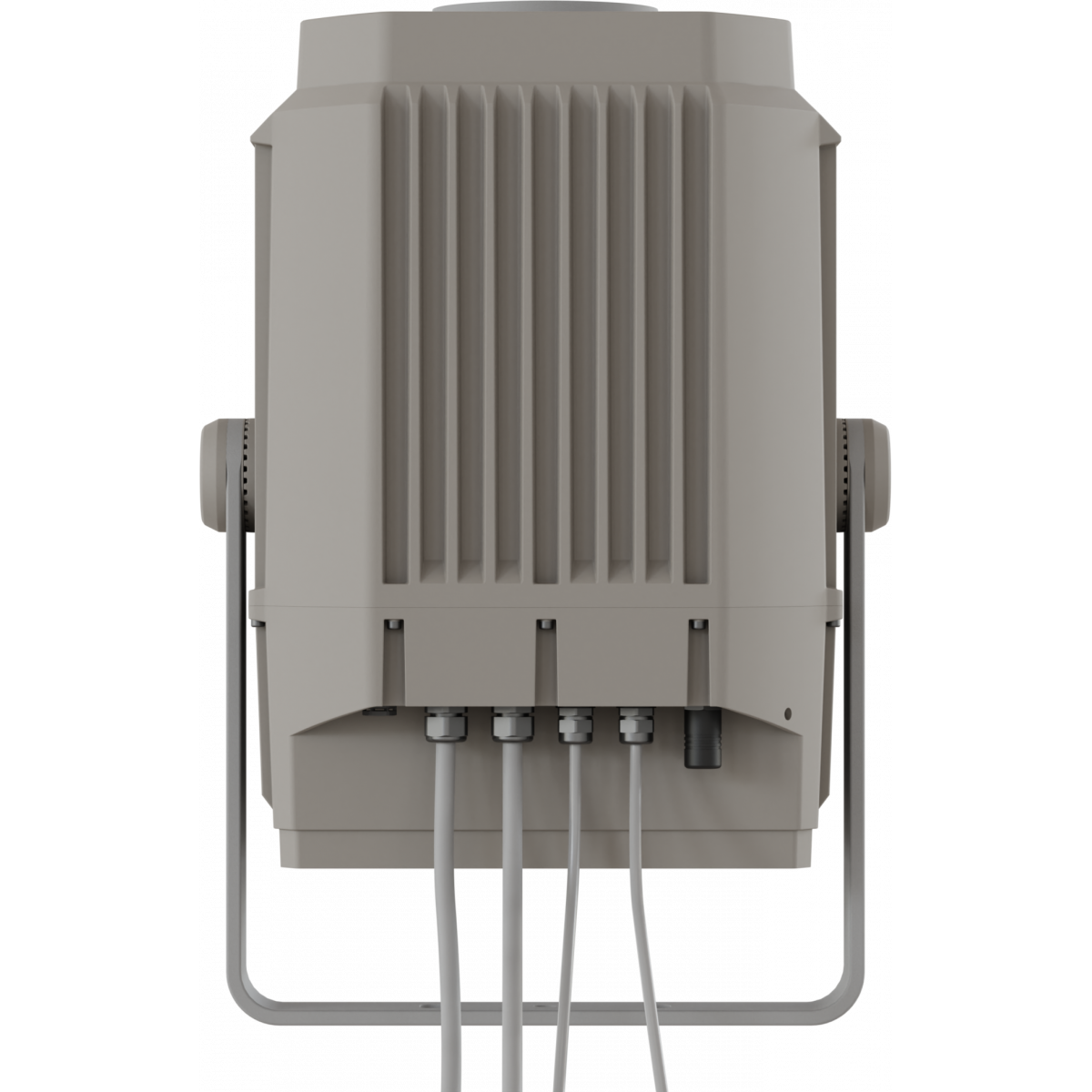

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 300W high-power white LED
  • CCT: 8.000
  • Luminous flux: (7°) 8'536 lm - (49°) 11'729 @full
  • Lux: (7°) 28'230 lx - (49°) 867lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 7°- 49° motorised linear zoom
  • Lens diameter: 110mm / 4.33''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: cold white LED with colour wheel

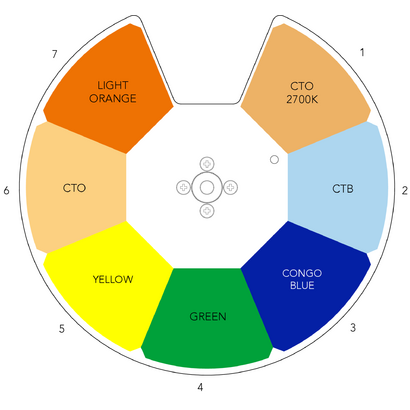

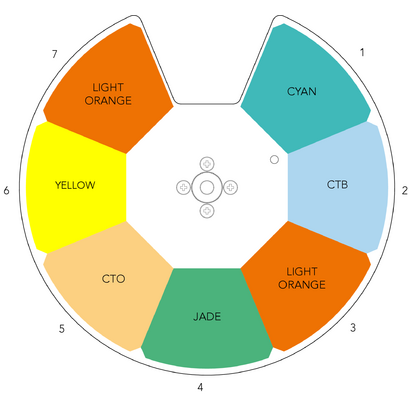

  • Colour wheel: open + 7 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: magnetic interchangeable animation wheel with CW and CCW rotation
  • Rotating gobos: open + 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 23 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 3ff with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Special features: record scenes and create chases and shows throughout these scenes
BODY
  • Body: weatherproof IP66 construction
  • Body colour: RAL 9006
  • Other: Inspectable cover window for gobos replacement and maintenance
CONTROL
  • Protocols: DMX512, RDM, W-DMX
  • Stand Alone: Stand Alone programmer and playback
  • DMX channels: 22 / 32 / 43channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1~30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 440W
  • Standby power: 58 W
  • Output (at 230V): 6 units on a single power line
  • Power factor: > 0,98
  • Inrush current: 230VAC/22A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 09
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Data connection: W-DMX transreceiver
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 362x428x451mm / 14.25''x16.85''x17.76''
  • Weight: 25kg / 55.12lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
FCLMOSAICOL
FCLMOSAICOL
(optional)

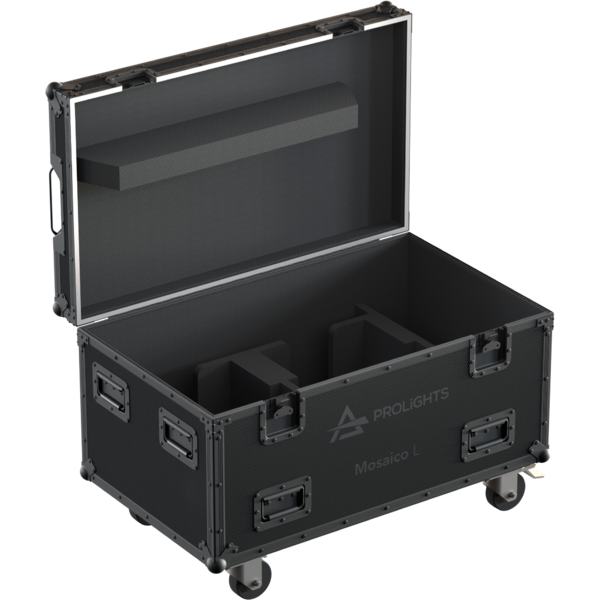

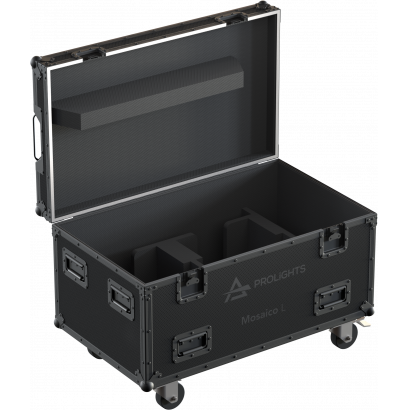

Flightcase for 2 pcs of MOSAICOL
MOSBRACK
MOSBRACK
(optional)
Bracket for MOSAICO and MOSAICOXL for wall mounting and suspension on poles
MOSLCCW1
MOSLCCW1
(optional)

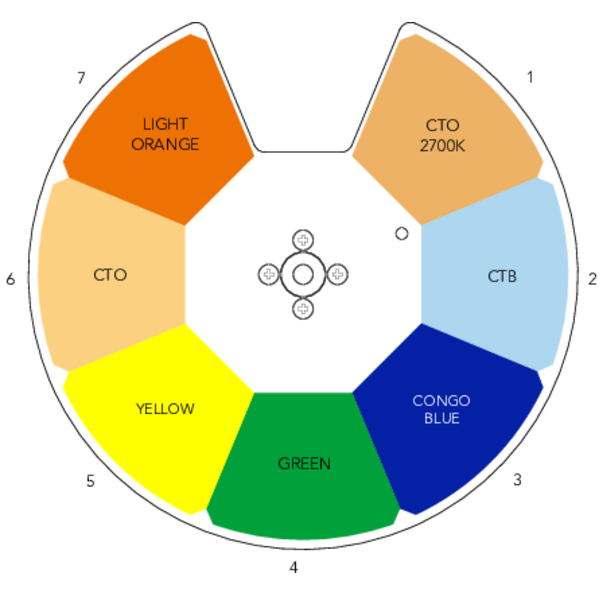

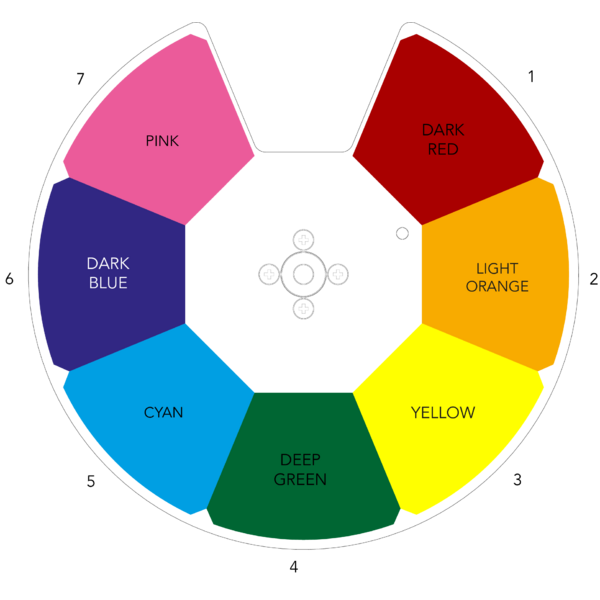

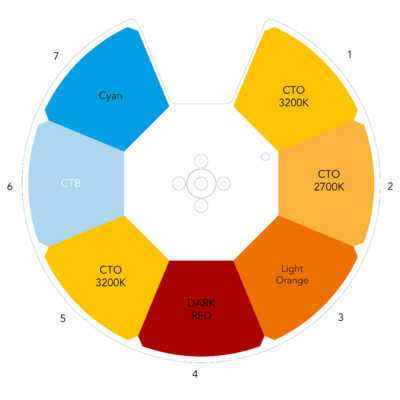

Optional color wheel 1 for MOSAICOL
MOSLCCW2
MOSLCCW2
(optional)

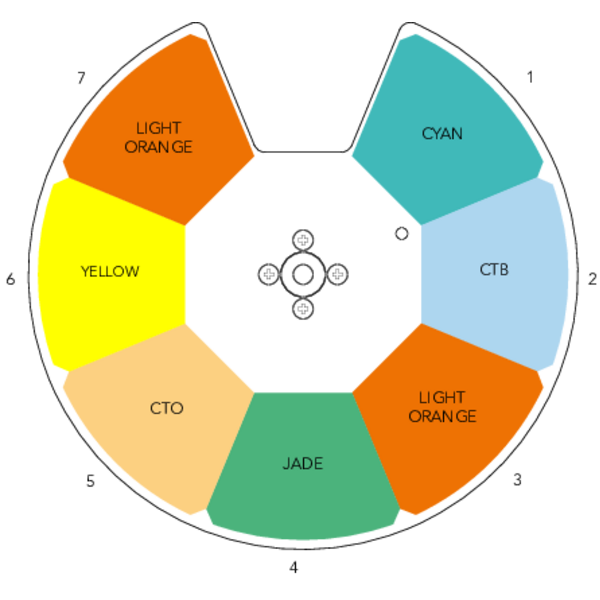

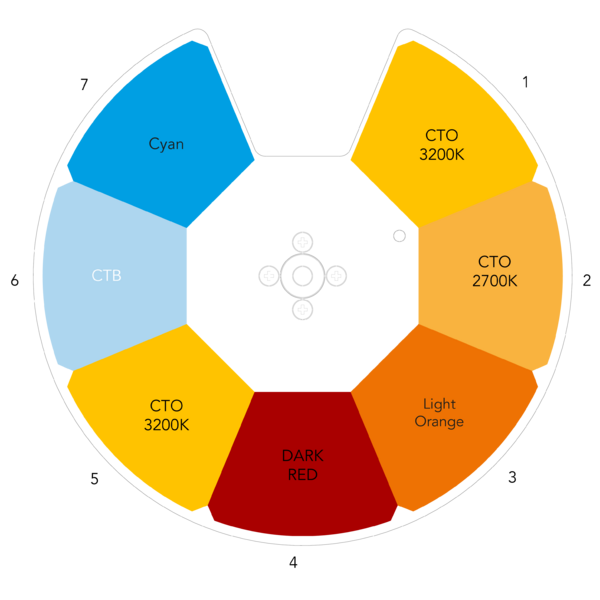

Optional color wheel 2 for MOSAICOL
GBVMAP001
GBVMAP001
(optional)

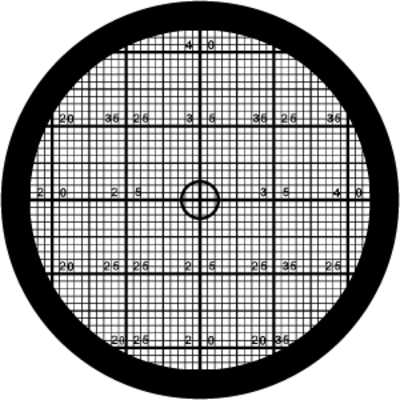

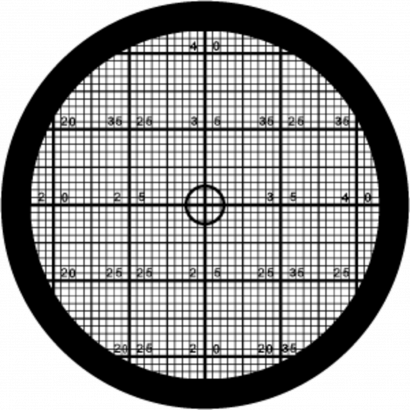

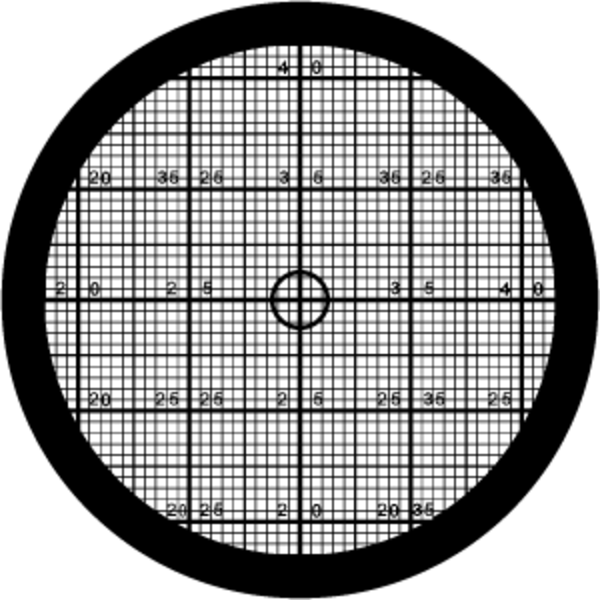

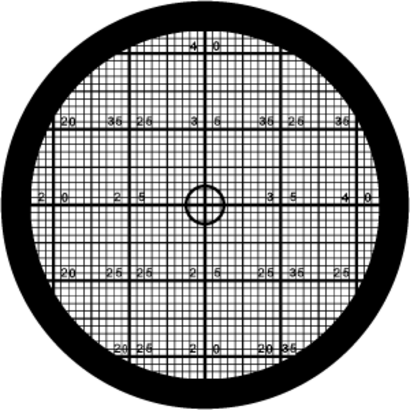

Gobo Mapping, F size, black and white
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
