Pixie ZoomXB

ORDER CODE: PIXIEZOOMXB

280W IP65 single source full colour zoom PAR

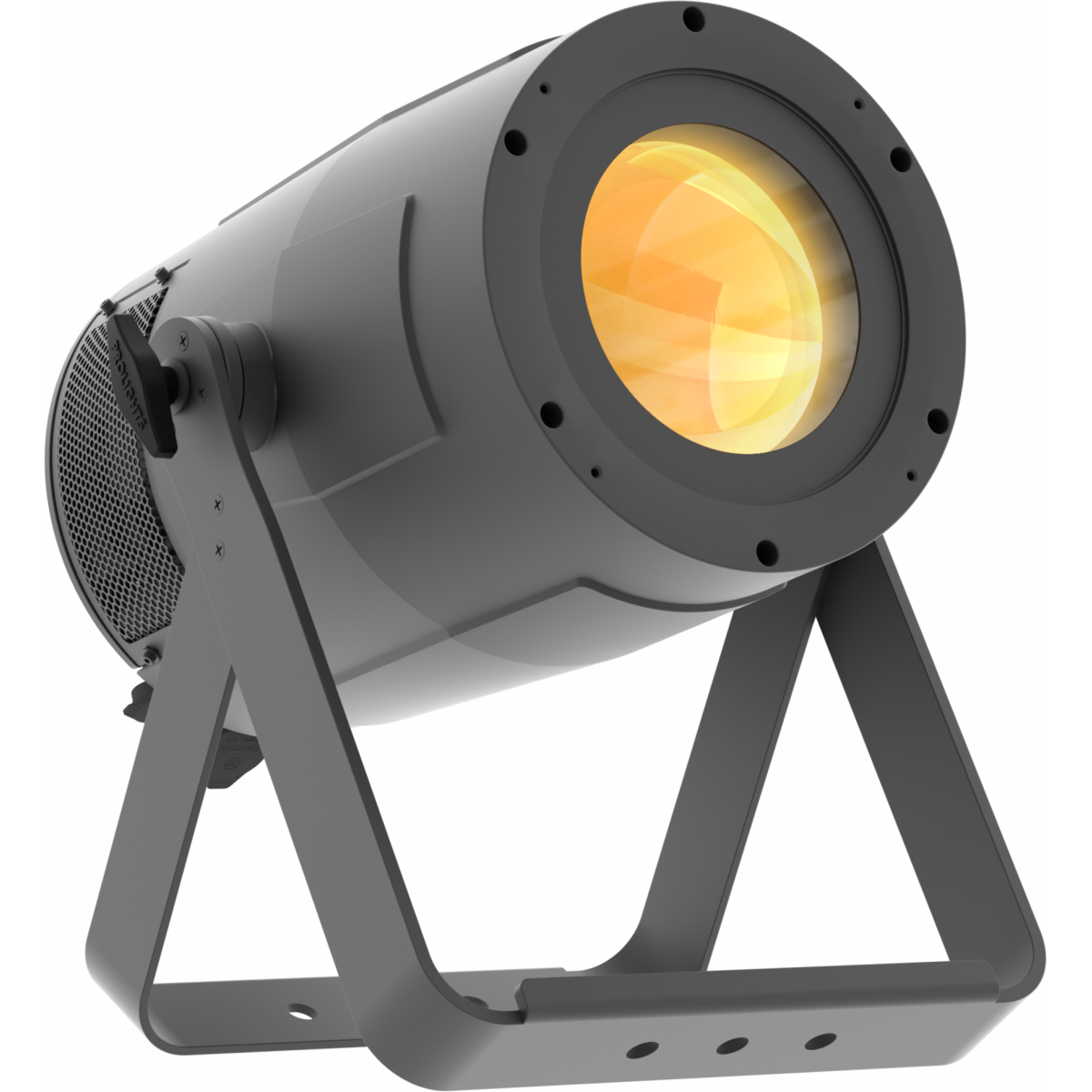

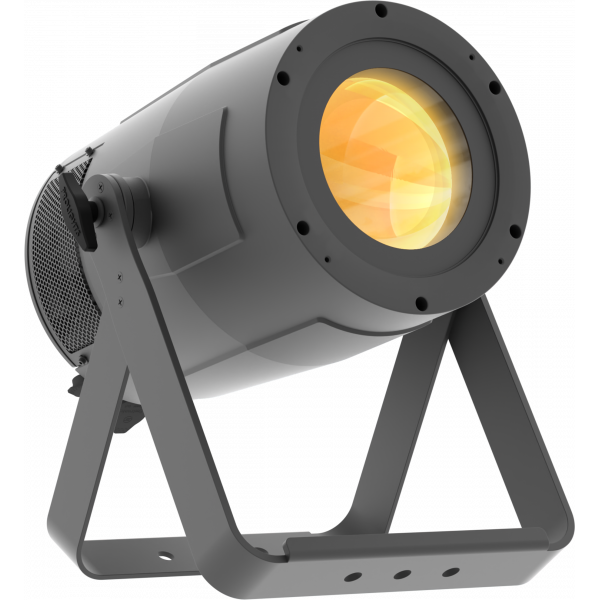

Pixie ZoomXB is a super bright single-source IP rated LED PAR featuring a 7° - 42° linear zoom and a fully homogenised output. Pixie ZoomXB is equipped with a proprietary 280W RGB + Warm White LED module which delivers a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie ZoomXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the Pixie ZoomXB offers unprecedented flexibility and is a truly indispensable fixture for every rental company.

Main features:

280W proprietary RGB + Warm White LED delivering high CRI, TLCI, TM30 values
7° to 42° linear zoom with superior evenness
IP65 for temporary installation and WDMX on-board

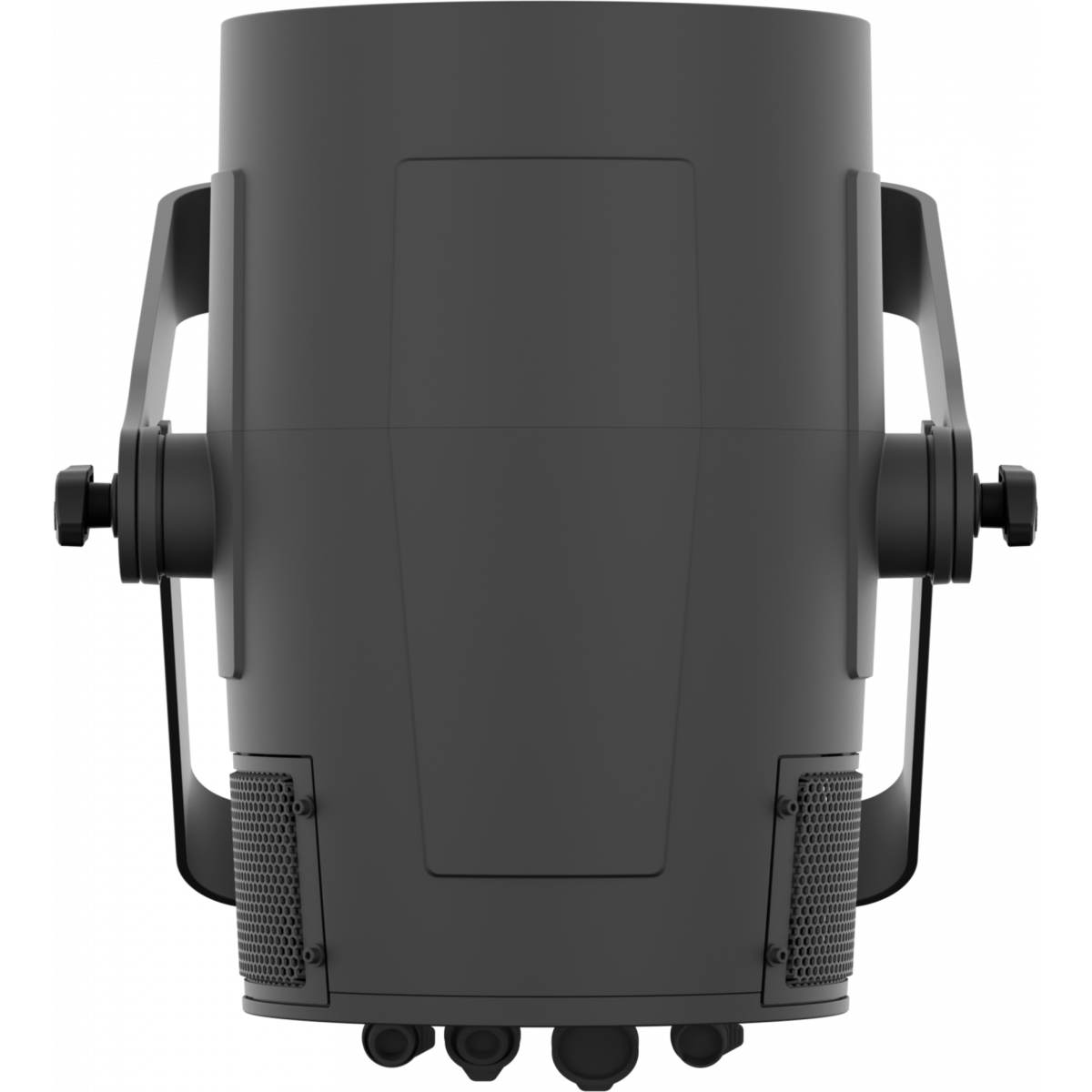

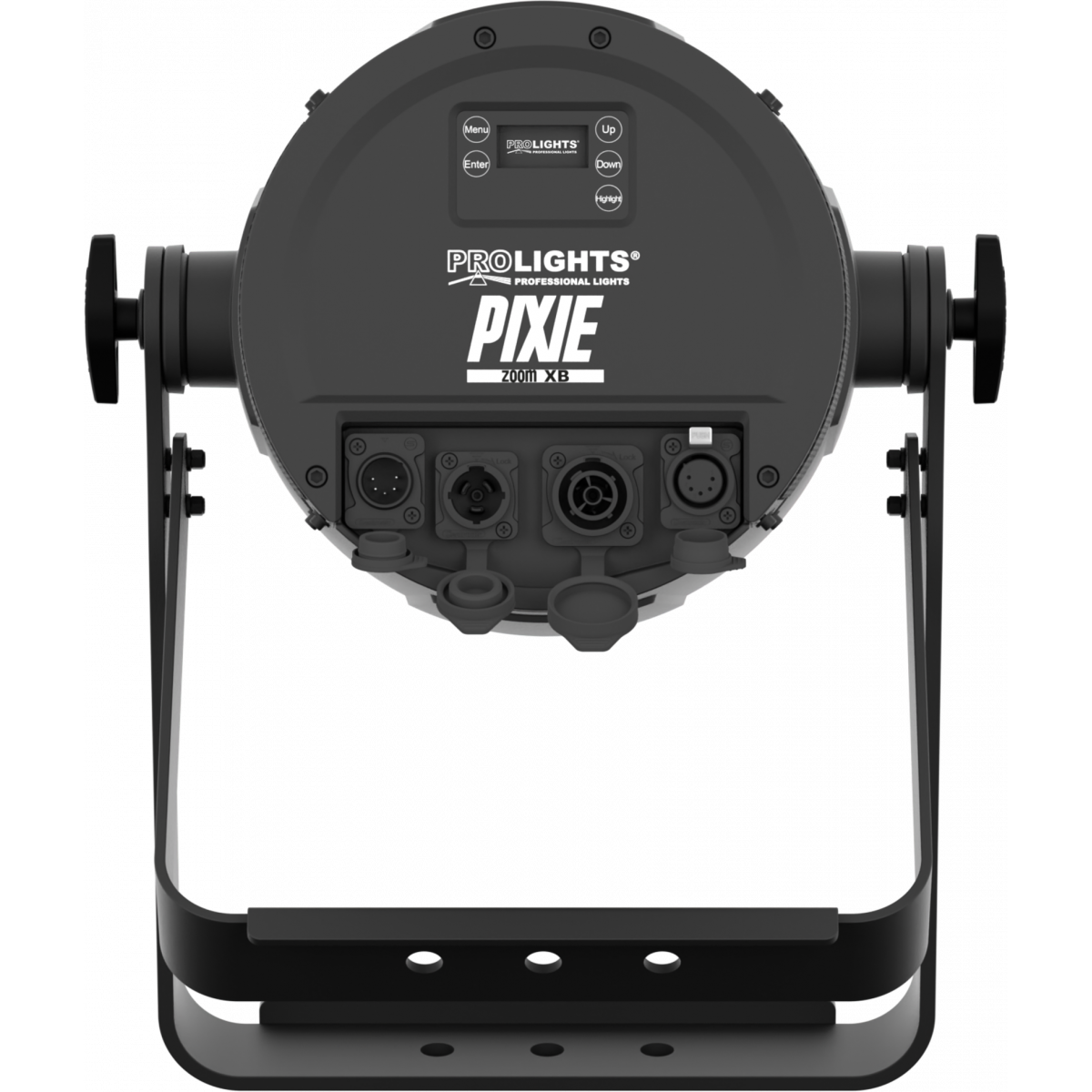

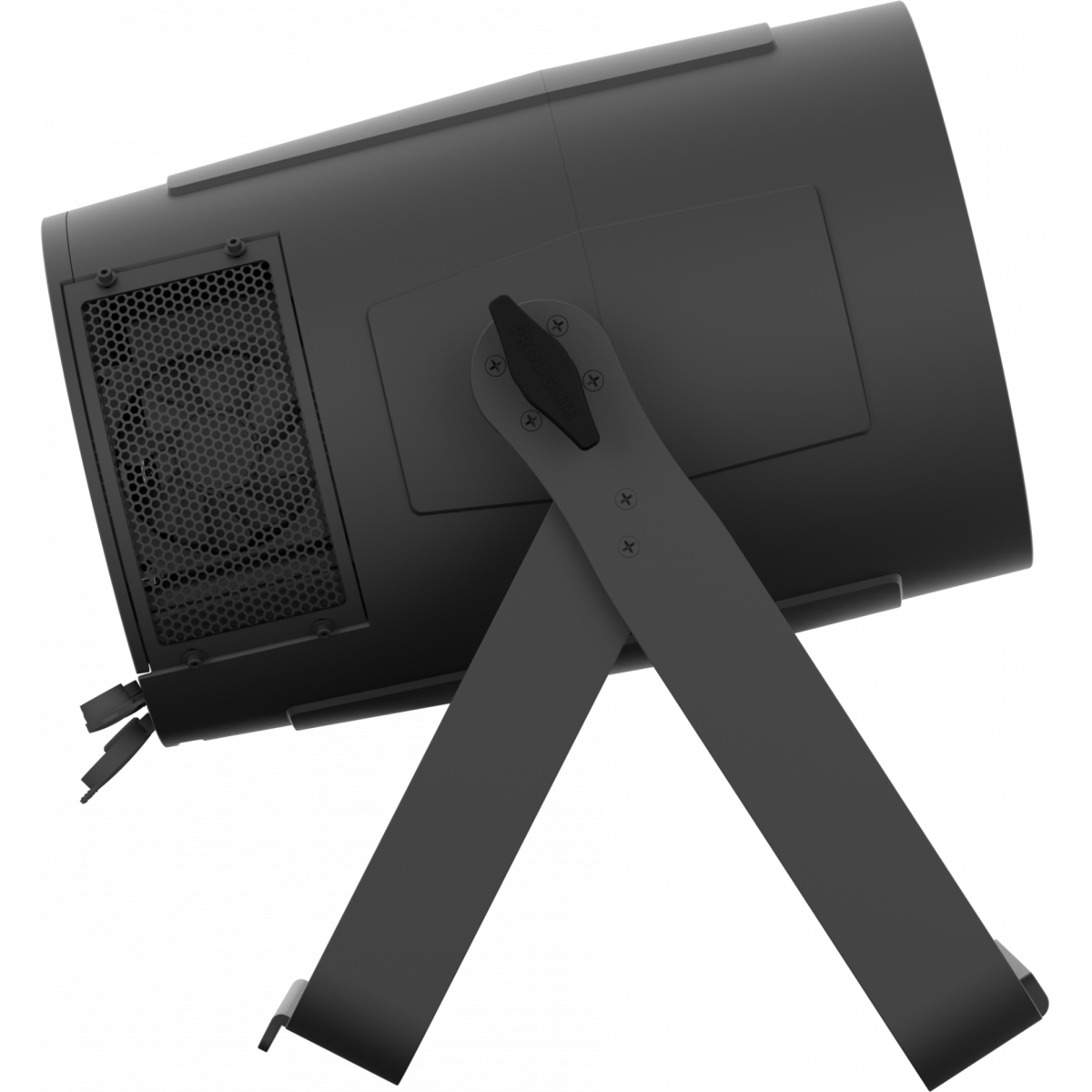

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 280W RGB + Warm White
CCT: @full 6.000
Luminous flux: (7°) 2'516 lm - (42°) 2'757 @full
Lux: (7°) 6'531 lx - (42°) 477lx @5 m full
CRI: 91 @3.200 K; 88,6 @5.600 K
R9: 80 @3.200 K; 82,5 @5.600 K
TLCI: 80 @5.600 K
TM30 Rf: 89 @3.200 K; 88 @5.600 K
TM30 Rg: 108 @3.200 K; 108 @5.600 K
Source life expectancy: > 30.000 h

OPTICS

Zoom: 7° - 42° motorised linear zoom
Lens diameter: 125mm / 4.92''
Lens type: high-quality glass lens optics

COLOUR SYSTEM

Colour mixing: RGB + Warm White
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K - 8.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board: on board mechanics for rigging to the ceiling
Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512, RDM, W-DMX
DMX channels: 5 / 7 / 11channel
Wireless Control: included, wireless solution receiver
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 265W
Output (at 230V): 10 units on a single power line
Power factor: >0,95

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 335x418x342mm / 13.19''x16.46''x13.46''
Weight: 11,8kg / 26.01lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x PIXIEZOOMXB
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
User Manual

VIDEOS

Accessories & Related Products

FCLPIXIEZOOMXB

(facoltativo)

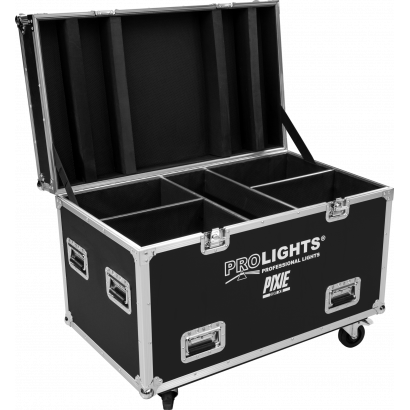

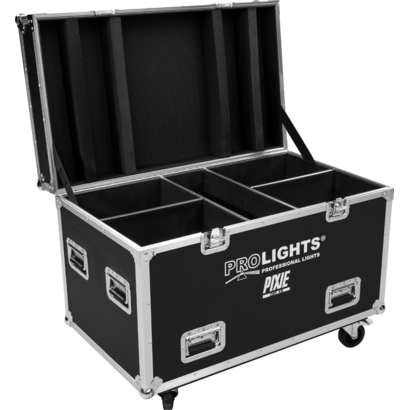

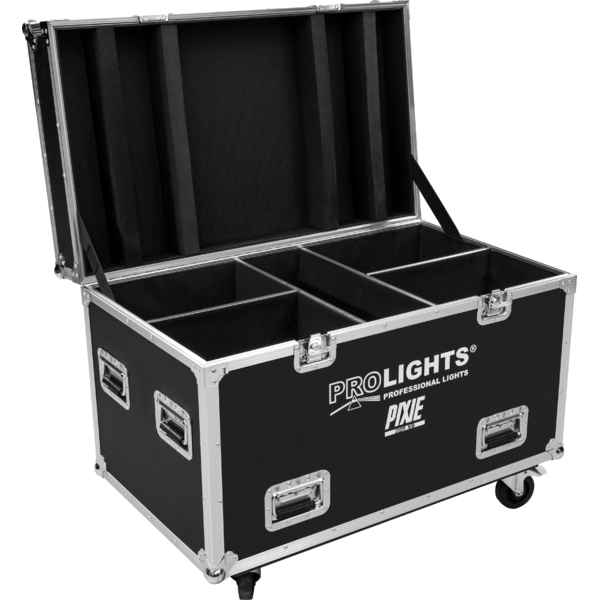

Flightcase for 4 pcs of PIXIEZOOMXB

C6002B

(facoltativo)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

RSR0630B

(facoltativo)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

LRLUNA

(facoltativo)

Single Universe DMX transceiver with Bluetooth

pixiezoomxbbd

(facoltativo)

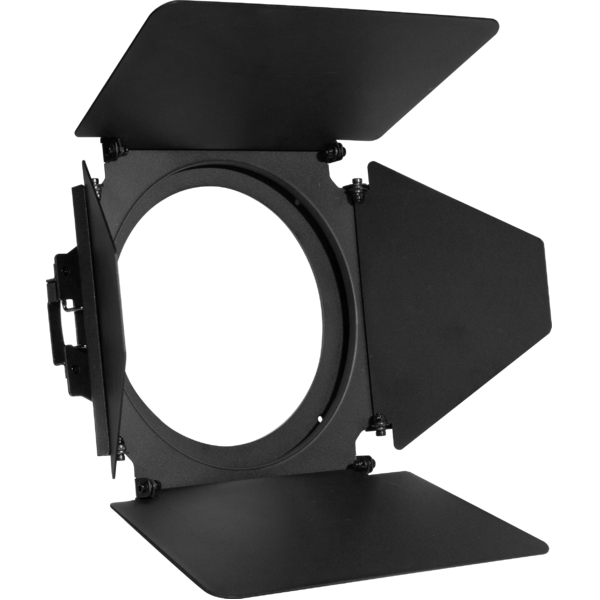

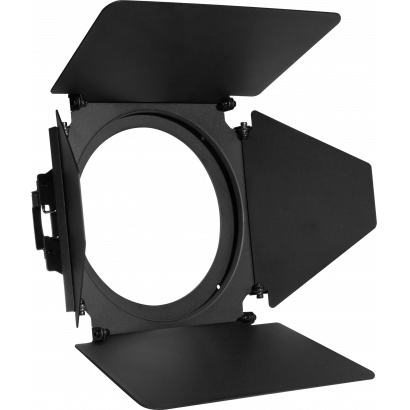

Barn door 4 directional flaps to adjust the light beam, f. frame included
