RA2000PROFILEHB
PROLIGHTS

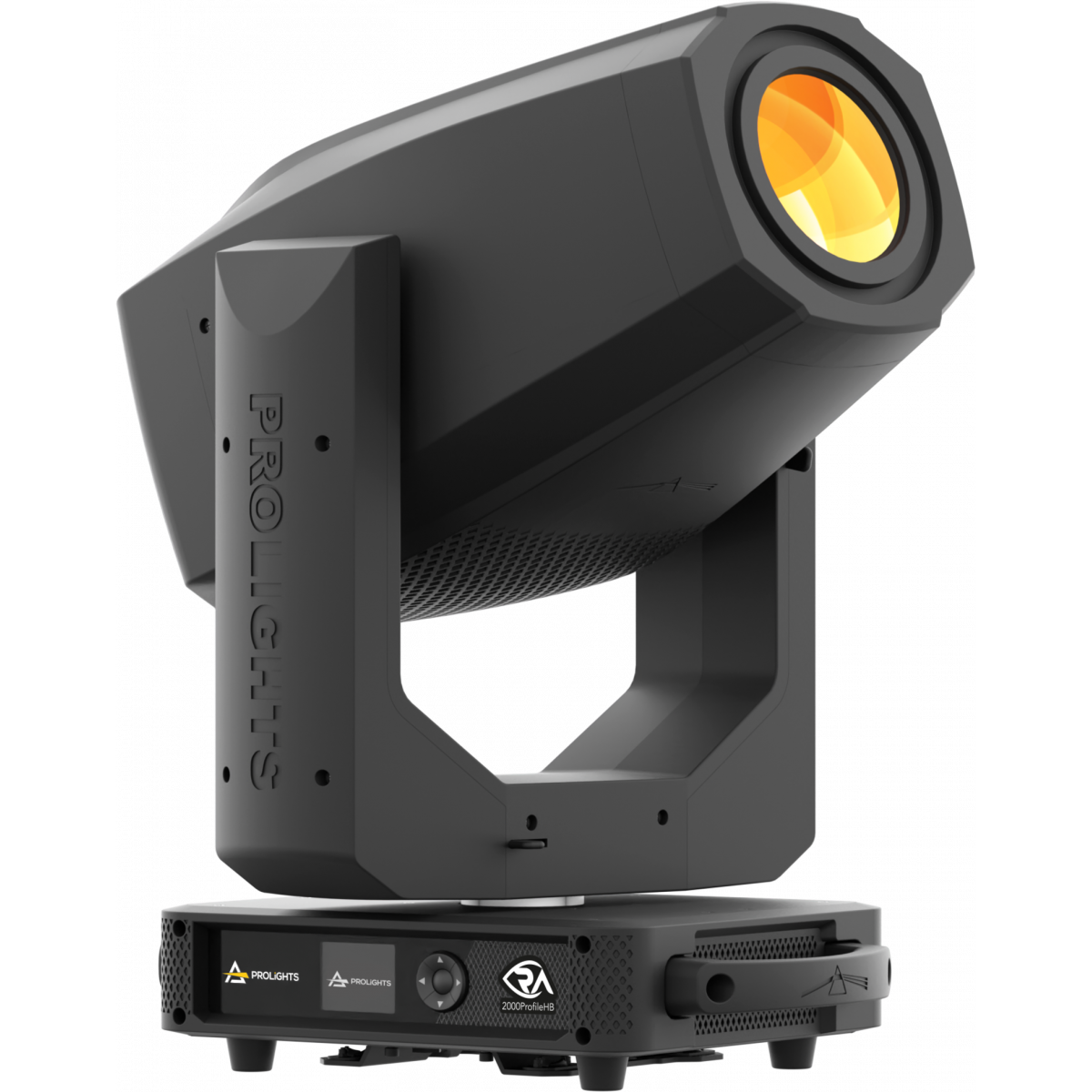

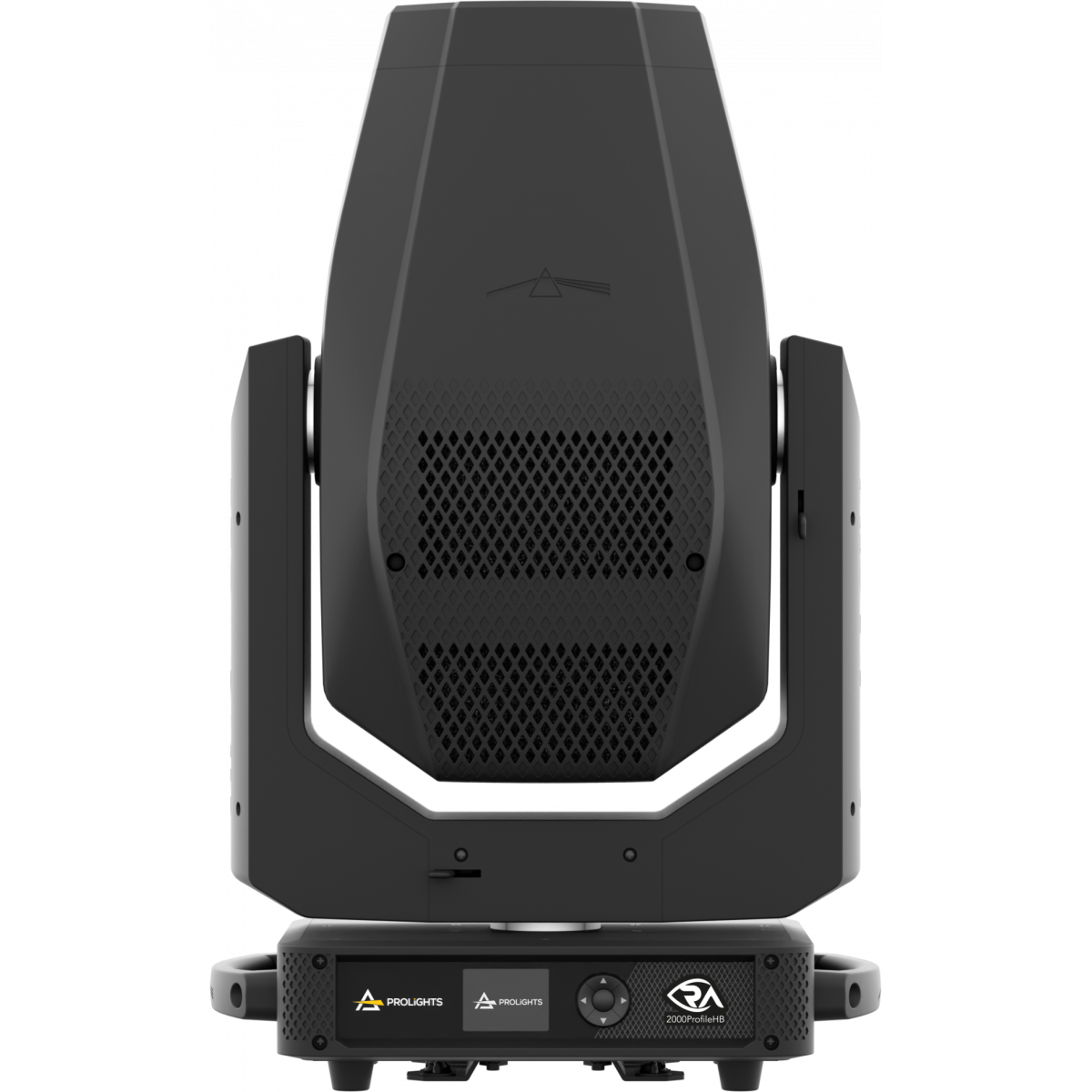

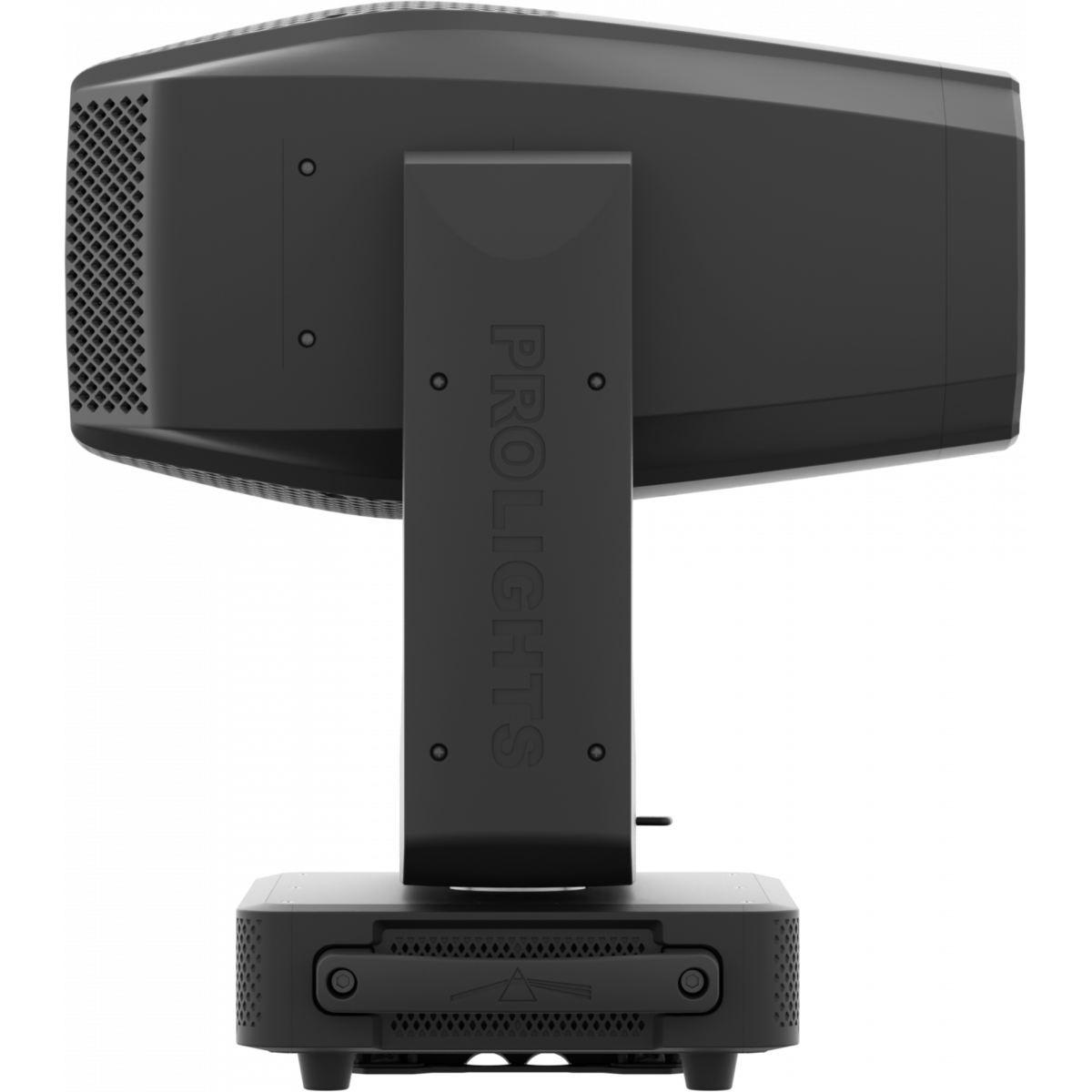

Ra 2000ProfileHB

ORDER CODE: RA2000PROFILEHB

540W Touring high-flux LED moving profile

The Ra 2000ProfileHB is the high-flux variant of the Ra 2000Profile designed for touring applications, offering the same footprint and feature set, but engineered around an LED source, which scores 40% higher intensity with lower colour rendering. Powerful, compact and fully equipped with both framing shutters and an animation wheel, all whilst delivering a superior brightness, the Ra 2000ProfileHB is an indispensable tool for any show. The 6.300 K LED engine has been custom-engineered to make the Ra 2000ProfileHB hit a 18'900 lumen output, and the on-board CRI enhancement filter still allows the possibility to obtain a CRI > 83. The Ra 2000ProfileHB CMY system delivers beautiful pastels, stunning saturated colours and powerful primaries. One colour wheel provides split colours, and linear CTO allows the Ra 2000ProfileHB to blend in with traditional sources. This unit is packed with powerful features like a gobo wheel, adjustable framing shutters, an animation wheel, iris, prism and dual linear frost. The highly efficient optical system delivers a 1:6 zoom from 8° to 50°, and crisp focus to perfectly merge multi-layer effects. The Ra 2000ProfileHB is the embodiment of solid-state LED technology.

Main features:

  • 540W LED engine with 6.300 K CT
  • 18'900 lumen fixture output with flat-field projection and silent operation
  • Equipped with both 4 layers framing shutters and an animation wheel

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 540W LED
  • CCT: 6.300
  • Luminous flux: 18'900lm @full
  • Lux: (8°) 38'509 lx - (50°) 1'333lx @5 m full
  • CRI: >69 (83 with High CRI filter on color wheel)
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 8° - 50° motorised linear zoom
  • Lens diameter: 120mm / 4.72''
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel: 6 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% frost filter frost unit to soften the beam edge
  • Iris: 5 - 100% motorised iris
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body colour: black finishing
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 38 / 39 / 40 / 41/ 42channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +50°
  • LED Control: 24KHz flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 640W
  • Output (at 230V): 3 units on a single power line
  • Power factor: >0,96
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Pan / tilt lock: for transportation and maintenance

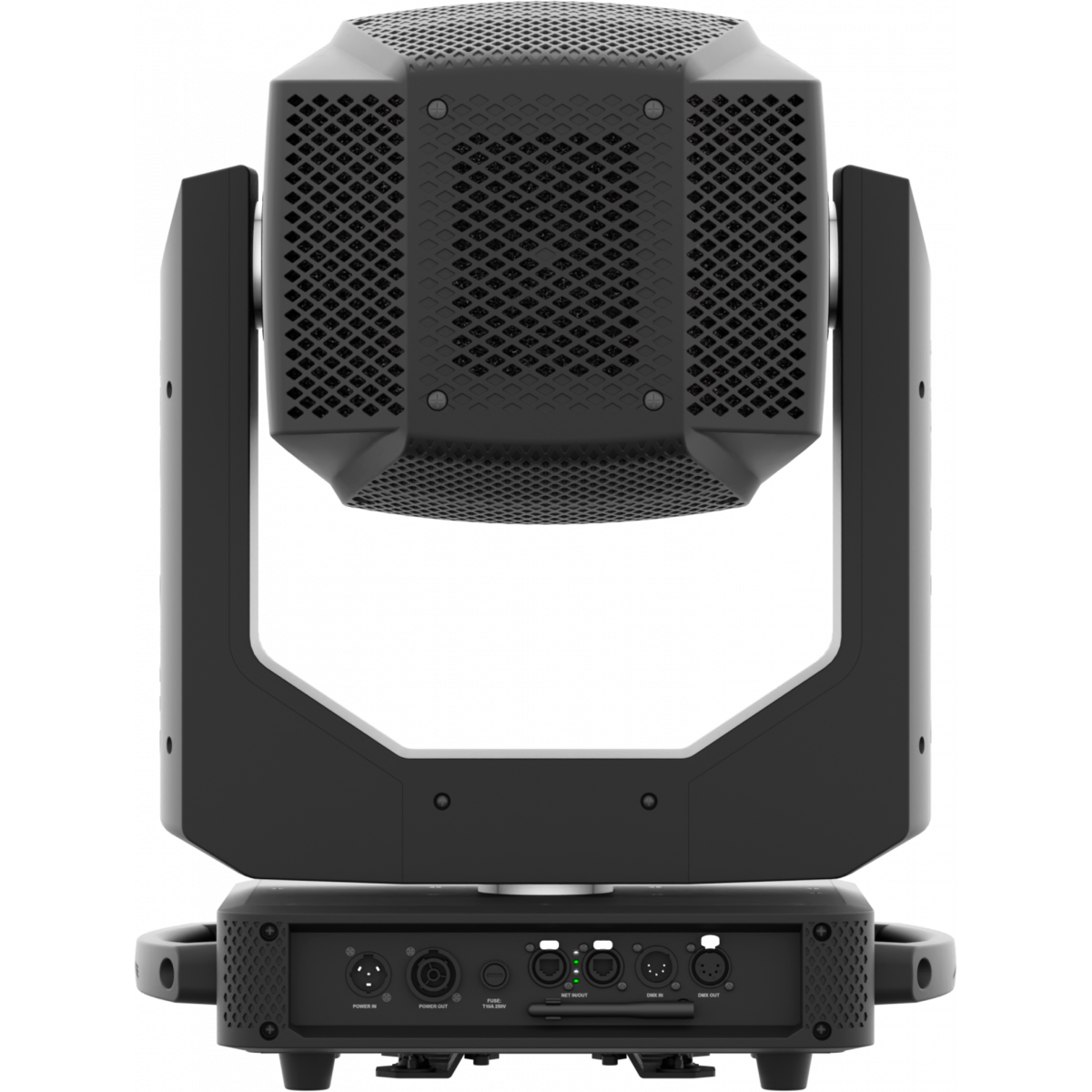

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 443x697x293mm / 17.44''x27.44''x11.54''
  • Weight: 35kg / 77.16lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0670B
RSR0670B
(optional)

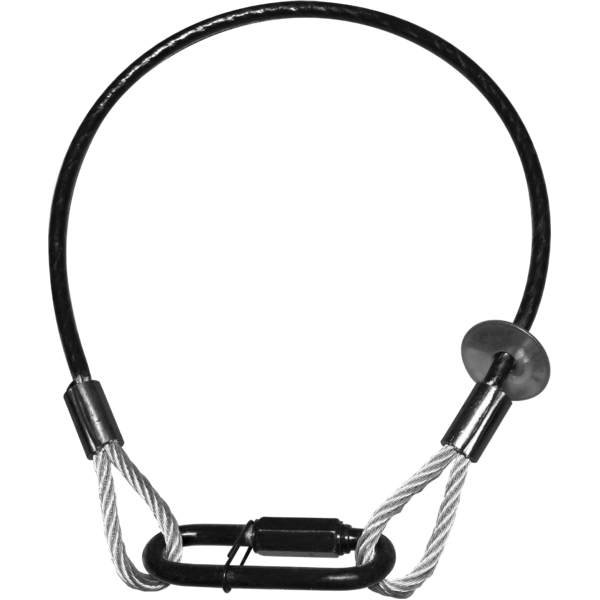

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
FCLRA2000
FCLRA2000
(optional)

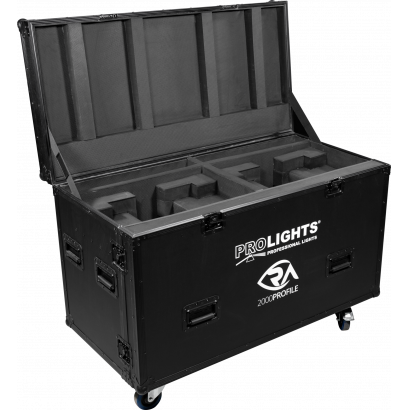

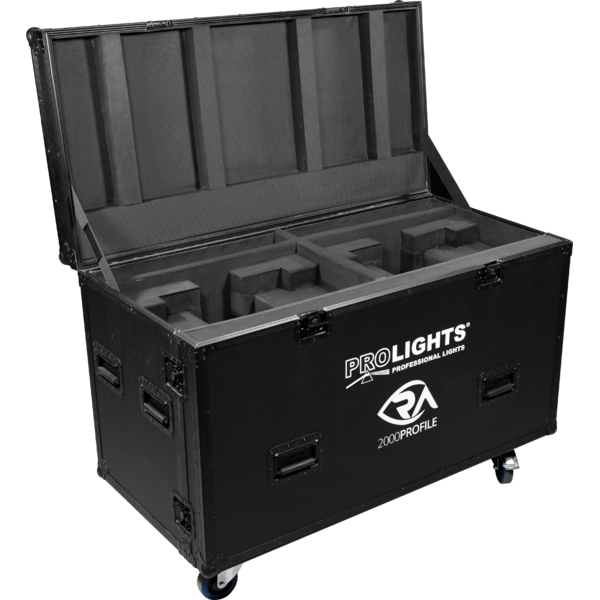

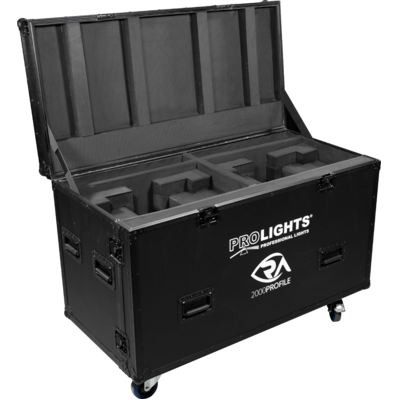

Flight case for 2 piece RA2000PROFILE
OS25
OS25
(included)
Quick-Lock omega bracket, M10 hole
OS25D13
OS25D13
(optional)
Quick-Lock omega bracket, M12 hole
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Ra2000profilehb_A4_DATASHEET_(IT).pdf 1MB
Letter datasheet Ra2000profilehb_A4_DATASHEET_(EN).pdf 1MB
Letter datasheet Ra2000profilehb_LETTER_DATASHEET_(EN).pdf 1MB
Tender Specification Ra2000profilehb_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
User manual Ra2000profilehb_USER_MANUAL.pdf 29MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Ra2000profilehb_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Ra2000profilehb_DMX_CHARTS.pdf 561KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 406KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
RA2000PROFILEHB Firmware rev. 1.2
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_ra2000profilehb_ies files.zip 5KB
LDT prolights_ra2000profilehb_ldt files.zip 3KB
PDF Photometrics Ra2000profilehb_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Ra2000profilehb_3D_SKETCHUP.skp 725KB
3D RFA Ra2000profilehb_3D_REVIT.rfa 8MB
3D Ra2000profilehb_3D.dwg 931KB
2D Ra2000profilehb_2D.dwg 41MB
2D cad symbols Ra2000profilehb_2DSYMBOLS.dwg 281KB
Technical drawing Ra2000profilehb_TECHNICAL_DRAWING.pdf 3MB

Tech docs

File name File size Download
Color Document Ra2000profilehb_COLOR.pdf 48KB
Gobos Document Ra2000profilehb_GOBOS.pdf 491KB
Noise Report Ra2000profilehb_NOISE_REPORT.pdf 306KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 06/10/2020 Improved Gobo Rotation Management.

NOTE: this and previous firmware version are NOT compatible with fixtures of US and CANADA market. For these products please download firmware from this link
Rev. 1
