SIGMAX26BC1X1BF
PROLIGHTS


SigmaPix 26BC1X1BF new

ORDER CODE: SIGMAX26BC1X1BF

Four sides 45° cut indoor rental 2,6 mm LED screen, 50x50cm tile with full black LEDs

SigmaPix 26B is a rental LED screen for indoor use with a 2,6 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.
The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as flip corner shield and bottom protection.
Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.
SigmaPix 26B tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 8 kg per panels (32 kg per sqm)
SigmaPix 26B is truly creative and it is enriched by the special S and C tiles to achieve unprecedented design. The S tile is a flexible panel, that it is designed with a flex PCB allowing to reach a curve angle of +40° and - 40° within one single cabinet. The C Tile is a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.
The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Single person installation, auto lock design, scratch protection and flip corner shield
  • Fast LED Module and PSU replacement
  • Built in curve mechanics for +10° / -10° concave & convex
  • Refresh rate of 3.840 Hz

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: MBI 5253
  • LED source: Nationstar SMD 1515 full black
  • Pixel pitch: 2.6mm / 0.1''
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1000nit
  • Contrast: 4.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/24 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
  • Dead Pixel Ratio: <0.002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 35W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 140W
  • Standby power consumption (pannello): 35W
  • Max rated current/panel:: AC220V / 0.55A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: waterproof Seetronic RJ45
  • Signal output: waterproof Seetronic RJ45
MECHANICS
  • Magnetic LED modules: available
  • Other specifics: curve configurations (mechanics on board), bottom protection, auto-lock mechanics
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500x83mm / 19.69''x3.27''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: convex and concave -10° / +10°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP30 (front and rear)
  • Panel weight: 8kg / 17.64lbs
  • Weight per square meter: 32kg / 70.55lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
  • Compliant Standard: CE, UKCA, cURus

Versions

Accessories & Related Products

SXFCM8026C45
SXFCM8026C45
(optional)

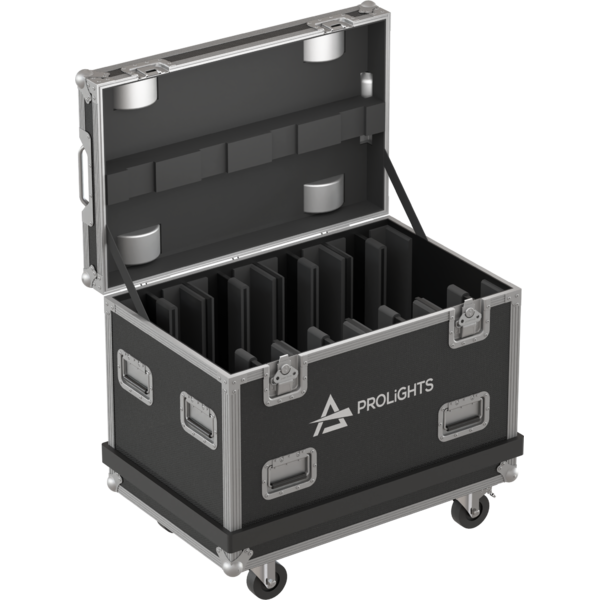

Flightcase 8 in1 for SIGMAX26BC1X1BF

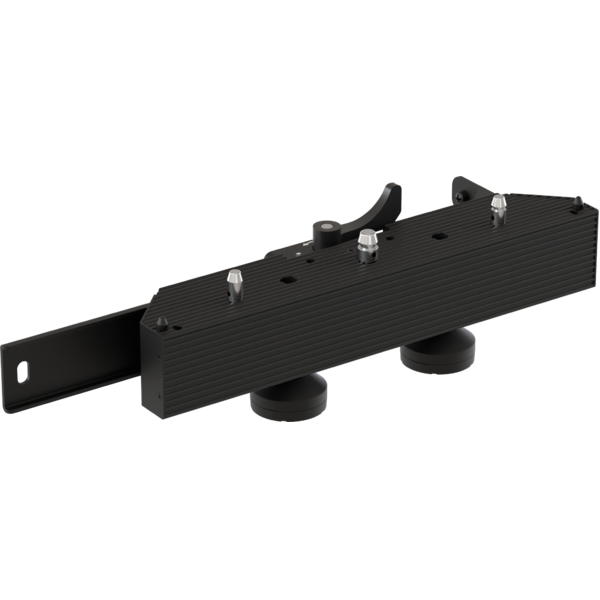

KSXHGB01C45LR
KSXHGB01C45LR
(optional)
Double side 45° cut fly bar / ground bar for SIGMAXC cabinets
KSXCJB
KSXCJB
(optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
OXACL01
OXACL01
(optional)
Power cable for LED display series, L.140 cm
OXACL10
OXACL10
(optional)
Power cable for LED display series L.10 m
SXDCL01
SXDCL01
(optional)
Data cable for SIGMAX LED display series assembled with RJ45, L 140 cm
SXDCL10
SXDCL10
(optional)
Data cable for SIGMAX LED display series assembled with RJ45, L 10 m

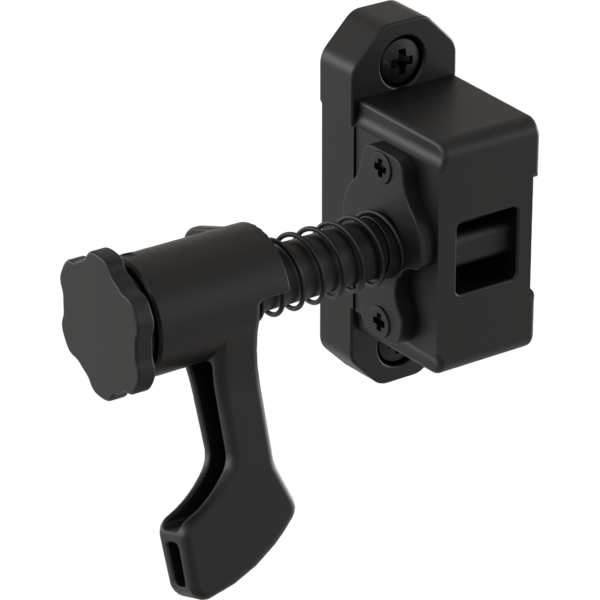

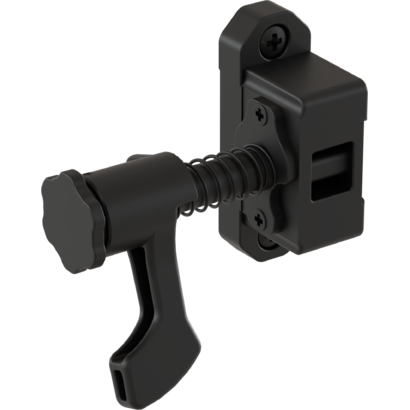

SIGMAXCMM
SIGMAXCMM
(optional)
Optional male mechanics for SIGMAXC cabinets for corner / cube configurations

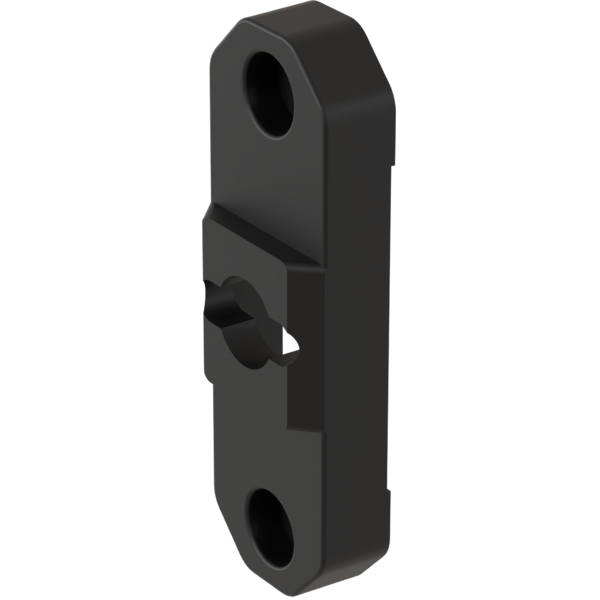

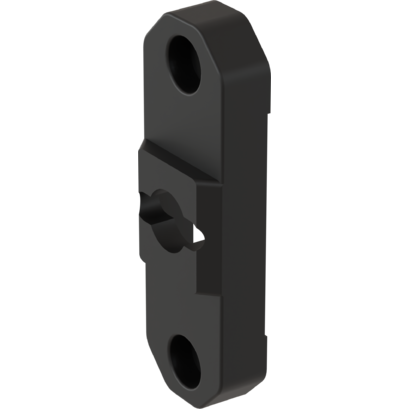

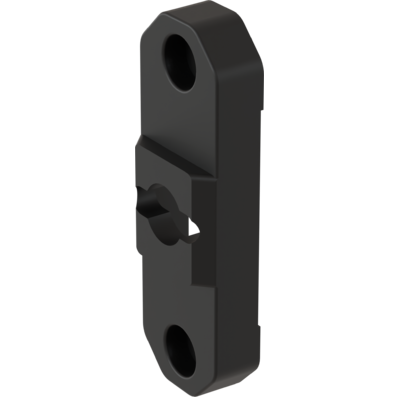

SIGMAXCFM
SIGMAXCFM
(optional)
Optional female mechanics for SIGMAXC cabinets for corner / cube configurations

DOWNLOAD

Data sheet & specs

DMX chart & personalities

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2D Sigmax26bc1x1bf_2D.dwg 5MB
Technical drawing Sigmax26bc1x1bf_TECHNICAL_DRAWING.pdf 894KB

Tech docs

File name File size Download

Software

File name File size Download
Software AUR2D0513-C - 3840 Hz 0KB

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.7.0.64 STABLE 10/06/2023
