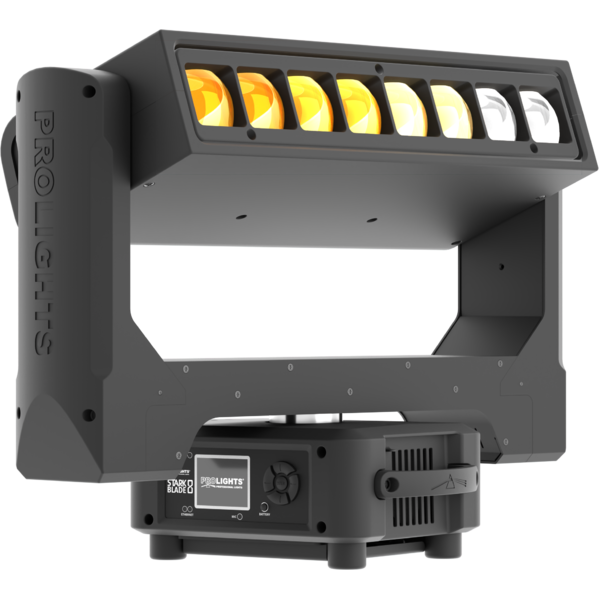

Stark Blade8

ORDER CODE: STARKBLADE8

8x40W moving LED blade with zoom and infinite rotation

Stark Blade8 is a moving batten light designed to deliver a powerful and zoomable 'blade' of beams. Each of the 40W Osram Ostar RGBW LED pixels are individually controllable and completely consistent with the rest of the Stark family.

Main features:

  • 8x40W RGBW LED with massive 3° to 45° zoom range
  • Infinite pan and tilt rotation
  • Individual pixel control with an on-board generator for precise and fast to create effects
See variants

PHOTO GALLERY

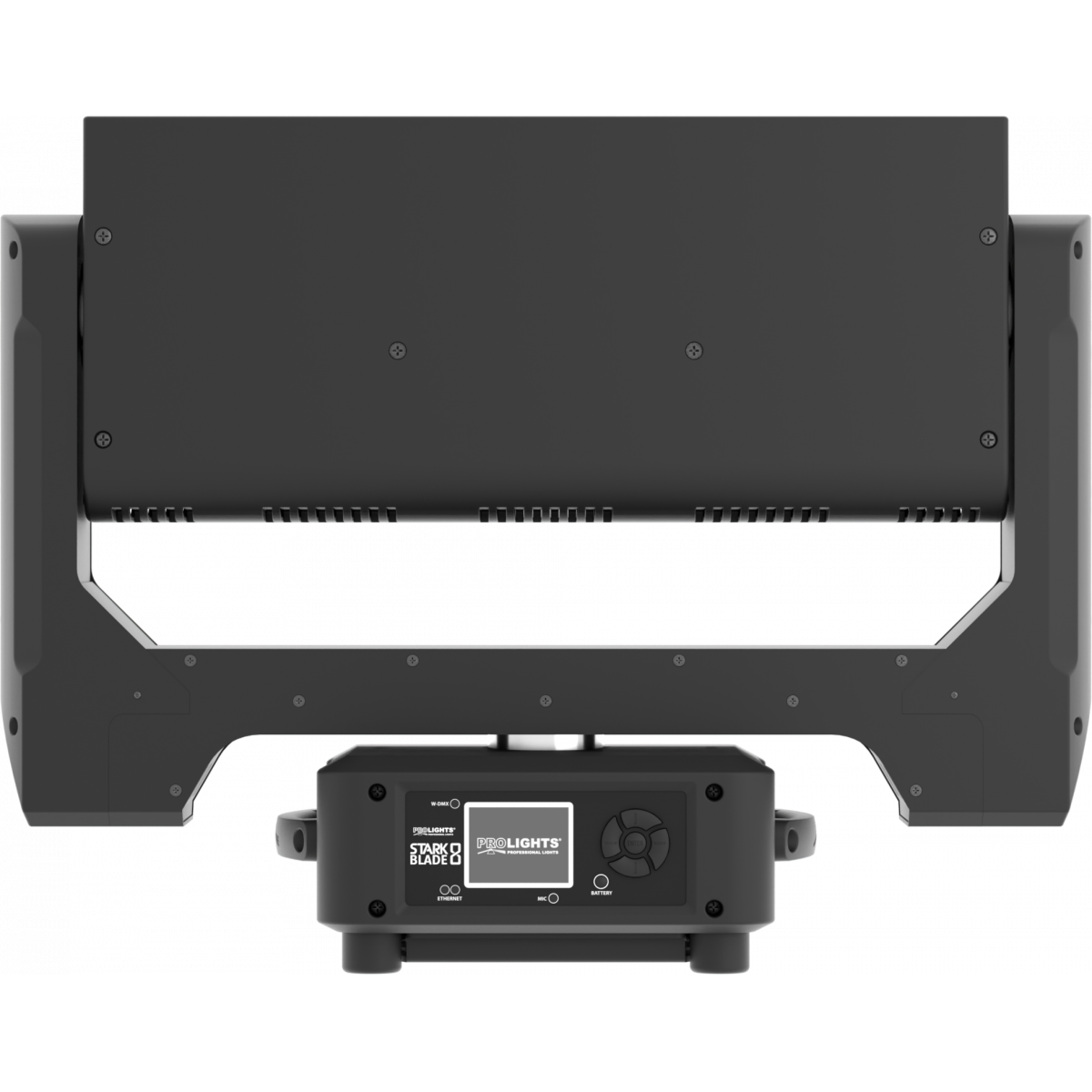

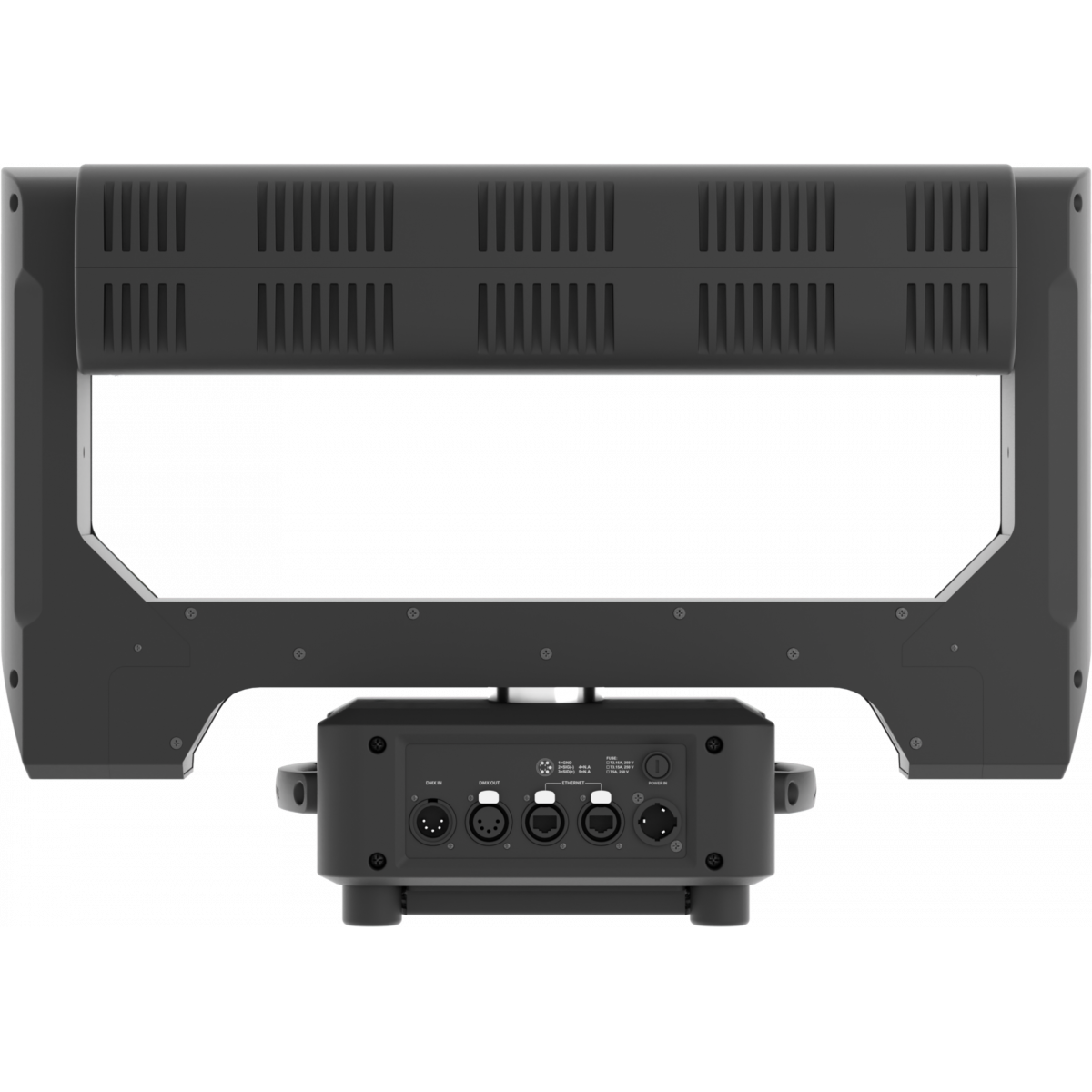

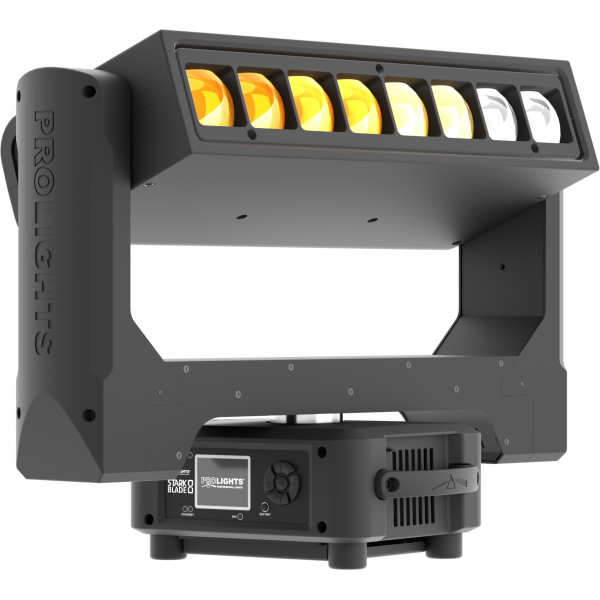

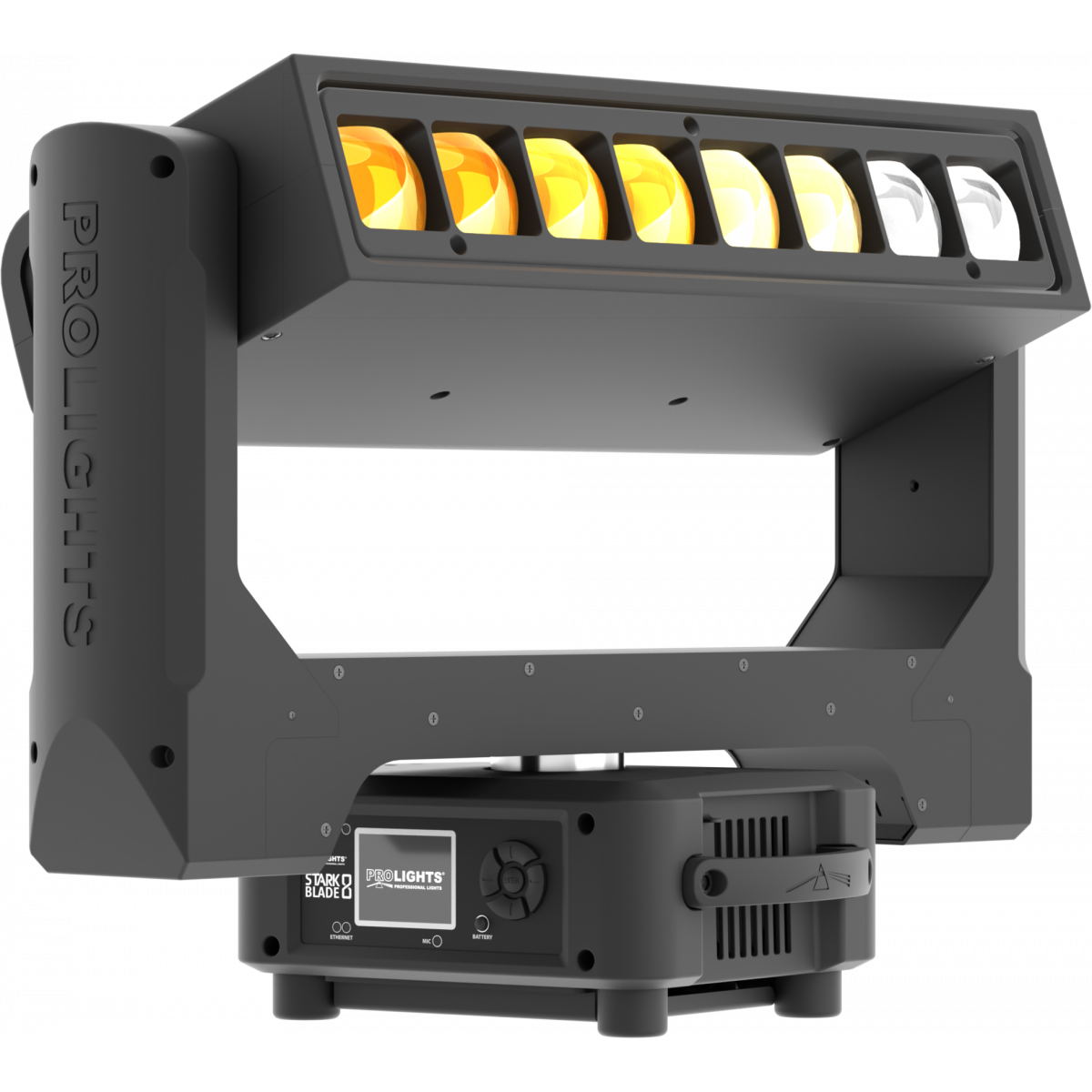

Stark Blade8
Stark Blade8
Stark Blade8
Stark Blade8

Technical specifications

LIGHT SOURCE
  • Source: 8x40W RGBW Osram Ostar LEDs
  • CCT: Tunable 2.000 K ~ 10.000
  • Lux: (3°) 36'391 lx - (45°) 3'113lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 3° - 45° motorised linear zoom
  • Lens diameter: square 50x50mm / 0''x1.97''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Pan range: 540° / 630° with 360° continuous rotation
  • Tilt range: 360° with 360° continuous rotation
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 17 / 27 / 55channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 310W
  • Max power consumption (at 120V): 310W
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 560x433x206mm / 22.05''x17.05''x8.11''
  • Weight: 12kg / 26.46lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

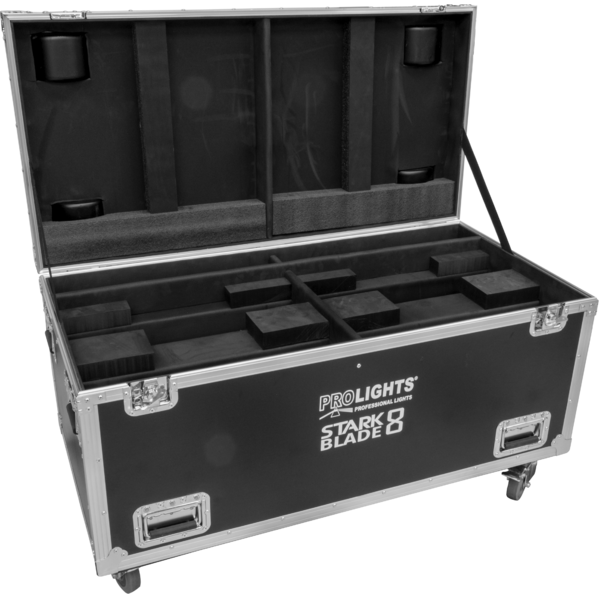

Versions

Accessories & Related Products

9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStarkblade8_A4_DATASHEET_(IT).pdf203KB
Letter datasheetStarkblade8_A4_DATASHEET_(EN).pdf208KB

User manual

File name File size Download
User manualStarkblade8_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartStarkblade8_DMX_CHARTS.pdf54KB
STARKBLADE8 Firmware rev. 1.2.01
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@starkblade8_fx_27ch@.xmlDownload
prolights@starkblade8_wash_17ch@wash.xmlDownload
prolights@stark_blade_8@pix_fx.xmlDownload
starkblade fx_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
stark blade 8 fx.fix2Download
stark blade 8 pix fx.fix2Download
stark blade 8 wash.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAStarkblade8_3D.rfa1MB
3D SKPStarkblade8_3D.skp2MB
2DStarkblade8_CAD_2D.dwg1MB
3DStarkblade8_CAD_3D.dwg860KB
2D cad symbolsStarkblade8_CAD_2DSYMBOLS.dwg62KB
Technical drawingStarkblade8_TECHNICAL_DRAWING.pdf274KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx373KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2.01 STABLE 24/05/2018 Improved firmware functionalty: fixture can work under -20℃. Rev. 1
Rev. 2
