STUDIOCOBCW
PROLIGHTS


StudioCob CW

100 W Daylight White COB PAR with parabolic reflector

STUDIOCOBCW is a powerful and incredibly versatile LED PAR. Fusing the old and the new it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.

Main features:

  • 100 W 5.000 K COB LED source with HD dimming and high CRI.
  • Flexible lens options of 15° - 30° - 60°.
  • Functional barn doors for beam control.
See variants

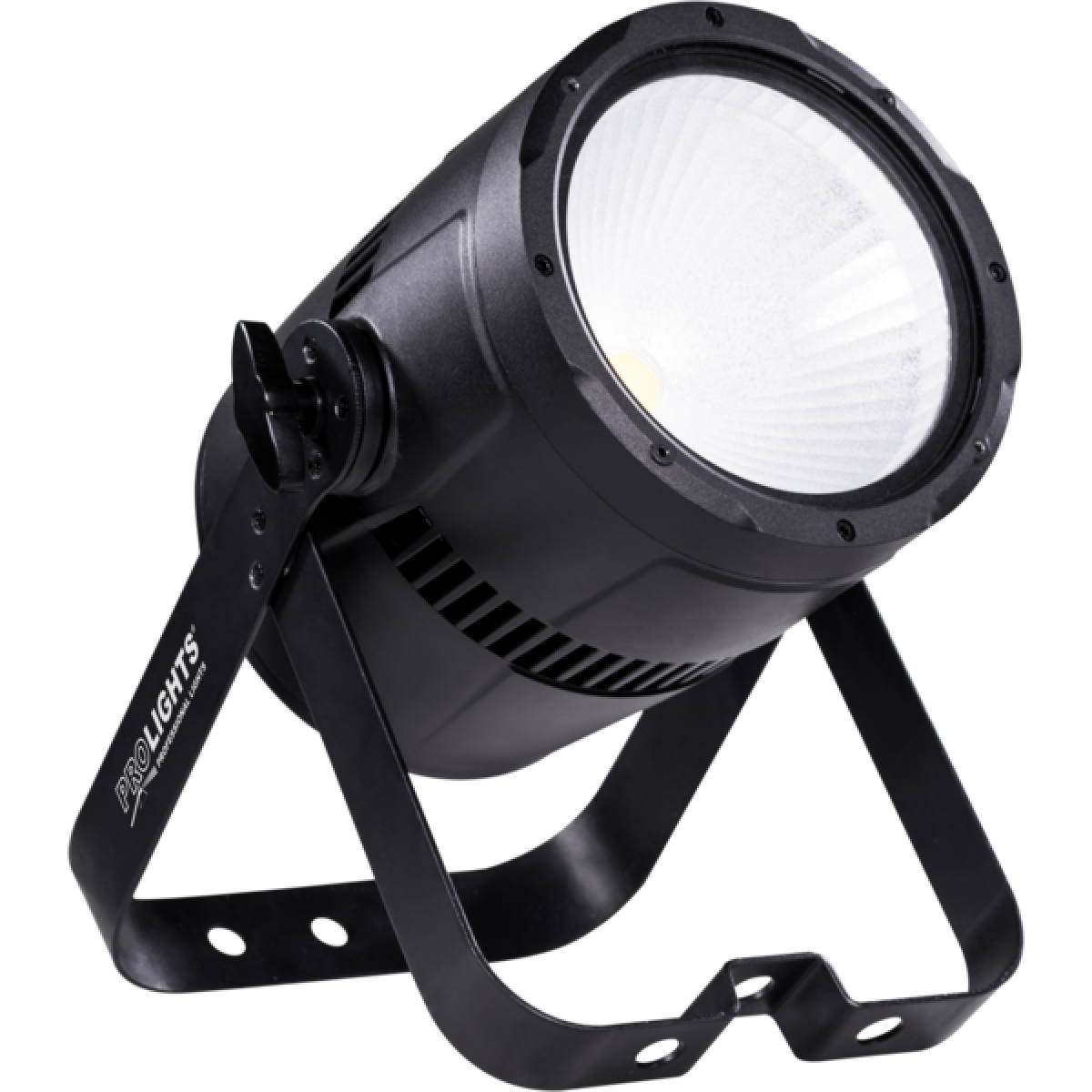

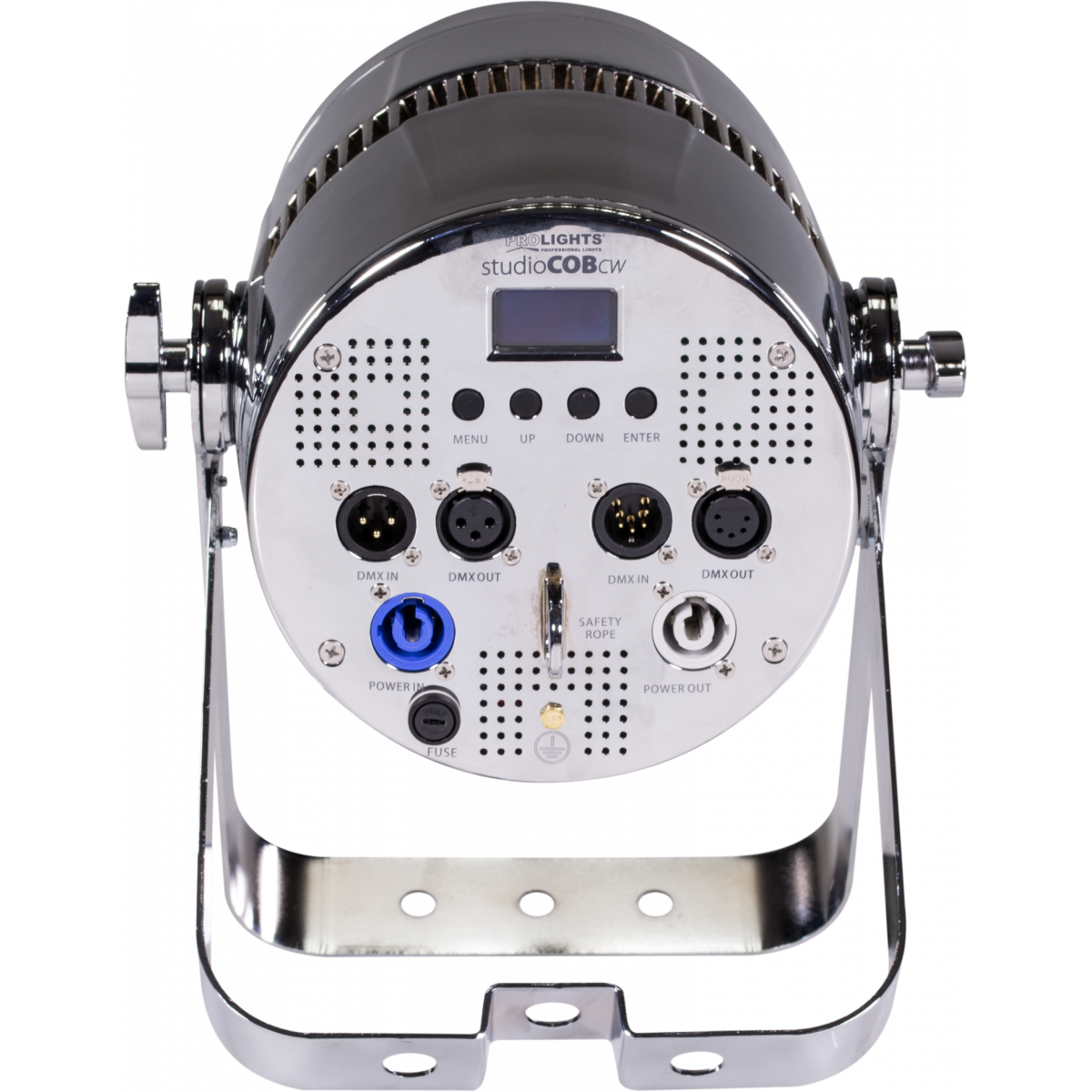

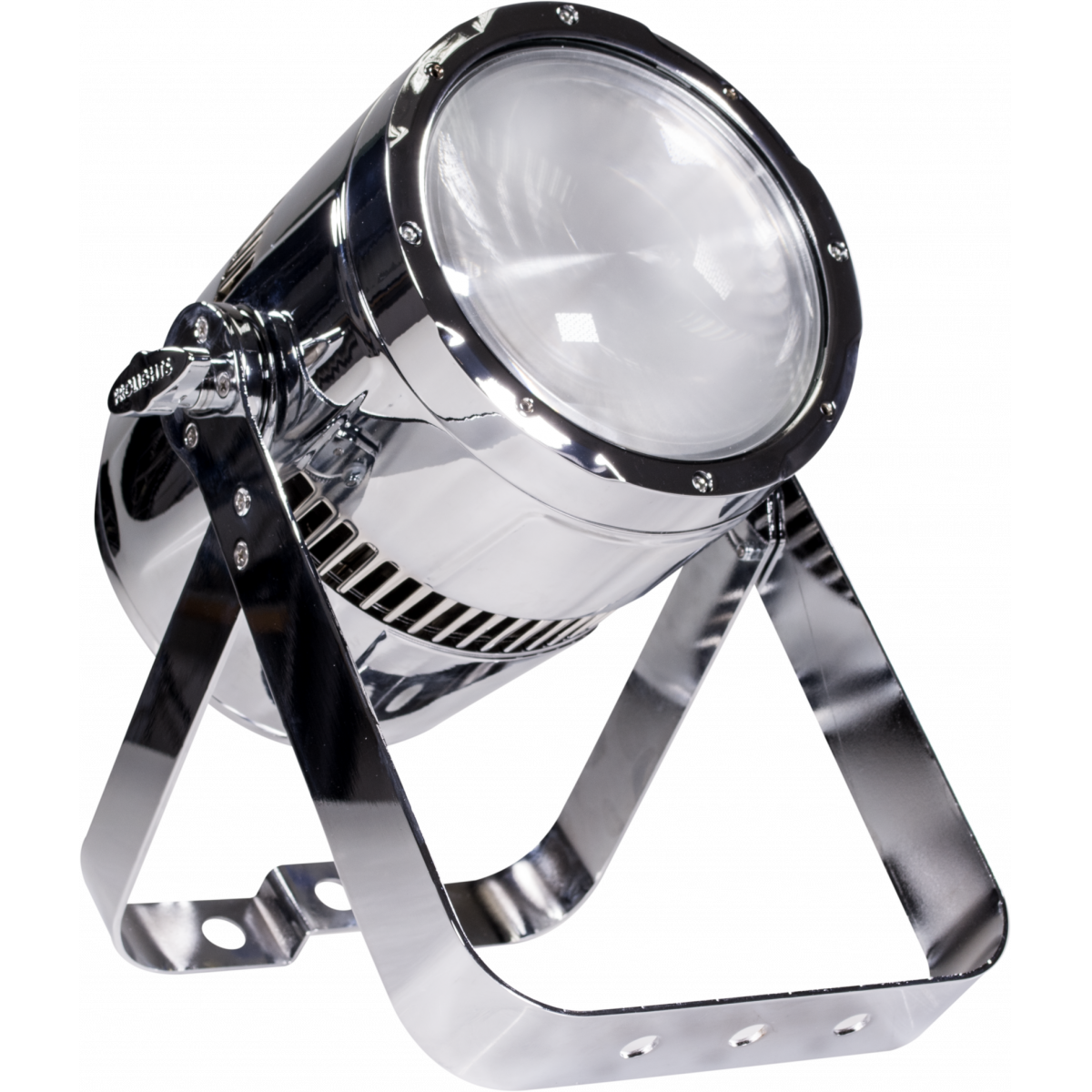

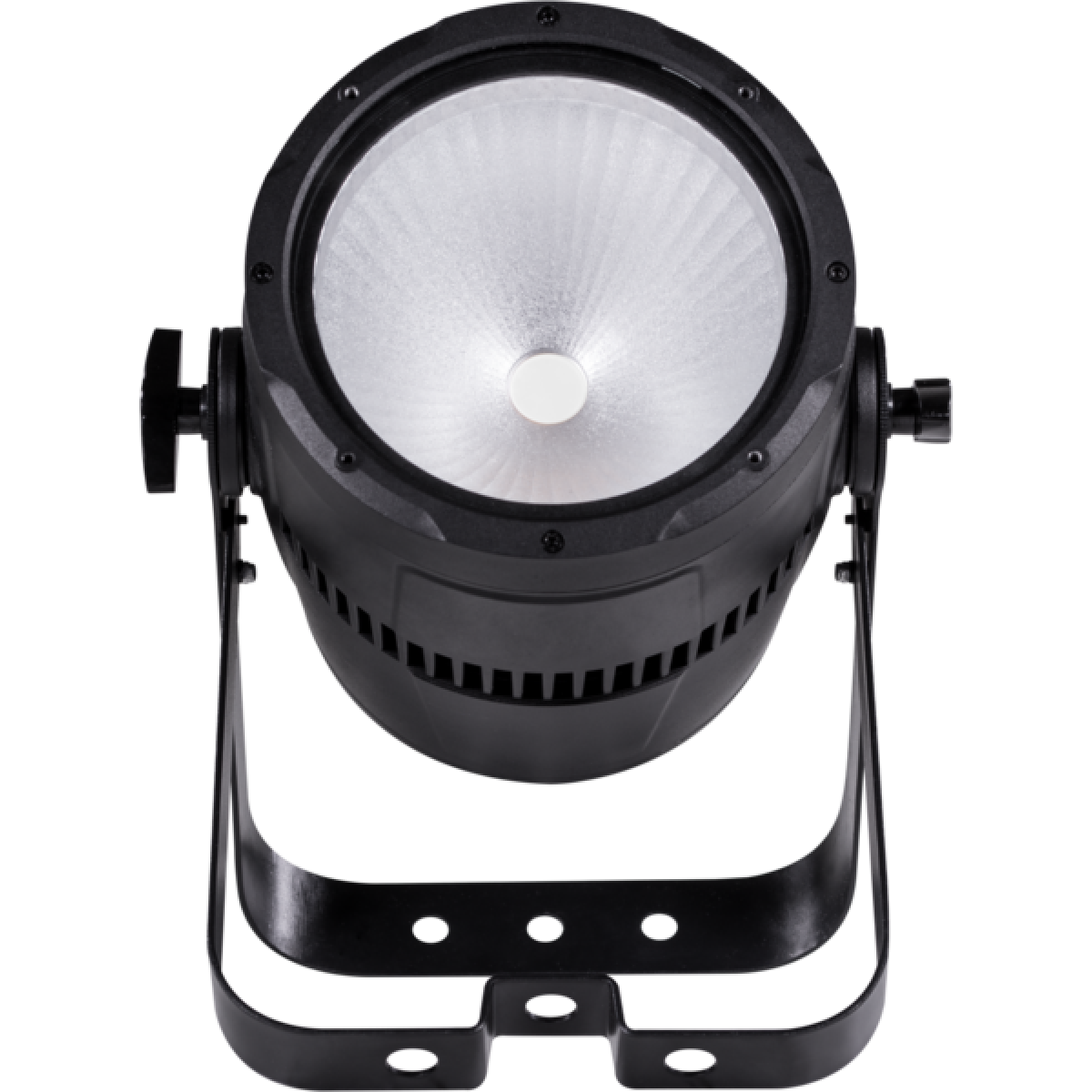

PHOTO GALLERY

StudioCob CW
StudioCob CW
StudioCob CW
StudioCob CW
StudioCob CW

Technical specifications

LIGHT SOURCE
  • Source: 100W White COB LED
  • CCT: 5.000
  • Luminous flux: 4'880lm
  • Lux: (60°) 599,7lx @3 m
  • Lux: (30°) 1936lx @3 m
  • CRI: > 91
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 60°
  • Field angle: 80°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (opt) - 15° (opt)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 1 / 2 / 5channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 121W
  • Max power consumption (at 120V): 120W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Housing
STUDIOCOBCWBK
STUDIOCOBCWBK
Black
STUDIOCOBCWCR
STUDIOCOBCWCR
Chrome

Accessories & Related Products

STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
STUDIOCOBL15
STUDIOCOBL15
(optional)
Optics for STUDIOCOB projectors series, 15°
STUDIOCOBL30
STUDIOCOBL30
(included)
Optics for STUDIOCOB projectors series, 30°
FCLPAR4190
FCLPAR4190
(optional)
Flight case for 8 STUDIOCOB, VERSAPAR
STUDIOCOBTPG
STUDIOCOBTPG
(optional)
Filter frame for STUDIOCOB projectors
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manual Studiocobcw_USER_MANUAL_ITEN.pdf 1MB

DMX chart & personalities

File name File size Download
DMX chart Studiocobcw_DMX_CHARTS.pdf 37KB

Photometrics

File name File size Download
PDF Photometrics Studiocobcw_PHOTOMETRICS.pdf 384KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
2D Studiocobcw_2D.dwg 3MB
3D Studiocobcw_3D.dwg 540KB
Technical drawing Studiocobcw_TECHNICAL_DRAWING.pdf 422KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
