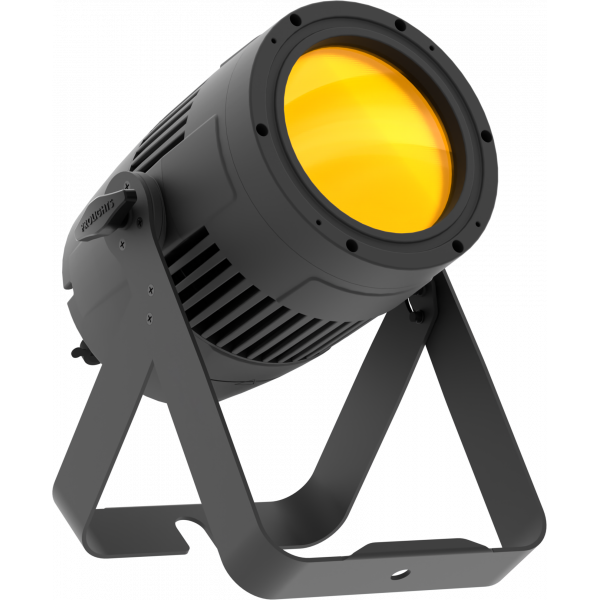

StudioCob PlusFC

150W IP65 rated full colour COB LED Par

StudioCob PlusFC is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Main features:

  • IP65 rated connectors for easy use both indoor and outdoor
  • 150W RGBW COB LED source with HD dimming with an extensive and even colour palette
  • Flexible lens options of 18° - 38° - 60°
See variants

PHOTO GALLERY

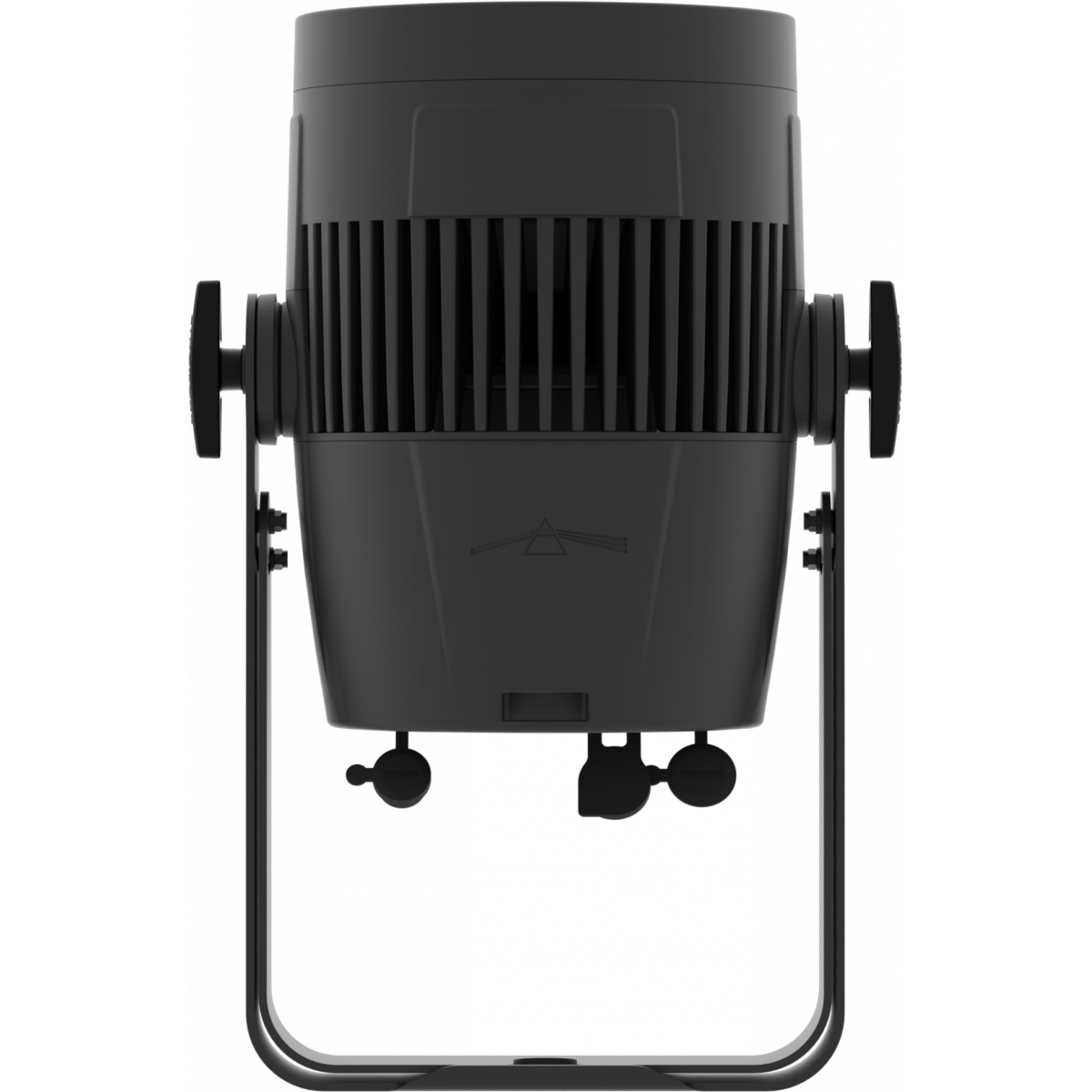

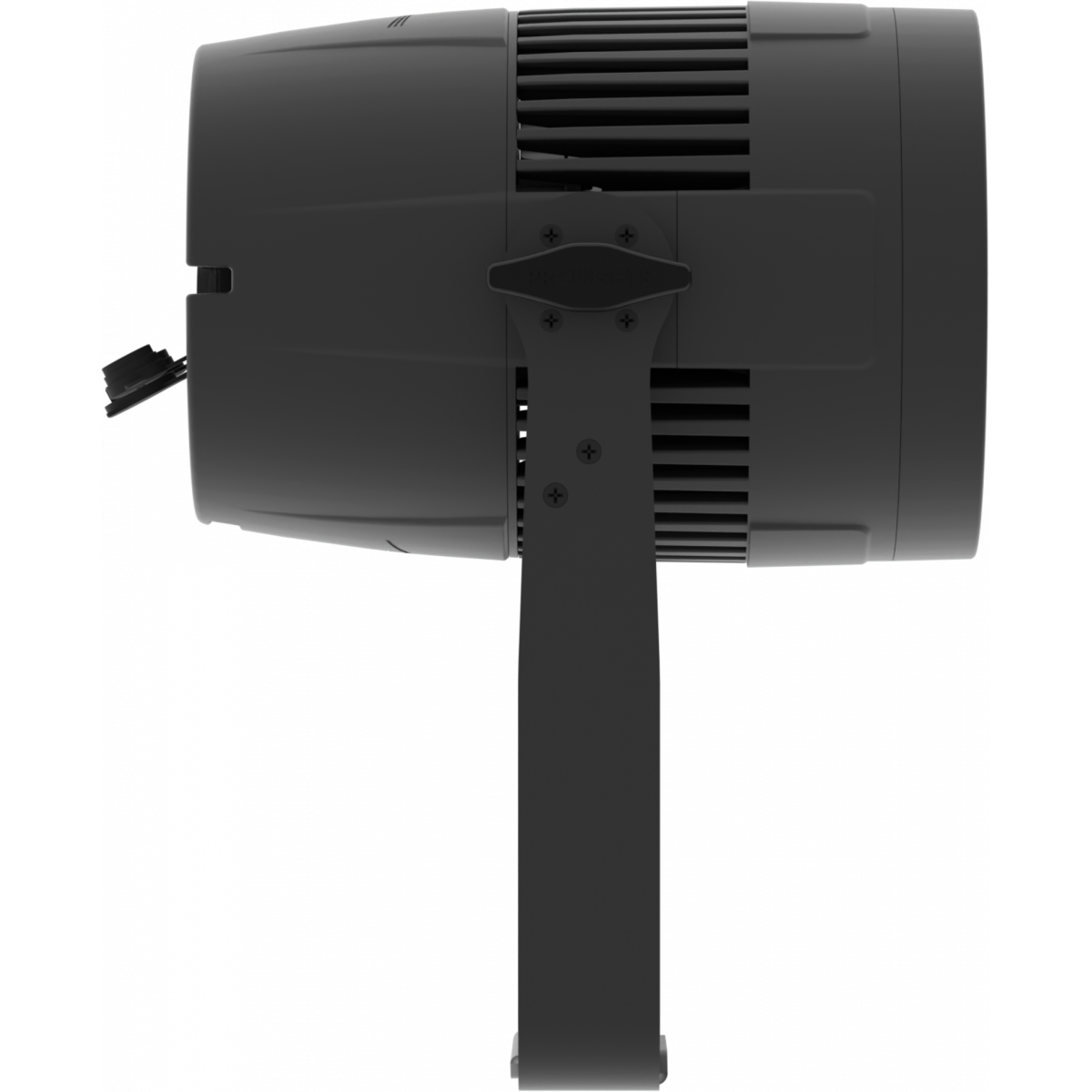

StudioCob PlusFC
StudioCob PlusFC
StudioCob PlusFC
StudioCob PlusFC
StudioCob PlusFC
StudioCob PlusFC

Technical specifications

LIGHT SOURCE
  • Source: 150W COB RGBW / FC LED
  • Luminous flux: (18°) 3'530 lm - (38°) 3'172
  • Lux: (18°) 2'558lx @3 m full
  • Lux: (38°) 645lx
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
  • Field angle: (on-board) 36° - (inc) 63°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 38° (inc)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 4 / 6 / 10channel
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 140W
  • Max power consumption (at 120V): 145W
  • Output (at 230V): 18 units on a single power line
  • Power factor: 0,96
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

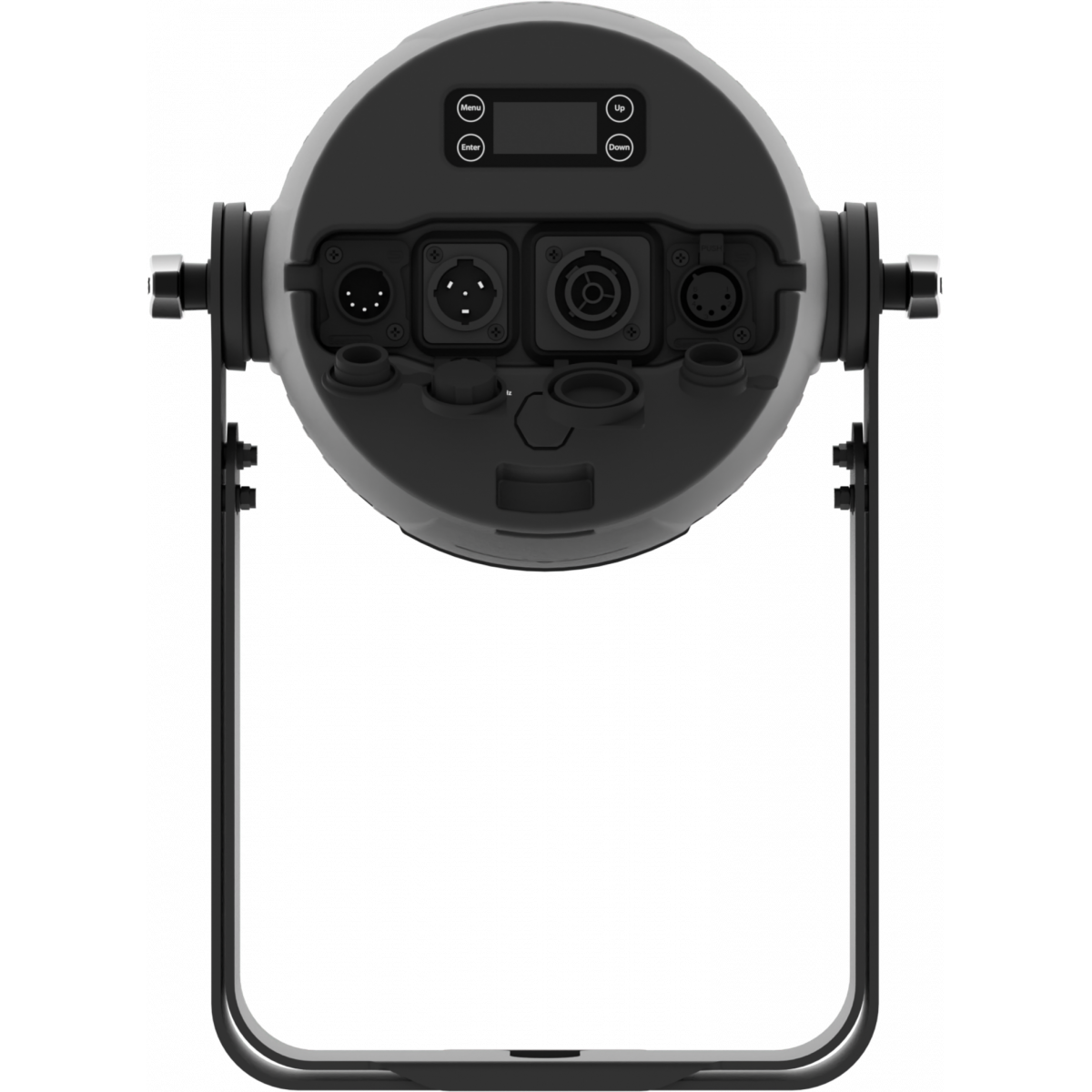

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 259x187x370mm / 10.2''x7.36''x14.57''
  • Weight: 5,6kg / 12.35lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing

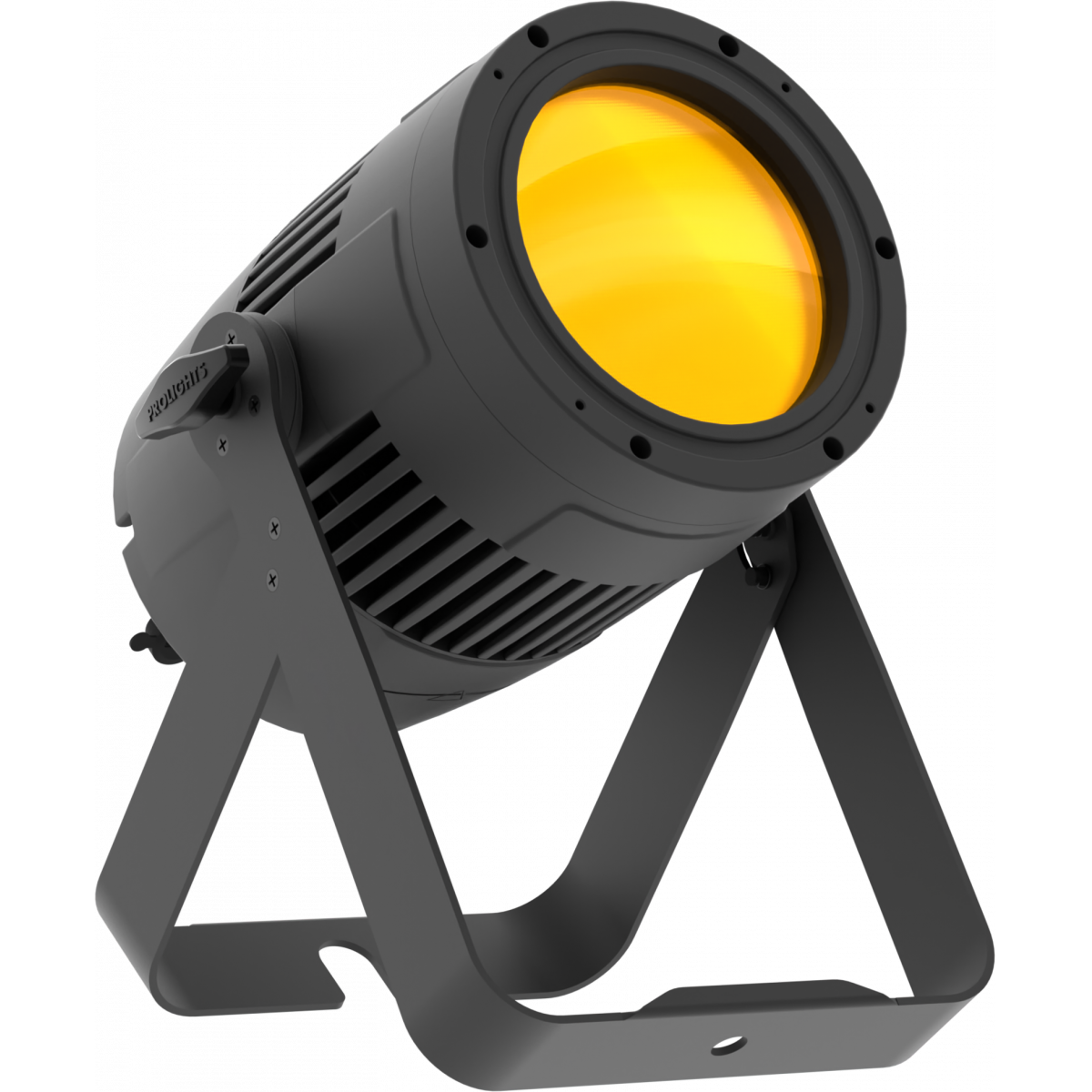

STUDIOCOBPLUSFCBK
STUDIOCOBPLUSFCBK
Black

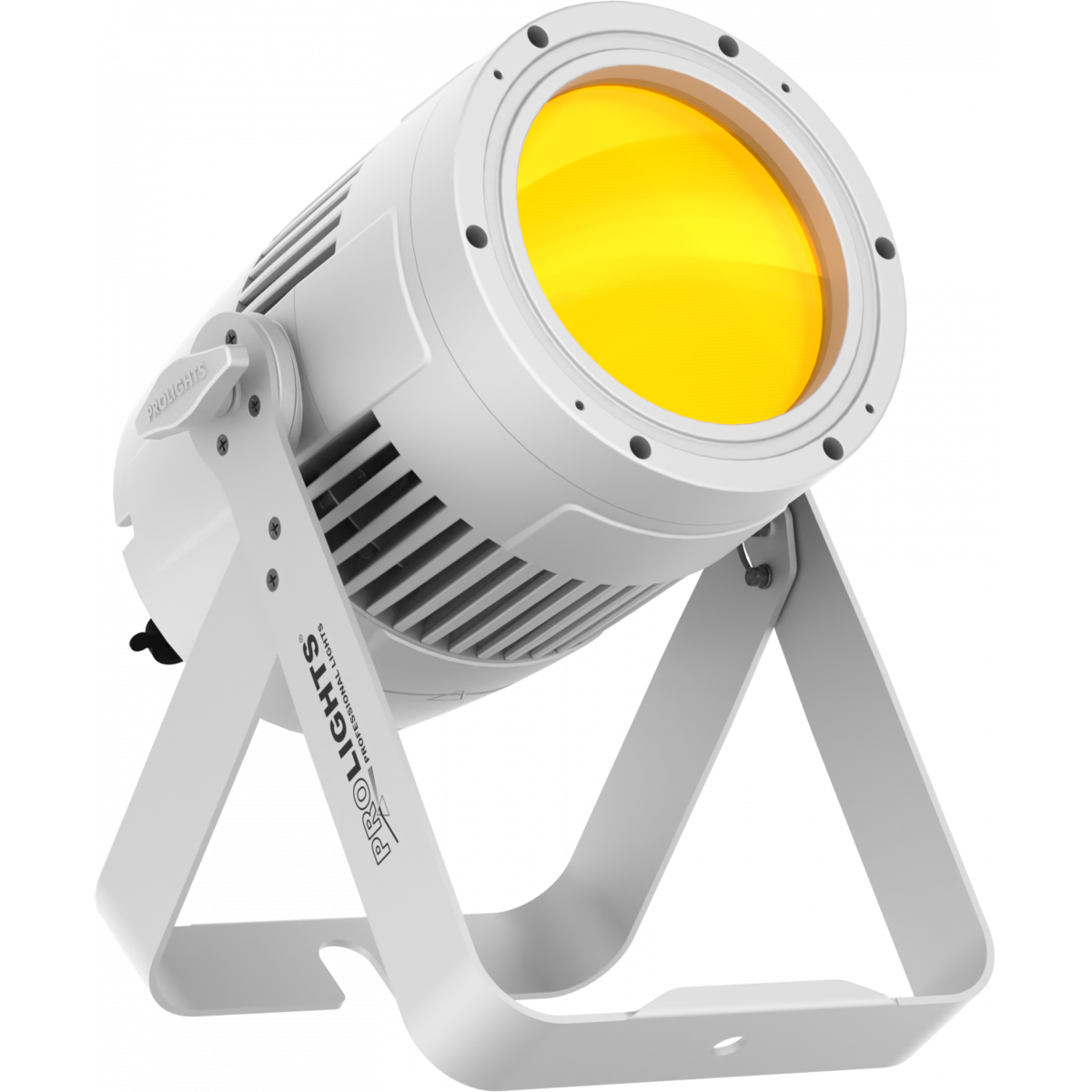

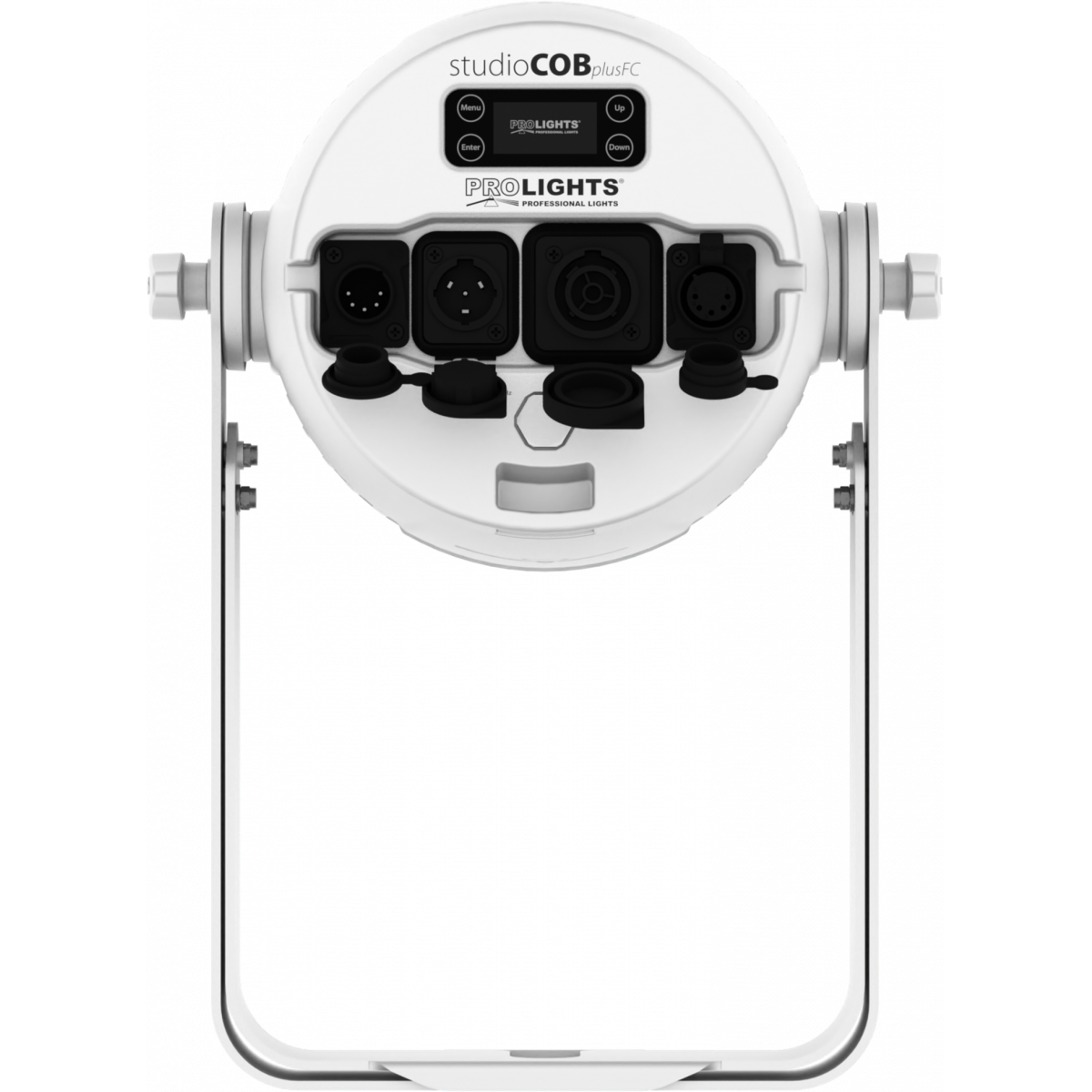

STUDIOCOBPLUSFCWH
STUDIOCOBPLUSFCWH (DISCONTINUED)
White

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
STUDIOCOBTPG
STUDIOCOBTPG
(Optional)
Filter frame for STUDIOCOB projectors

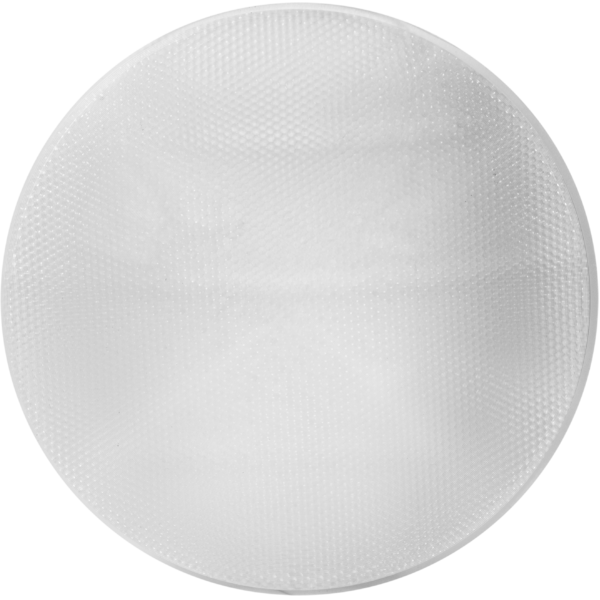

STUDIOCOBPLUSL60
STUDIOCOBPLUSL60
(Optional)
Optics for STUDIOCOBLUS projectors series, 60°
STUDIOCOBBD
STUDIOCOBBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
FCLCOBPLUS
FCLCOBPLUS
(Optional)
Flight case for 8 STUDIOCOBPLUS
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStudiocobplusfc_LETTER_DATASHEET_(EN).pdf384KB
Letter datasheetStudiocobplusfc_A4_DATASHEET_(IT).pdf435KB
Letter datasheetStudiocobplusfc_A4_DATASHEET_(EN).pdf383KB

User manual

File name File size Download
User manualStudiocobplusfc_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartStudiocobplusfc_DMX_CHARTS.pdf53KB
STUDIOCOBPLUSFC Firmware rev. 2.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_4ch.hedDownload
prolights_studiocobplusfc_6ch.hedDownload
prolights_studiocobplusfc_10ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob plus fc 4 channel.fix2Download
studio cob plus fc 6 channel.fix2Download
studio cob plus fc 10 channel.fix2Download
STUDIOCOBPLUSFC Firmware rev. 2.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_4ch.hedDownload
prolights_studiocobplusfc_6ch.hedDownload
prolights_studiocobplusfc_10ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_studiocobplusfc_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
studio cob plus fc 4 channel.fix2Download
studio cob plus fc 6 channel.fix2Download
studio cob plus fc 10 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAStudiocobplusfc_3D.rfa1MB
3D sketchupSTUDIOCOBPLUSFC_3D_SKETCHUP.zip741KB
2DStudiocobplusfc_CAD_2D.dwg5MB
2D cad symbolsStudiocobplusfcbk_CAD_2DSYMBOLS.dwg65KB
3DSTUDIOCOBPLUSFC_3D.zip1MB
Technical drawingStudiocobplusfc_TECHNICAL_DRAWING.pdf226KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksSTUDIOCOBPLUSFC_SYMBOLS.zip1MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.6 STABLE 31/10/2023 Improvement:
  • Increased to 65535 the maximum working hours of the device.
